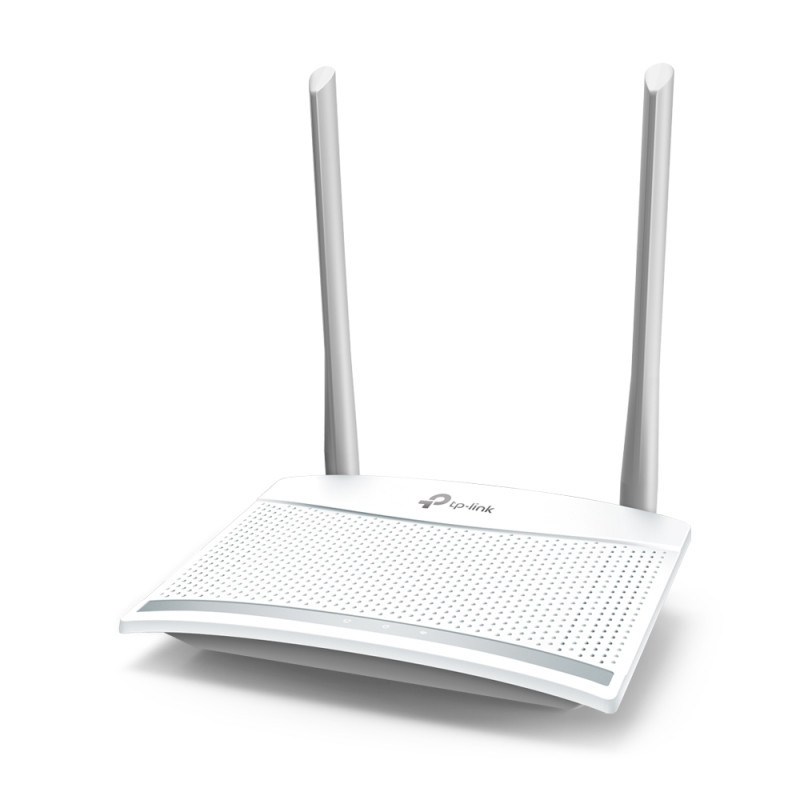

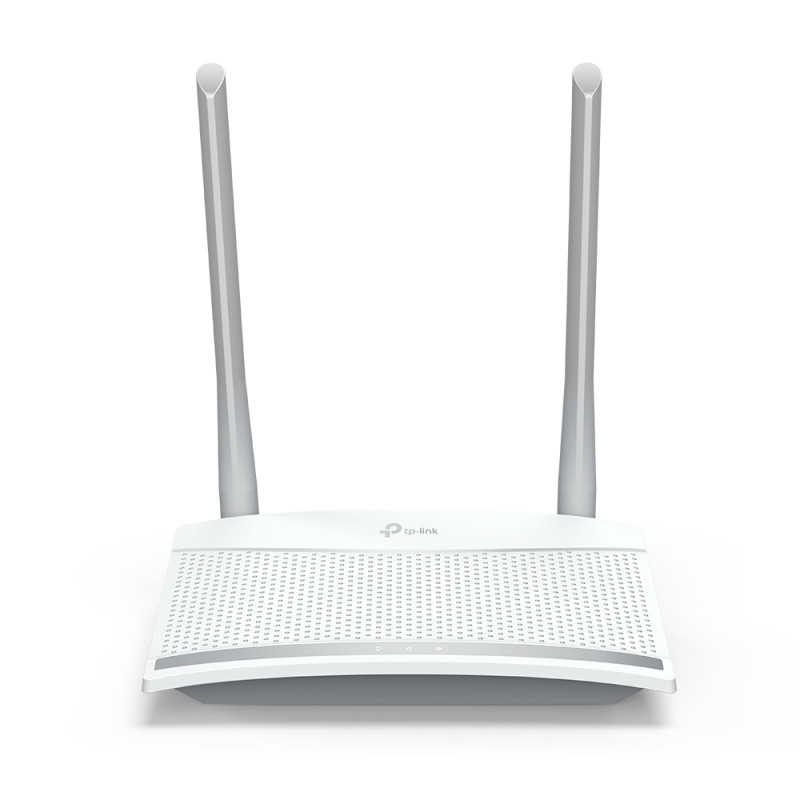

TP-LINK 300Mbps Wi-Fi Router
TP-LINK 300Mbps Wi-Fi Router
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Compatible with IPv6 (Internet Protocol version 6)
Guest Network provides separate access for guests while securing the host network
Parental Controls manage when and how connected devices can access the internet
Security protocols protect your home network with firewalls and wireless encryption
300Mbps Wireless N Speed - Fast Downloads
TL-WR820N is compatible with IEE 802.11b/g/n and provides a high-speed Wi-Fi. Enjoy speeds of up to 300 Mbps for even your most demanding home networking needs, such as HD streaming, online gaming, and downloading large files.
Strong Signal, Great Coverage
Two powerful 5dBi antennas and 2×2 MIMO enhance wireless transmission to deliver broader wireless coverage with stronger signal intensity.
Smooth Video Streaming
IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free.
Guest Network
The Guest Network function provides secure access for guests to use your Wi-Fi network. Share with anyone, without compromising your private network.
Premium Design
An ergonomic shape and sleek texture make for a stylish addition to any room. A hole-punched top plate dissipates heat to ensure long-term functionality and stable operation.
IPv6 Compatible
Compatible with the most recent Internet Protocol version (IPv6) keeps your router future-proof and allows you to enjoy IPv6 services provided by your ISP and visit IPv6 websites.
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
| PACKAGE CONTENTS | |
|---|---|

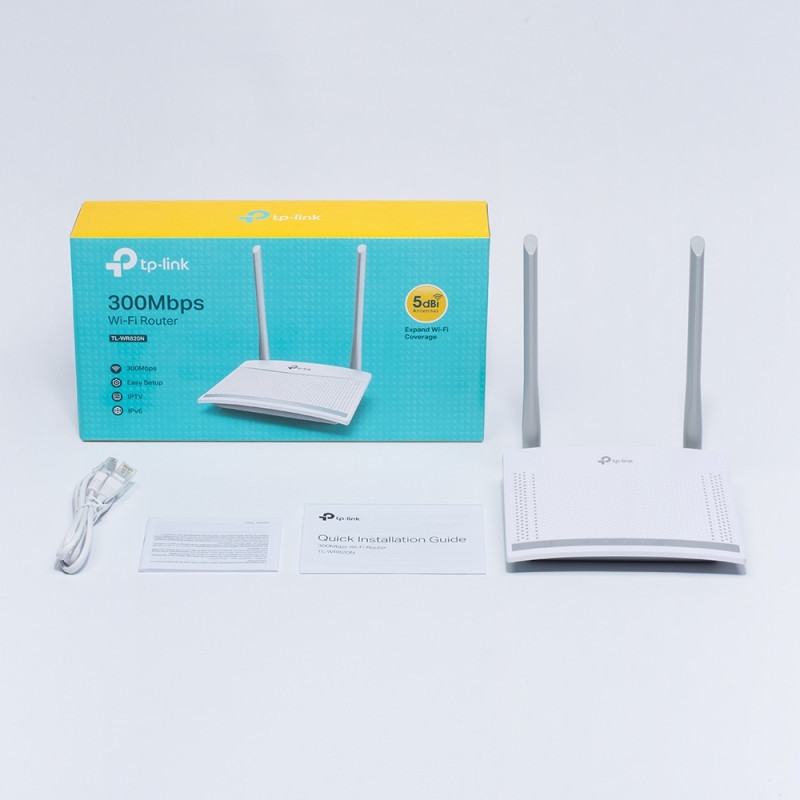

| Package Contents | 300Mbps Wi-Fi Router TL-WR820N Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
| HARDWARE FEATURES | |
|---|---|

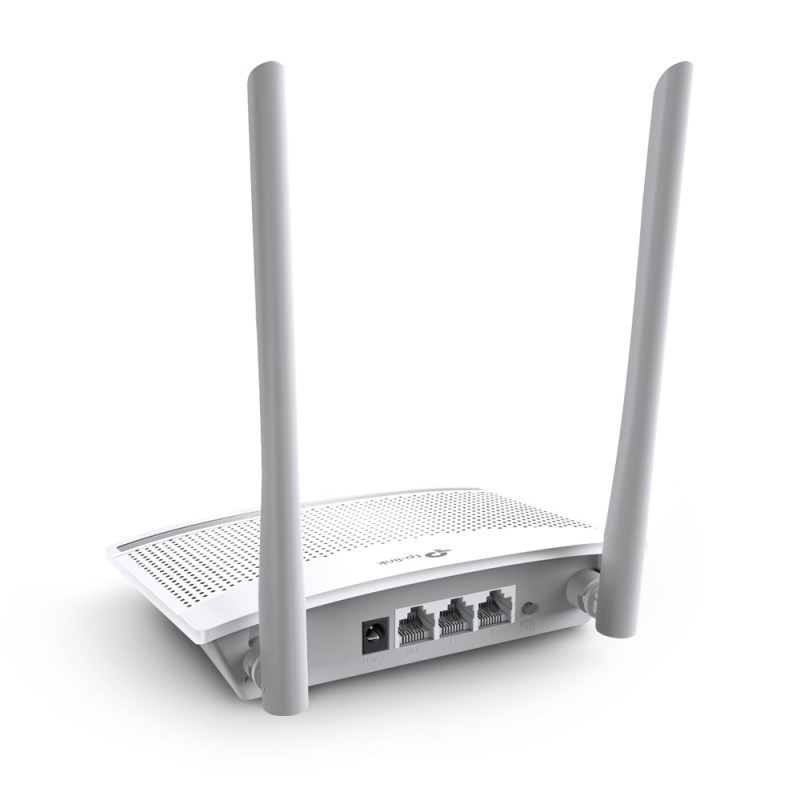

| Ports | 2 10/100Mbps LAN Ports 1 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 5VDC / 0.6A |
| Dimensions (W x D x H) | 6.1 x 4.5 x 1.4 in. (154 x 114 x 36mm) |
| Antenna | 2 Fixed 5dBi Omni Directional Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.412~2.472GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -70dBm@10% PER 130M: -72dBm@10% PER 108M: -74dBm@10% PER 54M: -75dBm@10% PER 11M: -94dBm@8% PER 6M: -95dBm@8% PER 1M: -96dBm@8% PER |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WEP, WPA/WPA2, WPA/WPA2-PSK |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List |
| Port Forwarding | Virtual Server, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Access Control | Parental Controls, Local Management Control, Host list, Access Schedule, Rule Management |
| Firewall Security | SPI firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4GHz Guest Network |
| Working Modes | Wireless Router |
| INTERFACES | |
|---|---|
| Network Interface | 2 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
| Power Connector | 5VDC / 0.6A |
| Button | WPS/Reset Button |
| COMPATIBILITY | |
|---|---|
| Supported OS | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | 300Mbps Wi-Fi Router TL-WR820N Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
