TELTONIKA Wi-Fi 4 Access Point, with PoE Injector

TAP100 is the first-ever Teltonika Networks Access Point, perfect for strengthening Wi-Fi coverage in small enterprises and commercial spaces. This PoE-in access point can be powered by active PoE devices via its RJ45 port and was designed with simplicity and ease of installation in mind.

PoE-INCan be powered by PoE devices via RJ45 port

SLEEK DESIGNUV-stabilized plastic housing that blends in with its environment

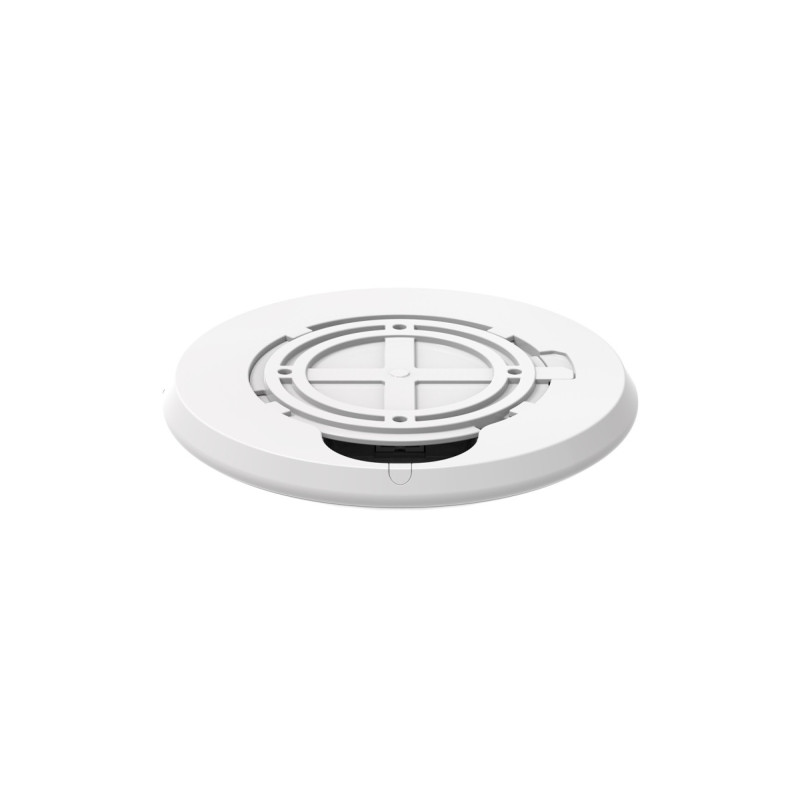

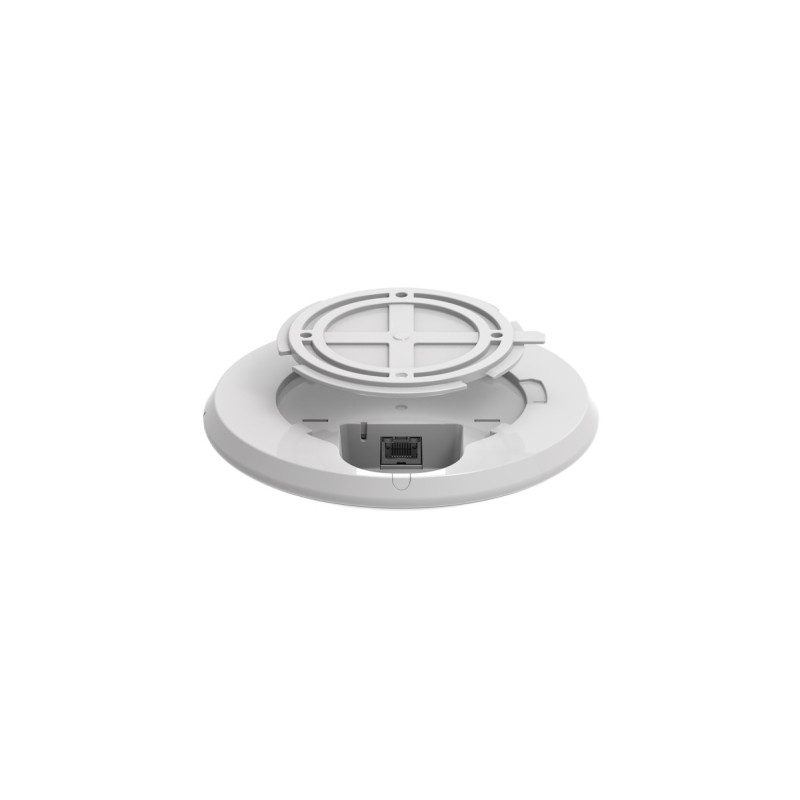

EASY INSTALLATIONIntegrated mounting bracket for easy ceiling setup

RMS MANAGEMENTFree access to RMS Management for 24 months

WirelessWireless mode: IEEE 802.11b/g/n (Wi-Fi 4) Wi-Fi security: WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, client separation SSID/ESSID: SSID stealth mode and access control based on MAC address Wi-Fi users: Up to 100 simultaneous connections Wireless mesh/roaming: Fast roaming (802.11r) Wireless MAC filter: Whitelist, blacklist

EthernetEthernet: 1 x RJ45 port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NetworkNetwork protocols: TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH, DHCP client, SMNP

SecurityAuthentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP Login attempts block VLAN: Tag-based VLAN separation

Monitoring ManagementWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SNMP: SNMP (v1, v2, v3), SNMP Trap JSON-RPC: Management API over HTTP/HTTPS RMS: Teltonika Remote Management System (RMS)

System CharacteristicsCPU: Mediatek, 580 MHz, MIPS 24KEc RAM: 64 MB, DDR2 FLASH storage: 16 MB, SPI Flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration

Firmware customizationOperating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided

PowerConnector: RJ45 Socket Input voltage range: 44.0 - 57.0 V PoE standards: 802.3af PoE Class 1 Power consumption: < 2 W Max

Physical InterfacesEthernet: 1 x RJ45 ports, 10/100 Mbps Status LEDs: 1 x Power LED (can be turned off from web-UI) Antennas: 2 x Internal for 2.4 GHz Wi-Fi Reset: Reboot/User default reset/Factory reset button

Physical SpecificationCasing material: UV stabilized plastic Dimensions: Ø 158 mm x 30 mm Weight: 190 g Mounting options: AP Mounting Bracket (for ceiling mount)

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, CB, FCC, IC, WEEE

EMC Emissions ImmunityStandards: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 61000-3-2:2019+A1:2021 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 ESD: EN 61000-4-2:2009 RS: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge protection: EN 61000-4-5:2014+A1:2017 CS: EN 61000-4-6:2014 DIP: EN IEC 61000-4-11:2020

Performance SpecificationsStandards: EN 300 328 V2.2.2

SafetyStandards: IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 EN IEC 62311:2020

Package contains:- Access Point TAP100 - 18W IEEE802.3af/at PoE Injector - QSG (Quick Start Guide) - Wi-Fi Information sticker - Packaging box
