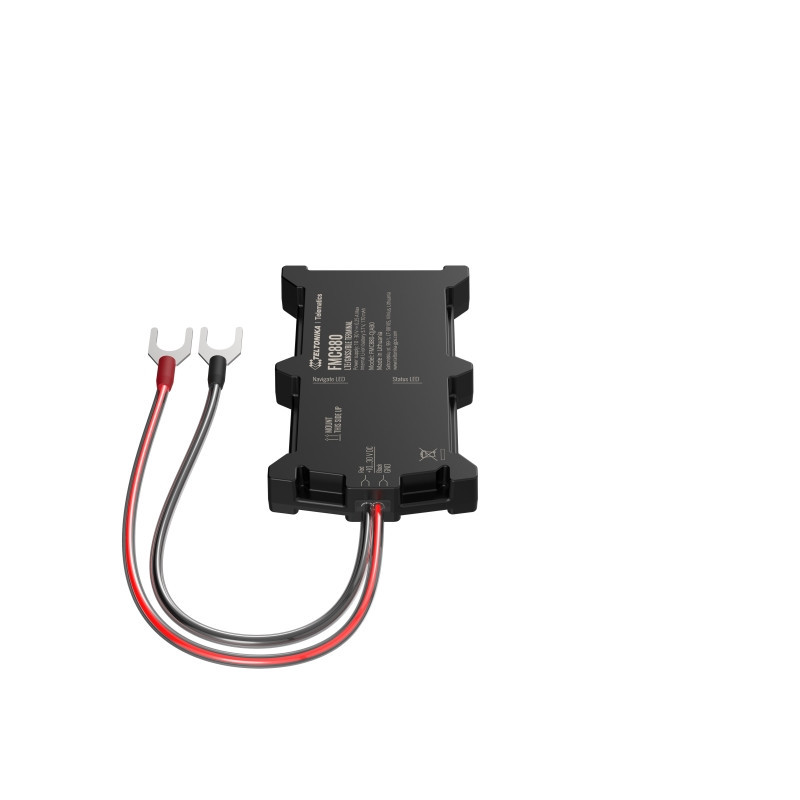

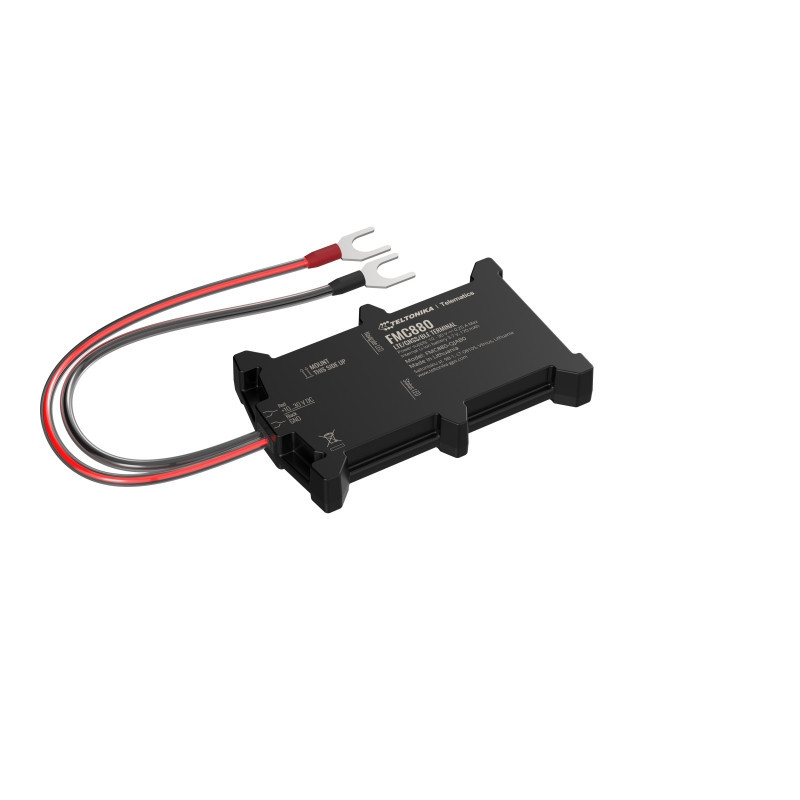

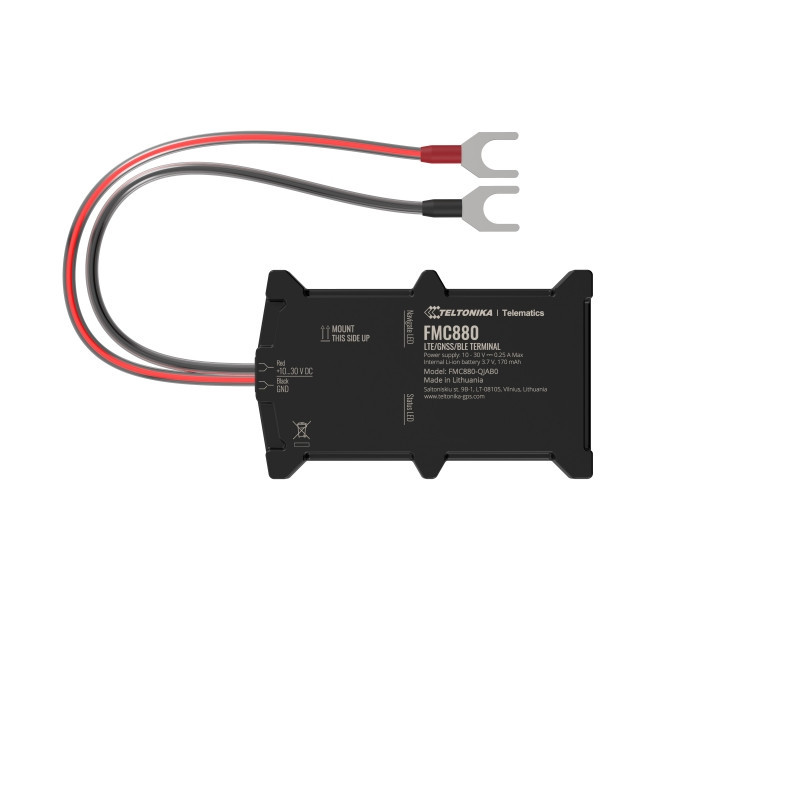

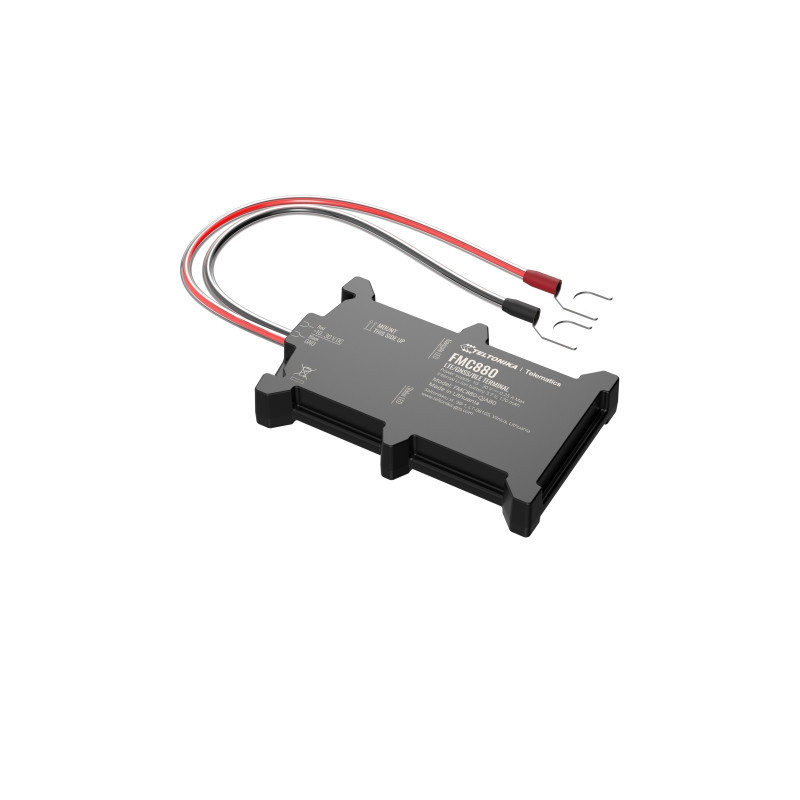

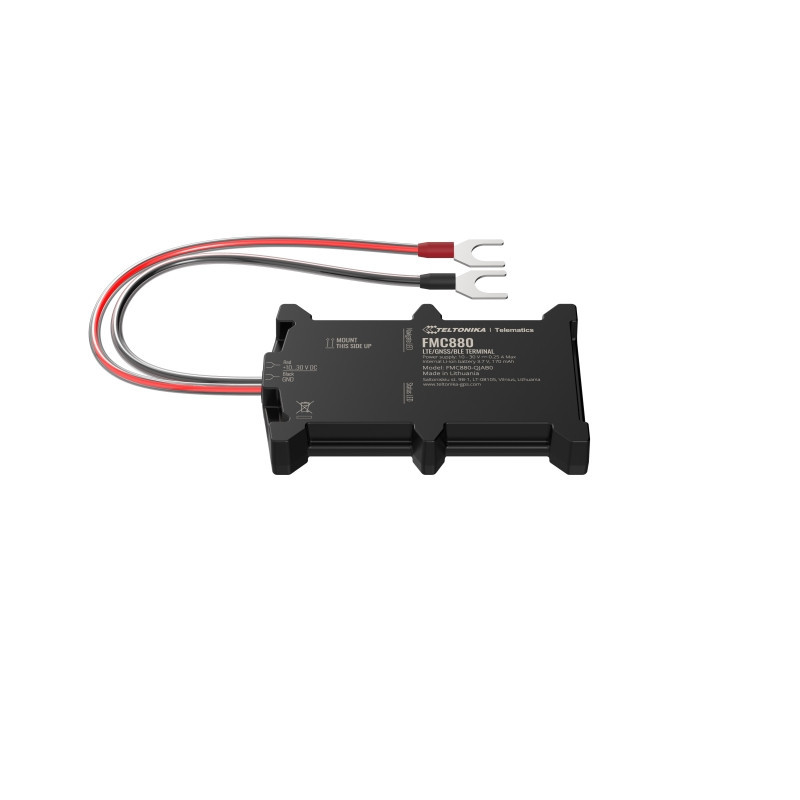

TELTONIKA Waterproof Tracker with 4G LTE Cat.1 Connectivity

FMx8 series devices areeasy to useandquick to installThe number 8 combines everything in one place and stands out for its simplicity for basic tracking. The Teltonika FMC880 tracker is a waterproof device with 4G LTE Cat 1 and Bluetooth connectivity.Very quick and easy installation allows you to connect the device in minutes!No special knowledge or engineering assistance is required for installation. This vehicle GPS tracker has a higher IP65 resistance rating and a slim design, which is an essential feature when installing under the hood.

This makes the FMC880 tracker ideal for light vehicle tracking, applications such as courier delivery services, car rental and leasing, insurance telematics and many other industries where simple integration is essential. It is a great solution for real-time tracking, especially for startups and those looking for new opportunities to expand their business.

The FMC880 device has a built-in accelerometer that provides accurate accident tracking data. This tracker also supports various Bluetooth Low Energy sensors, beacons, software and configuration updates via Bluetooth. All this increases the number of possible use cases in any market. It is quick to install, easy to use and ready to start tracking in minutes!

ModuleName: FMC880-QJAB0: Quectel EG915U-EU with AG3335 Technology: LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH

GNSSGNSS: L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS* L5: GPS, GALILEO, BEIDOU Receiver: L1: 75 channel L5: 60 channel Tracking sensitivity: -165 dBM Position Accuracy: < 1 m CEP Velocity Accuracy: < 0.1 m/s (within +/- 15% error) Hot start: < 1 s Warm start: < 24 s Cold start: < 35 s

Cellular2G band: GSM: B2/B3/B5/B8 4G LTE Cat M1 band: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 Data transfer: LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) Transmit power: Class 5 for GSM850/900: 30±5dBM Class 3 for GSM1800/1900: 29±5dBM Class 3 for LTE-FDD: 26±5dBM Bluetooth: 5.54±2dBM Bluetooth LE: -4.26±2dBM Data support: SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT)

PowerInput voltage range: 10-30 V DC with overvoltage and reverse polarity protection Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) Internal fuse: 3A, 125V

BluetoothSpecification: 4.0 + LE Supported peripherals: Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Physical specificationDimensions: 92.5 x 57.6 x 14 mm (L x W x H) Weight: 63 g

InterfaceGNSS antenna: Internal High Gain Cellular antenna: Internal High Gain USB: 2.0 USB Micro B LED indication: 2 status LED lights SIM: Micro-SIM Memory: 128MB internal flash memory

Operating environmentOperating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating temperature (with battery): 0 °C to +40 °C Storage temperature (with battery): -20 °C to +45 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP65 Battery charge temperature: 0 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C Battery storage temperature: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months

FeaturesSensors: Accelerometer Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update: FOTA Web, Teltonika Configurator (USB, Bluetooth) SMS: Configuration, Events, Debug GPRS commands: Configuration, Debug Time Synchronization: GNSS, NITZ, NTP Ignition detection: Accelerometer, External Power Voltage

Certifications approvalsRegulatory: CE/RED, E-Mark, RCM, REACH, RoHS
