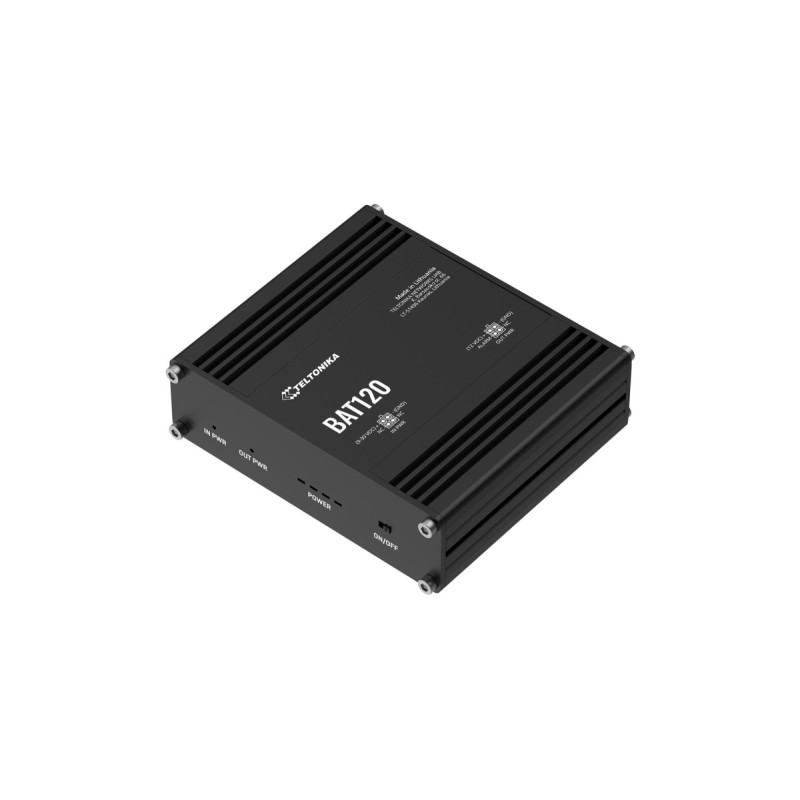

TELTONIKA Uninterruptible Power Supply BAT120

BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery.

Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features.

This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur.

Power

Connector: 4-pin industrial DC power socket
Input power/max charging current:
Charger: max 9.5 W / 800 mA (max battery charging current) (From batch 26)
Charger: max 4 W / 300 mA (max battery charging current) (From batch 1-25)
Input voltage range: 9 - 30 VDC
Input protection: Reverse polarity protection, Overvoltage protection
Output voltage in passthrough mode: 9 - 30 VDC
Output voltage in battery mode: 12 VDC
Output protection: 3 A overcurrent protection
Max output power/current in battery mode: 22 W / 1.8 A
Battery capacity: 2600 mAh 17 Wh
Power IN: 1x 4-pin DC connector
Power OUT: 1x 4-pin DC connector

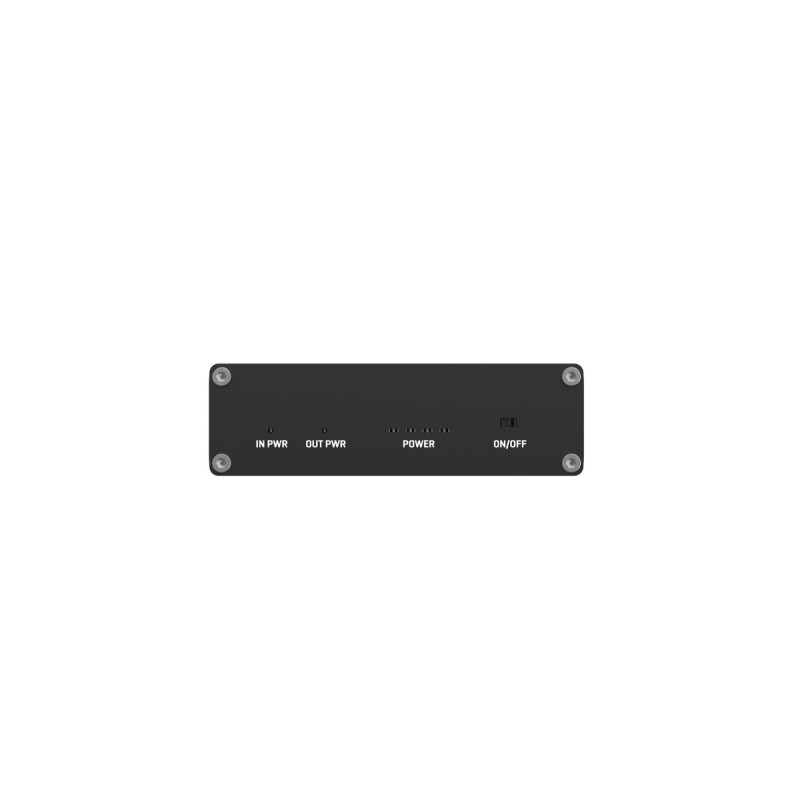

Status LEDs: 1x IN PWR LED, 1x OUT PWR LED, 4x Power status LEDs
Switch: On/Off slider switch

Alarm Output

Alarm Output: 1x Active HIGH output, max output 12 V, 2.5 mA

Genereal Characteristics

Lithium cells: 2x 18650 Li-Ion cells
Compatible devices: Compatible with devices with a 4-pin power connector ( see the full list ), excluding certain PoE-enabled models such as TSW100 and RUT951 PoE+. To ensure compatibility, please review the device's features and power requirements.

Physical Specification

Casing material: Anodised aluminium housing and panels
Dimensions (W x H x D): 100 x 30 x 85 mm
Weight: 315g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature: 0 °C ~ 45 °C

Regulatory Type Approvals

Regulatory: CE/RED, UKCA, EAC
