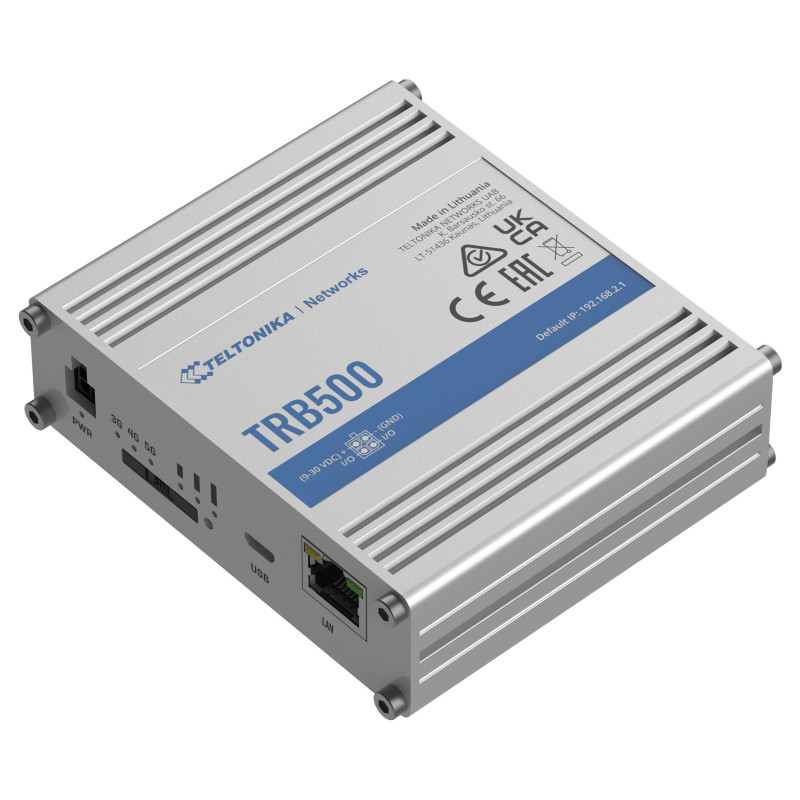

Teltonika TRB500 gateway / controller

Teltonika TRB500. Product colour: Stainless steel, Enclosure material: Aluminum, Mounting type: DIN-rail/Wall mounting. Antenna type: External, Antenna connector type: SMA. Processor frequency: 1500 MHz, Internal memory: 256 MB, Flash memory: 512 MB. Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP,..., Routing protocols: NHRP, BGP, EIGRP, OSPFv2, RIP-1, RIP-2. Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X)

5G
Ultra-high cellular speeds of up to 1 Gbps

SA & NSA
Supports both architectures to leverage the 5G infrastructure

ULTRA-LOW LATENCY
Single-digit latency for mission-critical applications

GIGABIT ETHERNET
Reliable communication for high data throughput

COMPACTNESS
One of the smallest 5G gateways available in the market

FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies

Design

Product colour: Stainless steel
Enclosure material: Aluminum
Mounting type: DIN-rail/Wall mounting
LED indicators: LAN, Power, Signal strength, Status
International Protection (IP) code: IP30

Features

Antenna type: External
Antenna connector type: SMA
Antennas quantity: 4
Feature: Short Message Service (SMS)

Performance

Feature: Built-in processor
Processor frequency: 1500 MHz
Internal memory: 256 MB
Flash memory: 512 MB

Protocols

Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Routing protocols: NHRP, BGP, EIGRP, OSPFv2, RIP-1, RIP-2

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Dynamic DNS (DDNS)

Security

Feature: MAC address filtering
Firewall security: Yes
Feature: DoS attack prevention
Feature: VLAN support
Feature: Network address translation (NAT)

Ports & interfaces

Feature: SIM card slot
SIM card type: MiniSIM
Number of simultaneous SIM cards: 1
Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Web-based management
Feature: Reset button
Feature: Syslog

Power

Power consumption (max): 6 W
DC input voltage: 9 - 30 V

Weight & dimensions

Width: 100 mm
Depth: 93.4 mm
Height: 30 mm
Weight: 241 g

Packaging content

Feature: AC adapter included
Feature: Quick start guide
Cables included: LAN (RJ-45), Micro-USB

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
