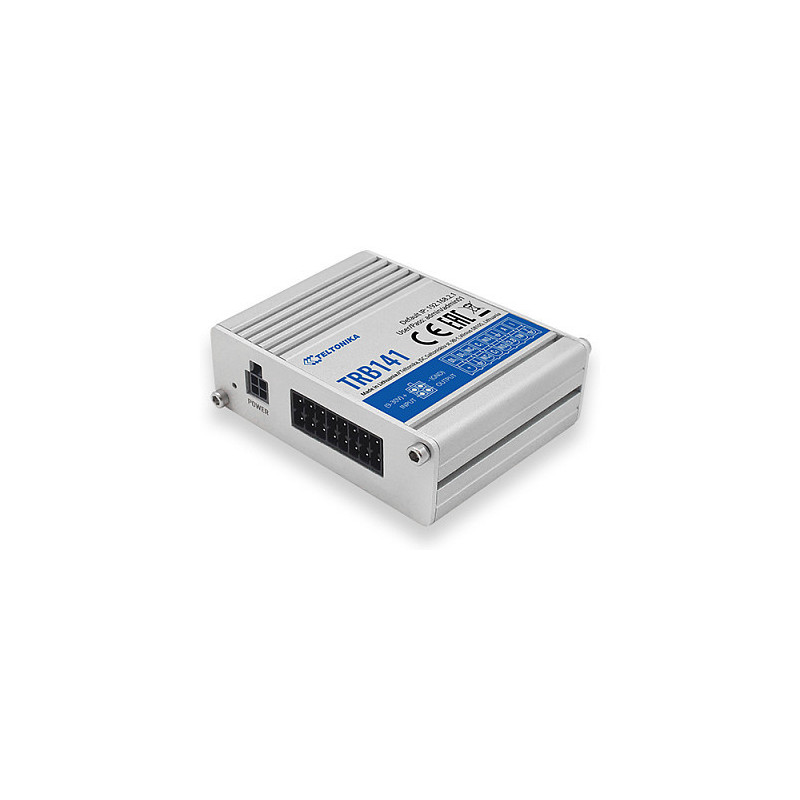

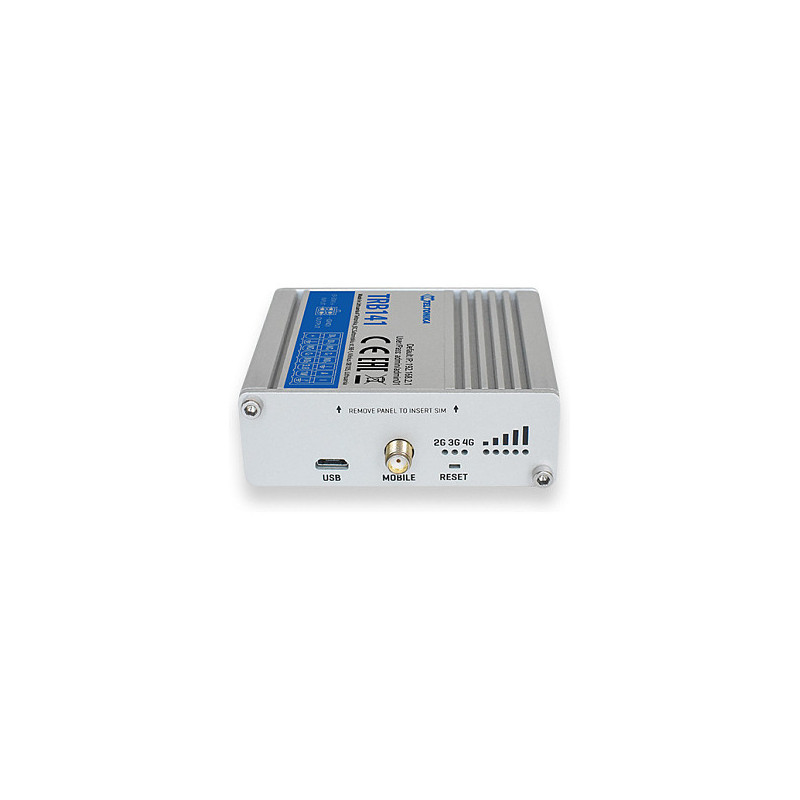

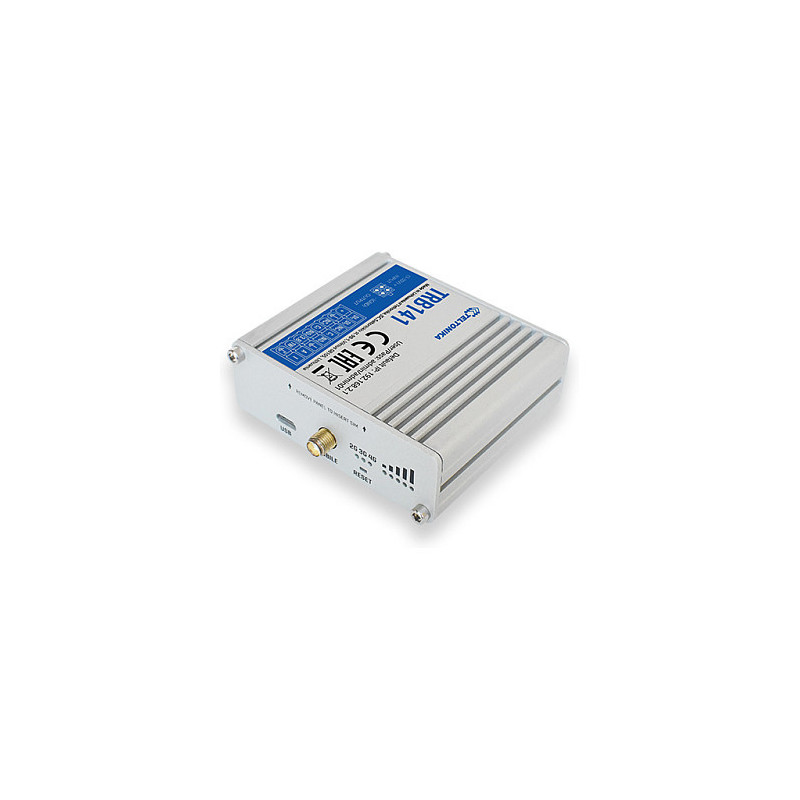

Teltonika TRB141 gateway / controller

Teltonika TRB141. Product colour: Grey, International Protection (IP) code: IP30. Antenna type: External, Antenna connector type: SMA. Processor frequency: 1200 MHz, Internal memory: 128 MB, Flash memory: 512 MB. Management protocols: HTTP/HTTPS, JSON-RPC, RMS, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT. VPN support: OpenVPN, IPsec, GRE, PPTP, L2TP, NAT functionality: NAT, NAT-T

This Industrial LTE Cat 1 Gateway is equipped with several Input & Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support.

Standart package contains

- TRB141 Gateway
- Euro PSU
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x hex key
- I/O connector
- QSG (Quick Start Guide)
- Packaging box

Design

Product colour: Grey
LED indicators: Yes
International Protection (IP) code: IP30

Features

Antenna type: External
Antenna connector type: SMA
Antennas quantity: 1
Feature: Short Message Service (SMS)

Performance

Feature: Built-in processor
Processor frequency: 1200 MHz
Number of processors installed: 1
Internal memory: 128 MB
Flash memory: 512 MB

Protocols

Management protocols: HTTP/HTTPS, JSON-RPC, RMS
Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT

Network

Feature: Wireless connection
Feature: Dynamic DNS (DDNS)
VPN support: OpenVPN, IPsec, GRE, PPTP, L2TP
NAT functionality: NAT, NAT-T

Security

Feature: MAC address filtering
Security algorithms: 256-bit AES, DES, HTTPS, SSH, SSL/TLS
Firewall security: Yes

Ports & interfaces

USB 2.0 ports quantity: 1
Feature: SIM card slot
SIM card type: MiniSIM
Number of simultaneous SIM cards: 1

Management features

Feature: Web-based management
Feature: Reset button

Power

DC input voltage: 9 - 30

Weight & dimensions

Width: 70 mm
Depth: 18 mm
Height: 60 mm
Weight: 136 g

Packaging content

Feature: Manual
Feature: Quick start guide

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Certificates

Safety: IEC 62368-1:2014, EN 50385:2017, EN 62232:2017
