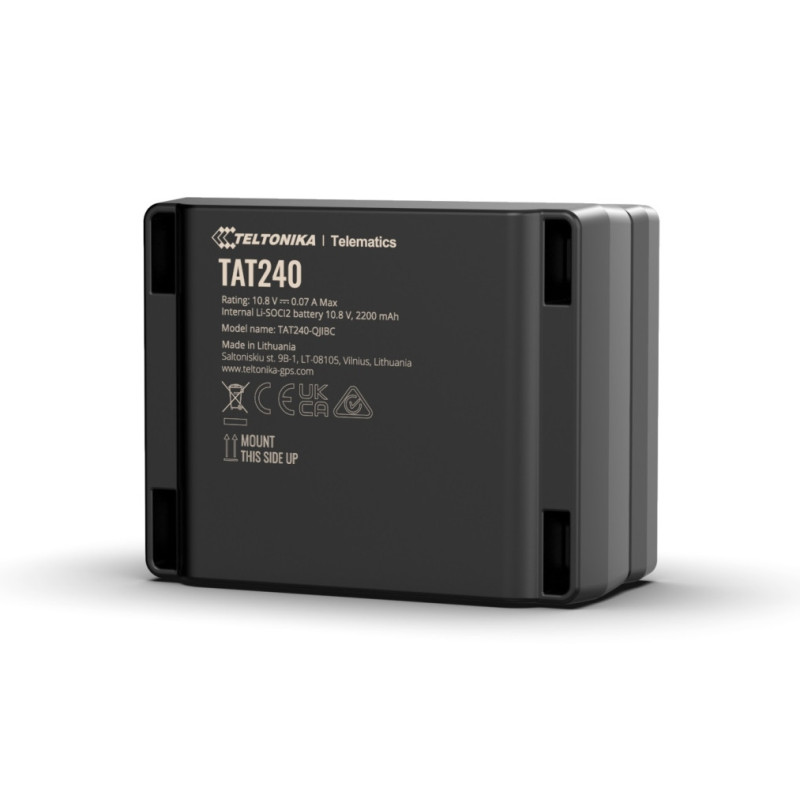

TELTONIKA Tamper-proof asset tracker with 4G LTE Cat 1 connectivity

TAT240is a tamper-proof, 4G LTE (CAT1) device with 3G/2G backup, GNSS and Bluetooth for asset tracking and maximum protection against container and trailer theft. It can also be used in a variety of applications, from valuable goods to tool tracking.TAT240The tamper detection feature ensures significantly improved asset protection.

Violation alerts for maximum safetyReliable magnetic damage detection ensures the highest security for your assets.

Motion-based periodic notificationsSet your data sending frequency based on whether your assets are moving.

Easy magnetic mountingSecurely and easily mount your device using the included magnetic mounting bracket.

Backup tracking made easyIdeal for use as a backup tracker - the compact size makes it easy to hide in any vehicle, and sleep mode prevents thieves from detecting the tracker.

ModuleName: Quectel EG915U-EU with Teltonika TM2500 Technology: LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH

GNSS*GNSS L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS* Receiver: 33 tracking channel 99 acquisition channel Tracking sensitivity: -165 dBM Position accuracy: < 2.5 m CEP*Optional modes available with custom firmware applications, for more information contact your sales manager.

Cellular2G band: GSM: B2/B3/B5/B8 4G band: LTE FDD: B1/B3//B5/B7/B8/B20/B28 Data transfer: LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL); GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)' Transmit power: Class 4 for GSM850/900: 33±2dBM Class 1 for GSM1800/1900: 30±2dBM Class 3 for LTE-FDD: 23±2dBM Data support: SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS, MQTT**)** Optional protocols available with custom firmware applications, for more information contact your sales manager.

PowerBattery: 2200mAh, 2S, extremely low self-discharge Li-SOCl2 batteries 7.2V, Non-rechargeable

BluetoothSpecification: 4.0 + LE Supported peripherals: EYE Sensors, EYE Beacons (recovery mode only), Universal BLE sensor support

Physical specificationDimensions: 78 x 63 x 28 mm (L x W x H) Weight: 115g (with 2 cells battery)

Operating environmentOperating temperature (with battery): -35 °C to +75 °C Storage temperature (with battery): -40 °C to +85 °C (Recommended max. 30 °C) Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP68 Battery discharge temperature: -60 °C to +85 °C Battery storage temperature: Recommended max. 30°C

InterfaceGNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 Micro-USB LED: indication 1 LED SIM: Micro-SIM Memory: 128MB internal flash memory

FeaturesSensors: Accelerometer Scenarios: Enhanced tamper detection, accelerometer wake up, GNSS, Bluetooth sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor Sleep Modes: Single custom sleep mode Configuration and firmware update: FOTA Web, Teltonika Configurator (USB) SMS: Configuration, Events, Debug GPRS commands: Configuration, Debug Time Synchronization: GNSS, NITZ, NTP

Certifications Approvals*Regulatory: CE/RED, E-Mark, RCM, UKCA* Pending

Magnetic holder specificationsDimensions: 77.5 x 61.5 x 27.5 mm Material: PC + ABS Operating temperature: -40 °C to +80 °C Flame Classifications UL94: V-0 Magnets: 4 x Neodymium magnets, 20x7mm, strength: min. 11kg, nickel-plated, max. operating temp. +80°C
