TELTONIKA Special and small waterproof GNSS tracker with built-in accelerometer and gyroscope
Product reference:
18-FMT100
TELTONIKA Special and small waterproof GNSS tracker with built-in accelerometer and gyroscope
TELTONIKA Special and small waterproof GNSS tracker with built-in accelerometer and gyroscope
Product reference:
18-FMT100
TELTONIKA Special and small waterproof GNSS tracker with built-in accelerometer and gyroscope
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days

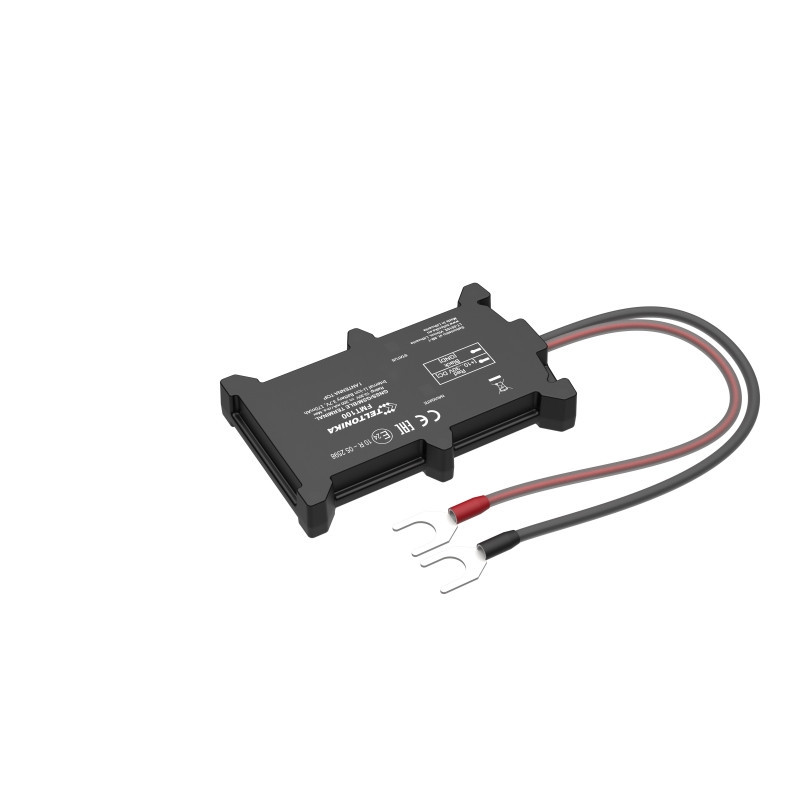

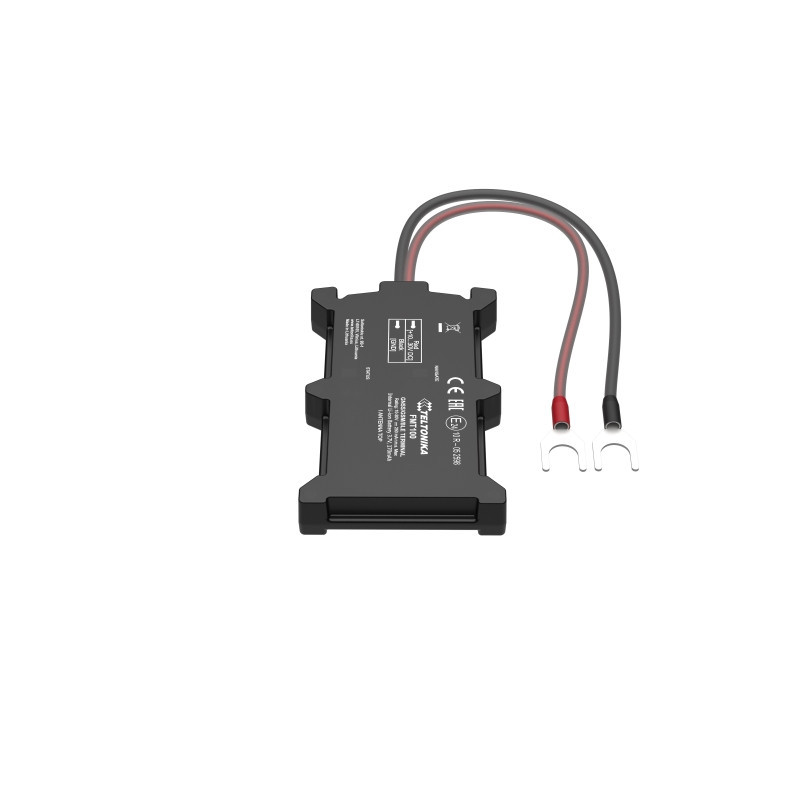

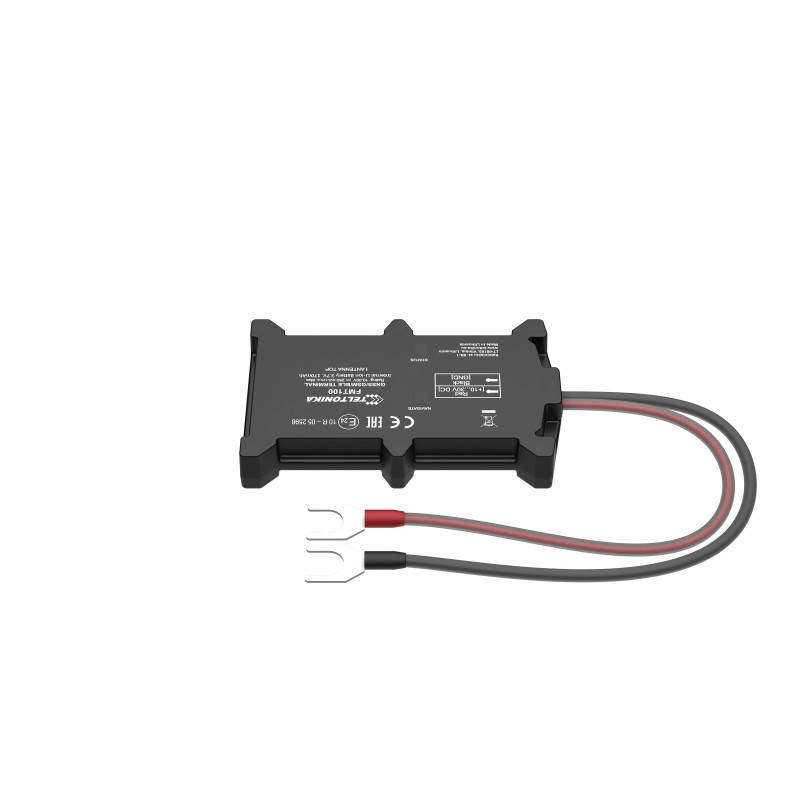

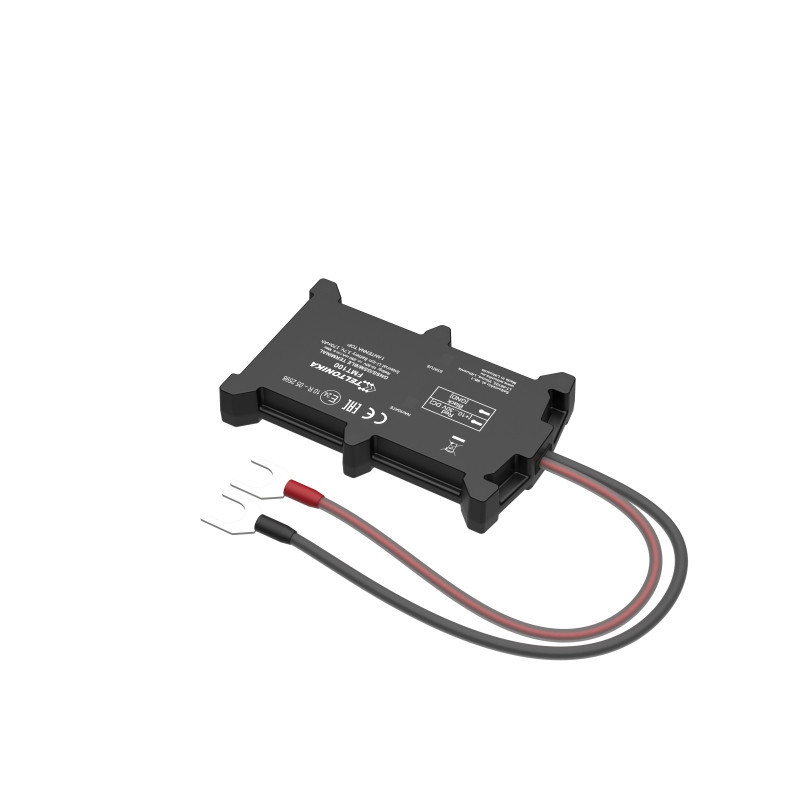

Teltonika FMT100 is a small, smart and waterproof GNSS SPECIAL tracker with 'Bluetooth' communication and internal backup battery. The largest in its class internal high-gain GNSS antenna allows for mounting directly on the car battery under the hood. The FMT100 device has a special clamp connector for quick connection of the power cable to the car battery. The robust, waterproof housing and built-in accelerometer and gyroscope sensors with extremely accurate accident tracking function make this device perfectly suited for insurance market solutions.
| MODULE | |
| In the house | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 years |
| Hot start | < 1 sec. |
| Warm start | < 25 seconds |
| Cold start | < 35 seconds |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Backup battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 4.5 mA (Ultra Deep Sleep) At 12V < 6 mA (Deep Sleep) At 12V < 9 mA (Online Sleep) At 12V < 11 mA (GPS Sleep) At 12V < 26 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | 2.0 Micro USB |
| LED indication | 2 status LED lights |
| SIM | Micro SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 92.5 x 57.6 x 14 mm (L x W x H) |
| Weight | 63 grams |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40°C to +85°C |
| Storage temperature (without battery) | -40°C to +85°C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP65 |
| Battery charging temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20°C to +60°C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer and gyroscope |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBDII dongle |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| CERTIFICATION APPROVALS | |
| Regulatory | CE/RED, EAC, REACH, RoHS |
