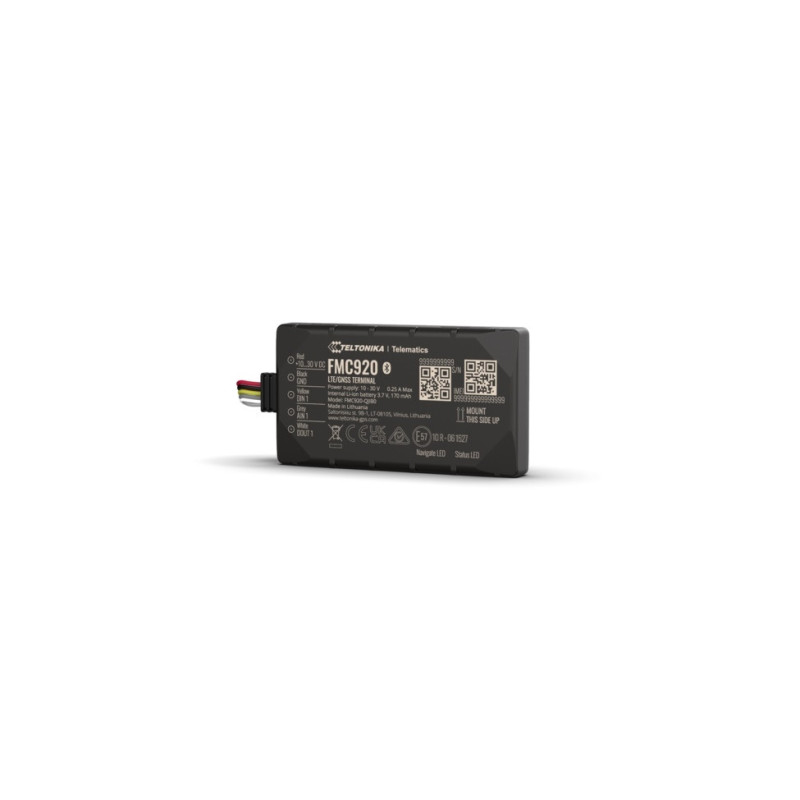

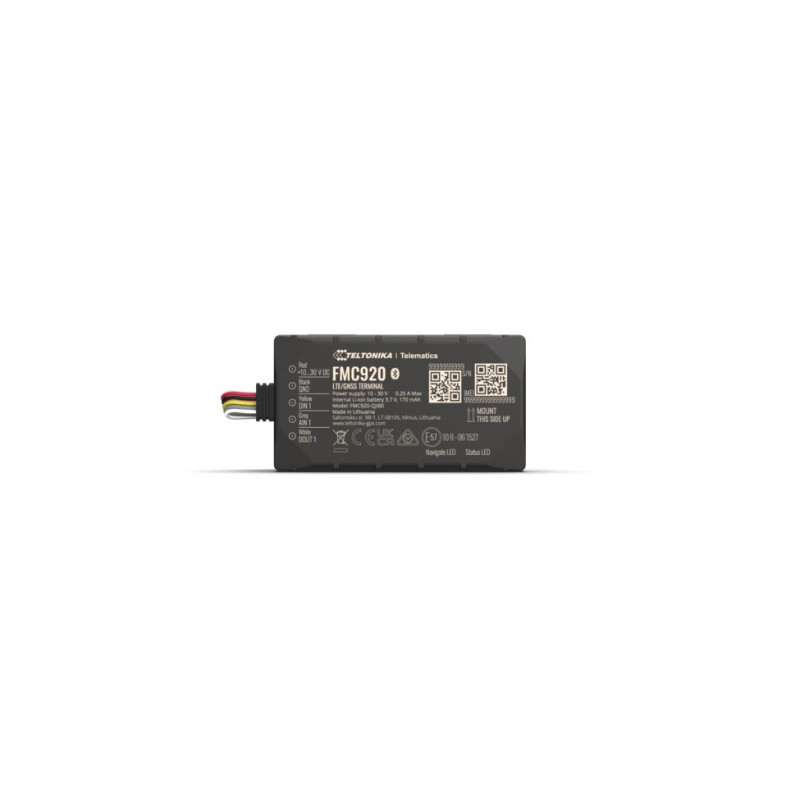

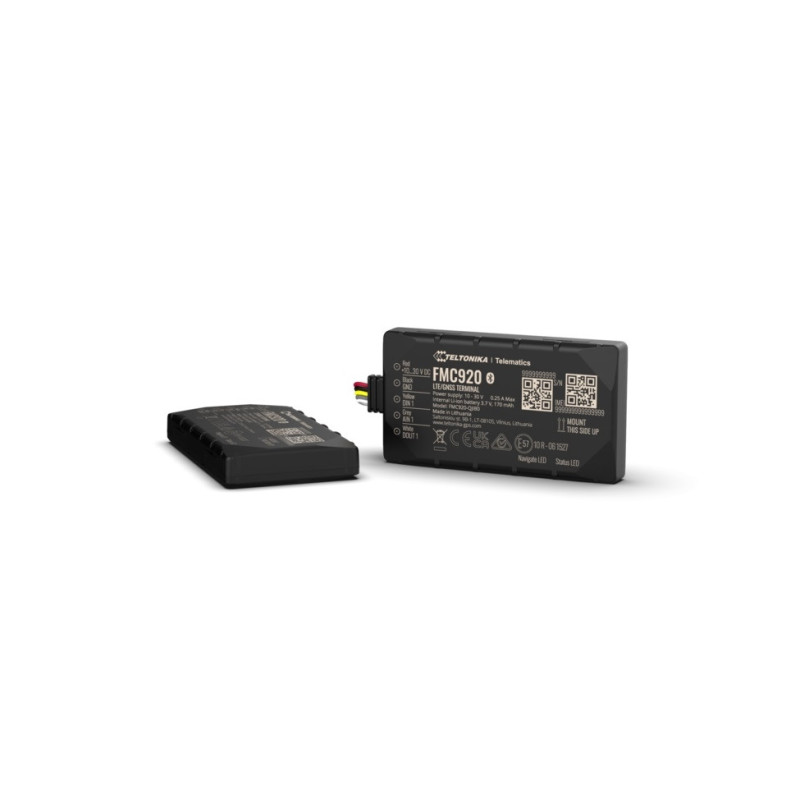

TELTONIKA Small and Smart 4G LTE Cat 1 Tracker (FMC920)

Teltonika FMC920 is a small and smart tracker with Bluetooth® connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency. The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more. All of that brings unquestionable value to numerous market segments and societies, countries' budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation. The far-reaching experience of the FMC920 predecessor shows that it is a perfect choice for basic track trace and fleet management.

Future-proof network supportReliable 4G LTE Cat 1 network coverage with fallback to 2G - guaranteed future-proof network support for your fleet

Extensive remote monitoring possibilitiesBlocking engine remotely among the numerous available fleet control measures

Eco driving scenario for all-round better drivingAchieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

Slim design to fit the tightest spaces12 mm-height device can be easily fitted in the tightest spaces

ModuleName: FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500 Technology: LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / BLUETOOTH

GNSSGNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Receiver: 33 tracking channel, 99 acquisition channel Tracking sensitivity: -165 dBM Position Accuracy: < 2.5 m CEP Velocity Accuracy: < 0.1 m/s (within +/- 15% error) Hot start: < 1 s Warm start: < 25 s Cold start: < 35 s

CellularTechnology: LTE Cat 1, GSM 2G bands: GSM: B2/B3/B5/B8 4G LTE bands: LTE FDD: B1/B3/B7/B8/B20/B28 Data transfer: LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL) Data support: SMS (text/data)

PowerInput voltage range: 10-30 V DC with overvoltage and reverse polarity protection Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) Internal fuse: 3A, 125V Power consumption: At 12V < 2 mA (Ultra Deep Sleep) At 12V < 3 mA (Deep Sleep) At 12V < 8 mA (Online Sleep) At 12V < 12 mA (GPS) Sleep) At 12V < 28 mA (nominal)

Bluetooth®Specification: 4.0 + LE Supported peripherals: Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Operating environmentOperating temperature (with battery): -20 °C to +40 °C Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Storage temperature (with battery): -20 °C to +60 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP54 Battery charge temperature: 0 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C Battery storage temperature: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months

InterfaceDigital Inputs: 1 Digital Outputs: 1 Analog Inputs: 1 GNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 Micro-USB LED indication: 2 status LED lights SIM: Micro-SIM Memory: 128MB internal flash memory

Physical specificationDimensions: 79 x 43 x 12 mm (L x W x H) Weight: 54 g

FeaturesSensors: Accelerometer Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®) SMS: Configuration, Events, DOUT control, Debug GPRS commands: Configuration, DOUT control, Debug Time Synchronization: GNSS, NITZ, NTP Fuel monitoring: LLS (Analog), OBDII dongle Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certifications approvalsRegulatory: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH
