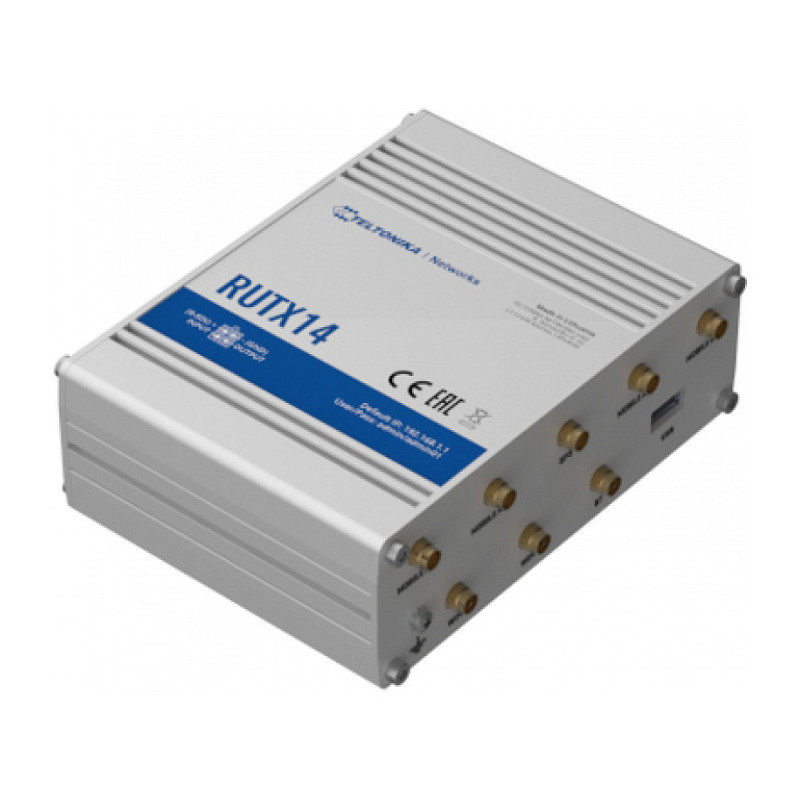

Teltonika RUTX14

Teltonika RUTX14. Device type: Cellular network router, Product colour: Silver, Housing material: Aluminium. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,.... Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Data network: LTE, 4G standard: LTE. Security algorithms: AES-CCMP, TKIP, WEP, WPA2-Enterprise, WPA2-PSK, WPA3-SAE

RUTX14 is the fastest single modem LTE router in our portfolio.

// 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, USB interfaces, dual SIM for advanced throughput and ultra-reliable connectivity.

// Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention.

// Combination of fast LTE CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.

Design

Device type: Cellular network router
Product colour: Silver
Housing material: Aluminium
Feature: Reset button
LED indicators: Power, Status, WAN

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: DHCP client
Feature: Auto MDI/MDI-X

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Mobile network

Data network: LTE
4G standard: LTE
Feature: Short Message Service (SMS)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5
Feature: USB port
USB 2.0 ports quantity: 1

Security

Security algorithms: AES-CCMP, TKIP, WEP, WPA2-Enterprise, WPA2-PSK, WPA3-SAE
Feature: Firewall

GPS Performance

Feature: Embedded GNSS

Performance

Feature: Built-in processor
Processor frequency: 0.717 GHz
RAM capacity: 0.256 GB
RAM type: DDR3
Internal storage capacity: 0.256 GB
Feature: Web-based management
Antenna type: External
Antennas quantity: 8

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 132 mm
Depth: 95 mm
Height: 44 mm
Weight: 515 g
