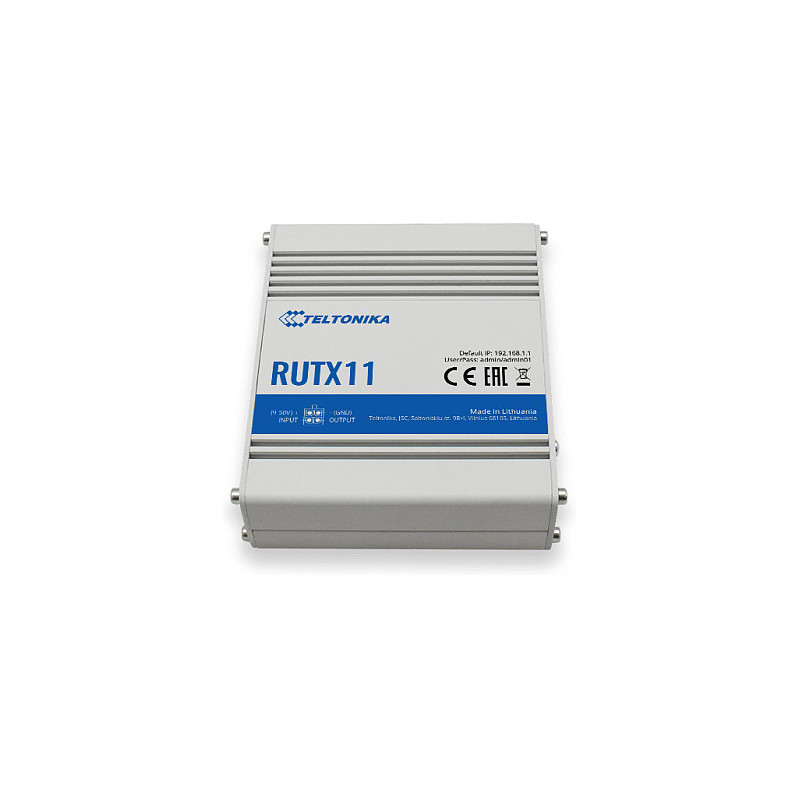

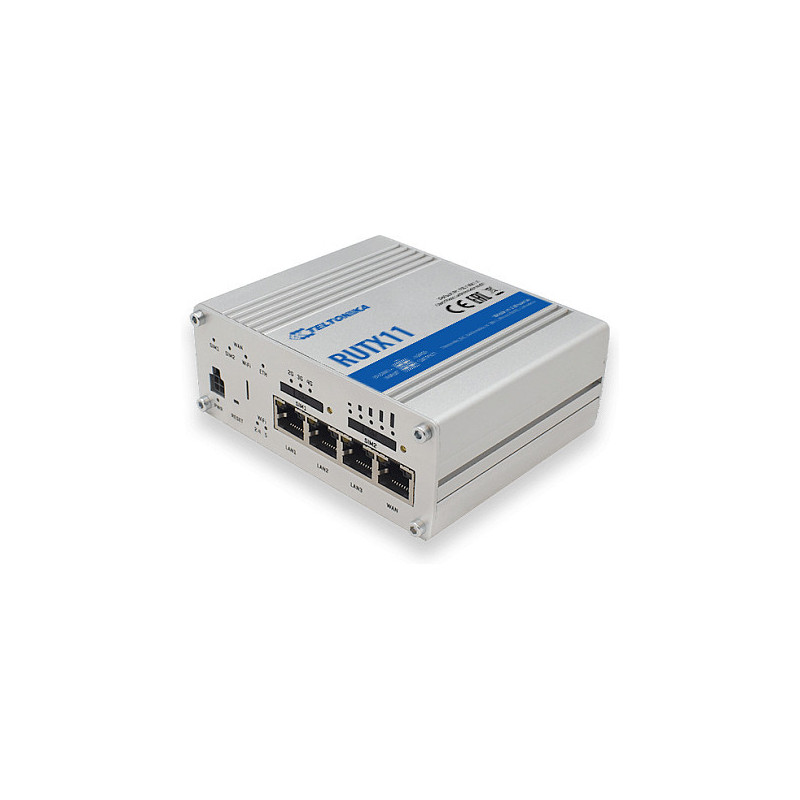

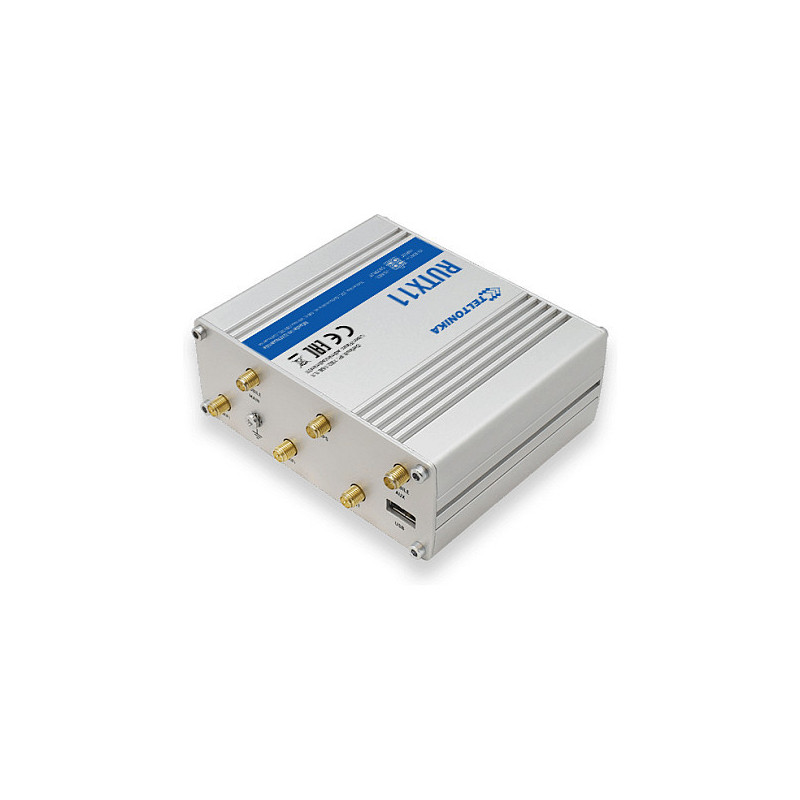

Teltonika RUTX11 wireless router

Teltonika RUTX11. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Mobile network generation: 4G, 3G standards: DC-HSDPA, WCDMA, 4G standard: LTE. Security algorithms: SSH, SSL/TLS

RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) - Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.

Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
3G standards: DC-HSDPA, WCDMA
4G standard: LTE

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: USB port
USB 2.0 ports quantity: 1
Feature: DC-in jack

Management features

Feature: Reset button

Security

Security algorithms: SSH, SSL/TLS
Feature: Firewall

Protocols

Feature: DHCP client
Feature: Universal Plug and Play (UPnP)
Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet

Design

Product colour: Grey
Feature: Indication light
LED indicators: Power, Status, WLAN

Certificates

Certification: CE, EAC

Packaging content

Feature: Manual
Feature: Quick installation guide
Feature: Quick start guide

Antenna

Antenna design: External

Features

Feature: Built-in processor
Processor architecture: ARM Cortex A7
Processor frequency: 717 MHz
Internal memory: 256 MB
Flash memory: 256 MB

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 115 mm
Depth: 95 mm
Height: 44 mm
Weight: 456 g

Logistics data

Harmonized System (HS) code: 85176990
