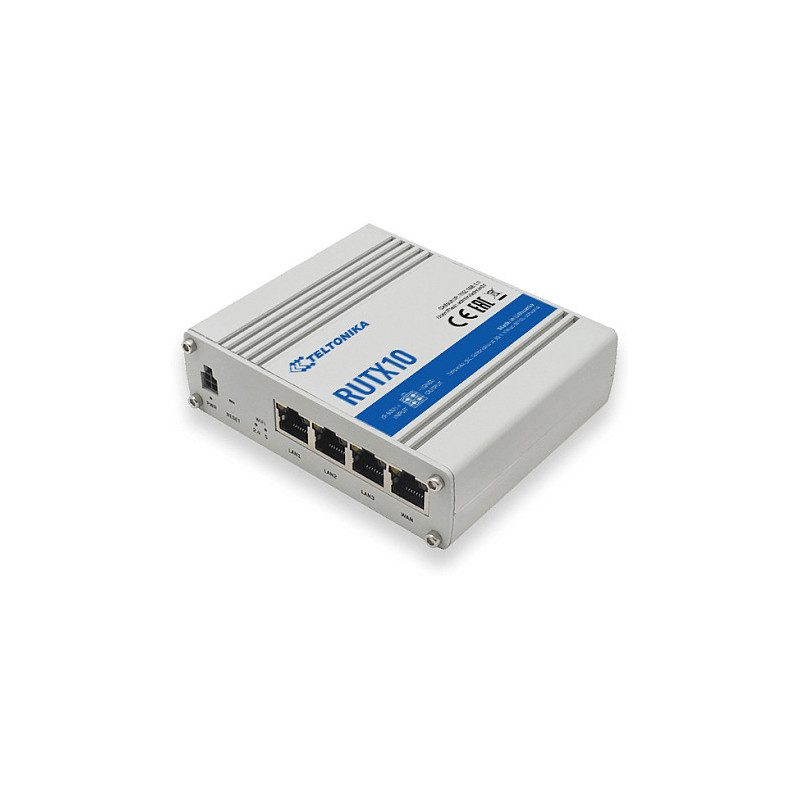

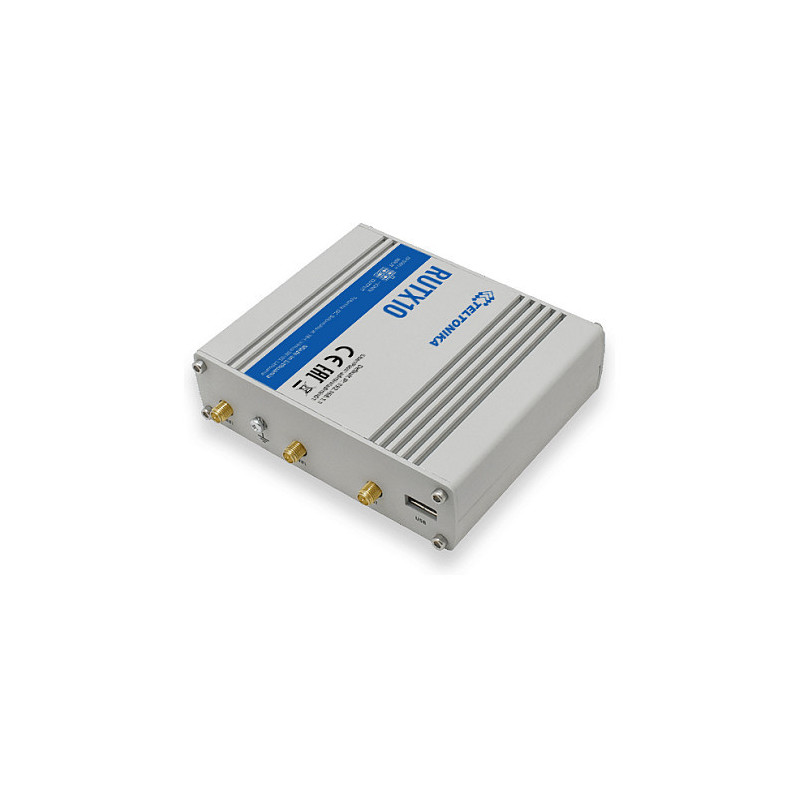

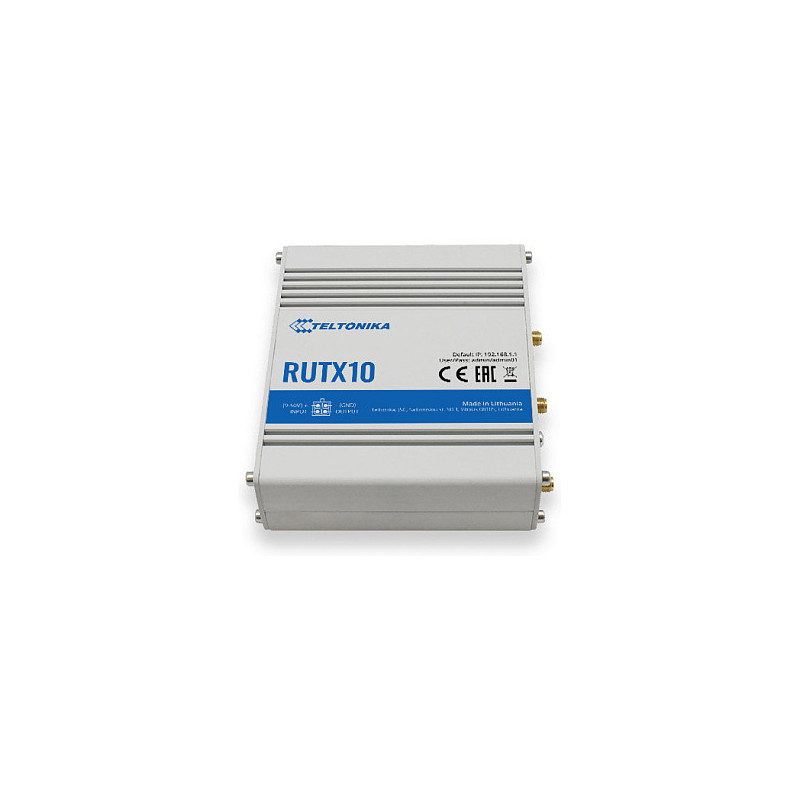

Teltonika RUTX10 wireless router

Teltonika RUTX10. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, 192-bit AES, 256-bit AES, AES-CCMP, DES, SNMP, SNMPv2, SNMPv3, SSH,..., Authentication method: X.509. Routing protocols: BGP, EIGRP, OSPF, RIP, RIP-1, RIP-2, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,...

We created RUTX10 Enterprise module specially for small to mid-size office application. It comes with Dual Band WiFi 5 802.11ac, that is extremely important for high data transmission and lag-free browsing experience. RUTX10 has all the latest security features and ability to monitor and control your office data usage remotely.

Highly customizable RutOS is at the soul of RUTX10, but it's actually synergy between hardware and software that makes this device perfect performer in enterprise solutions. Quad Core ARM Cortex A7 717 MHz CPU is more than enough for VPN functionality and if what we offer is not enough there is 256 MBytes Flash memory to install additional protocols.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: Full duplex
Feature: Auto MDI/MDI-X
Feature: Flow control support
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)
Feature: Policy-based routing
Feature: SSID-based VLAN assignment
Feature: Static route

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: USB port
USB 2.0 ports quantity: 1
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button

Security

Security algorithms: 64-bit WEP, 128-bit WEP, 192-bit AES, 256-bit AES, AES-CCMP, DES, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS, TKIP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Authentication method: X.509
Feature: Firewall
Feature: Guest access
Feature: Access Control List (ACL)
Feature: Stateful Packet Inspection (SPI)
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Routing protocols: BGP, EIGRP, OSPF, RIP, RIP-1, RIP-2
Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, WOL

Design

Product colour: White
Feature: On/off switch
Product type: Tabletop router

Packaging content

Feature: AC adapter included
Feature: Manual
Feature: Quick start guide

Antenna

Antenna design: External

Features

Feature: Built-in processor
Processor architecture: ARM Cortex A7
Processor frequency: 717 MHz
Processor cores: 4
Internal memory: 256 MB
Flash memory: 256 MB
Feature: Plug and Play
Feature: Firmware upgradeable

Power

Power source type: DC
Power consumption (typical): 11 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 115 mm
Depth: 32 mm
Height: 95 mm
Weight: 355 g
