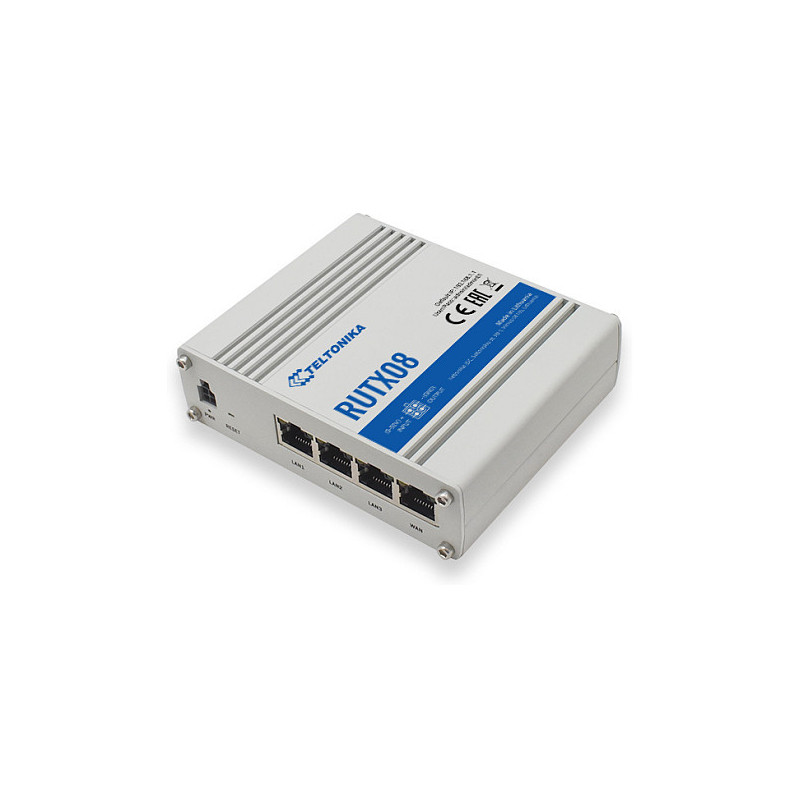

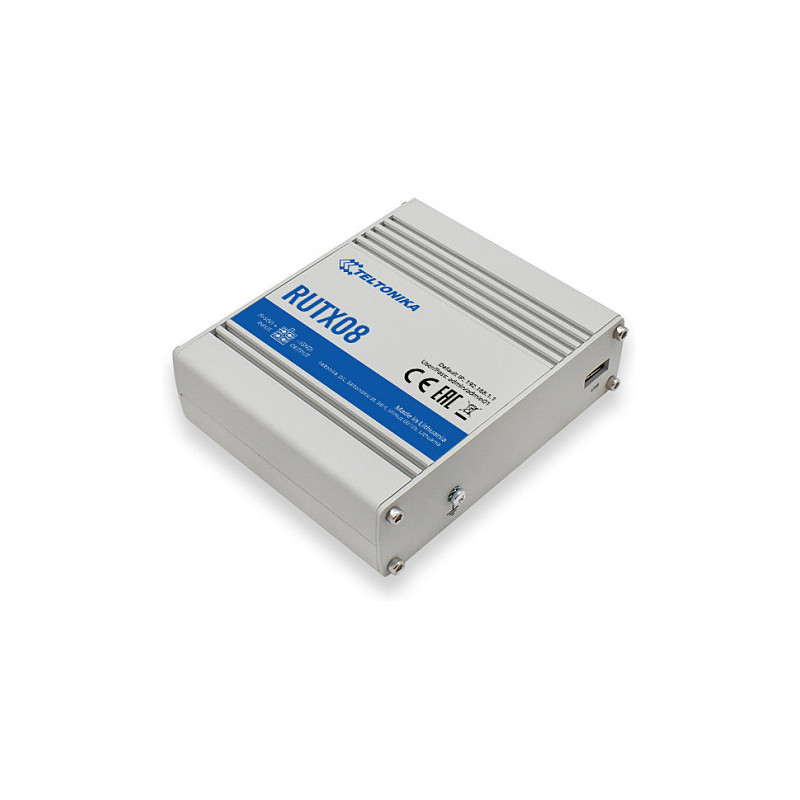

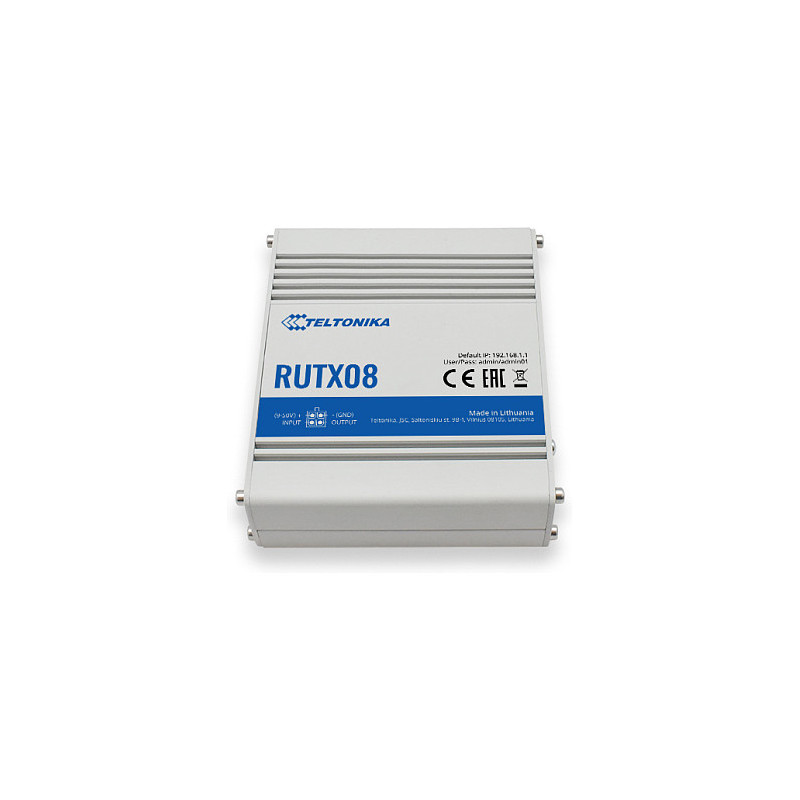

Teltonika RUTX08 wired router

Teltonika RUTX08. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Routing protocols: BGP, OSPF, RIP-1, RIP-2, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP,.... Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSec, SNMP, SSH. Processor frequency: 717 MHz, Flash memory: 256 MB, Internal memory: 256 MB. Product colour: Stainless steel, Housing material: Aluminium

This robust industrial router is equipped with 4 x Gigabit Ethernet ports, Quad-core CPU and 256 MB of RAM. These powerful specifications combined with core RutOS software features such as multiple VPN services, advanced Firewall and RMS support makes this device a superb Industrial performer where no Cellular or WiFi connectivity is required.

WAN connection

Feature: Ethernet WAN

Network

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Ethernet interface type: Gigabit Ethernet
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Feature: Auto MDI/MDI-X

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Universal Plug and Play (UPnP)
Feature: Reset button
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
USB ports quantity: 1
USB version: 2.0
Feature: DC-in jack

Protocols

Feature: DMZ support
Routing protocols: BGP, OSPF, RIP-1, RIP-2
Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT

Security

Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSec, SNMP, SSH
Feature: Firewall
Feature: MAC address filtering
Feature: Blacklist
Feature: Network address translation (NAT)
Feature: System event log
VPN tunnels quantity: 4

Features

Feature: Built-in processor
Processor frequency: 717 MHz
Processor cores: 4
Flash memory: 256 MB
Internal memory: 256 MB
Certification: CE

Design

Product colour: Stainless steel
Housing material: Aluminium
LED indicators: Yes

Antenna

Antenna type: Not supported

Power

Power consumption (typical): 11 W
Power source type: DC
Output voltage: 9 - 50 V

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 115 mm
Depth: 95 mm
Height: 32 mm
Weight: 357 g
