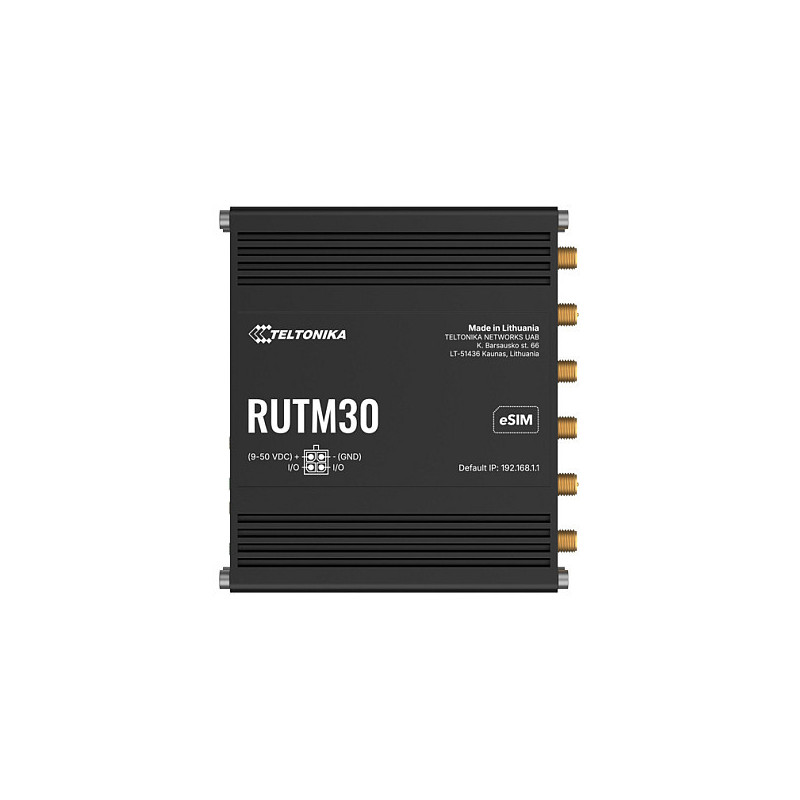

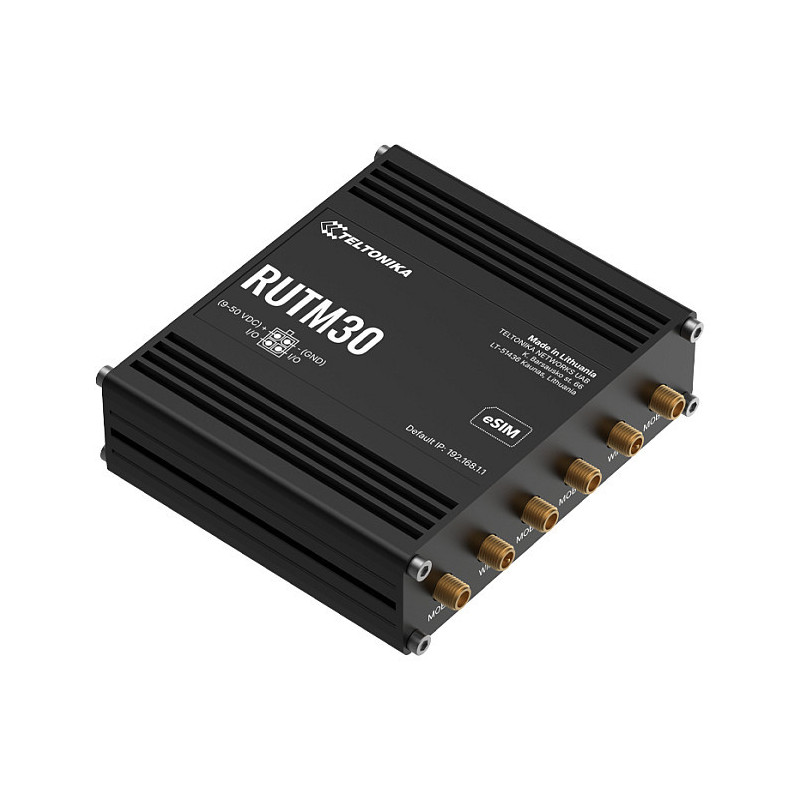

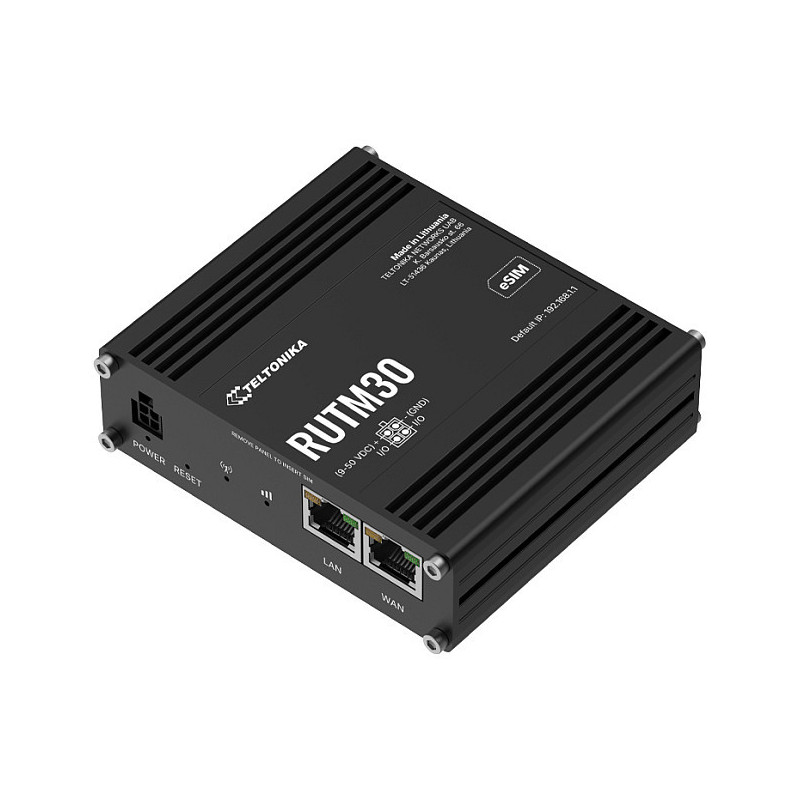

Teltonika RUTM30 wireless router

Teltonika RUTM30. Wi-Fi band: Dual-band (2.4 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 900 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11v, IEEE 802.3, IEEE 802.3u,.... Mobile network generation: 5G, SIM card type: MiniSIM. Security algorithms: SSH, SSH-2. Routing protocols: VRRP, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,...

RUTM50

RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, with ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN and supports both SA and NSA 5G architectures. It is also backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 900 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11v, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1x
Feature: Auto MDI/MDI-X
Feature: Port forwarding
Feature: Load balancing system
Feature: Dynamic DNS (DDNS)
Feature: Policy-based routing
ITU standards: H.323

Mobile network

Mobile network generation: 5G
Feature: Dual SIM support
SIM card type: MiniSIM
Feature: Short Message Service (SMS)
Feature: USSD request support

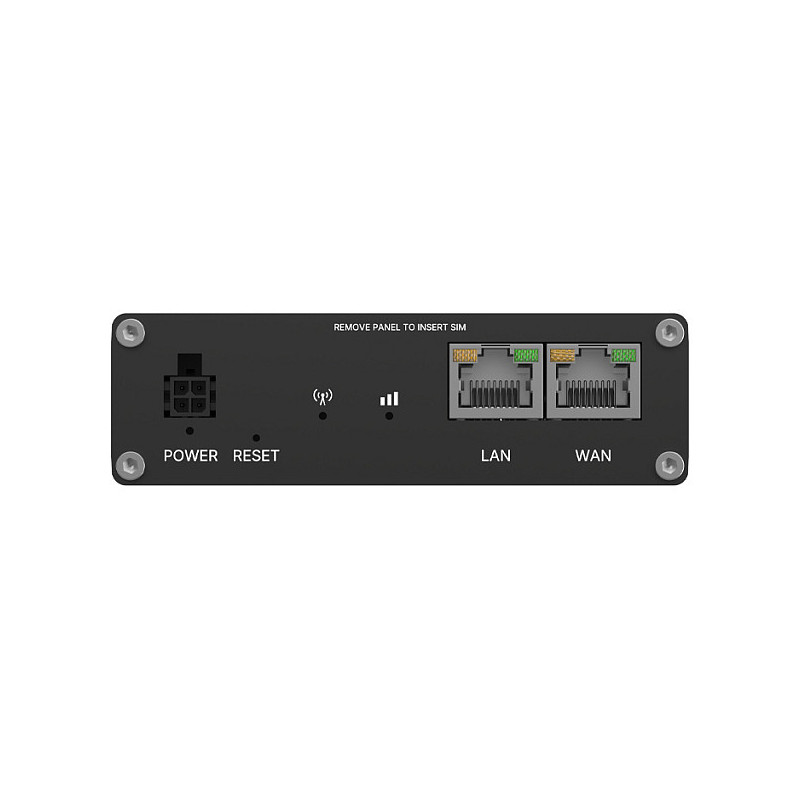

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Management features

Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Command-line interface (CLI)

Security

Security algorithms: SSH, SSH-2
Feature: Firewall
Feature: DDoS protection
Feature: DMZ support
Feature: Network address translation (NAT)

Protocols

Feature: DHCP server
Routing protocols: VRRP

Design

Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
Feature: Indication light
Product type: Rack/wall router

Certificates

Certification: CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE

Packaging content

Feature: Antenna included

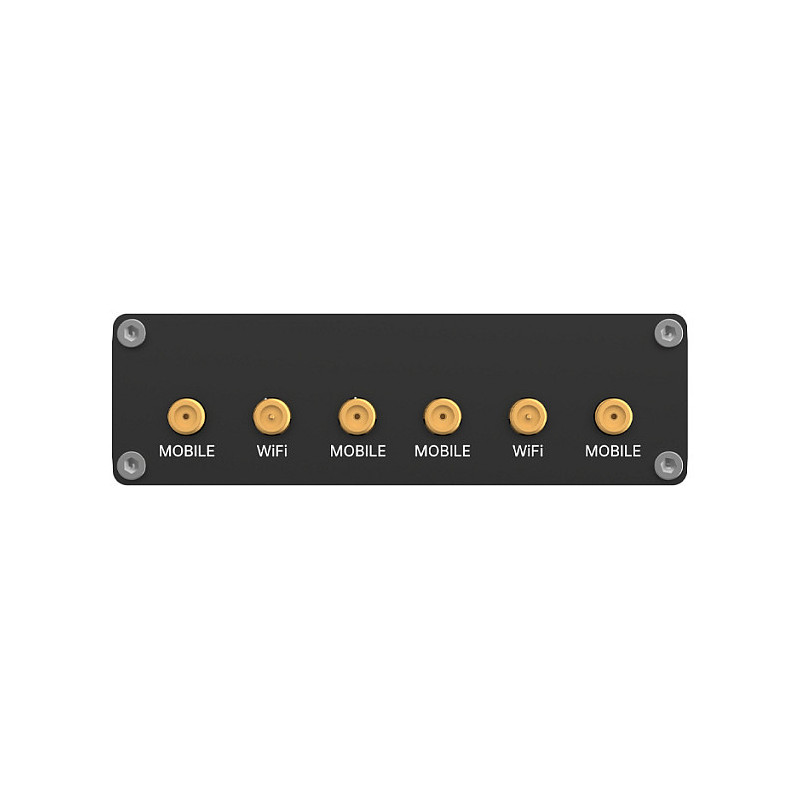

Antenna

Antenna design: External
Antenna type: 4x4
Antenna connector type: SMA
Antennas quantity: 4
Feature: Detachable antenna(s)

Features

Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MIPS1004KC
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 256 MB
Number of simultaneously connected devices (max): 150
Operating system installed: RutOS

Power

Power source type: DC, PoE
Power consumption (typical): 9 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 100 mm
Depth: 93.7 mm
Height: 30 mm
Weight: 319 g
