Teltonika RUTM11 wired router

Teltonika RUTM11. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 4G standard: LTE. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,.... Firewall security: Port forward, traffic rules, custom rules, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts.... Processor manufacturer: MediaTek, Processor model: MIPS 1004Kc, Processor frequency: 880 MHz

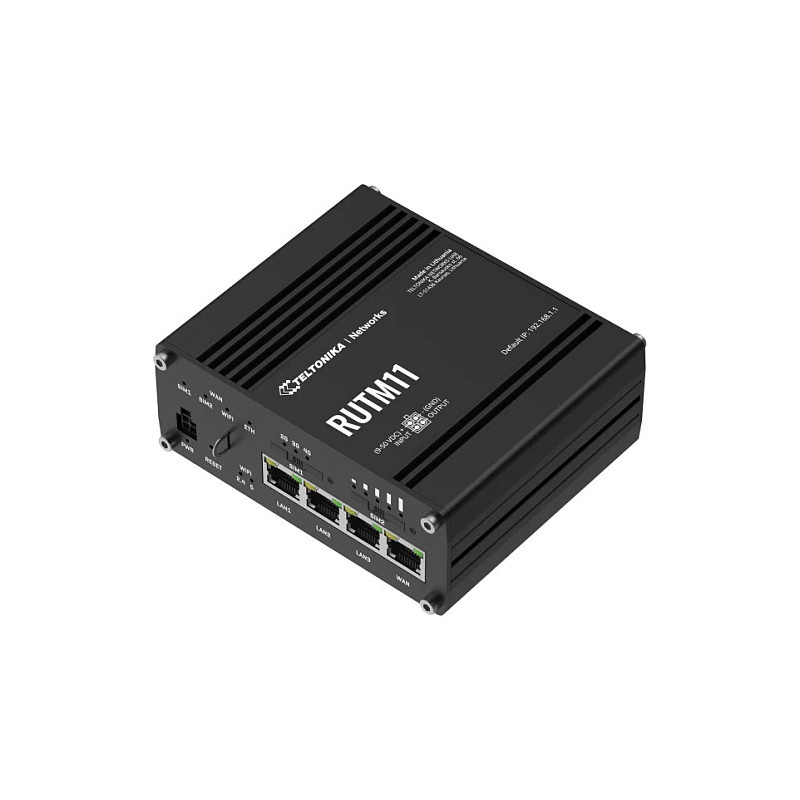

RUTM11
INDUSTRIAL 4G LTE ROUTER
The RUTM11 is an industrial LTE router from Teltonika, designed for applications that demand high data throughput and a robust network connection with zero tolerance for high latency and interruptions. The RUTM11 comes equipped with four Gigabit RJ45 ports, dual-band Wi-Fi, and dual SIM capabilities, enabling multiple failover scenarios. This router features LTE Cat 6, allowing it to achieve cellular speeds of up to 300 Mbps, which can be increased with carrier aggregation.

- CONNECTIVITY
Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
- INTERFACES
4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
- GNSS
Location services and time synchronisation for precise data reading
- WI-FI 5
Dual-band Wi-Fi with mesh and fast-roaming functionalities

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot

Network

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Static route
Feature: VLAN support
Feature: Traffic control
Feature: Port forwarding
Feature: Auto MDI/MDI-X

Mobile network

Mobile network generation: 4G
4G standard: LTE
Feature: Short Message Service (SMS)

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Universal Plug and Play (UPnP)
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Gigabit Ethernet (copper) ports quantity: 4
WAN ports quantity: 1
USB ports quantity: 1
USB version: 2.0

Protocols

Feature: DMZ support
Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2
VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Feature: DHCP client
Feature: DHCP server

Security

Feature: Firewall
Firewall security: Port forward, traffic rules, custom rules
Feature: MAC address filtering
Feature: IP address filtering
Feature: ARP attack prevention
Feature: ICMP attack prevention
Feature: Network address translation (NAT)

Features

Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MIPS 1004Kc
Processor frequency: 880 MHz
Storage media: Flash
Flash memory: 256 MB
Internal memory: 256 MB
Internal memory type: DDR3
Operating system installed: RutOS

Design

Product colour: Black
LED indicators: Yes

Power

Power consumption (typical): 3.9 W
Power consumption (max): 12.3 W
Power source type: DC
Power plug type: Type E

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 115 mm
Depth: 95.1 mm
Height: 44.2 mm
Weight: 460 g
