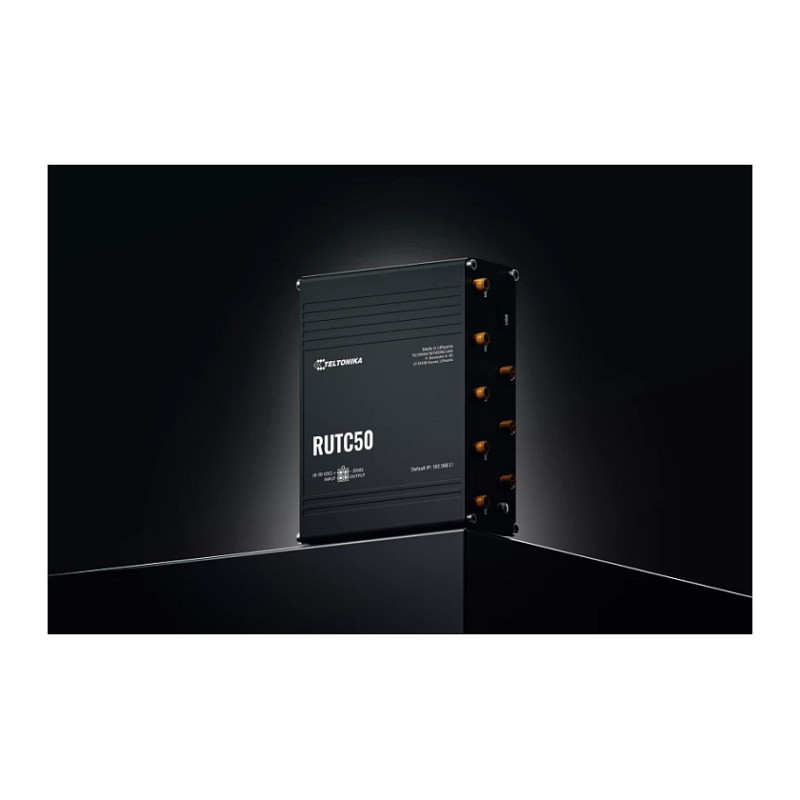

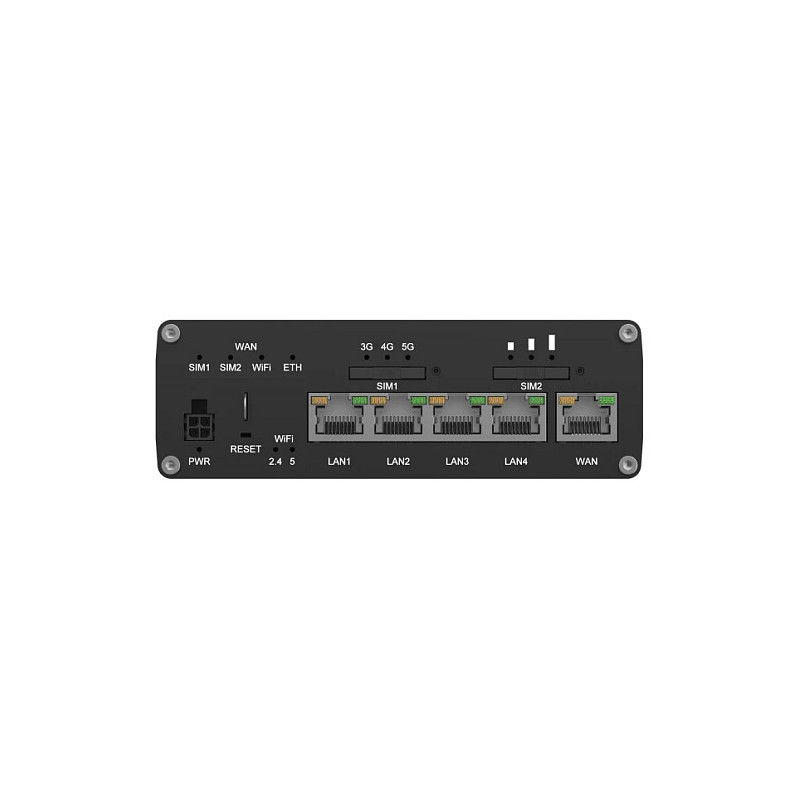

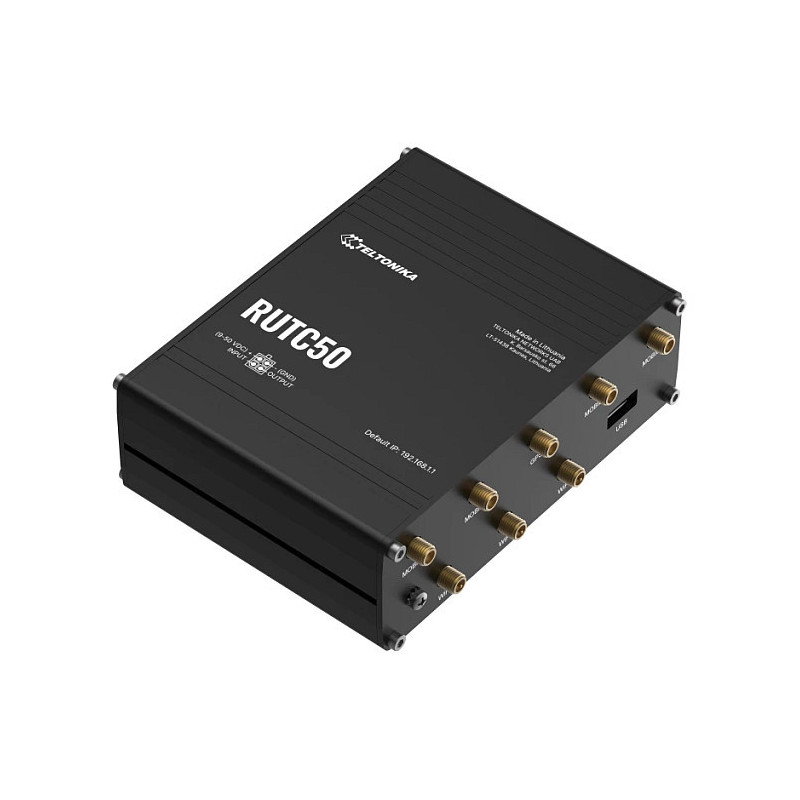

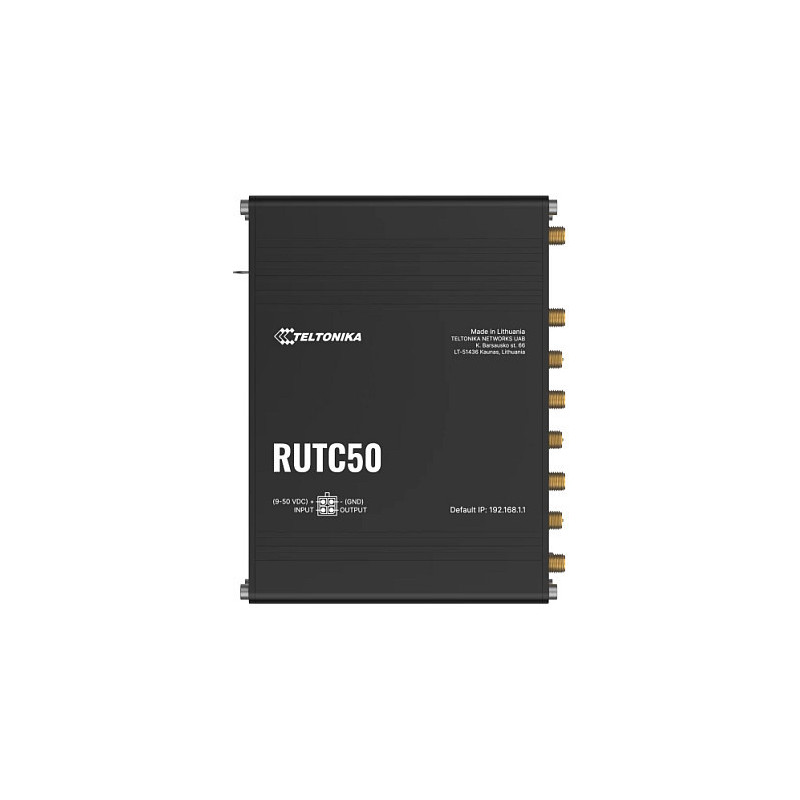

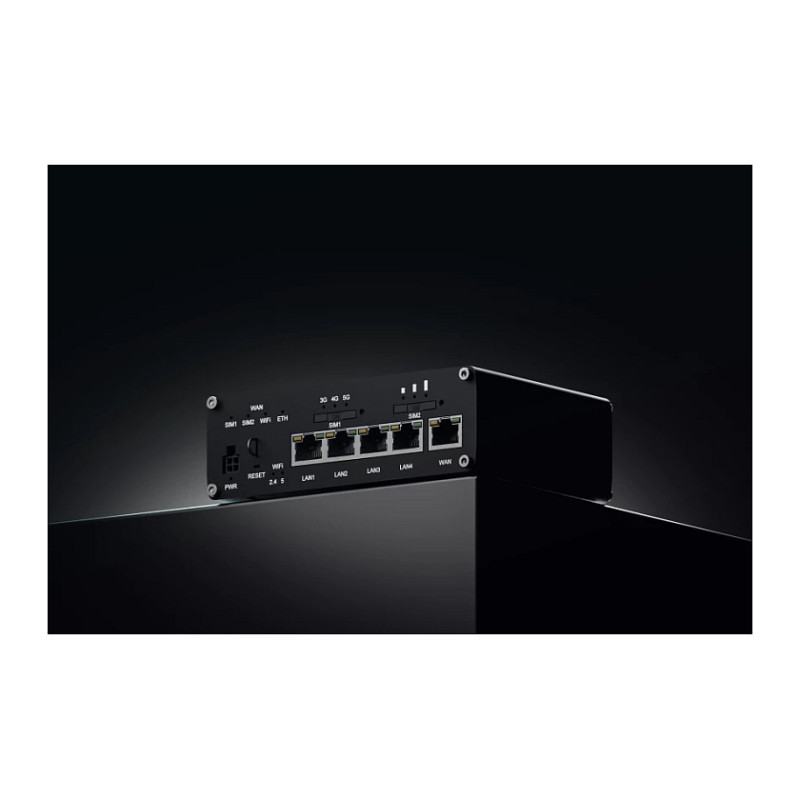

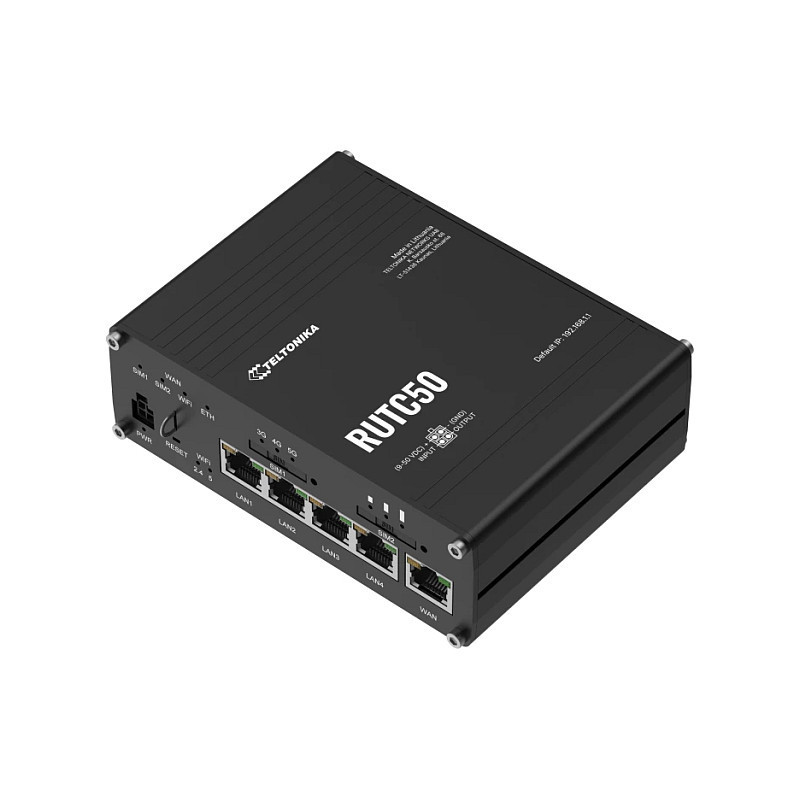

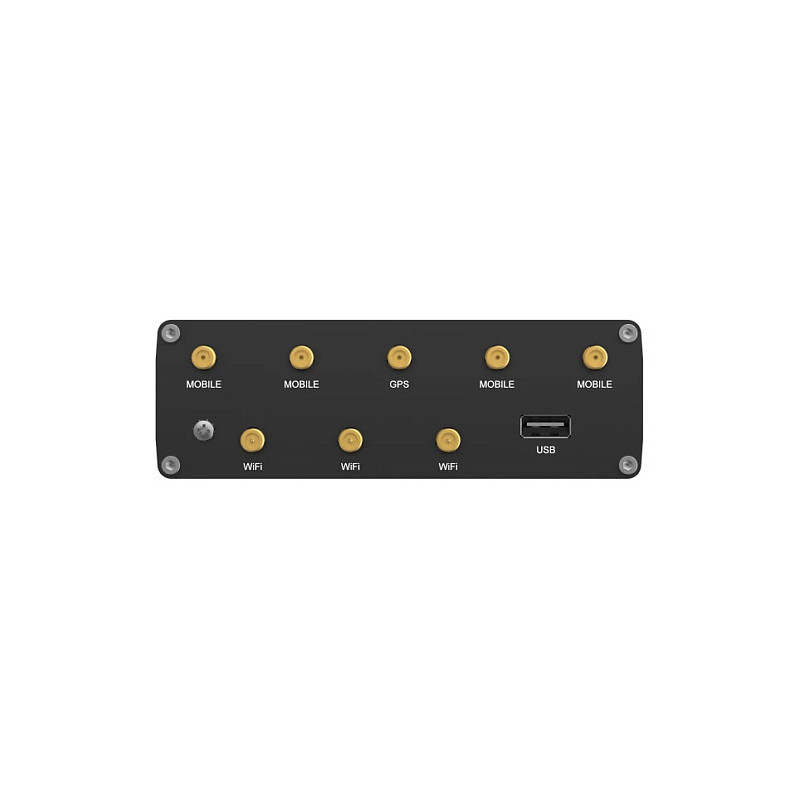

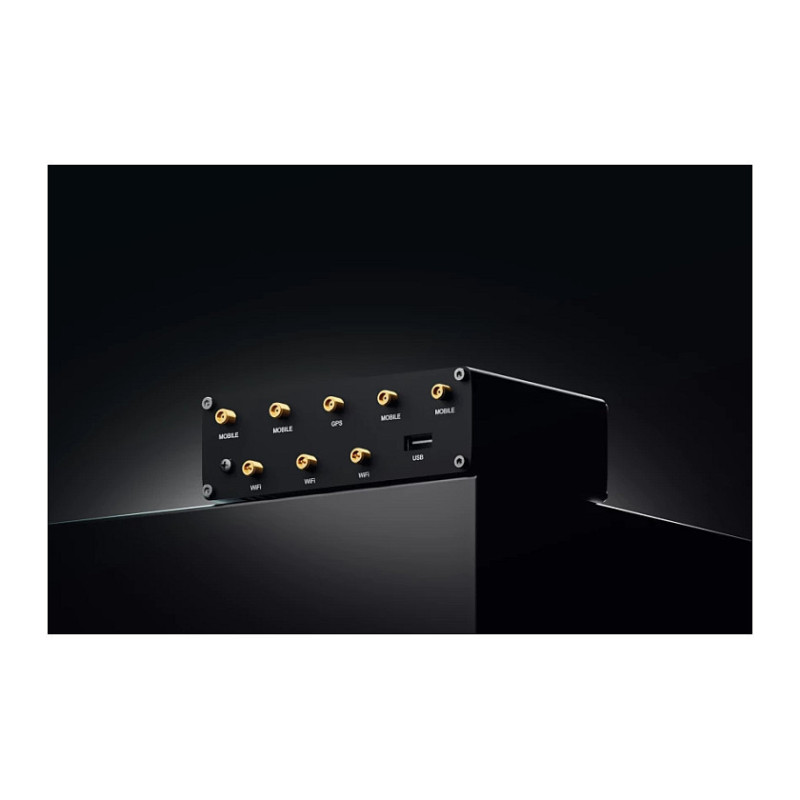

Teltonika RUTC50 wireless router

Teltonika RUTC50. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2402 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 4G standard: LTE, 5G standard: Sub6 SA/NSA. Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP login attempts..., Firewall security: Port forward, traffic rules, custom rules. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,...
RUTC50
YOUR 5G WIRELESS MULTITOOL
The RUTC50 is a 5G router featuring dual-band Wi-Fi 6 technology with multi-user MIMO, ensuring ultra-high cellular speeds of up to 3.4 Gbps. This 5G router is also equipped with dual SIM with auto-failover, five Gigabit Ethernet ports, and GNSS for precise location tracking. The RUTC50 supports both SA and NSA 5G architectures and is backward compatible with 4G (Cat 20) and 3G, ensuring robust and reliable performance.
- 5G
Ultra-high cellular speeds of up to 3.4 Gbps
- WI-FI 6
Dual-band multi-user MIMO wireless capabilities
- PROCESSING POWER
Increased processing capacity for multi-user and edge computing applications
- Dual Sim
With auto-failover, backup WAN, and other switching scenarios

WAN connection

Ethernet WAN: Yes
DSL WAN: No
SIM card slot: Yes
3G/4G USB modem compatibility: No

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Auto MDI/MDI-X: Yes
Port forwarding: Yes
Dynamic DNS (DDNS): Yes
Static route: Yes

Mobile network

Mobile network generation: 5G
Dual SIM support: Yes
4G standard: LTE
4G LTE category: 20
5G standard: Sub6 SA/NSA
5G bands supported: 6000 MHz
Short Message Service (SMS): Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 5
USB port: Yes
USB 2.0 ports quantity: 1

Management features

Web-based management: No
Quality of Service (QoS) support: Yes
Wake-on-LAN ready: Yes
Reset button: Yes
MU-MIMO technology: Yes
MIMO: Yes

Security

Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP login attempts block, time-based login blocking, built-in random password generator
Firewall: Yes
Firewall security: Port forward, traffic rules, custom rules
DDoS protection: Yes
MAC address filtering: Yes
IP address filtering: Yes
DMZ support: Yes
Network address translation (NAT): Yes

Protocols

DHCP client: Yes
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2
VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

Design

Product colour: Black
LED indicators: Yes
Product type: Industrial router

Antenna

Antenna design: External
Antenna type: 4x4
Antenna connector type: SMA

Features

Built-in processor: Yes
Processor manufacturer: MediaTek
Processor architecture: ARM Cortex-A53
Processor frequency: 1300 MHz
Internal memory: 512 MB
Internal memory type: DDR3
Flash memory: 512 MB
Operating system installed: RutOS

Power

Power source type: DC
Power consumption (typical): 4.5 W
Power plug type: Type E

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 130.4 mm
Depth: 103.4 mm
Height: 42.6 mm
Weight: 452 g
