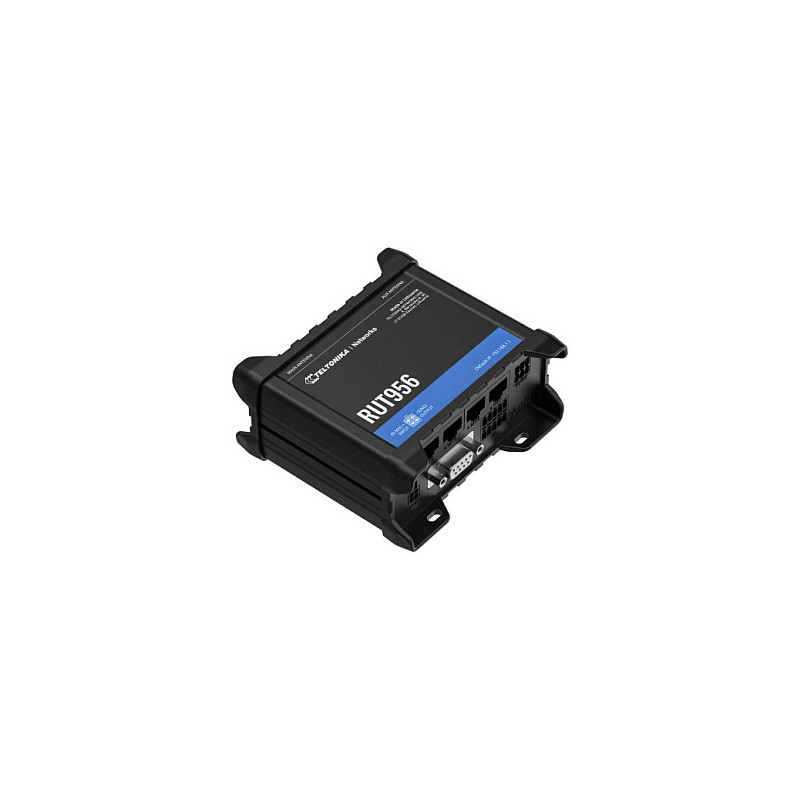

Teltonika RUT956

Teltonika RUT956. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium, Plastic. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 2G, 3G, 4G. Serial interface type: RS-232, RS-485

// RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities.

// Automatic WAN failover ensures solution uptime even if the primary connection is lost.

// Serial communication interfaces enable integrating more varied devices to the solution ecosystem, even legacy equipment.

// Digital and analog Inputs/Outputs with advanced RutOS software features facilitate equipment control, automation, and event notifications.

// Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.

Design

Device type: Cellular network router
Product colour: Black
Housing material: Aluminium, Plastic
Mounting: DIN-rail
Market positioning: Industrial
Feature: Reset button
LED indicators: Yes

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u
Feature: Auto MDI/MDI-X

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Mobile network

Data network: 2G, 3G, 4G
Number of SIM cards: 2
Feature: Short Message Service (SMS)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: USB port
USB 2.0 ports quantity: 1
Serial interface type: RS-232, RS-485
Serial ports quantity: 2

Security

Security algorithms: HTTPS, SSH, SSL/TLS, TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Feature: Network address translation (NAT)
Feature: Firewall
Feature: DMZ support
Feature: Port forwarding

GPS Performance

Feature: Embedded GNSS
Feature: GLONASS
Feature: BeiDou
Feature: Galileo
Feature: Quasi-Zenith Satellite System (QZSS)

Performance

Feature: Built-in processor
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
Operating system installed: RutOS
Feature: Web-based management
Feature: GPS (satellite)
Antenna type: External
Antennas quantity: 5

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 220 mm
Depth: 100 mm
Height: 50 mm
Weight: 287 g
