Teltonika RUT950 wireless router

Teltonika RUT950. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 150 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u. Mobile network generation: 4G, 2G standards: GSM, 3G standards: HSPA+, UMTS. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, WEP, WPA-PSK, WPA2, WPA2-PSK
RUT950 is a profesional industrial 4G LTE Wi-Fi router for IoT applications. Ruggedized mobile router delivers high performance cellular communication in harsh and wide operating temperature range environments. Remote managment platform RMS ready to deliver the value of M2M and IoT networking applications. Router equipped with for ethernet ports, external 2xSIM holders, digital input/output and signal strength status LEDs indicators. External SMA antenna connectors make it possible to attach desired antennas. RUT950 is a profesional cat4 LTE router empowered by RutOS a unified operating system for all Teltonika routers for the most demanding mobile networking applications. Ensure your business continuity with Dual-SIM and 4G failover.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 150 Mbit/s
Wi-Fi standards: __T KMIA___I, 6____ 802.11g, Wi-Fi 4 (802.11n)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: Load balancing system
Feature: Dynamic DNS (DDNS)
Feature: SSID-based VLAN assignment
VPN tunnels quantity: 4

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
Feature: Dual SIM support
2G standards: GSM
3G standards: HSPA+, UMTS
4G standard: LTE
GSM bands supported: 900,1800 MHz
4G bands supported: 800,900,1800,2100,2600 MHz
3G bands supported: 900,2100 MHz
Feature: Short Message Service (SMS)

Ports interfaces

Ethernet LAN (RJ-45) ports: 4

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button

Security

Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, WEP, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Feature: DoS attack prevention
Feature: Filtering
Feature: MAC address filtering
Feature: System event log

Protocols

Routing protocols: BGP, OSPF, RIP-1, RIP-2
Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT

Design

Product colour: Black
Feature: Indication light
Product type: Tabletop router

Certificates

Certification: CE/RED, FCC, ISED (IC), EAC, RCM, PTCRB, RoHS, WEEE

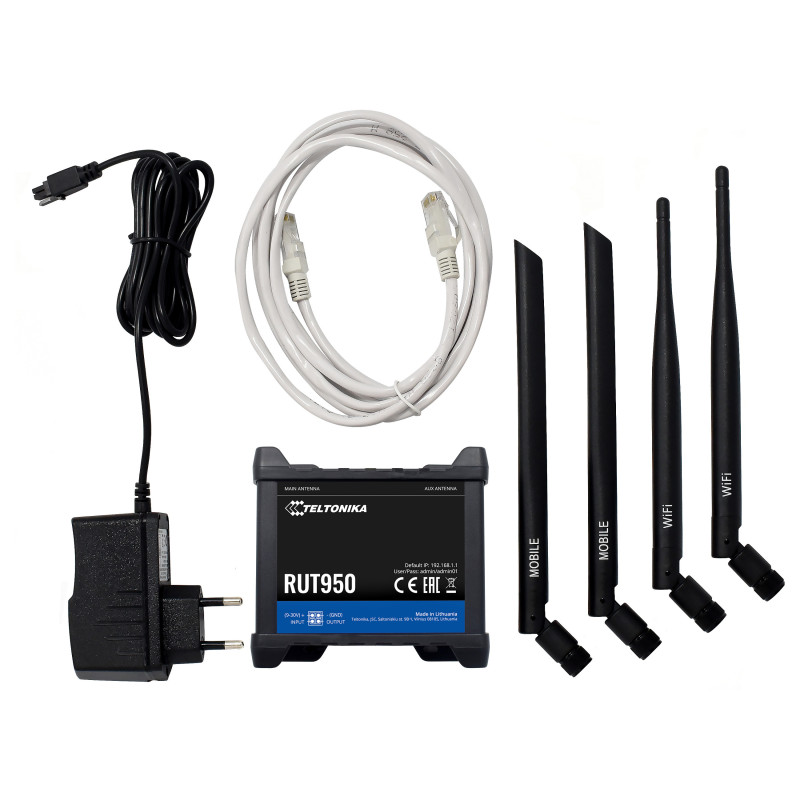

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Manual
Feature: Quick start guide

Antenna

Antenna design: External
Antennas quantity: 4
Feature: Detachable antenna(s)

Features

Feature: Built-in processor
Processor frequency: 550 MHz
Mean time between failures (MTBF): 270000 h
Feature: Firmware upgradeable

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 9 - 30 V
Power consumption (typical): 7 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -45 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 80 mm
Depth: 106 mm
Height: 46 mm
Weight: 235 g

Logistics data

Harmonized System (HS) code: 85176990
