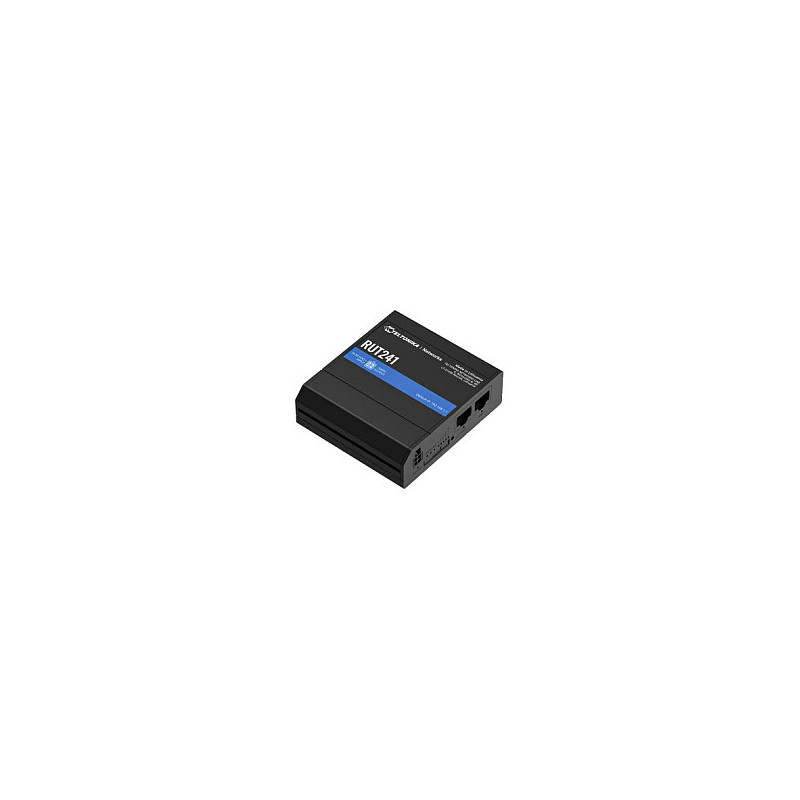

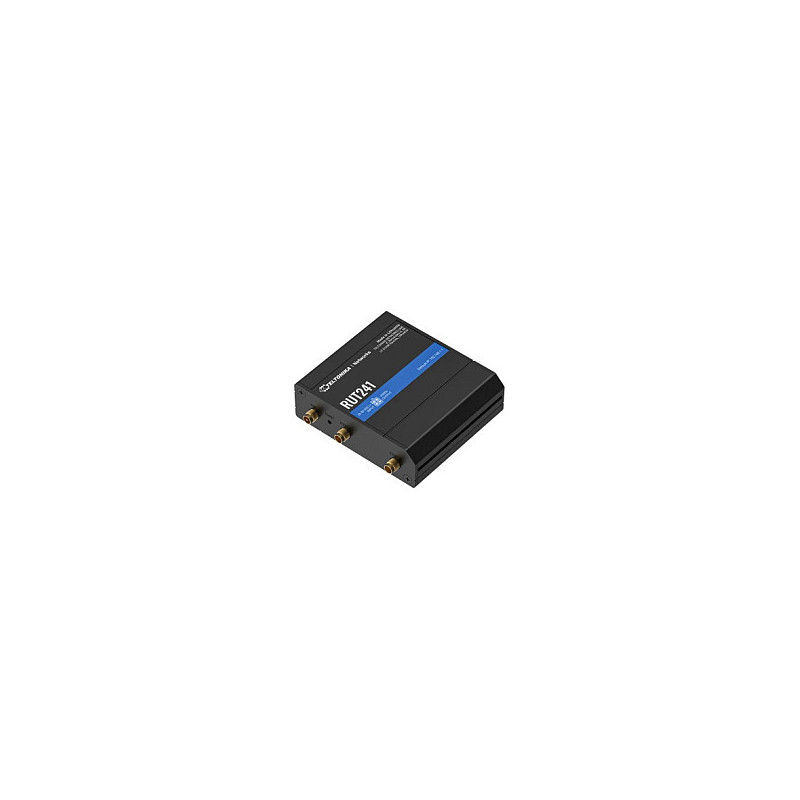

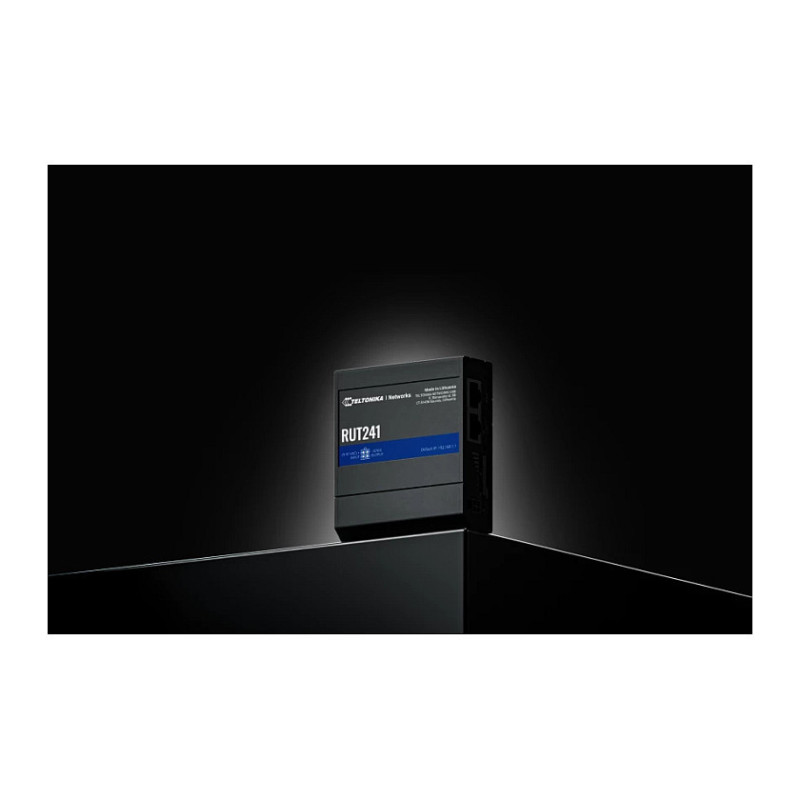

Teltonika RUT241

Teltonika RUT241. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium, Plastic. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 2G, 3G, 4G, 4G standard: LTE, 2G bands supported: 900,1800 MHz. Security algorithms: HTTPS, SSH, SSL/TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.

Design

Device type: Cellular network router
Product colour: Black
Housing material: Aluminium, Plastic
Mounting: DIN-rail
Market positioning: Industrial
Feature: Reset button
LED indicators: Yes

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u
Feature: Auto MDI/MDI-X

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Mobile network

Data network: 2G, 3G, 4G
4G standard: LTE
2G bands supported: 900,1800 MHz
3G bands supported: 850,900,2100 MHz
4G bands supported: 2300,2500,2600 MHz
Number of SIM cards: 1
Feature: Short Message Service (SMS)

Ports interfaces

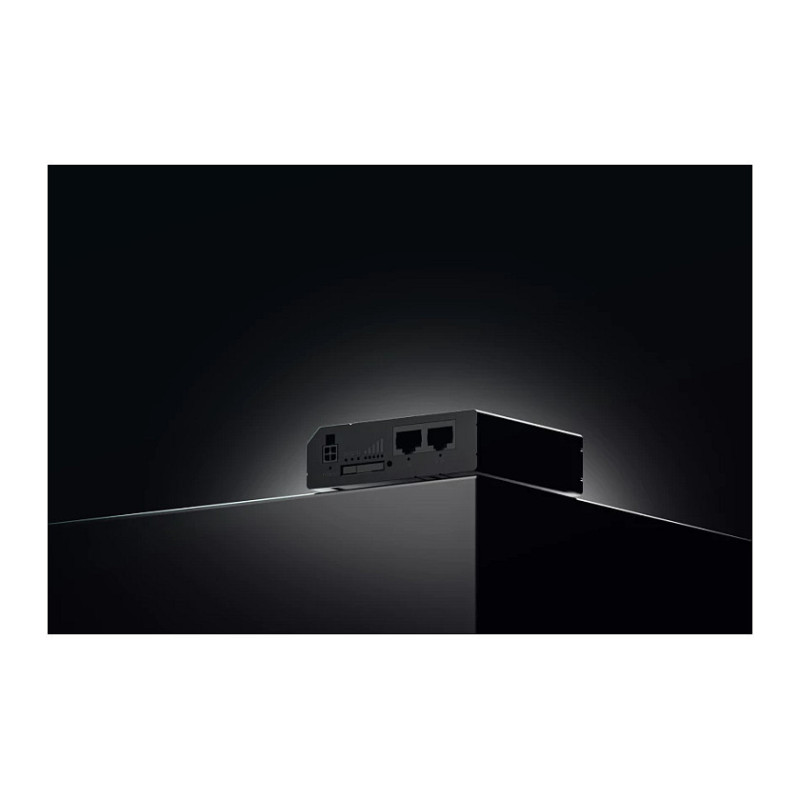

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: HTTPS, SSH, SSL/TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Feature: Network address translation (NAT)
Feature: Firewall
Feature: DMZ support
Feature: Port forwarding

Performance

Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
RAM type: DDR2
Operating system installed: RutOS
Feature: Web-based management

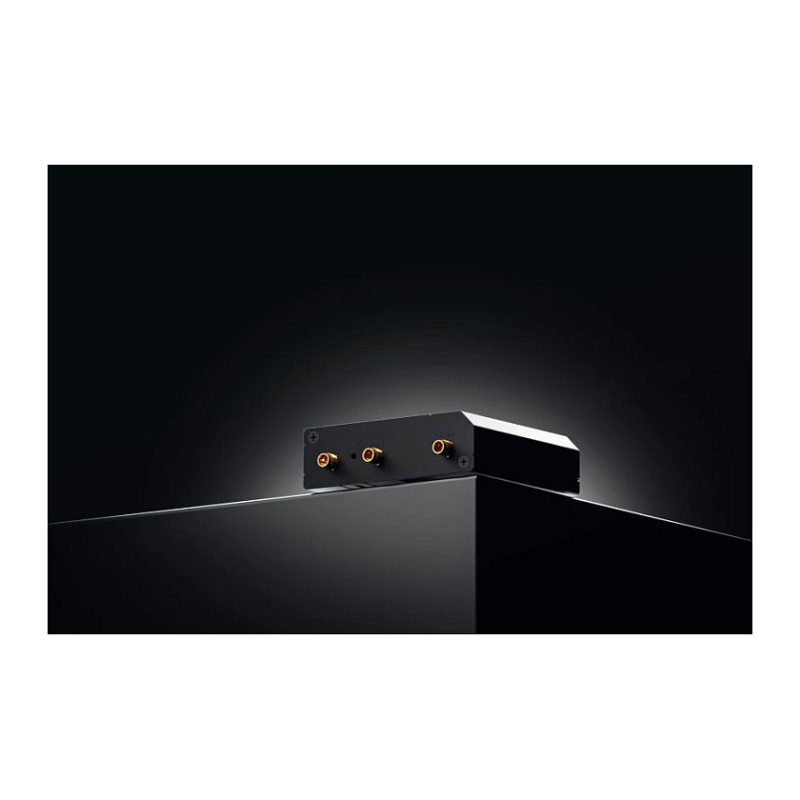

Antenna type: External
Antenna connector type: SMA
Antennas quantity: 3

Power

Power source type: DC
Output voltage: 9 - 30 V

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 83 mm
Depth: 74 mm
Height: 25 mm
Weight: 125 g
