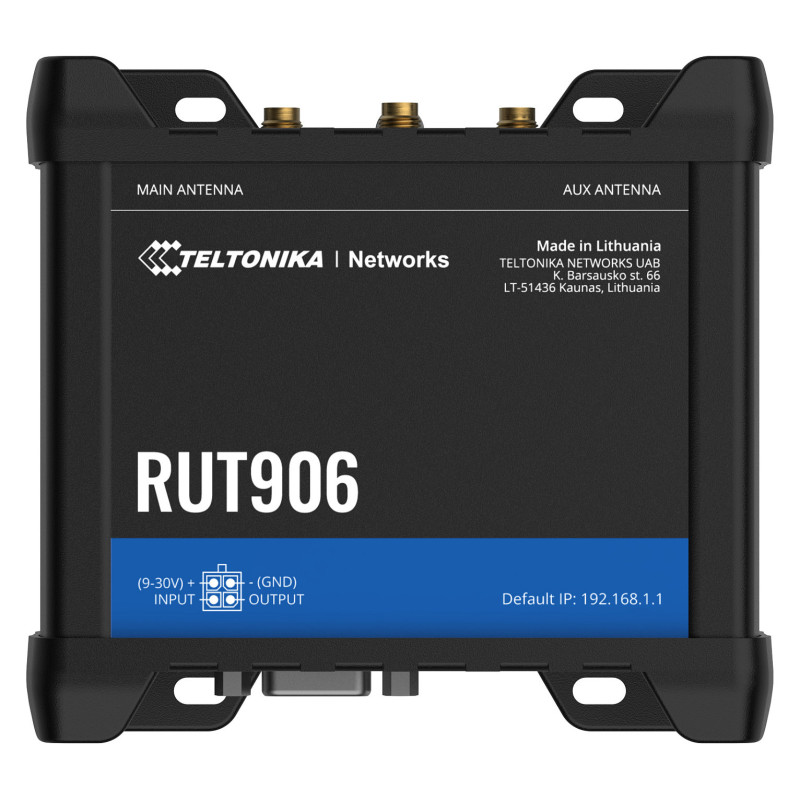

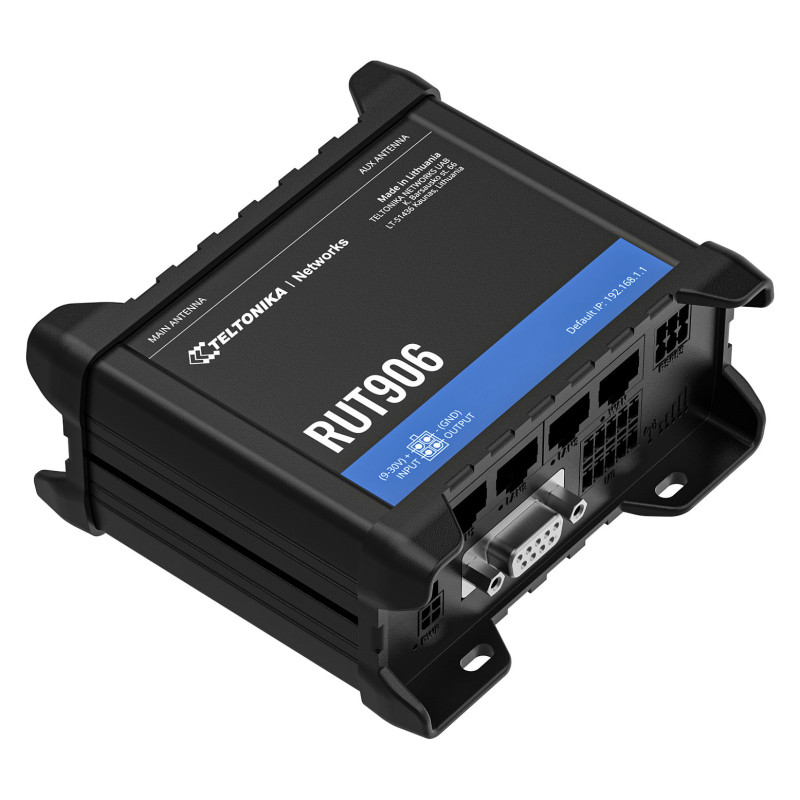

Teltonika · Router· RUT906· LTE Modem Router / WLAN - Router - WLAN

Teltonika · Router· RUT906· LTE Modem Router/WLAN - Router - WLAN. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi frequency: 2.4 GHz. Data network: 2G, 3G, 4G, LTE, 4G standard: LTE, SIM card type: MiniSIM. USB port type: USB Type-A, Serial interface type: RS-232, RS-485

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.

Design

Device type: Cellular network router
Product colour: Black
Housing material: Aluminium
Mounting: DIN-rail
Feature: Reset button
LED indicators: 3G, Data, Network, Power, System

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Feature: DHCP client
Feature: DHCP server
Feature: IP routing

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi frequency: 2.4 GHz

Mobile network

Data network: 2G, 3G, 4G, LTE
4G standard: LTE
Number of SIM cards: 2
SIM card type: MiniSIM
Feature: Short Message Service (SMS)
Data transfer rate (LTE) (download): 150 Mbit/s
Data transfer rate (LTE) (upload): 50 Mbit/s

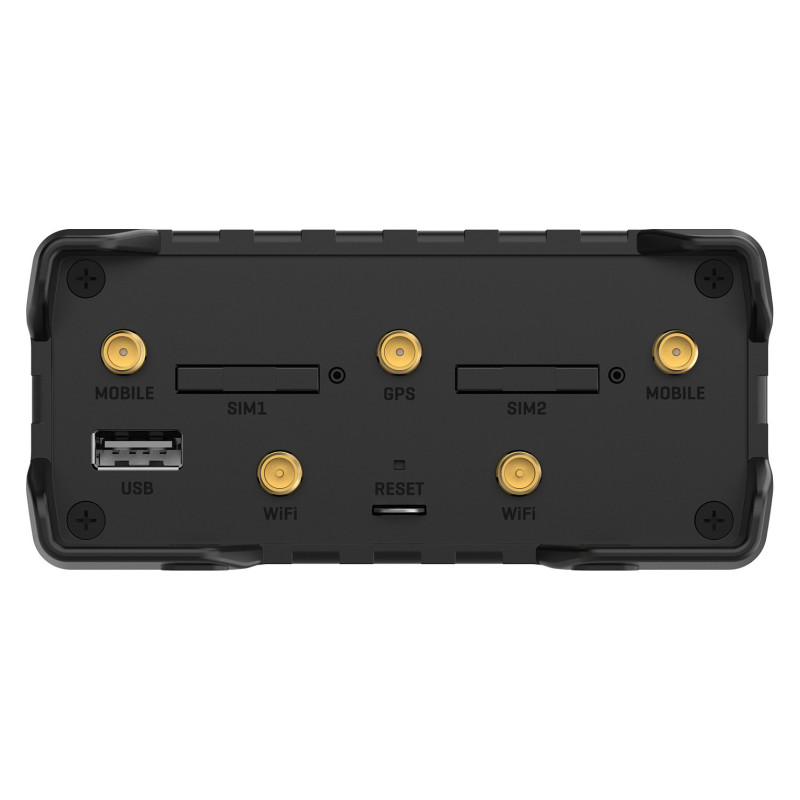

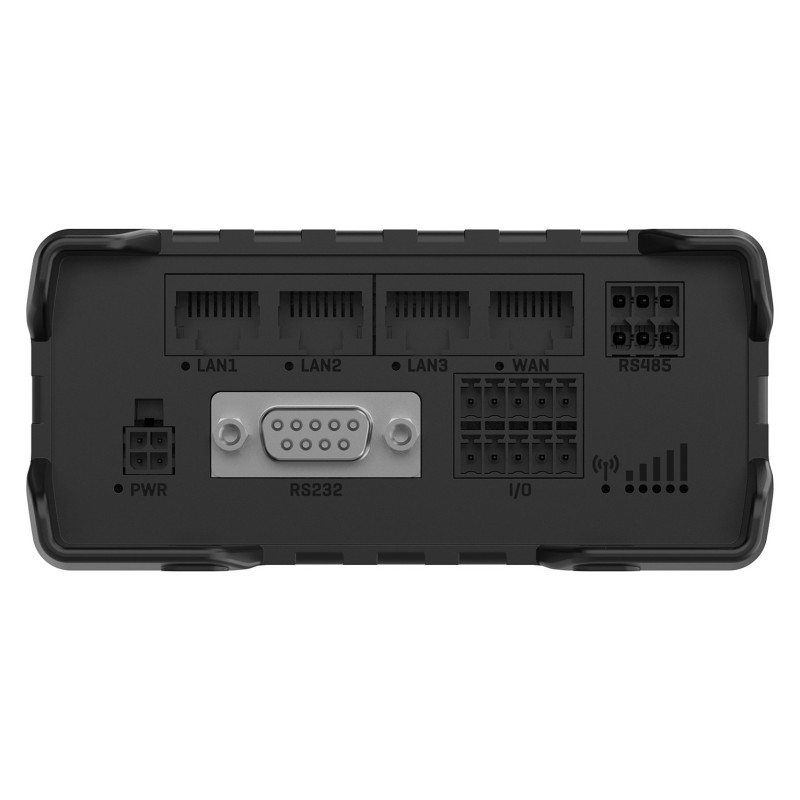

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
USB port type: USB Type-A
Feature: USB port
USB 2.0 ports quantity: 1
Serial interface type: RS-232, RS-485

Security

Security algorithms: AES-CCMP, FTPES, TKIP, WEP, WPA-PSK, WPA2-Enterprise-PEAP, WPA3-EAP, WPA3-SAE
Feature: Network address translation (NAT)
Feature: Firewall
Feature: IP address filtering
Feature: URL filtering
Feature: DMZ support
Feature: Port forwarding
VPN support: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc

GPS Performance

Feature: GLONASS
Feature: BeiDou
Feature: Galileo
Feature: Quasi-Zenith Satellite System (QZSS)

Performance

Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.016 GB
Operating system installed: RutOS
Feature: Web-based management
Feature: GPS (satellite)
Antenna type: External
Antenna connector type: SMA/RP-SMA
Antennas quantity: 5
Feature: Detachable antenna(s)

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 109.5 mm
Depth: 100 mm
Height: 50 mm
Weight: 295 g
