TELTONIKA Outdoor 4G Cat.4 Router

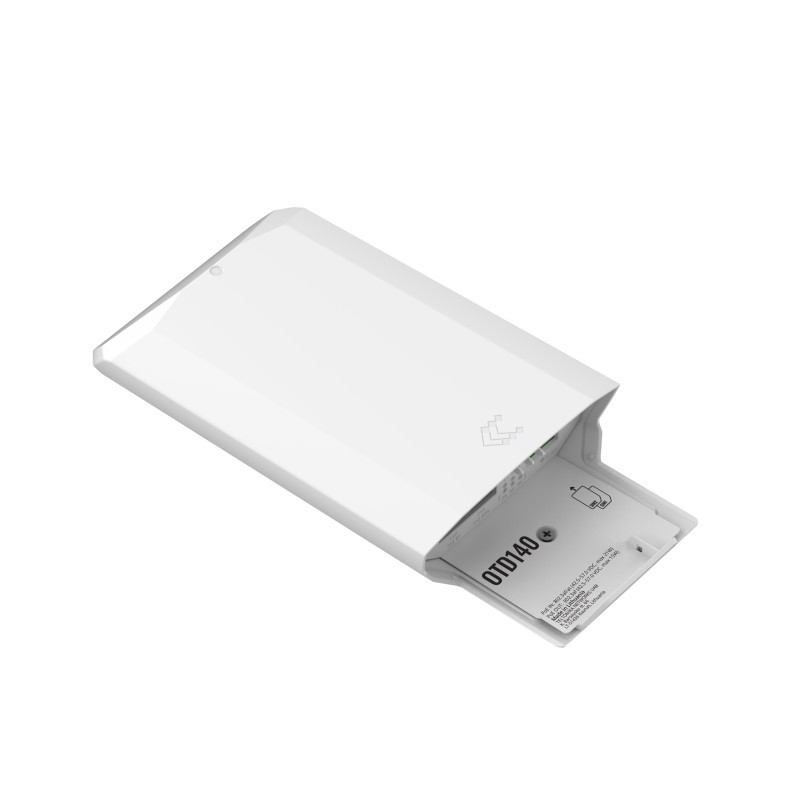

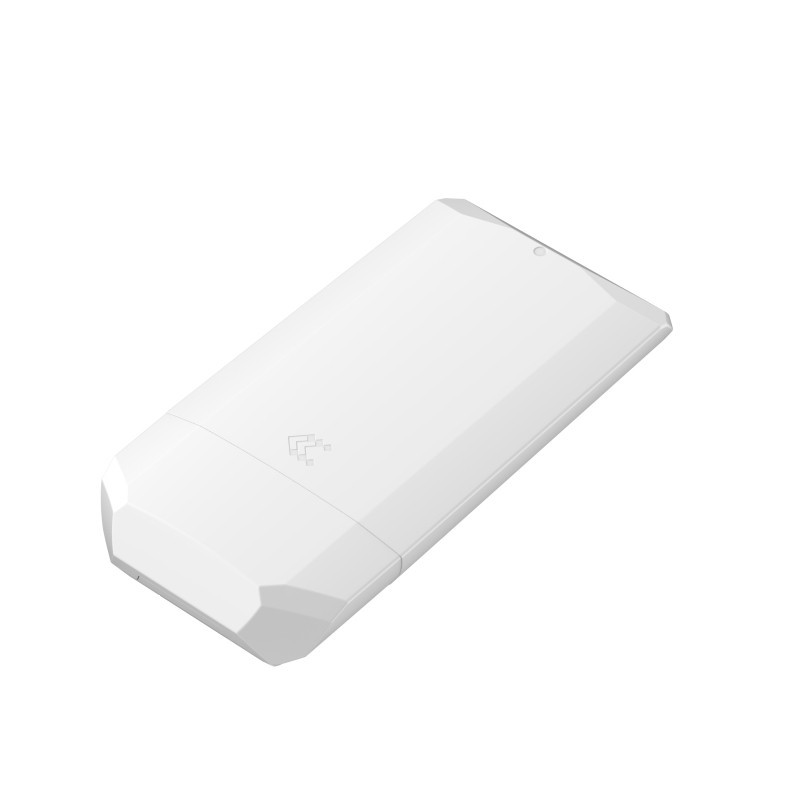

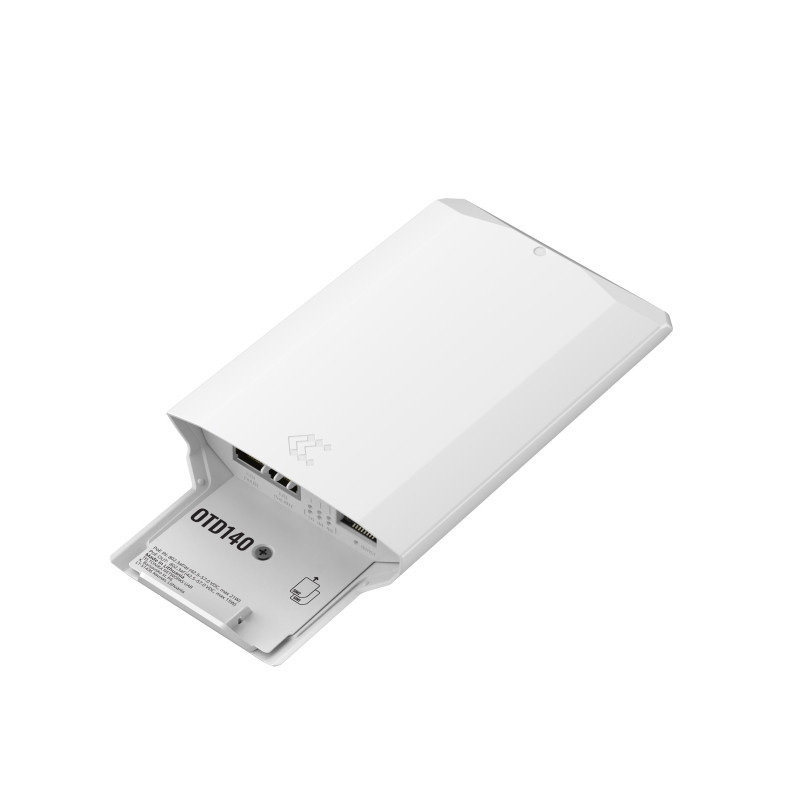

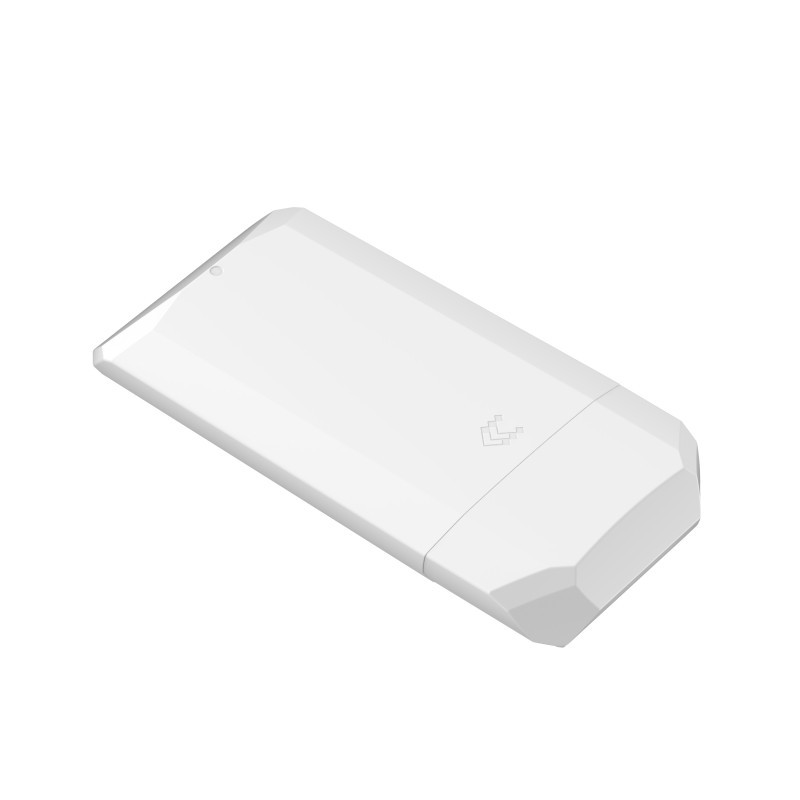

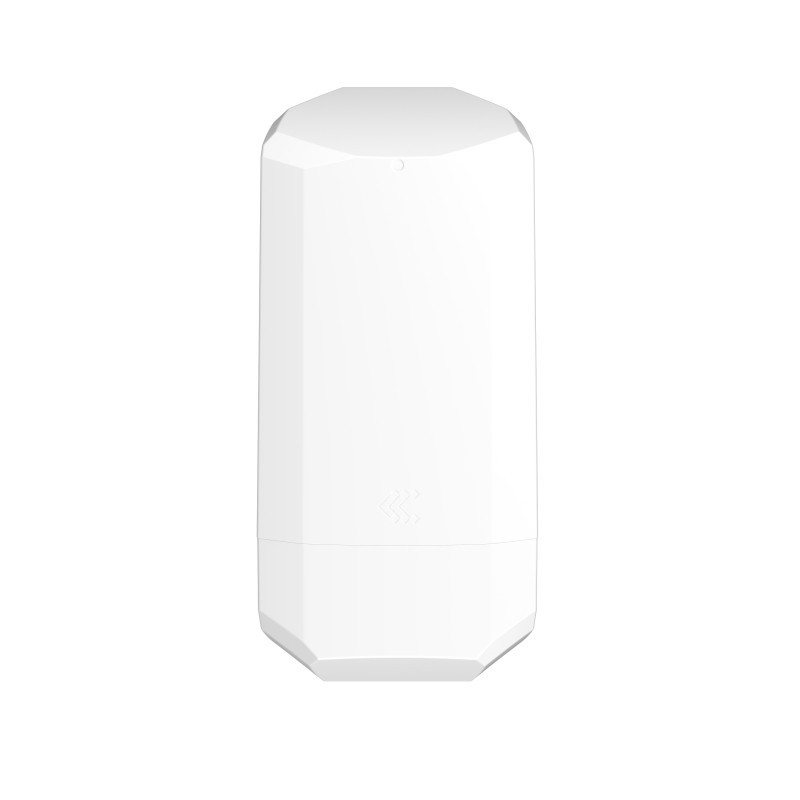

The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.

MobileMobile module: 4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD: Supports sending and reading Unstructured Supplementary Service Data messages Black/White list: Operator black/white list (by country or separate operators) Band management: Band lock, Used band status display APN: Auto APN Bridge: Direct connection (bridge) between mobile ISP and device on LAN Passthrough: Router assigns its mobile WAN IP address to another device on LAN

EthernetLAN: 2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE INPoE ports: 1 x PoE In PoE standards: 802.3af/at

POE OUTPoE ports: 1 x PoE Out PoE standards: 802.3af Alternative B PoE Max Power per Port (at PSE): 15 W Max (power supply unit dependent)

NetworkRouting: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forward, traffic rules, custom rules Firewall status page: View all your Firewall statistics, rules, and rule counters Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on Network topology: Visual representation of your network, showing which devices are connected to which other devices DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS: Supported > 25 service providers, others can be configured manually Network backup: VRRP, Wired options, each of which can be used as an automatic Failover Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes SSHFS: Possibility to mount remote file system via SSH protocol

SecurityAuthentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP login attempts block, time-based login blocking, built-in random password generator Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet

VPNOpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE: GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code DMVPN: Method of building scalable IPsec VPNs SSTP: SSTP client instance support ZeroTier: ZeroTier VPN client support WireGuard: WireGuard VPN client and server support Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UASupported modes: Client, Server Supported connection types: TCP

MODBUSSupported modes: Server, Client Supported connection types: TCP Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Date To ServerProtocol: HTTP(S), MQTT, Azure MQTT Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server

MQTT GatewayModbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3Supported modes: Station, Outstation Supported connection: TCP

DLMSDLMS Support: DLMS - standard protocol for utility meter data exchange

APITeltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring ManagementWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) Email: Receive email message status alerts of various services SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap JSON-RPC: Management API over HTTP/HTTPS RMS: Teltonika Remote Management System (RMS)

IoT PlatformsCloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength Azure IoT Hub: Can send device IP, Number of bytes sent/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

System CharacteristicsCPU: Mediatek, 580 MHz, MIPS 24KEc RAM: 128 MB FLASH storage: 16 MB

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware CustomizationOperating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++, and Python, Java in Package manager Development tools: SDK package with build environment provided GPL customization: You can create your own custom, branded firmware and web page application by changing colors, logos, and other elements in our firmware to fit your or your clients' needs.

PowerConnector: RJ45 Socket Input voltage range: 42.5-57.0 VDC, reverse polarity protection, voltage surge/transient protection Input voltage range for PoE: 42.5-57.0 VDC, reverse polarity protection, voltage surge/transient protection Power consumption: Idle: < 2.5 W / Max: < 6 W / PoE Max < 21 W

Physical InterfacesEthernet: 2 x RJ45 ports, 10/100 Mbps Status LEDs: 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V Power: RJ45, PoE In, 42.5 - 57.0 VDC Antennas: 2 x Internal antennas Antennas specifications: 1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, VSWR <3.5, gain <3 dBi, omnidirectional 1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, VSWR <3, gain <4.5 dBi, omnidirectional Reset: Reboot/User default reset/Factory reset button

Physical SpecificationCasing material: Plastic (PC+ASA) Dimensions (W x H x D): 110 x 49.30 x 235 mm Weight: 855 g Mounting options: Mounting bracket (for vertical flat surface or pole mounting)

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP55

Regulatory Type ApprovalsRegulatory: CE, UKCA, EAC, UCRF, RCM
