Teltonika OTD144

Teltonika OTD144. Device type: Cellular network router, Product colour: White, Housing material: Acrylonitrile styrene acrylate (ASA), Polycarbonate (PC). Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11e, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 2G, 3G, 4G, LTE, SIM card type: MiniSIM. Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, AES-CCMP, DES, EAP-TLS, HTTPS, OWE, PEAP, SNMP, SNMPv2,...

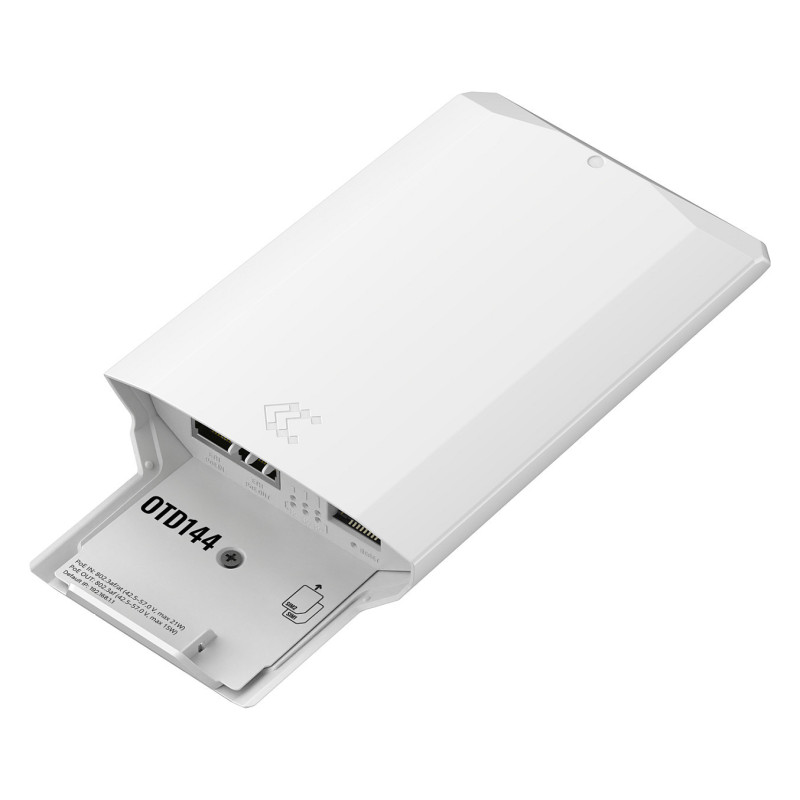

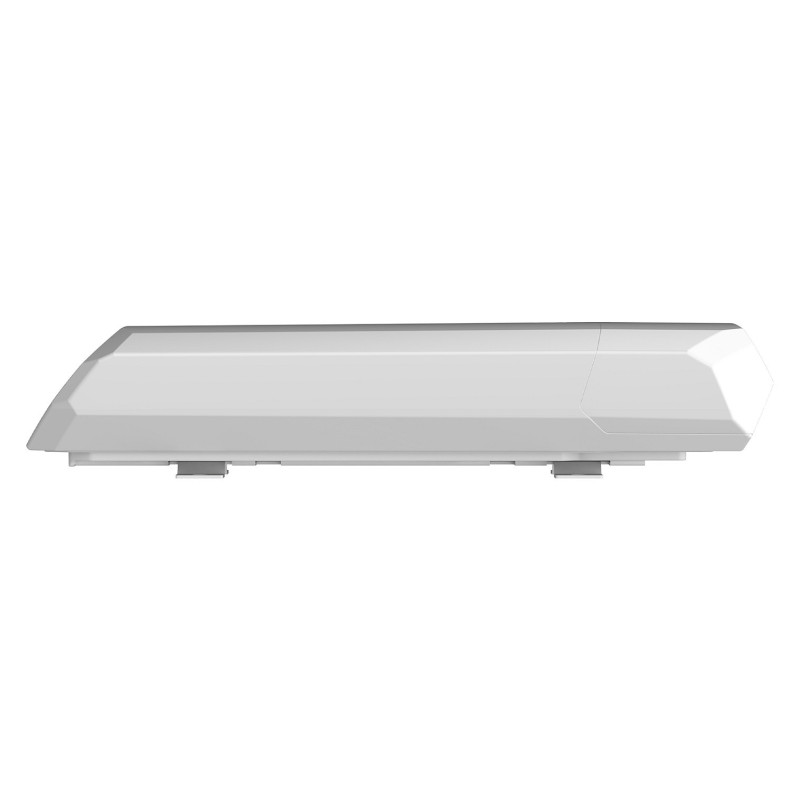

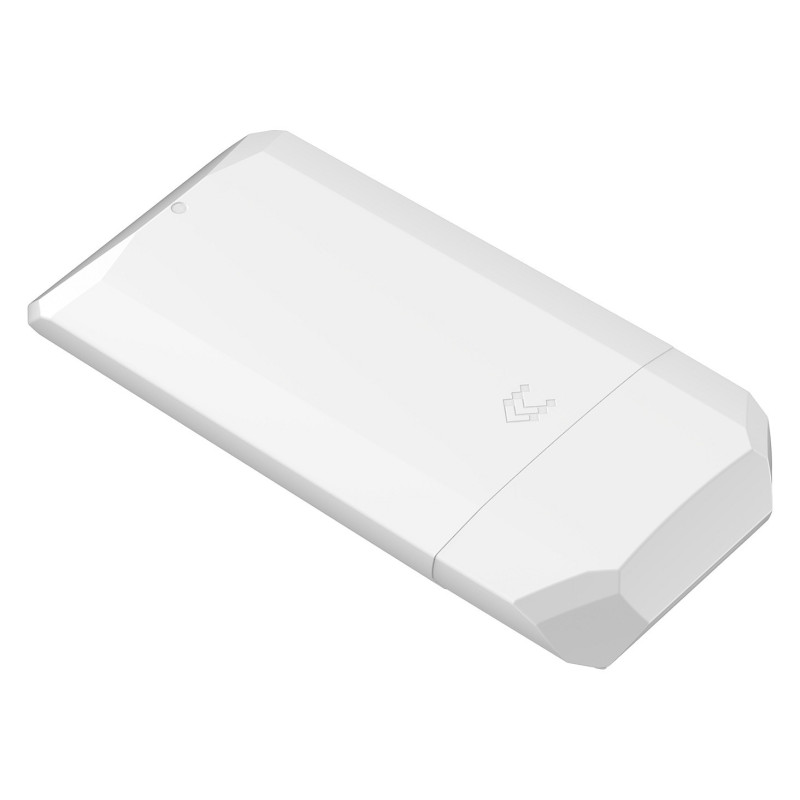

OTD144 Outdoor Wi-Fi Router

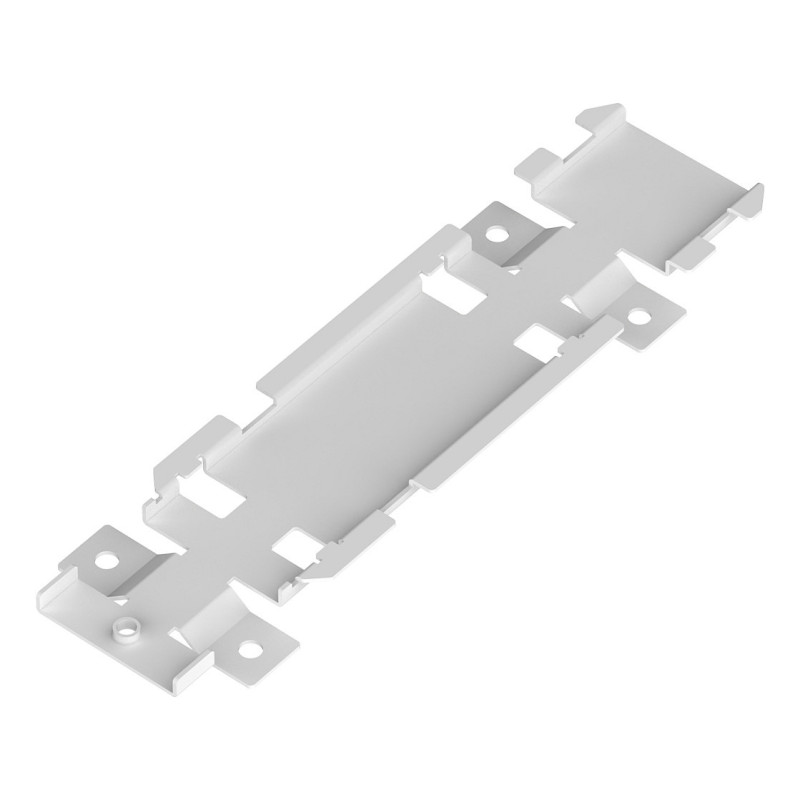

The OTD144 was designed to bring reliable Wi-Fi to outdoor environments where robust networking is essential. Built for challenging conditions, it combines LTE Cat 4 connectivity with dual SIM auto failover, built-in Wi-Fi, and two Ethernet ports - one supporting PoE-in and the other PoE-out. Its rugged IP55 housing with an integrated mounting bracket ensures simple, secure installation in the field. Powered by RutOS and fully compatible with RMS, the OTD144 also provides secure VPN, firewall, hotspot, and remote management features for complete control anywhere.

Design

Device type: Cellular network router
Product colour: White
Housing material: Acrylonitrile styrene acrylate (ASA), Polycarbonate (PC)
Feature: Suitable for outdoor use
Feature: Reset button
LED indicators: Network, Signal strength

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11e, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Feature: DHCP server
Feature: Auto MDI/MDI-X
Feature: Dynamic DNS (DDNS)
Feature: Network bridge

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Mobile network

Data network: 2G, 3G, 4G, LTE
Number of SIM cards: 2
SIM card type: MiniSIM
4G LTE category: 4
Feature: Short Message Service (SMS)

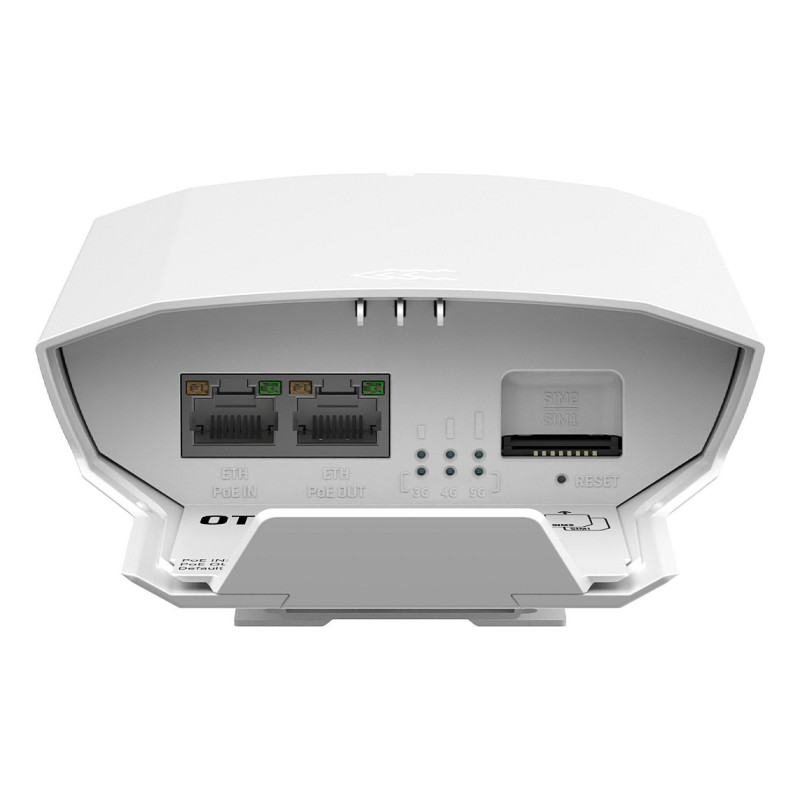

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Security

Feature: Network address translation (NAT)
Feature: Firewall
Feature: DMZ support
Feature: Port forwarding

Certificates

Compliance certificates: CB, CE, EAC, RCM, UKCA, WEEE

Packaging content

Packaging content: Router HolderQSG (Quick Start Guide)

Performance

Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 64 GB
RAM type: DDR2
Internal storage capacity: 0.016 GB
Operating system installed: RutOS
Feature: Web-based management
Management protocols: WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Antenna type: Internal
Antennas quantity: 4

Power

Power source type: PoE
Input voltage: 42.5 - 57 V

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 110 mm
Depth: 235 mm
Height: 49.3 mm
Weight: 315 g

Packaging data

Package width: 110 mm
Package depth: 235 mm
Package height: 51 mm
