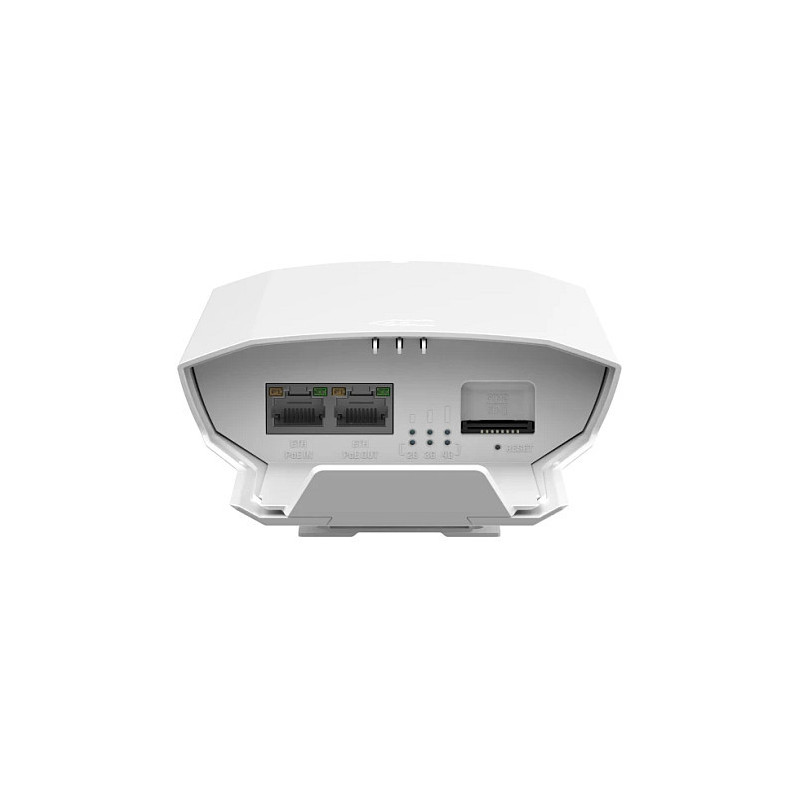

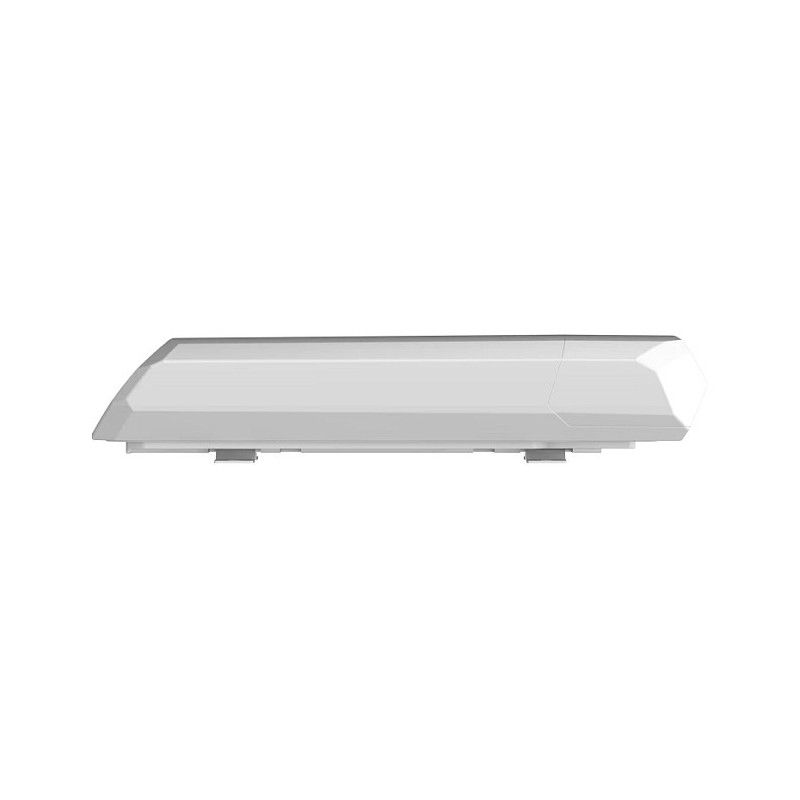

Teltonika OTD140 wired router

Teltonika OTD140. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 4G standard: LTE. Management protocols: FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP,.... Security algorithms: HTTPS. Processor frequency: 580 MHz, Flash memory: 16 MB, Internal memory: 128 MB

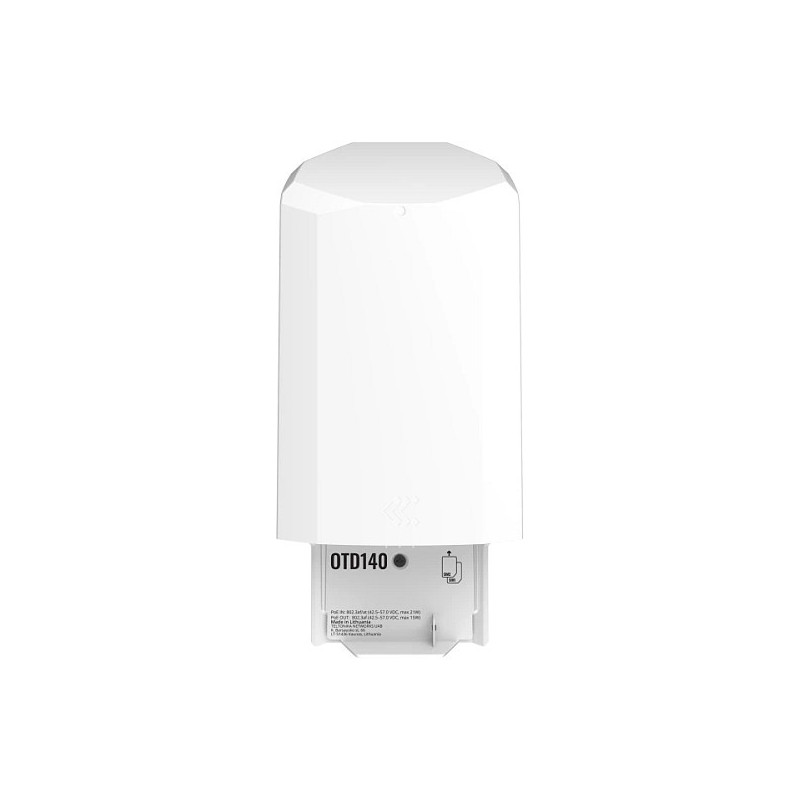

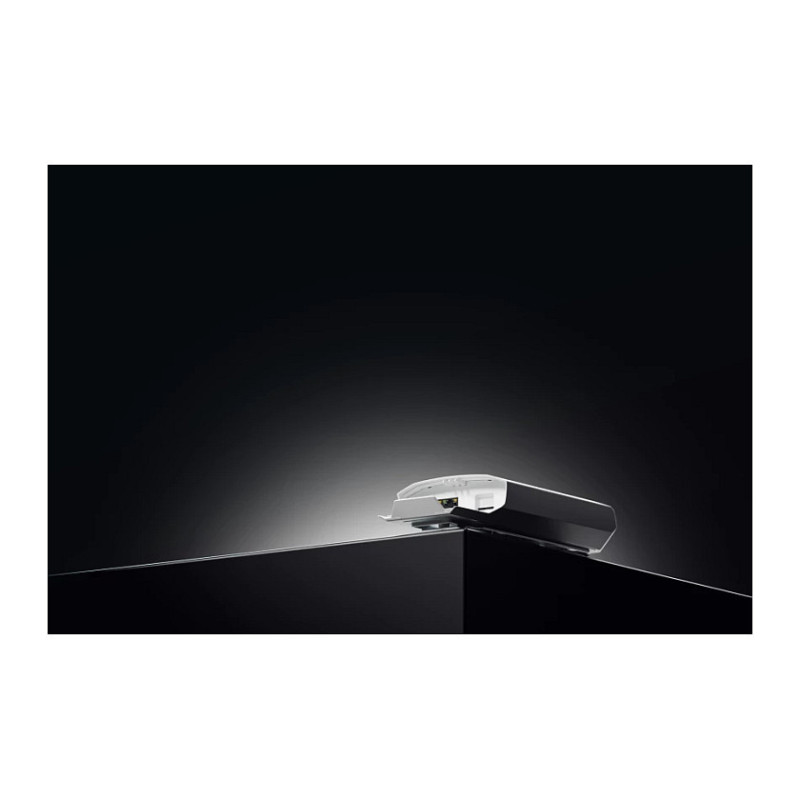

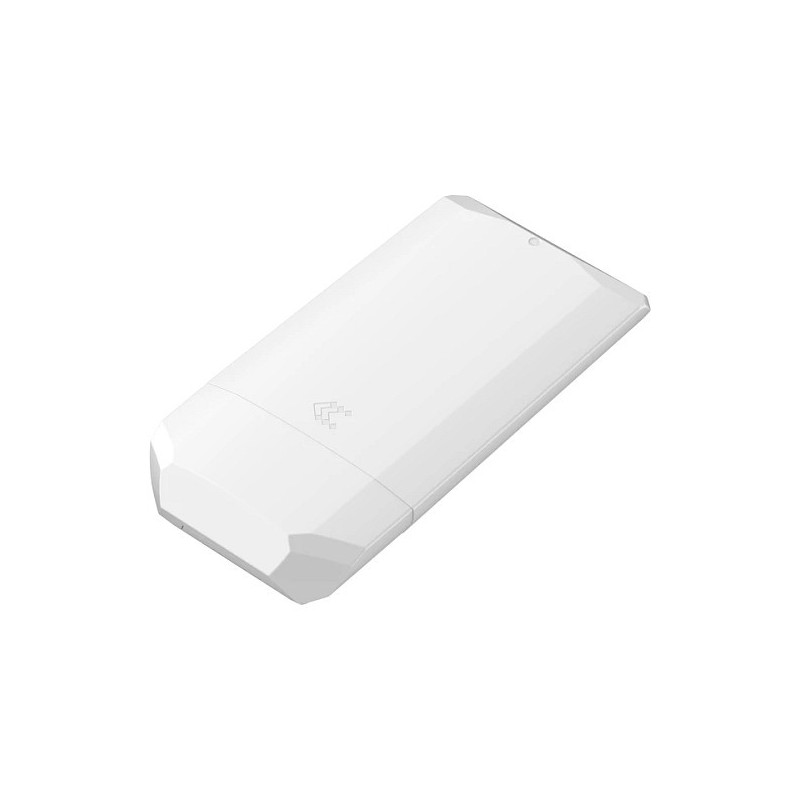

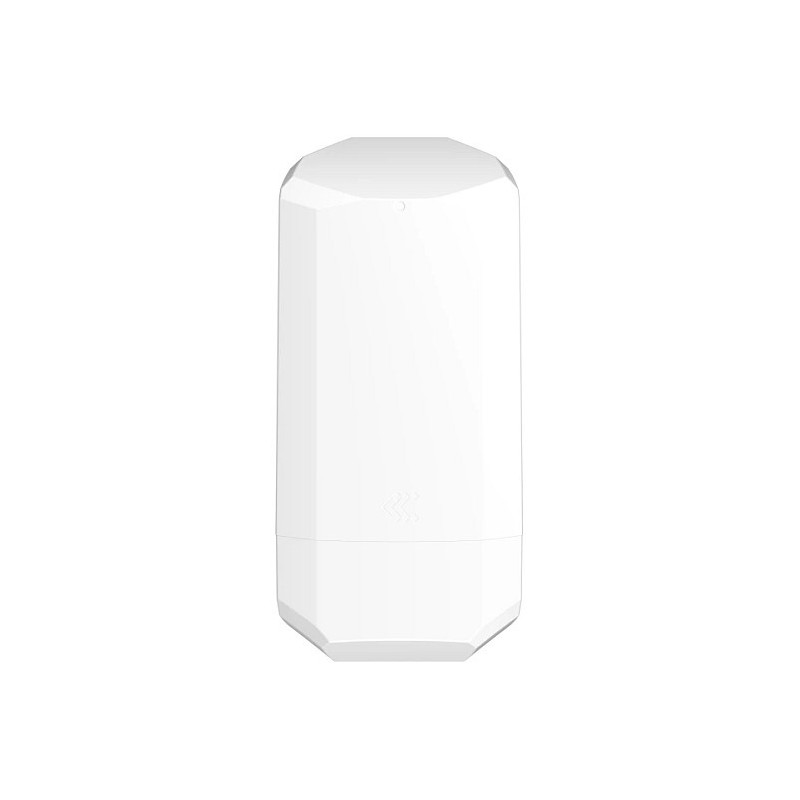

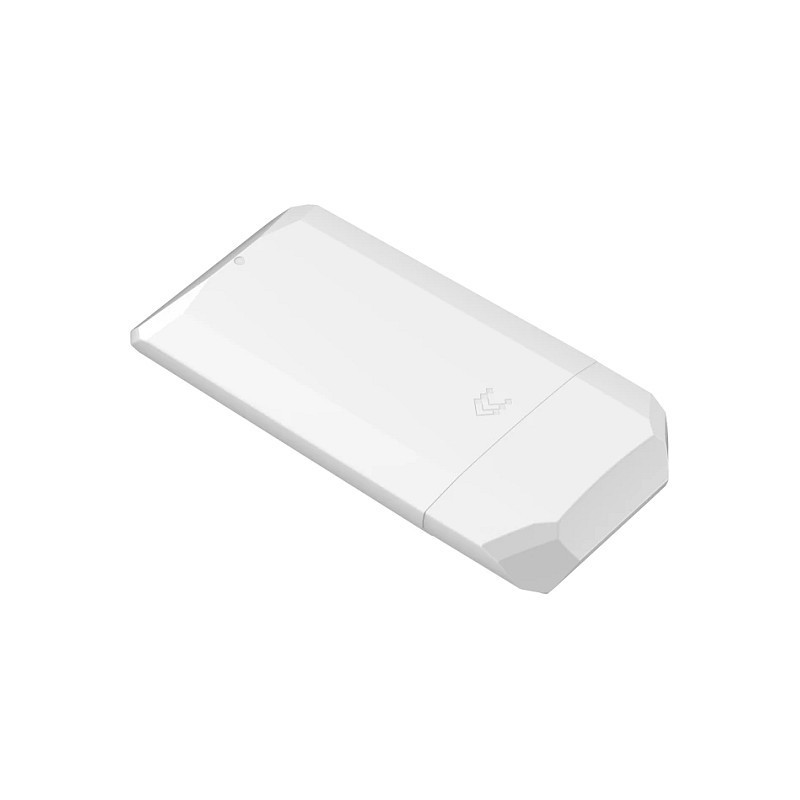

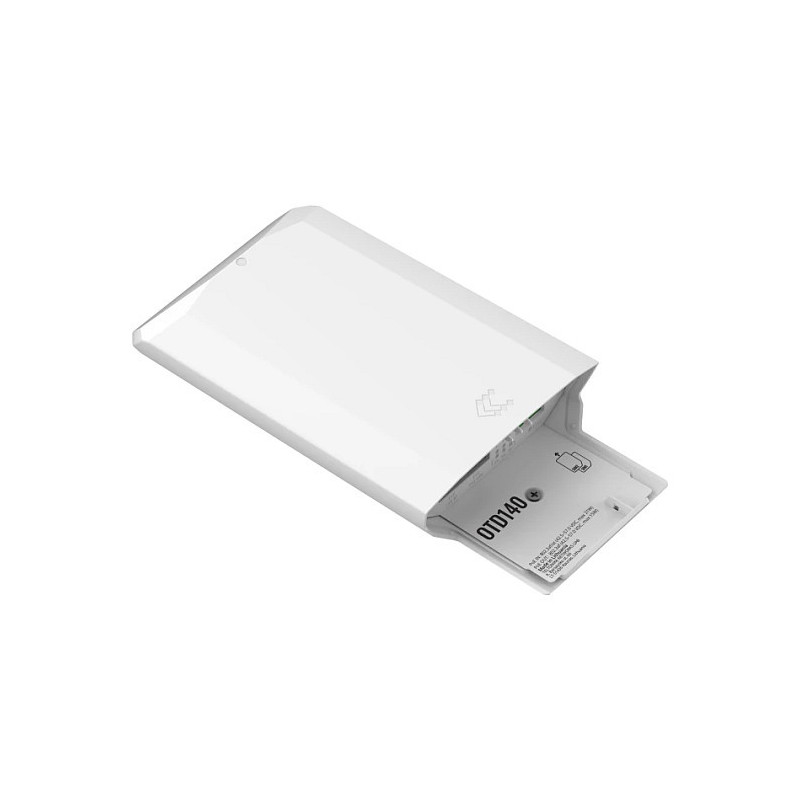

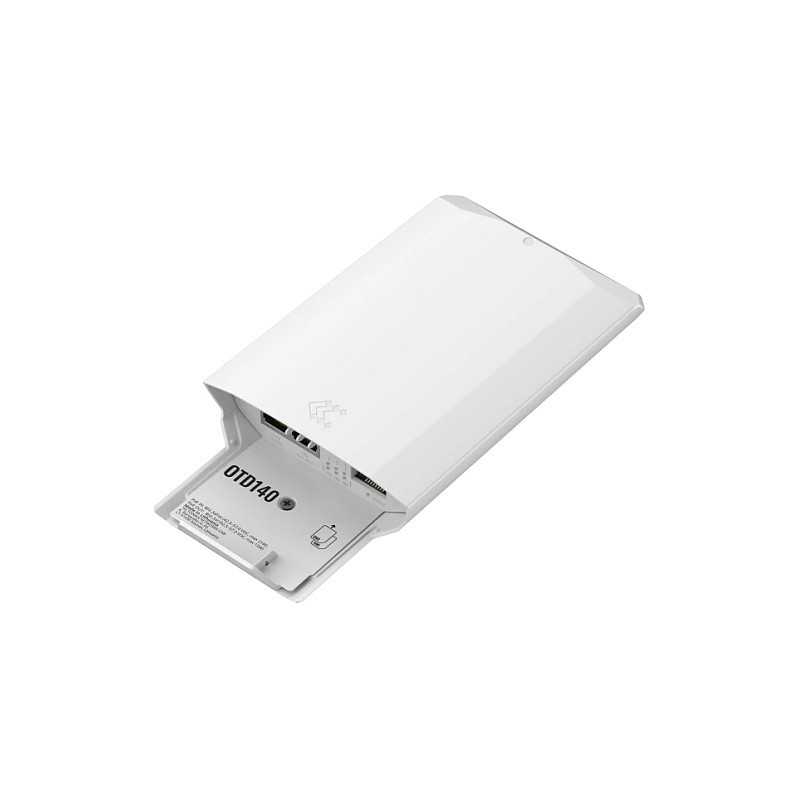

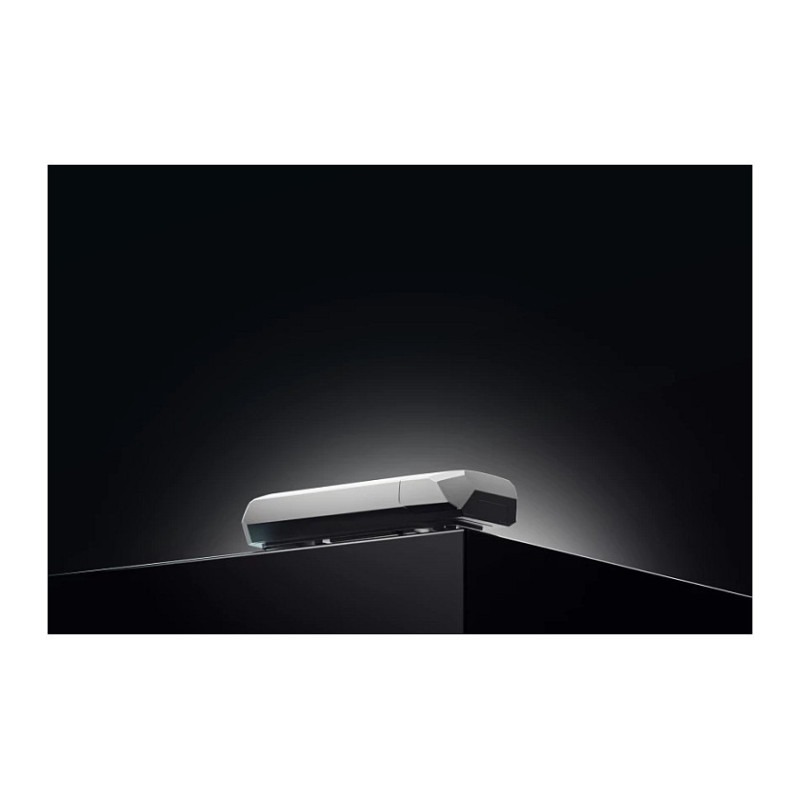

The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot

Network

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100Base-T(X)
Feature: Static route
Feature: VLAN support
Feature: Traffic control
Feature: Port forwarding
Feature: Auto MDI/MDI-X
Feature: Policy-based routing

Mobile network

Mobile network generation: 4G
4G standard: LTE
Feature: Short Message Service (SMS)

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Universal Plug and Play (UPnP)
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Fast Ethernet (copper) ports quantity: 2
Power over Ethernet (PoE) ports quantity: 2

Protocols

Feature: DMZ support
Management protocols: FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS
VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Feature: DHCP client
Feature: DHCP server

Security

Security algorithms: HTTPS
Feature: Firewall
Feature: DoS attack prevention
Feature: ARP attack prevention
Feature: ICMP attack prevention
Feature: Access Control List (ACL)

Packaging content

Feature: Manual

Features

Feature: Built-in processor
Processor frequency: 580 MHz
Flash memory: 16 MB
Internal memory: 128 MB
Operating system installed: RutOS
Certification: CE, UKCA, EAC, UCRF, RCM

Design

Product colour: White
Housing material: Plastic
Feature: Rack mounting
LED indicators: Status

Antenna

Antenna type: Internal
Antennas quantity: 2

Power

Power consumption (typical): 2.5 W
Power consumption (max): 6 W
Power source type: DC, PoE
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 100 mm
Depth: 235 mm
Height: 49.3 mm
Weight: 855 g

Other features

Input voltage: 42.5 - 57 V
