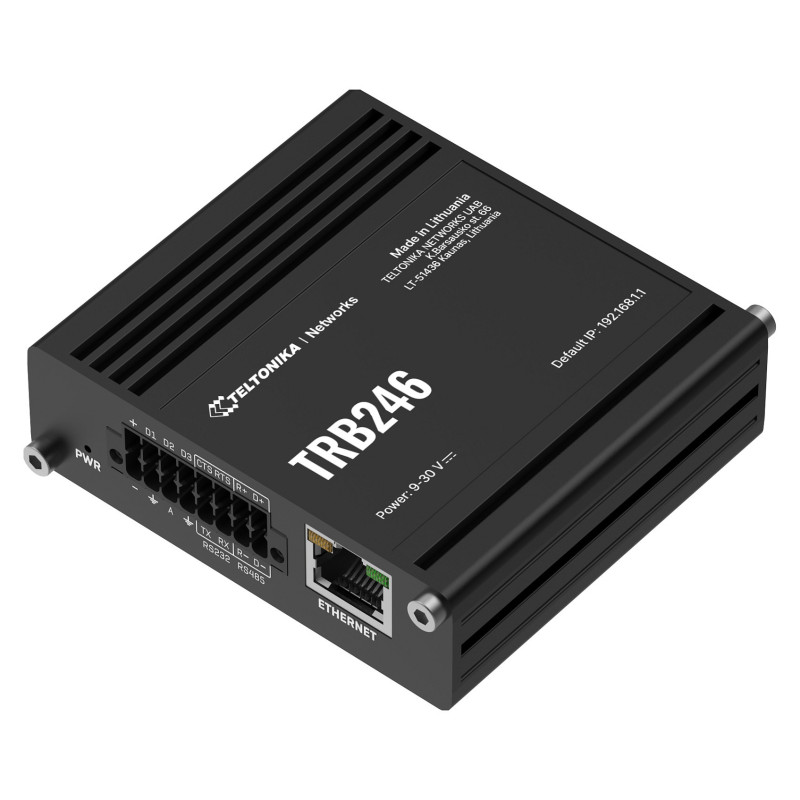

Teltonika NETWORKS TRB246 4G / LTE Industrial IoT Gateway

Teltonika Industrial router, IoT LTE gateway TRB246 Cat 4, 1x RJ45 100Mb/s, IP30. Device type: Cellular network gateway, Product colour: Black, Housing material: Aluminium. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Data network: 2G, 3G, 4G, LTE, SIM interface: 3 V, SIM card type: MiniSIM. Serial interface type: RS-232, RS-232/485. RS-232 signals: CTS, RTS, Rx, Tx, RS-485 signals: Data+, Data-, RDA-, RDB+

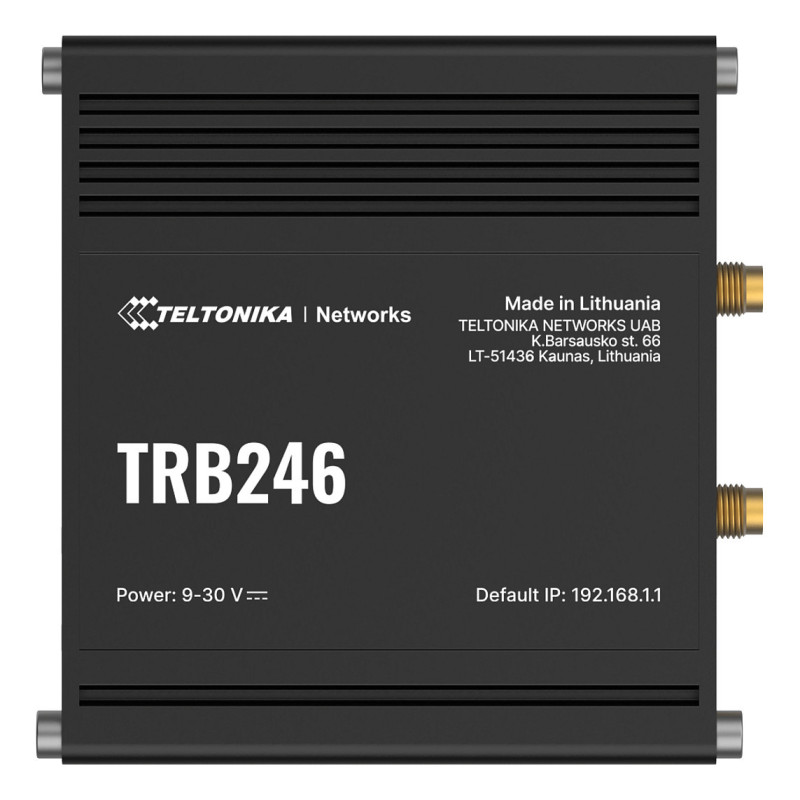

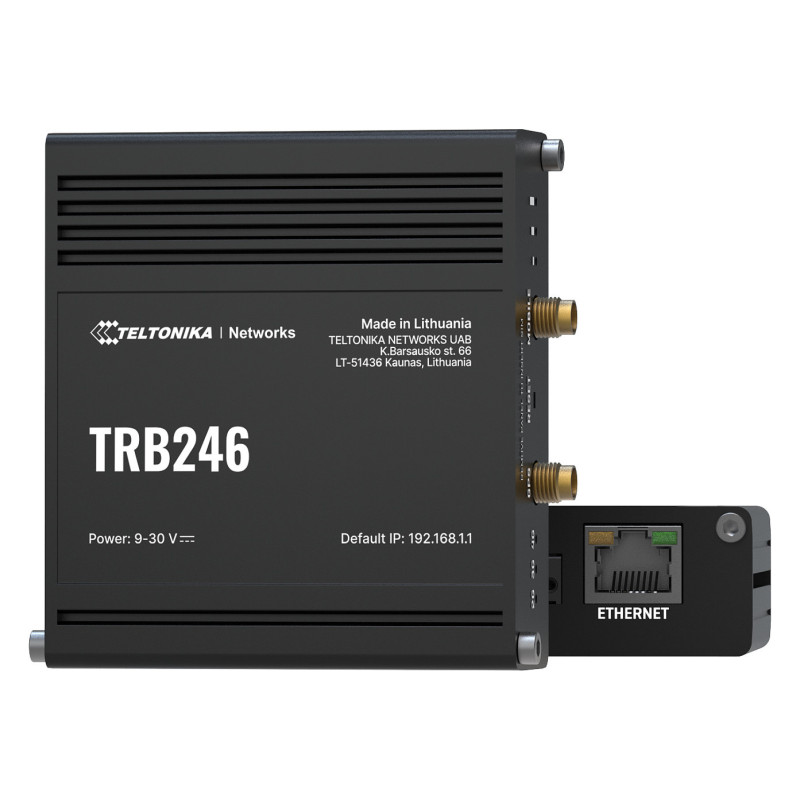

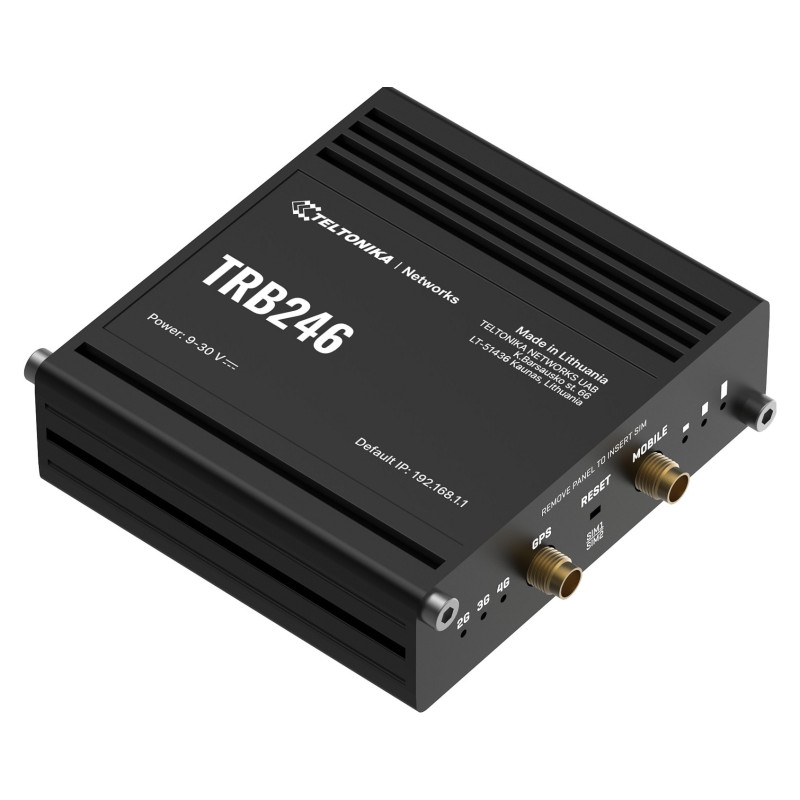

The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.

Design

Device type: Cellular network gateway
Product colour: Black
Housing material: Aluminium
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Feature: Suitable for indoor use
LED indicators: LAN, Power, Signal strength, Status

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: DHCP server
Feature: Full duplex
Feature: Auto MDI/MDI-X

Mobile network

Data network: 2G, 3G, 4G, LTE
Number of SIM cards: 2
SIM interface: 3 V
SIM card type: MiniSIM
Feature: Short Message Service (SMS)
Data transfer rate (LTE) (download): 150 Mbit/s
Data transfer rate (LTE) (upload): 50 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

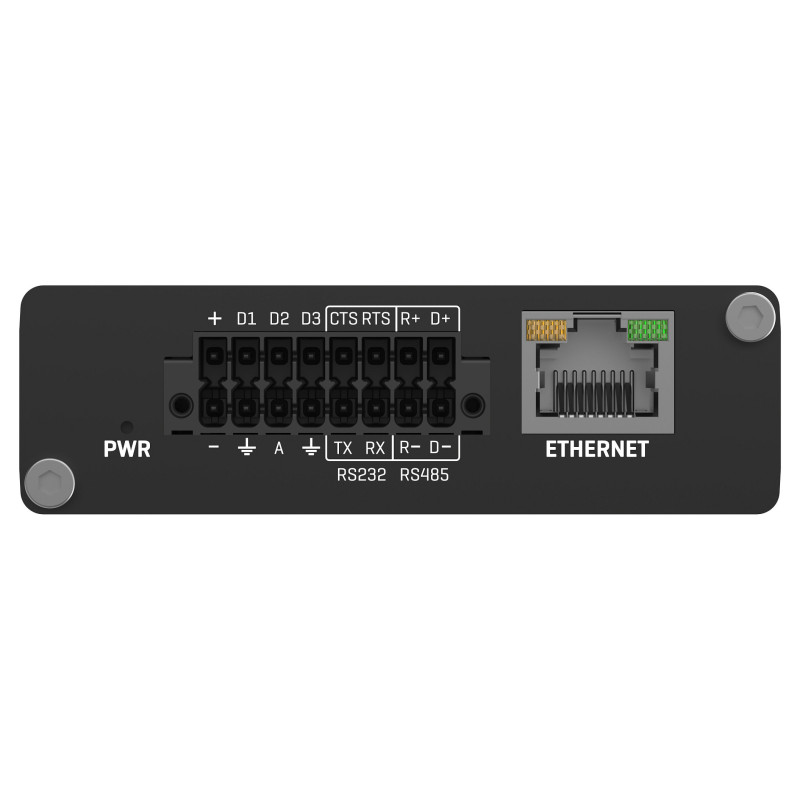

Serial interface type: RS-232, RS-232/485
Serial ports quantity: 1

Serial interface

RS-232 signals: CTS, RTS, Rx, Tx
RS-485 signals: Data+, Data-, RDA-, RDB+

Security

Feature: DMZ support
Feature: Port forwarding

Certificates

Certification: CE, UKCA, RCM, CB, EAC, UCRF, WEEE

GPS Performance

Feature: Embedded GNSS
Feature: GLONASS
Feature: BeiDou
Feature: Galileo
Feature: Quasi-Zenith Satellite System (QZSS)

Performance

Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.016 GB
Feature: Web-based management
Feature: GPS (satellite)

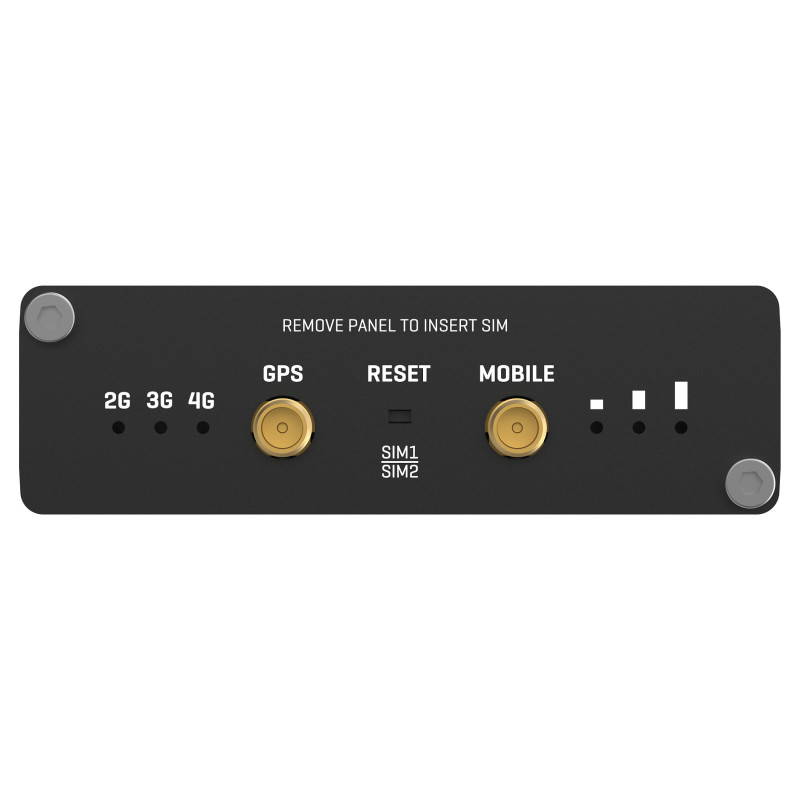

Antenna type: External
Antenna connector type: SMA
Antennas quantity: 2

Management features

Management platform: RMS

Power

Power source type: DC
Input voltage: 9 - 30 V
Feature: External power adapter

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 83 mm
Depth: 74.2 mm
Height: 25 mm
Weight: 165 g
