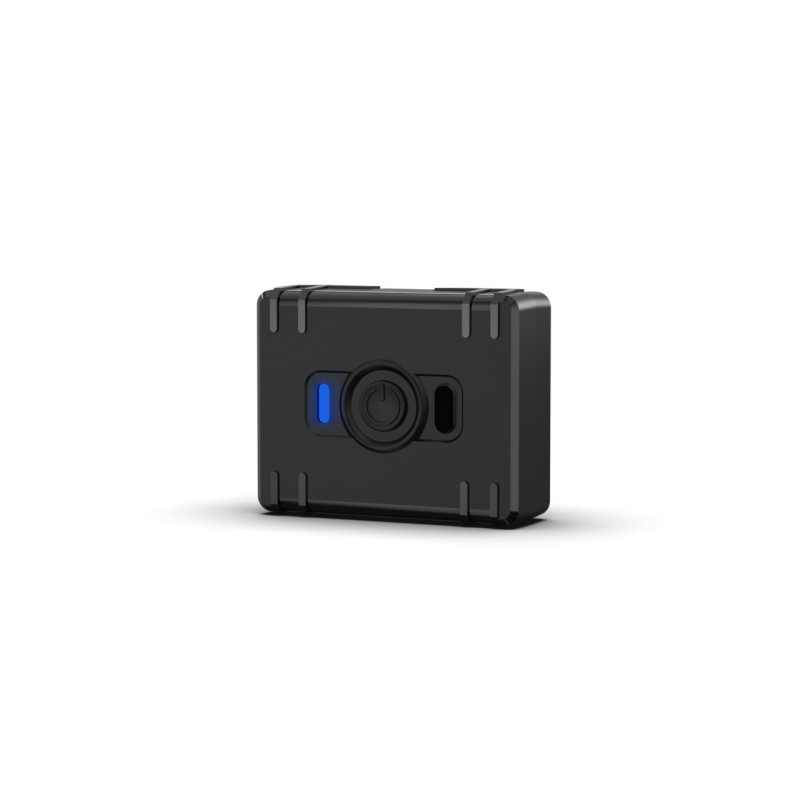

TELTONIKA Mini asset tracker with 4G LTE Cat 1 connectivity

FOLLOW, RECHARGE, REPEAT

The device is equipped with a 1,000 mAh rechargeable battery that ensures reliable power supply and continuous tracking.

SUPPLY POWER SUPPORT

Compatibility with external batteries (Power Bank) allows the device to operate longer when performing long-term tasks or working in remote areas.

VARIOUS BUTTON FUNCTIONS

The multi-function button can be configured to turn on tracking, act as a distress (SOS) button, or switch tracking intervals.

SIMPLE INSTALLATION, RELIABLE OPERATION

Quick setup of the device without any wires, and IP68 The protection class housing ensures reliable operation even in difficult weather conditions.

Model name: ATC700-QJAE0

Module
Name: ATC700-QJAE0: EG915U-EU
Technology: LTE CAT 1/GSM/GPRS/GNSS

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU
Receiver: 135 tracking/acquisition channels
Tracking sensitivity: -165 dBM
Position Accuracy: < 1.8 m CEP
Warm start: < 25 s
Hot start: < 1 s

Cellular
Technology: LTE CAT 1/GSM
2G bands: GSM: B2/B3/B5/B8
4G LTE bands: LTE FDD: B1/B3/B5/B7/B8/B20/B28
Data transfer:
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power:
Class 4 for GSM850/900: 33±4dBM
Class 1 for GSM1800/1900: 30±2dBM
Class 3 for LTE-FDD: 23±2dBM
Data support: SMS (TEXT, PDU), Network protocols (TCP, UDP)

Data codec
Codec support: Codec 8 Extended

Power
Internal battery: 1000 mAh Li-Po battery, 3.7V (3.7Wh)

Physical specification
Dimensions: 62.2 x 54.2 x 20.3 mm (L x W x H)
Weight: 71 g

Operating environment
Operating temperature: -20 °C to +60 °C
Storage temperature (with battery):
-10 °C to +25 °C for 1 month
0 °C to +25 °C for longer than 3 months
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP65 (internally tested, not certified). IP68 - in development.
Battery charge temperature: 0°C to +45°C
Battery discharge temperature: -20°C to +60°C
Battery storage conditions:
-10 °C to +50 °C for 1 month
-10 °C to +35 °C for 3 months
0 °C to +30 °C for 1 year

Interface
GNSS antenna: Internal High Gain
Cellular antenna: Internal High Gain
USB: 2.0 USB Type-C
LED indication: 1 status RGB LED light
SIM: Nano-SIM
Memory: 128MB internal flash memory
Features
Sensors: Accelerometer
Scenarios: Movement-based tracking, Periodic tracking, Scheduler, Alarm button, Power bank support, Configurable LED indication
Sleep modes: Online sleep, Power off sleep
Configuration and firmware update: FOTA WEB, Teltonika Configuration Tool (TCT)
SMS: Configuration, Debug
GPRS commands: Configuration, Debug
Time Synchronization: GNSS, NITZ, NTP

Certification approvals
Regulatory: CE RED, UKCA, E-Mark, RCM
