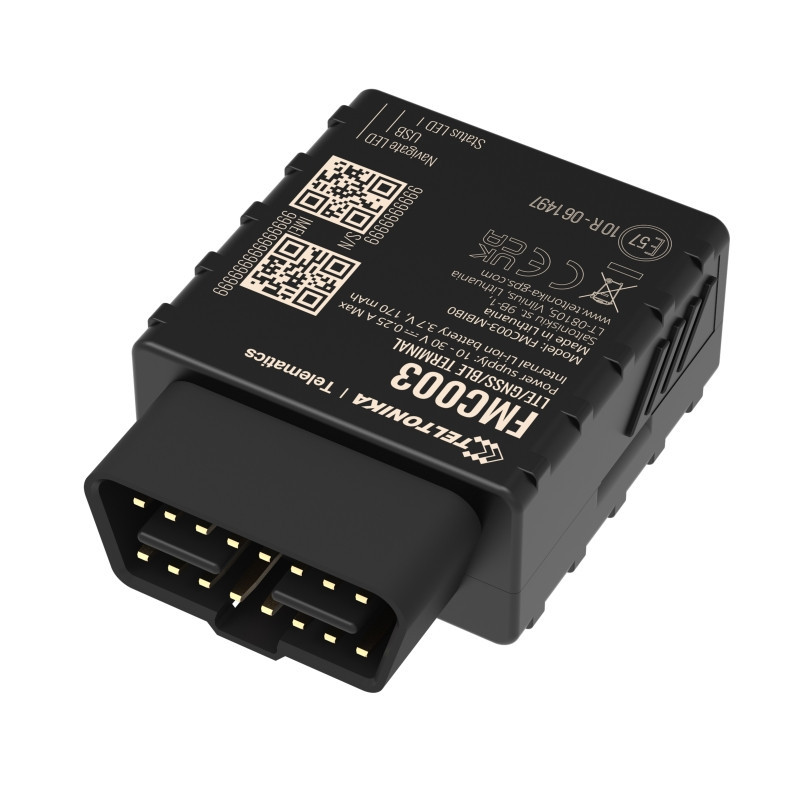

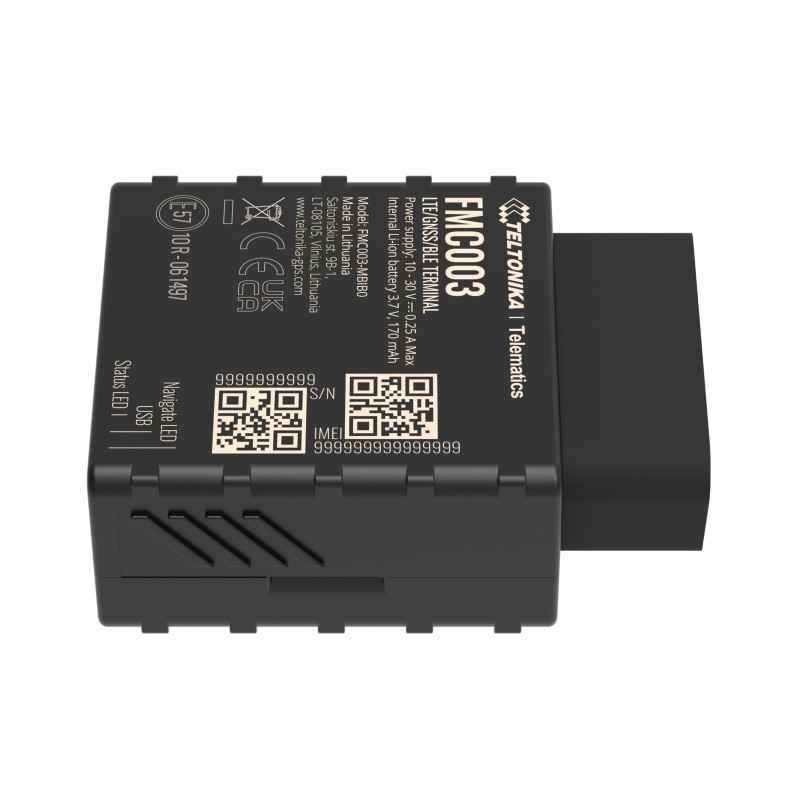

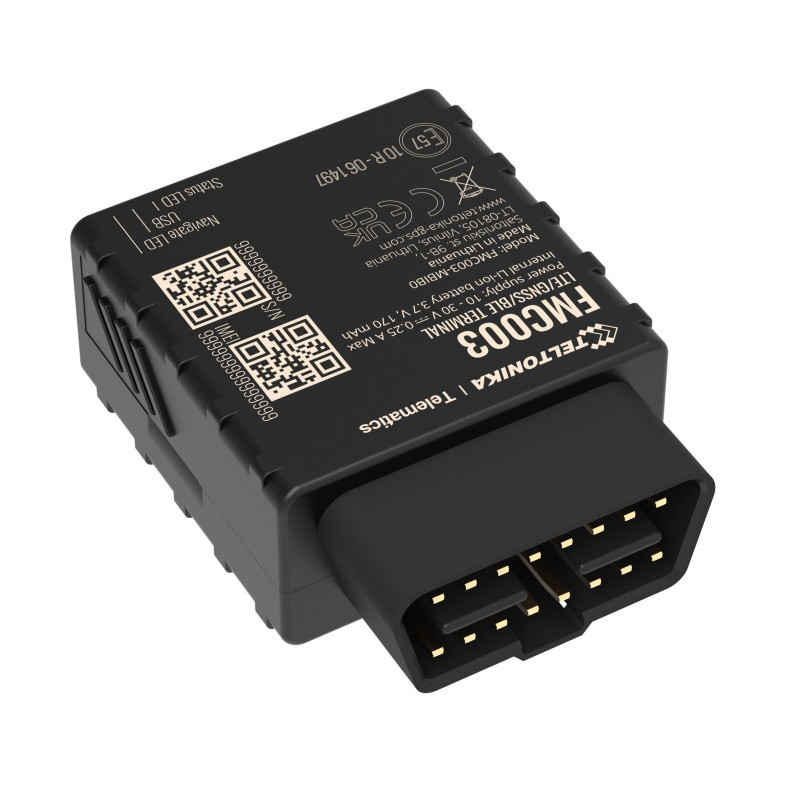

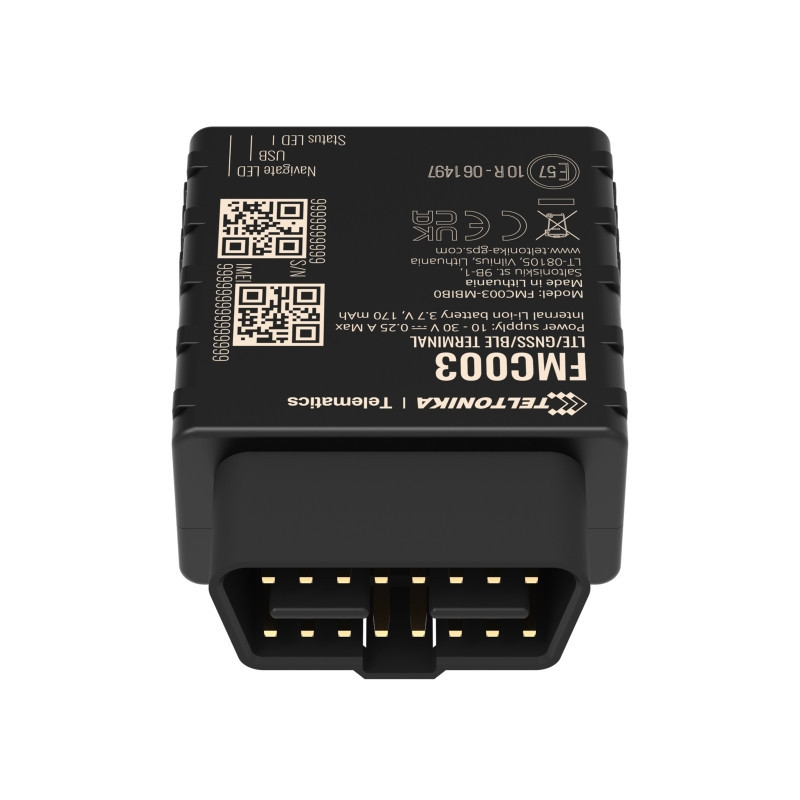

TELTONIKA LTE Cat.1 Advanced OBDII Tracker with Bluetooth
Product reference:
18-FMC003
TELTONIKA LTE Cat.1 Advanced OBDII Tracker with Bluetooth
TELTONIKA LTE Cat.1 Advanced OBDII Tracker with Bluetooth
Product reference:
18-FMC003
TELTONIKA LTE Cat.1 Advanced OBDII Tracker with Bluetooth
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
FMC003is an advanced 'plug and play' LTE CAT1 device for next generation OBD applications. MainFMC003feature - the ability to read OEM parameters (PID) via OBD connector. Using this device, you will be able to read real odometer and real fuel level data. In addition, our device comes with a list of supported vehicles and data, so there is no need to guess - now you will know what data you can read from a specific vehicle. This is a great tracker for various use cases - including light commercial vehicle fleet management, driver logbook, insurance telematics (UBI), car rental and leasing, etc.
| MODULE | |
| In the house | Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA |
| Technology | LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 sec. |
| Warm start | < 25 seconds |
| Cold start | < 35 seconds |
| CELLULAR | |
| Technology | GSM |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands | SLM320-E: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 SLM320-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40 |
| Data transfer | LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM:GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Supply voltage range | 10 - 30 V DC with overvoltage protection |
| Backup battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| BLUETOOTH | |
| Specifications | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support |
| OBD INTERFACE | |
| Date | K-Line, CAN bus date |
| Data reading | Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| INTERFACE | |
| Connection | OBDII Socket |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro USB |
| LED indication | 2 status LED lights |
| SIM | Micro SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 67.2 x 49.6 x 25 mm (L x W x H) |
| Weight | 63 grams |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40°C to +85°C |
| Storage temperature (without battery) | -40°C to +85°C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charging temperature | +10 °C to +45 °C |
| Battery discharge temperature | -20°C to +60°C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD-II |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
