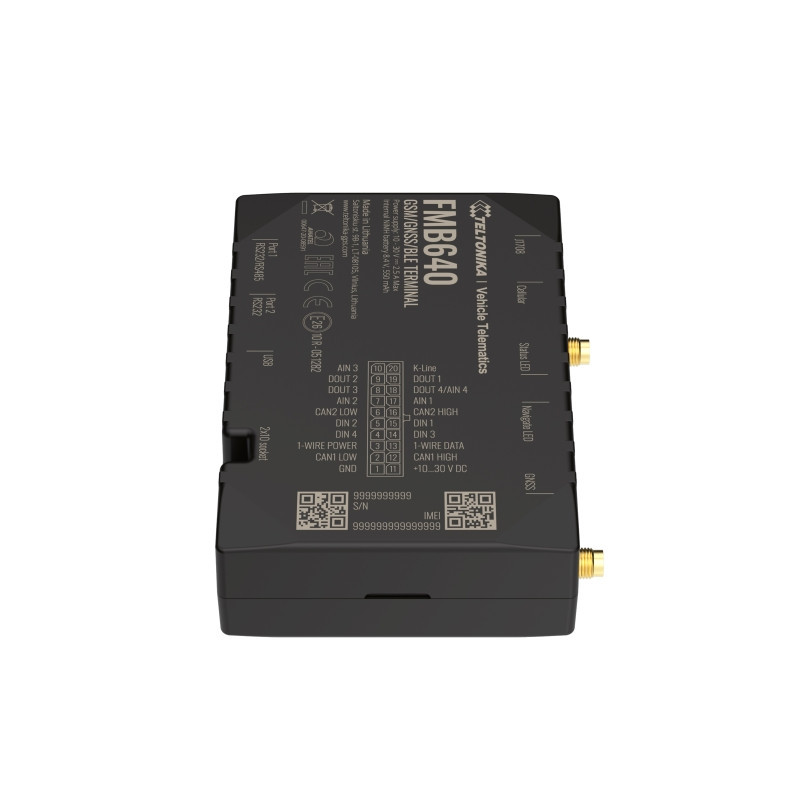

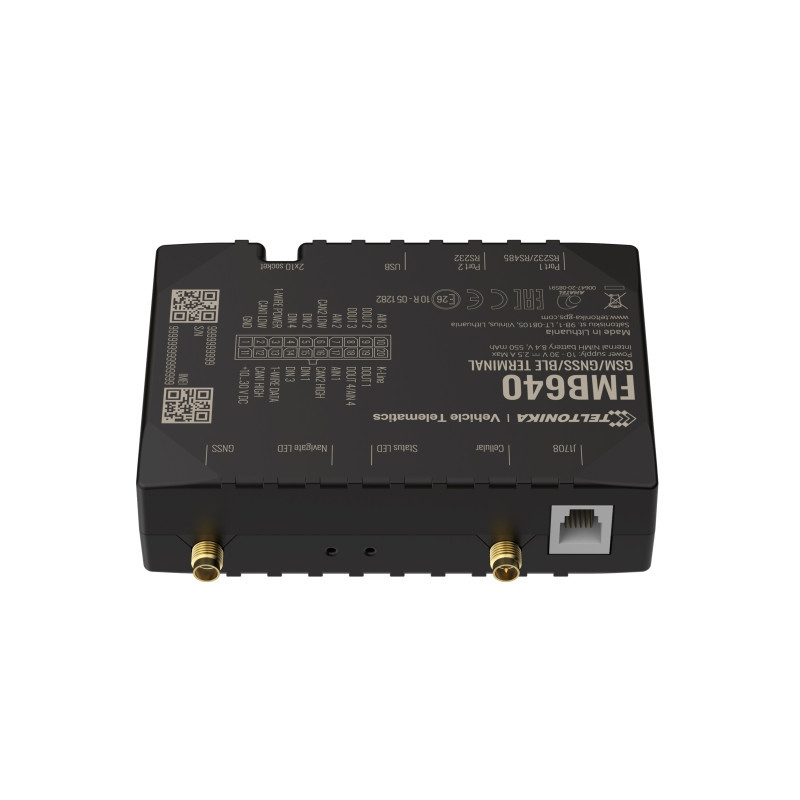

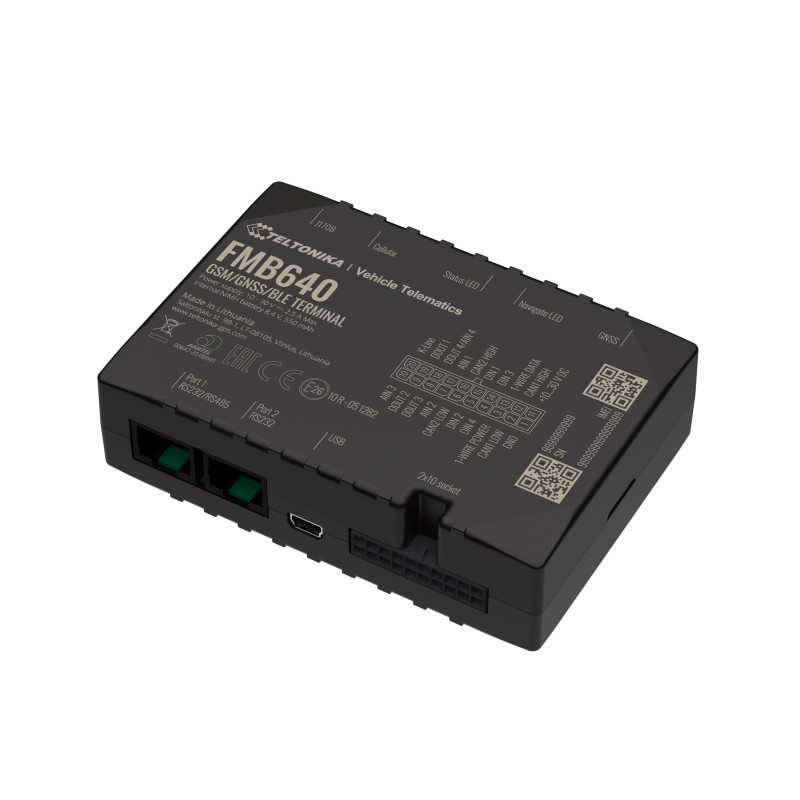

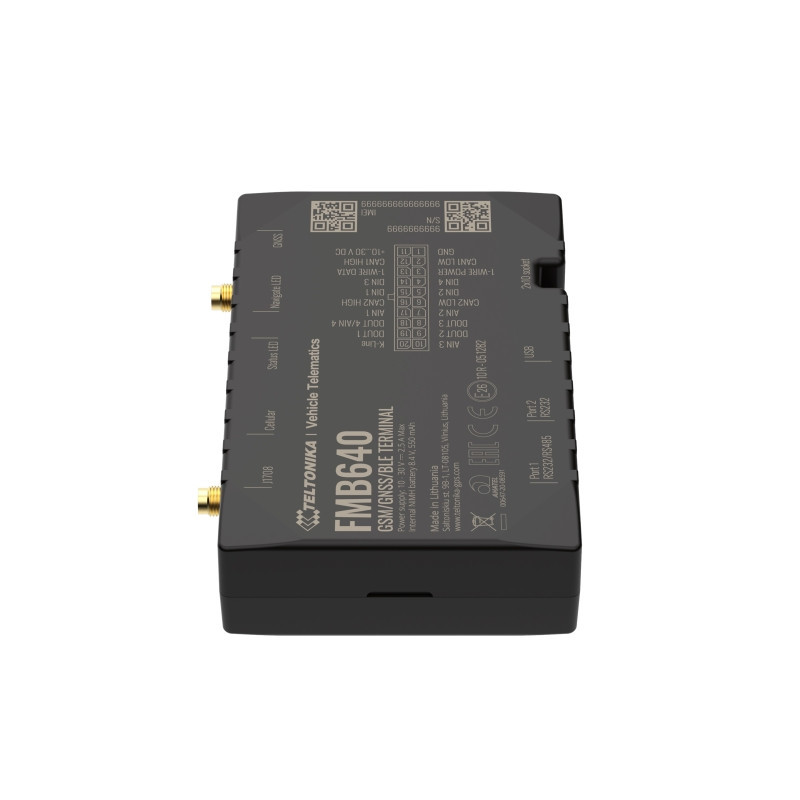

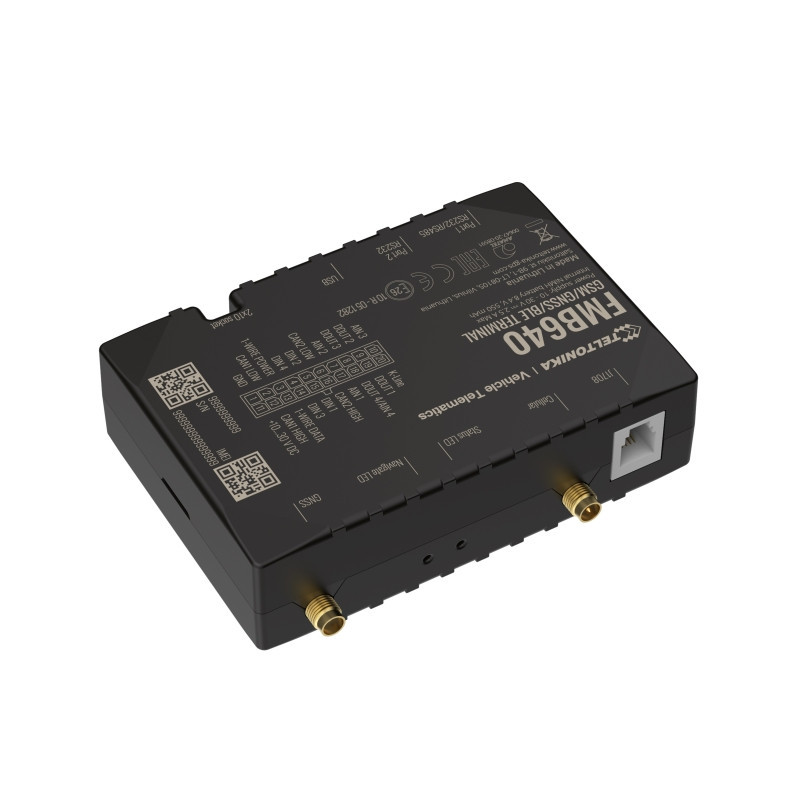

Teltonika FMB640 is GNSS, GSM terminal for PROFESSIONAL applications. FMB640 is designed for complex solutions, where one device can do multiple tasks. FMB640 features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM will maximize your fleet efficiency. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction mining, security emergency services and even more.








































































































































































































































































































































































MODULE
In the houseTeltonika TM2500
TechnologyGSM/GPRS/GNSS
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
Receiver33/99 acquisition channels
Tracking sensitivity-165 dBM
Accuracy< 3 years
Hot start< 1 sec.
Warm start< 25 seconds
Cold start< 35 seconds
CELLULAR
TechnologyGSM/GPRS
2G bandsQuad-band 850/900/1800/1900 MHz
GPRSGPRS Mobile Station Class B
Data transferGPRS Multi-Slot Class 12 (up to 240 kbps)
Data supportSMS (text/data)
POWER
Input voltage range10 - 30 V DC with overvoltage protection
Internal Backup battery550 mAh Ni-Mh, 8.4 V battery
Power consumptionAt 12V < 7 mA(Deep Sleep) At 12V < 12 mA(Online Deep Sleep) At 12V < 28 mA(GPS Sleep) At 12V < 65 mA(nominal) At 12V <120 mA (GPRS)
INTERFACE
Digital Inputs4
Digital Outputs4
Analog Inputs4
1-Wire1
RS2322
RS4851
CAN J19392
J17081
K-line1
GNSS antennaExternal High Gain
Cellular antennaExternal High Gain
USB2.0 Mini USB
LED indication2 status LED lights
SIM2x SIM Card (Dual-SIM)
Memory2MB internal flash memory and external Micro SD card up to 32 GB
PHYSICAL SPECIFICATION
Dimensions104.1 x 76.8 x 31.5 mm (L x W x H)
Weight197 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40°C to +85°C
Storage temperature (without battery)-40°C to +85°C
Operating humidity5% to 95% non-condensing
Battery storage temperature-20°C to +45°C
Ingress Protection RatingIP41
FEATURES
SensorsAccelerometer
ScenariosGreen/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification, Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking, Voice call
Supported peripheralsRFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, Continental tire pressure measurement sensor
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGPS, NITZ, NTP
Fuel monitoringLLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), Ultrasonic level sensor
Ignition detectionDigital Input, Accelerometer, External Power Voltage
RS232 ModesLog Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, TSM232 Sattelite backup, Carrier Freezer
RS485 ModesSilent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
CERTIFICATION APPROVALS
RegulatoryCE/RED, E-Mark, EAC, RoHS, REACH


Package contains



  • FMB640 tracker

  • Input/output power supply cable (0.9 m)

  • GSM antenna (3.0 m)

  • GNSS antenna (3.0 m)

  • Packaging box with Teltonika branding
