TELTONIKA Industrial unmanaged PoE+ switch
Product reference:
18-TSW200
TELTONIKA Industrial unmanaged PoE+ switch
TELTONIKA Industrial unmanaged PoE+ switch
Product reference:
18-TSW200
TELTONIKA Industrial unmanaged PoE+ switch
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
// TSW200 is an industrial unmanaged switch from Teltonika Networks.
// TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
// Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
// This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
| ETHERNET | |
| LAN | 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Fiber | 2 x SFP ports |
| POE | |
| PoE ports | Ports 1 - 8 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30W |
| Total PoE Power Budget (at PSE) | 240W |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 20Gbps |
| Packet buffer | 128KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| POWER | |
| Connector | 2 pin industrial DC power socket |
| Input voltage range | 7-57 VDC |
| Input voltage range for PoE | 44-57 VDC |
| Power consumption (idle/max no PoE/max) | 1.81W/5.5W/245.5W |
| PHYSICAL INTERFACES (PORTS, LEDS) | |

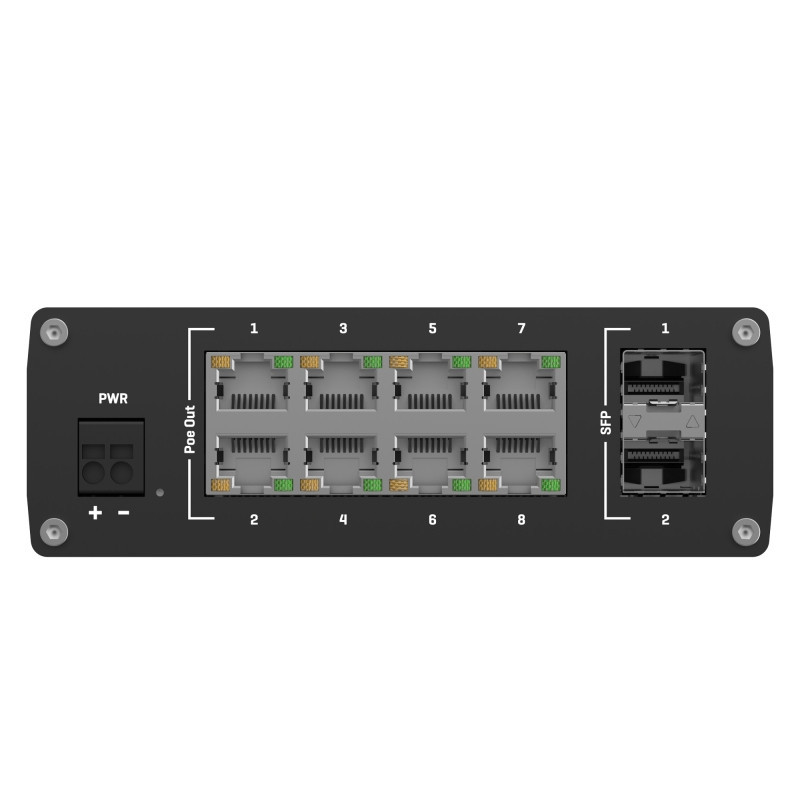

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fiber | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 16 x LAN status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2 pin industrial DC power socket |
| Ground | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40°C to +75°C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Standard package contains
- TSW200
- QSG (Quick Start Guide)
- Packaging box
NO PSU INCLUDED!
