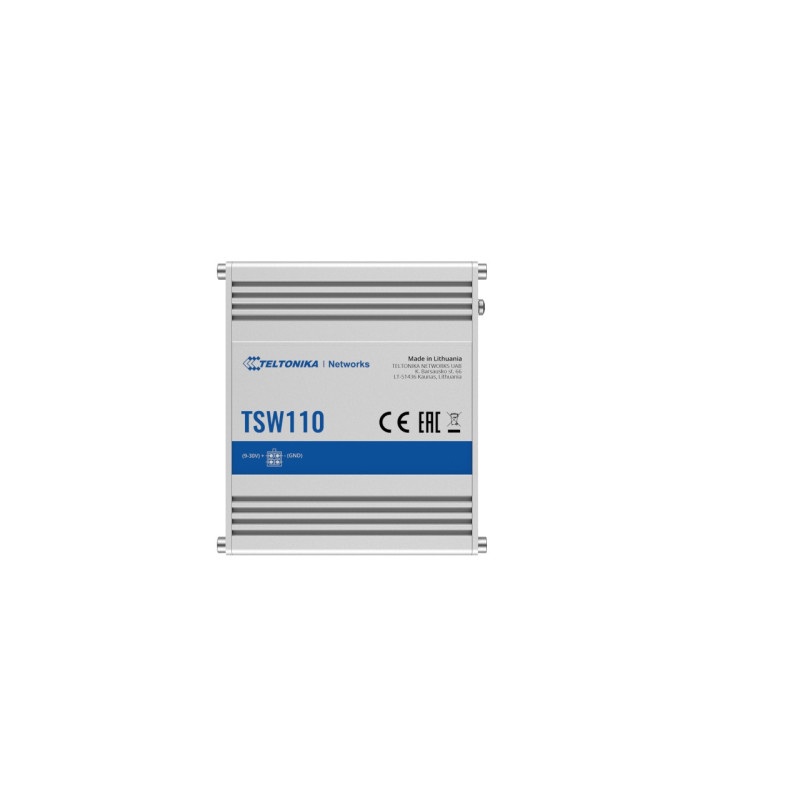

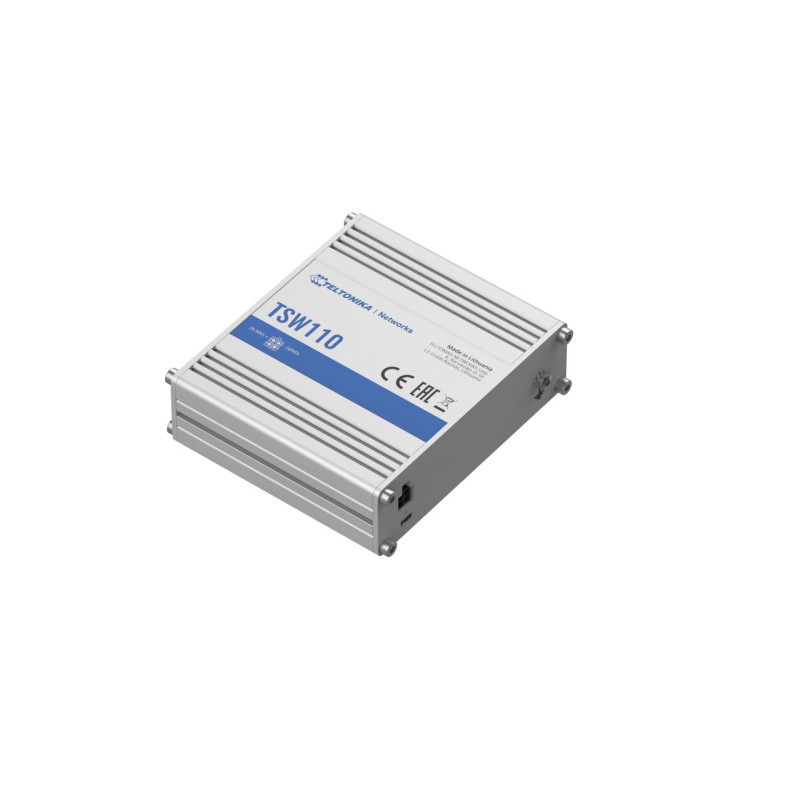

TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product - TSW100.
Possible to power up through the first LAN port.
It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
It offers a wide range of supported power supply voltages (9-30 V).
Ideal for professional high bandwidth applications to provide reliable data connection.
| ETHERNET | |
| LAN | 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 10Gbps |
| Packet buffer | 128KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Power consumption (idle/max) | < 0.4 W/ <1.8 W |
| PHYSICAL INTERFACES (PORTS, LEDS) | |

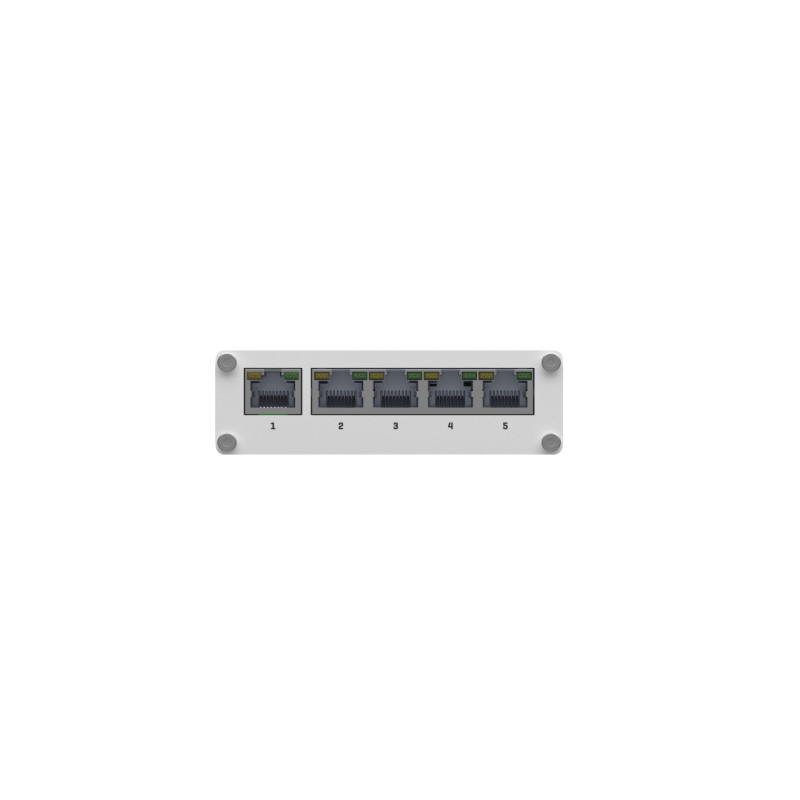

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |

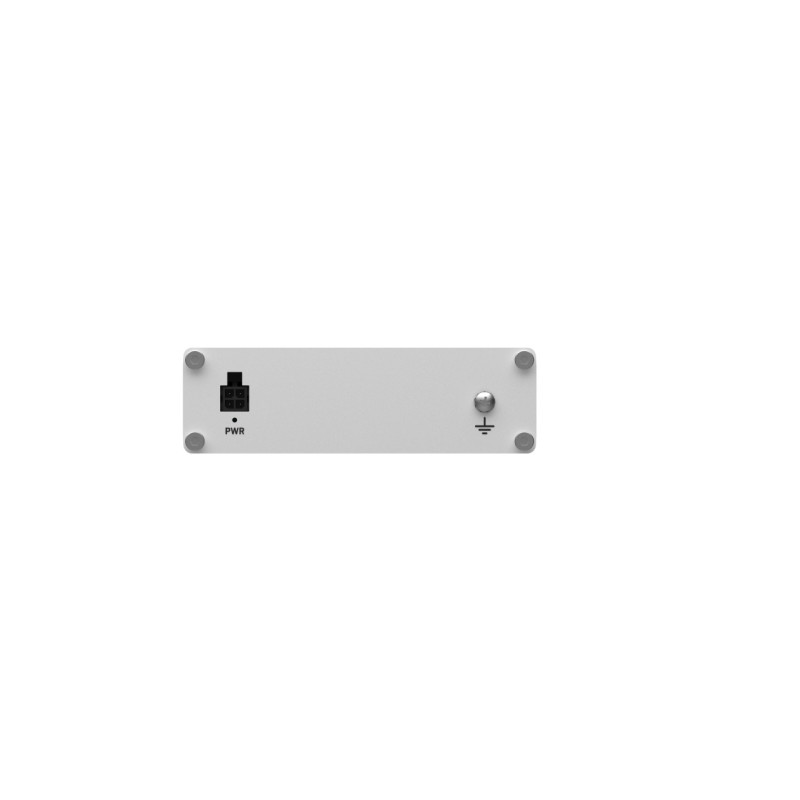

| Power | 1 x 4-pin DC connector |
| Ground | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 227 g |
| Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40°C to 75°C |
| Operating humidity | 10% to 90% non-condensing |
Standard package contains
- TSW110
- 9W Euro PSU
- QSG (Quick Start Guide)
- Packaging box
