TELTONIKA Industrial DIN rail unmanaged switch

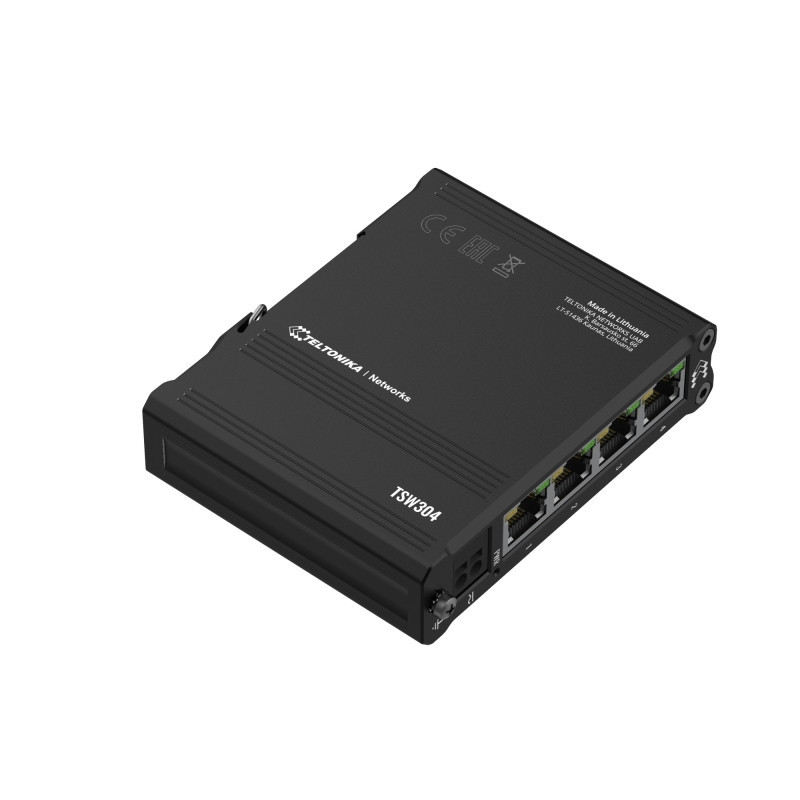

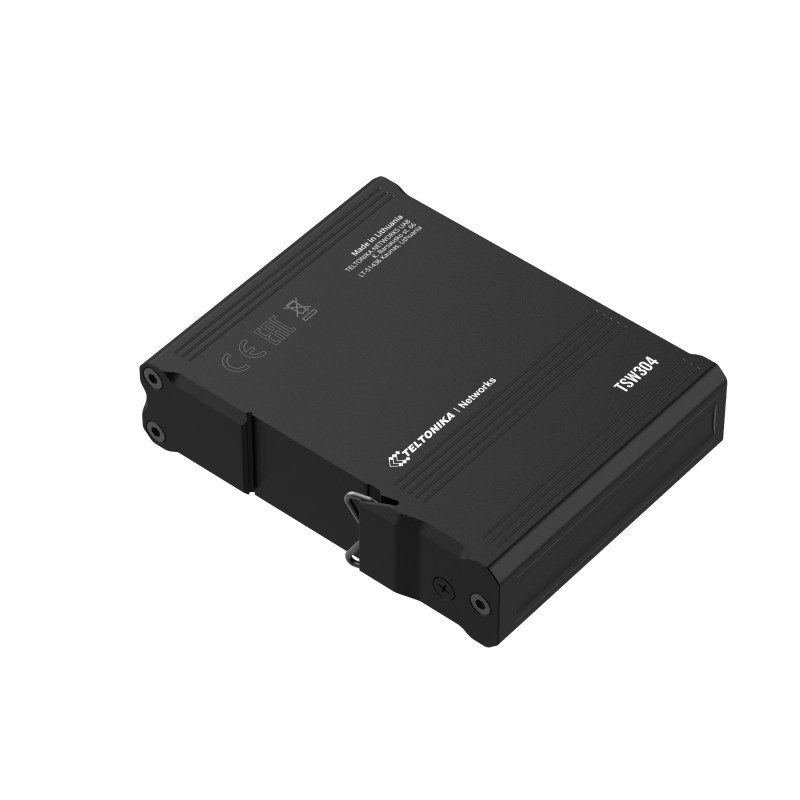

// TSW304 is Teltonika Networks' first unmanaged switch with an integrated, built-in DIN rail mount. // Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards. // Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount. // 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput. // 2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).

EthernetLAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Performance SpecificationsBandwidth (Non-blocking): 8 Gbps Packer buffer: 128 KB MAC address table size: 2K entries Jumbo frame support: 9216 bytes

PowerConnector: 2-pin industrial DC power socket Input voltage range: 7 - 57 VDC; 9 - 40 VAC PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC Power consumption: Idle: 0.26 W / Max: 1.44 W

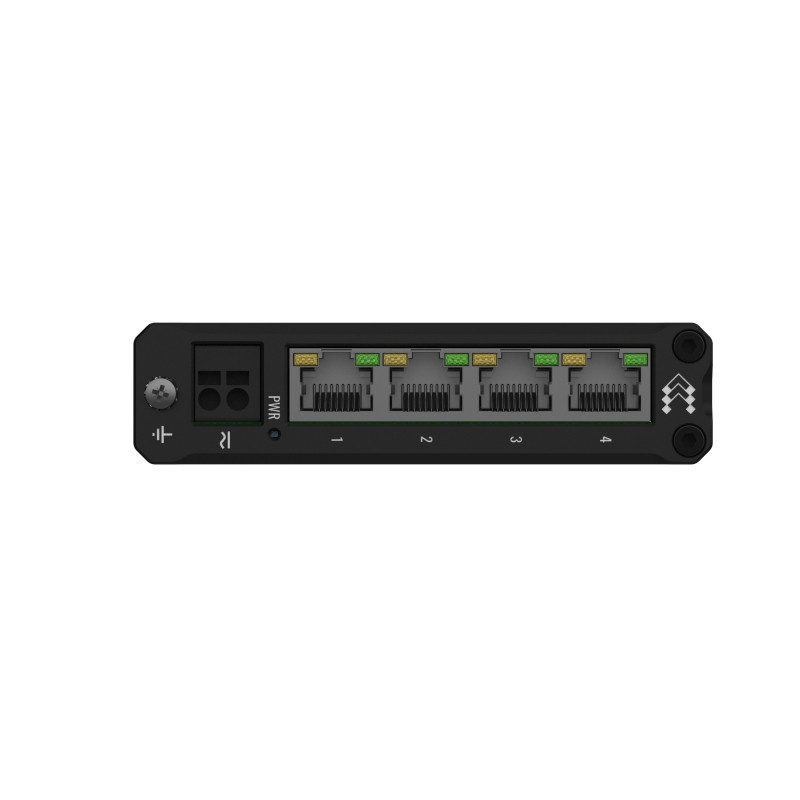

Physical Interfaces (Ports, LEDs, Buttons, SIM):Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps Status LEDs: 1 x Power LED, 8 x LAN status LED's 2 x SFP status LED's Power: 1 x 2-pin industrial DC power socket Other: 1 x Grounding screw

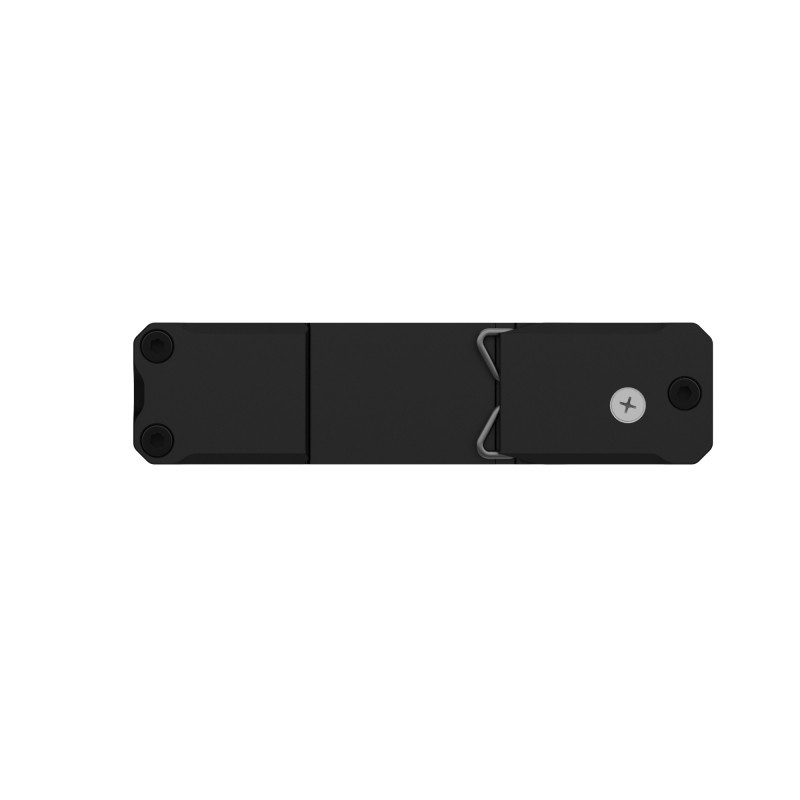

Physical SpecificationCasing material: Aluminum housing Dimensions (W x H x D): 102 x 25 x 81.5 mm Weight: 210 g Mounting options: DIN rail or wall mounting

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

SafetyStandards: EN IEC 62368-1:2020+A11:2020
