Teltonika home automation wired router

Teltonika Industrial router RUT140 2x RJ45 100Mb/s, IP30. Networking standards: IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s,..., Ethernet LAN data rates: 10,100 Mbit/s. Security algorithms: AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE, VPN support: OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN.... Processor manufacturer: MediaTek, Processor architecture: MIPS 24Kc, Processor frequency: 580 MHz. Product colour: Black, Housing material: Aluminium, LED indicators: LAN, Power, WAN. Antenna connector type: RP-SMA

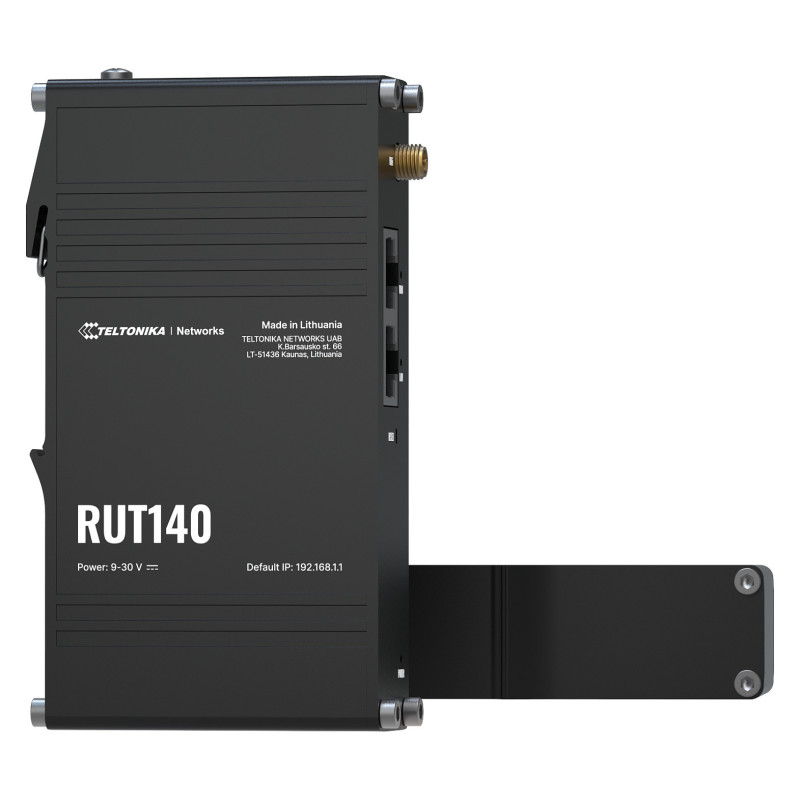

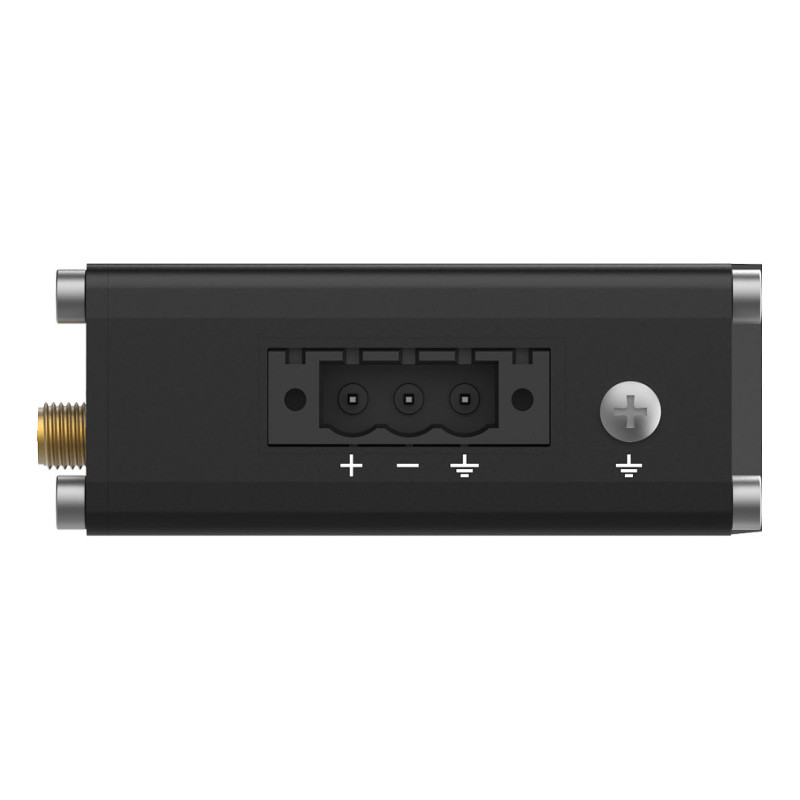

The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.

WAN connection

Feature: Ethernet WAN

Network

Networking standards: IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Full duplex
Feature: Auto MDI/MDI-X

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Protocols

Feature: DHCP client
Feature: DHCP server

Security

Security algorithms: AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE
Feature: Access Control List (ACL)

Features

Feature: Built-in processor
Processor manufacturer: MediaTek
Processor architecture: MIPS 24Kc
Processor frequency: 580 MHz
Flash memory: 16 MB
Internal memory: 128 MB
Internal memory type: DDR2

Design

Product colour: Black
Housing material: Aluminium
Feature: Wall mountable

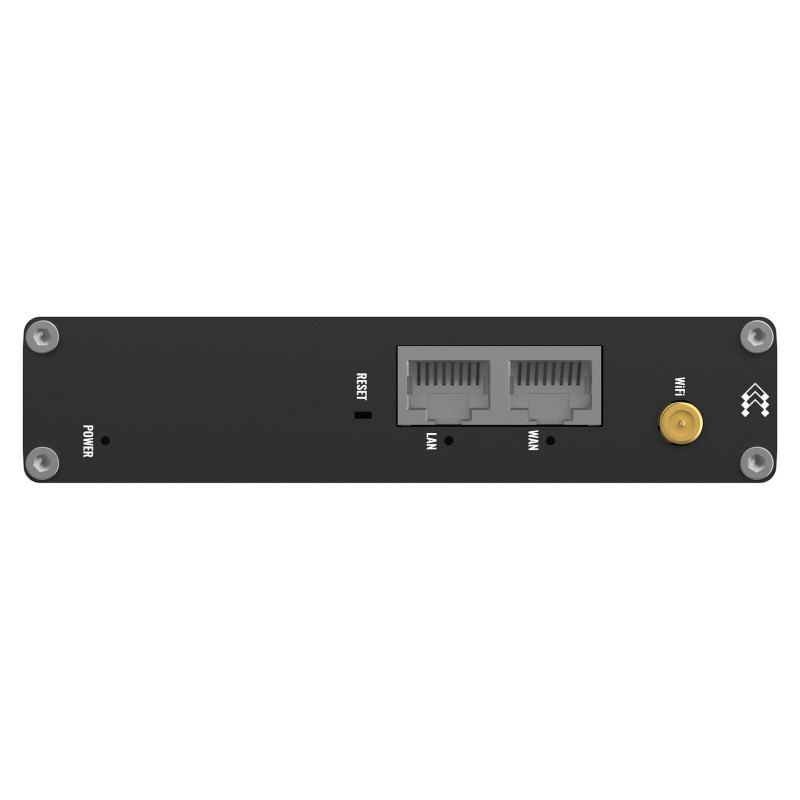

LED indicators: LAN, Power, WAN

Antenna

Antenna connector type: RP-SMA

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 113.1 mm
Depth: 68.6 mm
Height: 25 mm
Weight: 142.3 g

Other features

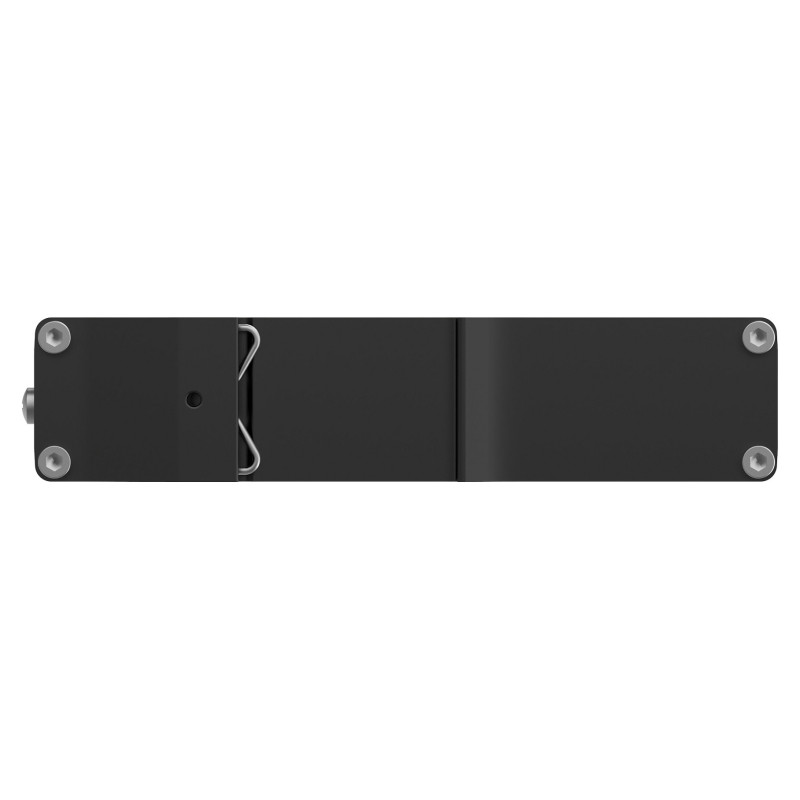

Mounting: DIN-rail
