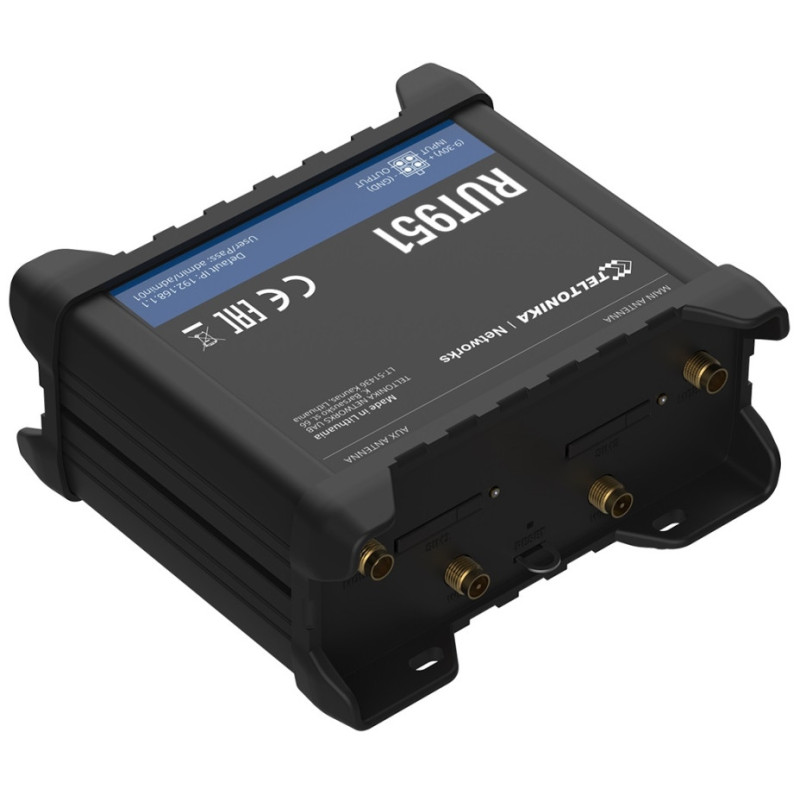

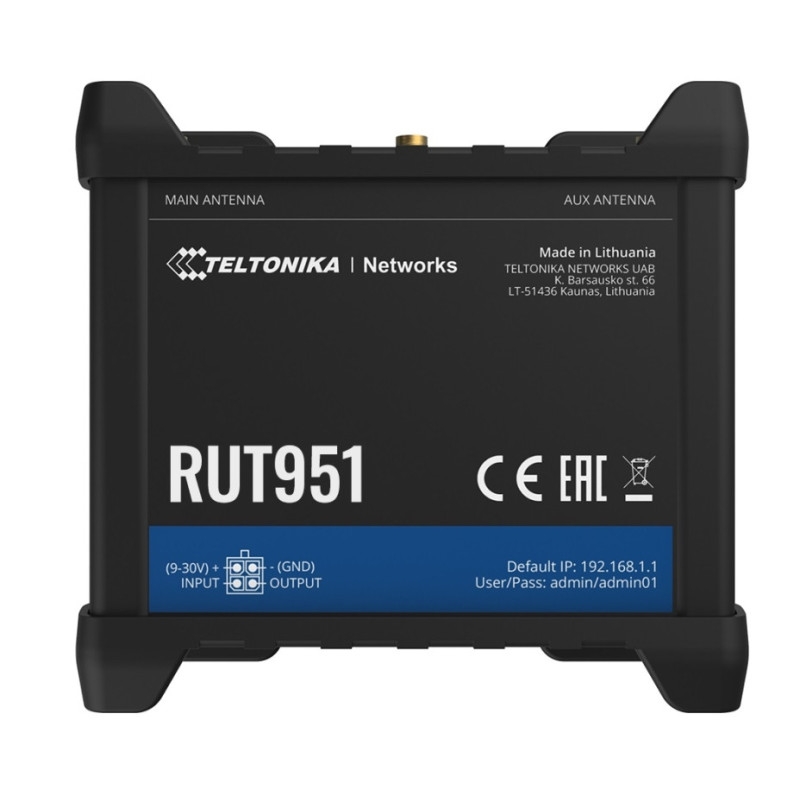

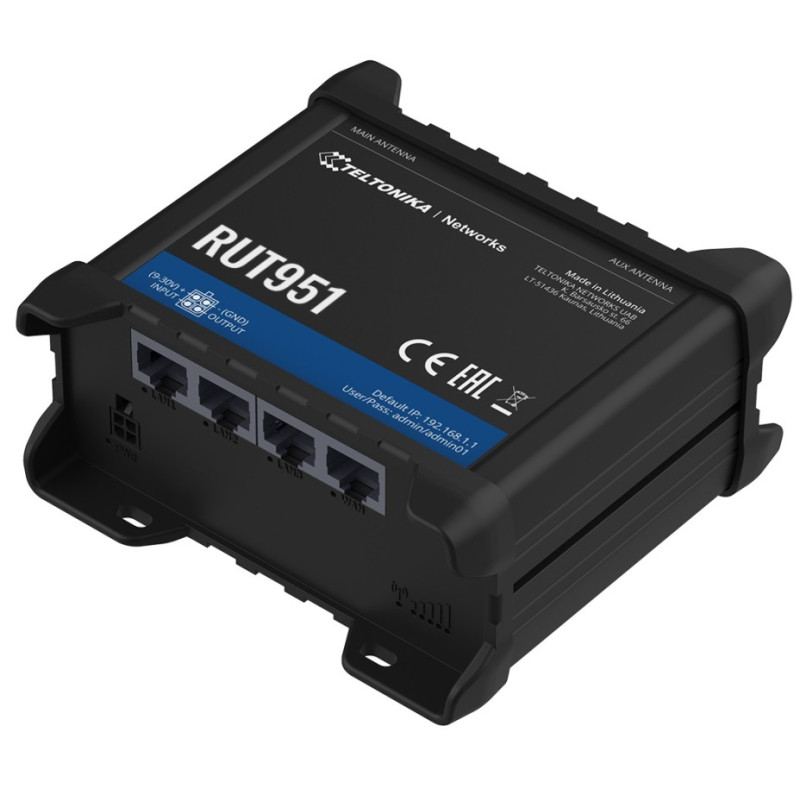

TELTONIKA Dual SIM LTE Cat4 Industrial Cellular Router

// RUT951 took the best features from one of the most popular Teltonika Networks cellular routers - RUT950. // This device features dual SIM 4G cellular connectivity combined with Wi-Fi and 4 Ethernet interfaces to meet the needs of the most varied IoT solutions. // Automatic WAN failover to an available backup connection ensures network continuity and eliminates downtime. // Powered by RutOS that offers customization options for professional use, automation features, and top-level security for your solution. // Compatible with the Teltonika Networks Remote Management System (RMS) enables secure remote management to save time and expenses.

MOBILEMobile module: 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD: Supports sending and reading Unstructured Supplementary Service Data messages Black/White list: Operator black/white list Multiple PDN: Possibility to use different PDNs for multiple network access and services Band management: Band lock, Used band status display APN: Auto APN Bridge: Direct connection (bridge) between mobile ISP and device on LAN Passthrough: Router assigns its mobile WAN IP address to another device on LAN

WIRELESSWireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA) WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation SSID/ESSID: SSID stealth mode and access control based on MAC address WiFi users: Up to 100 simultaneous connections Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNETWAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX LAN: 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORKRouting: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) VoIP passthrough support: H.323 and SIP-alg protocol helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forward, traffic rules, custom rules DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS: Supported > 25 service providers, others can be configured manually Network backup: WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing: Balance Internet traffic over multiple WAN connections Hotspot: Internal/external Radius server, captive portal, built in customizable landing page SSHFS: Possibility to mount remote file system via SSH protocol

SECURITYAuthentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation Mobile quota control: Custom data limits for SIM card WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPNOpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GRE: GRE tunnel PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3 support Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code DMVPN: Method of building scalable IPsec VPNs SSTP: SSTP client instance support ZeroTier: ZeroTier VPN client support WireGuard: WireGuard VPN client and server support

MODBUS TCP SLAVEID range: Respond to one ID in range [1;255] or any Allow Remote Access: Allow access through WAN Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTERSupported functions: 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVERProtocol: HTTP(S), MQTT, Azure MQTT

MQTT GATEWAYMQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3Supported modes: TCP Master, DNP3 Outstation

MONITORING MANAGEMENTWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap JSON-RPC: Management API over HTTP/HTTPS MODBUS: MODBUS TCP status/control RMS: Teltonika Remote Management System (RMS)

IOT PLATFORMSCloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength Azure IoT Hub: Can send device IP, Number of bytes sent/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICSCPU: Mediatek MIPS 24Kc 580 MHz RAM: 128 MB, DDR2 FLASH storage: 16 MB, SPI Flash

FIRMWARE / CONFIGURATIONWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATIONOperating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided

INPUT / OUTPUTInput: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA Events: Email, RMS, SMS I/O juggler: Allows to set certain I/O conditions to initiate event

POWERConnector: 4-pin industrial DC power socket Input voltage range: 9 - 30 VDC, reverse polarity protection; surge protection > 31 VDC 10us max PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC Power consumption: < 2 W idle, < 7 W Max

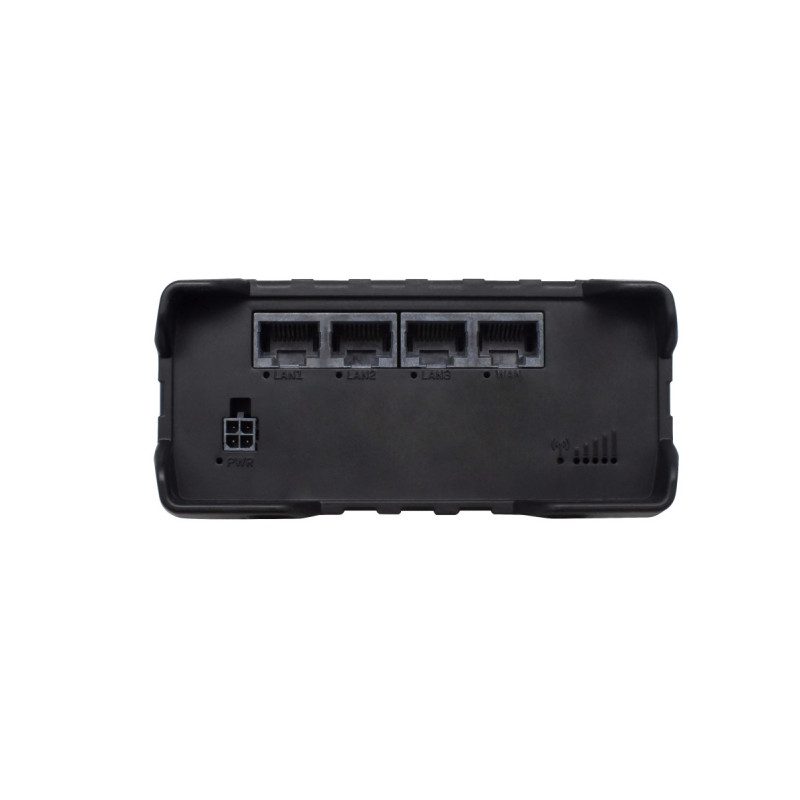

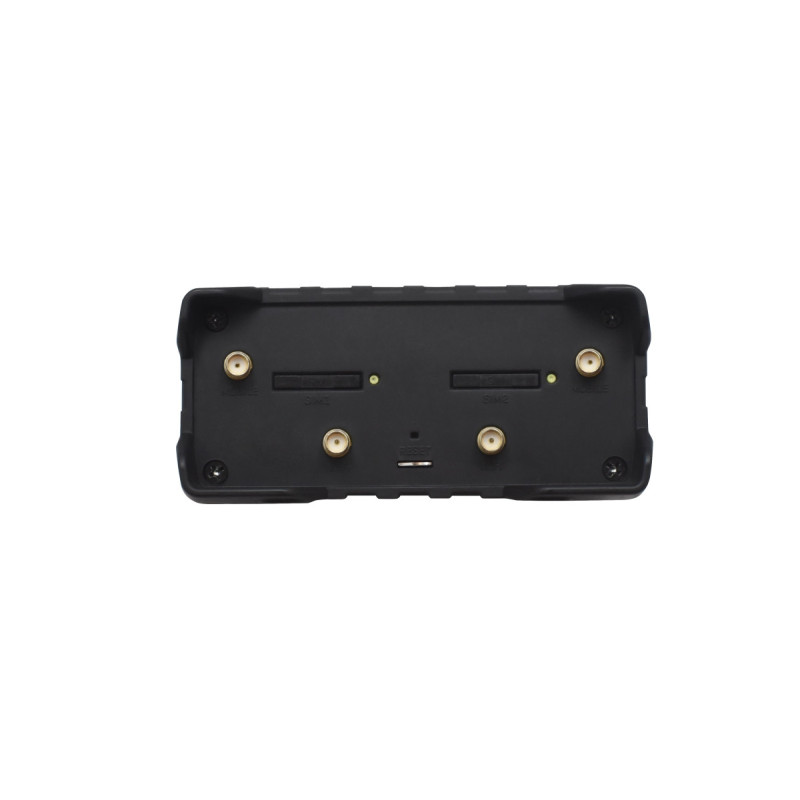

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)Ethernet: 4 x RJ45 ports, 10/100 Mbps I/O's: 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs: 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors Reset: Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATIONCasing material: Aluminum housing, plastic panels Dimensions (W x H x D): 110 x 50 x 100 mm Weight: 287 g Mounting options: DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENTOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

REGULATORY TYPE APPROVALSRegulatory: CE/RED, UKCA, CB

EMI IMMUNITYIMMUNITY Standards: EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019 ESD: EN 61000-4-2:2009 RS: EN 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge immunity (AC Power Line): EN 61000-4-5:2014+A1:2017 CS: EN 61000-4-6:2014 DIP: EN IEC 61000-4-11:2020

RFStandards: EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1

SAFETYStandards: EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018
