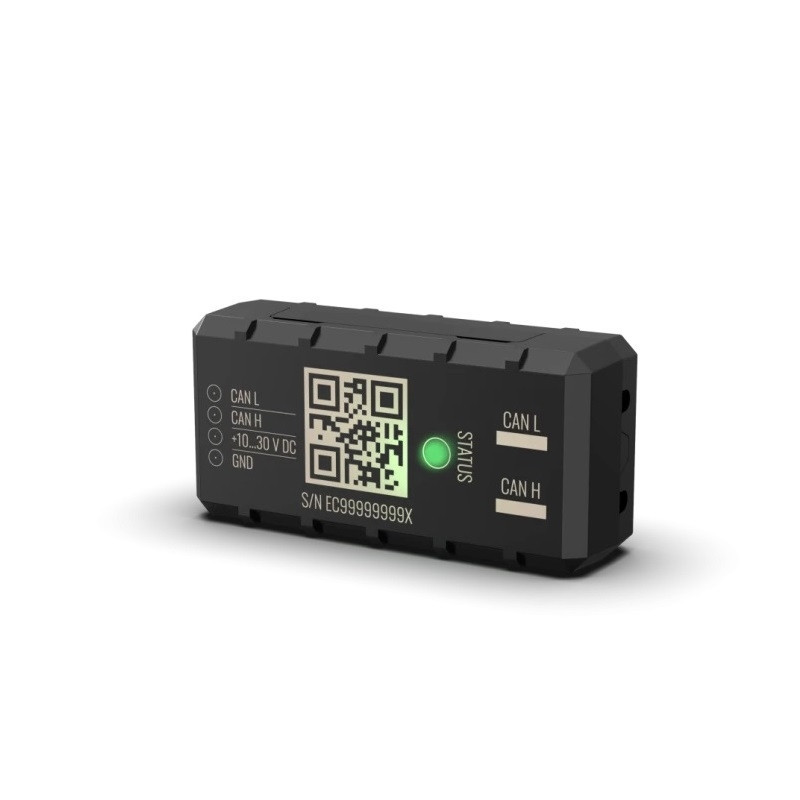

TELTONIKA CAN adapter for contactless access to CAN will be data

An updated version of a small and modern device that provides a complete solution - quick and easy installation, which connects to the CAN-Bus network to remotely access data without damaging the wires and transmit signals to the tracking device.

Contactless CAN data readingThe device can now read up to 100% of available CAN data at a speed of 1000 kb/s.

LED indicatorsKnow exactly whether the adapter has been installed correctly so you can determine when data is being transferred.

Warranty friendlyThere are no physical wiring connections, so the original wiring remains unchanged, ensuring you maintain your car warranty.

Updated housingA new, stronger and more durable housing that improves the durability of the device.

Supported by: LV-CAN200, ALL-CAN300, FMB630, FMX640, FMB641, FMB140, FMB240, FMX150, FMX650 Input Voltage range: 10 - 30 V DC Power consumption: At 12 V < 1.7 mA (Standby) At 12 V < 7.5 mA (Working) Operating temperature range: 40°C to +85°C Operating humidity: Max 85% non-condensing Features: Contactless CAN reading Warranty friendly CAN-BUS speed up to 1000 kb/s Dimensions 39 x 19 x 12 mm (L x W x H)
