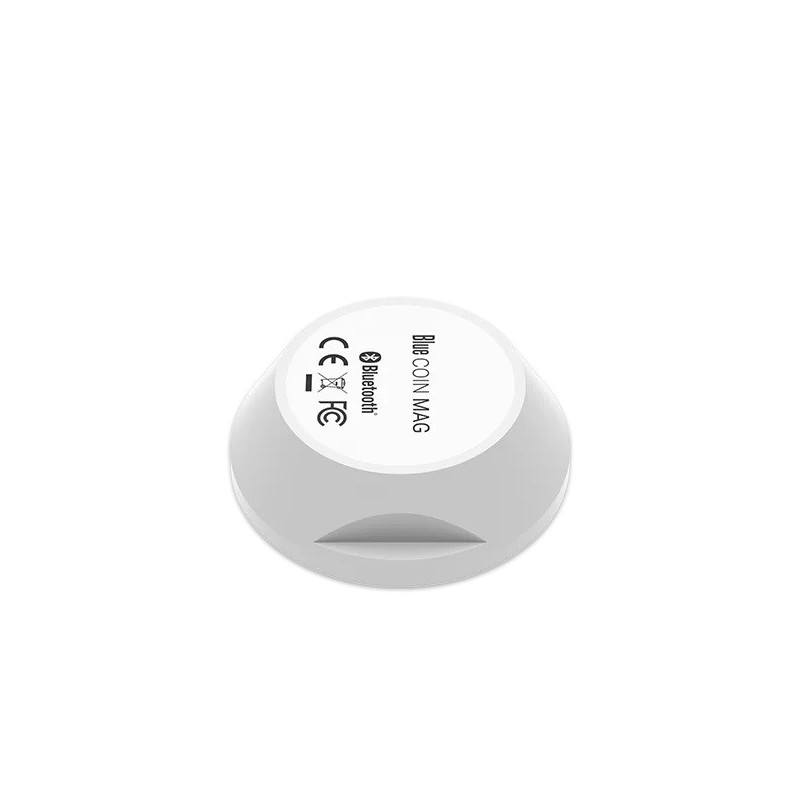

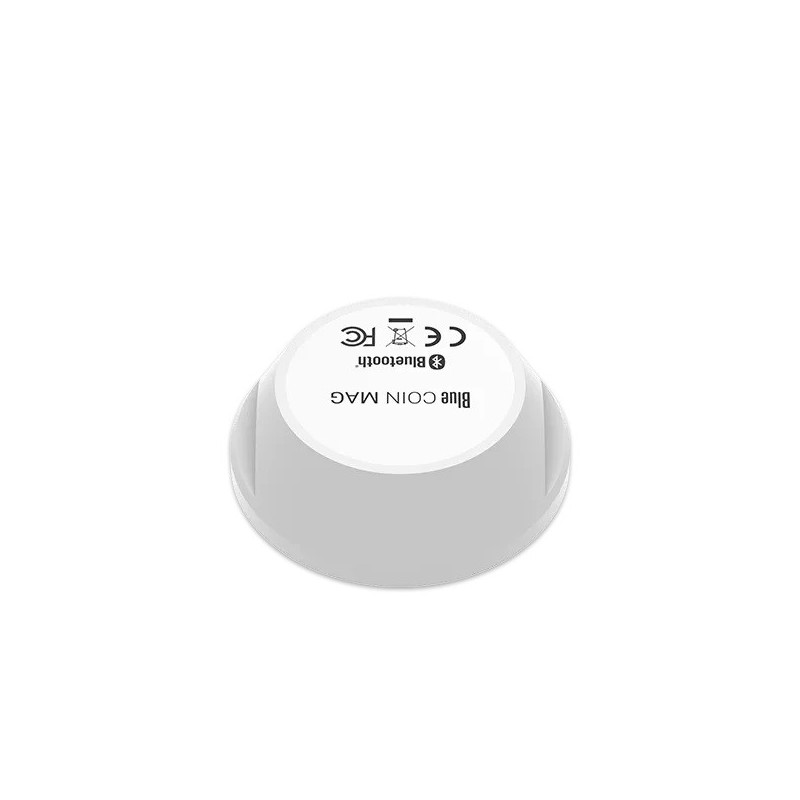

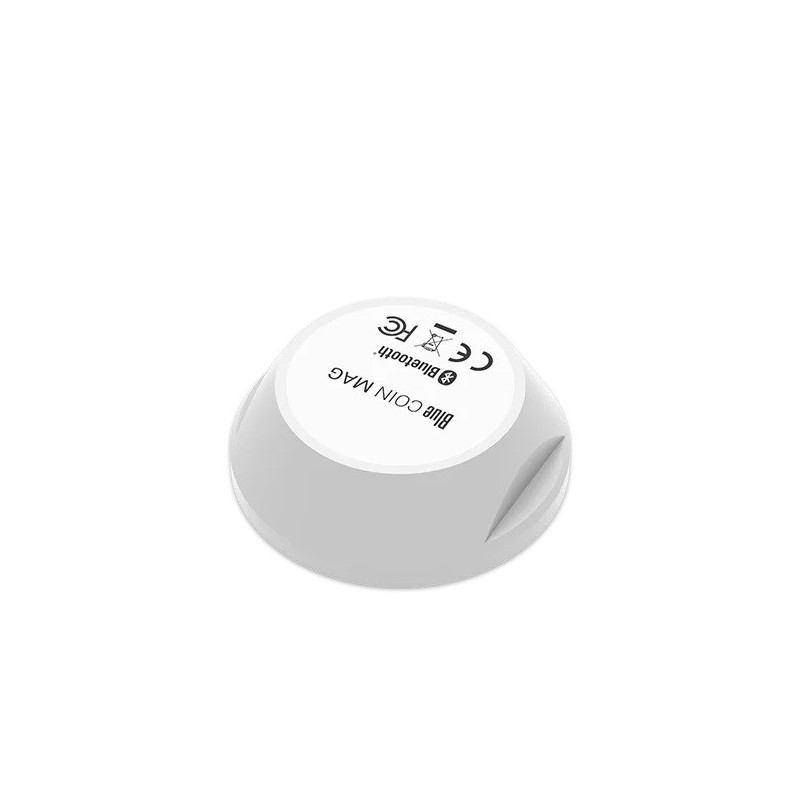

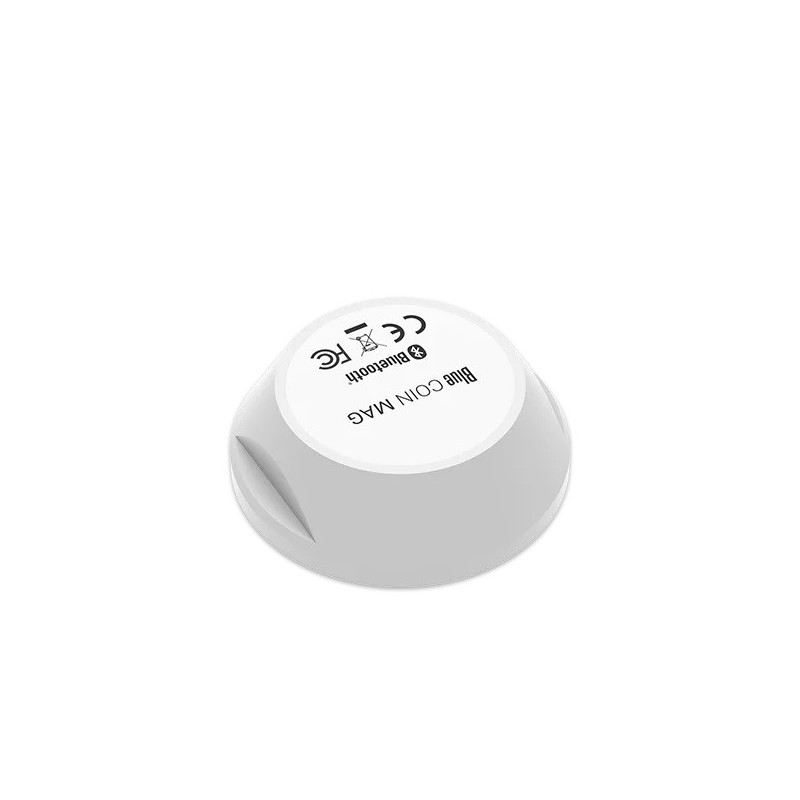

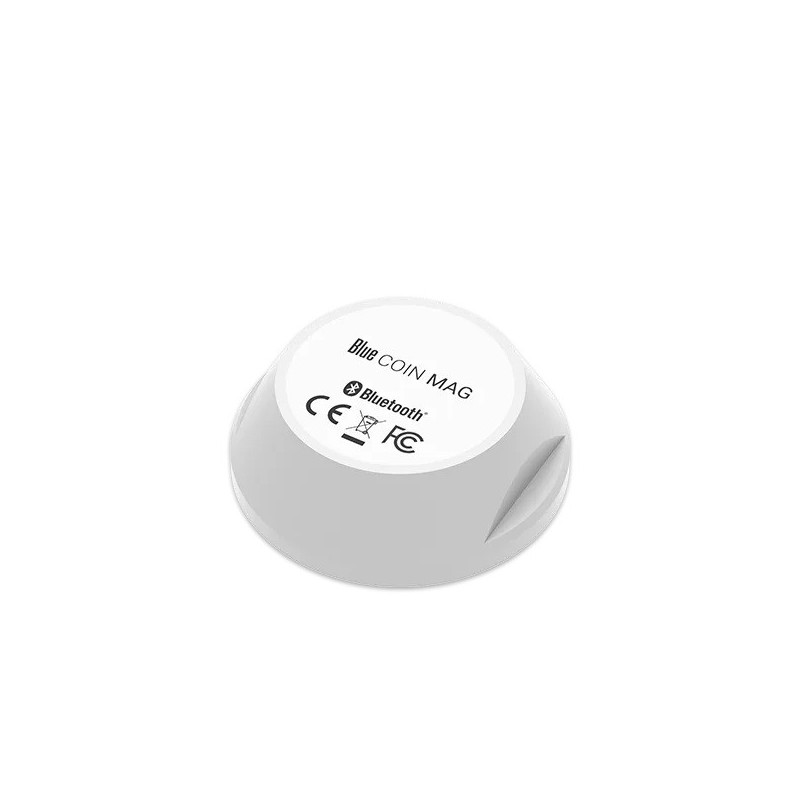

TELTONIKA Bluetooth 4.0 LE Magnet Contact Sensor Blue COIN MAG
Product reference:
18-PGEX00000620
TELTONIKA Bluetooth 4.0 LE Magnet Contact Sensor Blue COIN MAG
TELTONIKA Bluetooth 4.0 LE Magnet Contact Sensor Blue COIN MAG
Product reference:
18-PGEX00000620
TELTONIKA Bluetooth 4.0 LE Magnet Contact Sensor Blue COIN MAG
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Not available
Teltonika is always focused on innovation and constantly offers new solutions to its customers. The latest addition to the BLE sensors expands the scope of business cases: monitoring the opening/closing status of doors, hoods or similar objects. When using this sensor, an additional magnet is required. The sensor can send information when the magnet is attached or removed. Bluetooth magnetic sensors are small signal transmitters with configurable signal strength and data transmission intervals. The sensor uses advanced 'Bluetooth 4.0 LE' technology, which allows data to be received from a long distance, and can operate for up to 2.5 years on a single battery.
| TECHNICAL DATA | |
| Battery | Lifecycle up to 2.5 years |
| Bluetooth | 2.4 GHz - Bluetooth Low Energy 4.0/4.2 |
| NFC | Supported |
| Dimensions | ø 36 mm base - Thickness 11.5 mm |
| Weight | 13 grams |
| Operating temperature | -30°C to +70°C |
| Ingress Protection Rating | IP68 (Waterproof) |
| Magnetic range | Up to 2 cm (from device top marked by arrow) |
| Transmission range | Up to 200 meters (open field) |
| Transmission period | 0.1 to 10 seconds (programmable) |
| Regulatory | CE (Europe): EN 300 328/ EN 301 489 EN 55032 / EN 62368-1 FCC (USA): FCC 15.247 / FCC PT 15B ISED/IC (Canada): RSS-247 / ICES-003 RoHS certified |
