TELTONIKA Autonomous personal tracker with GNSS, GSM and Bluetooth connectivity
Product reference:
18-GH5200
TELTONIKA Autonomous personal tracker with GNSS, GSM and Bluetooth connectivity
TELTONIKA Autonomous personal tracker with GNSS, GSM and Bluetooth connectivity
Product reference:
18-GH5200
TELTONIKA Autonomous personal tracker with GNSS, GSM and Bluetooth connectivity
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days

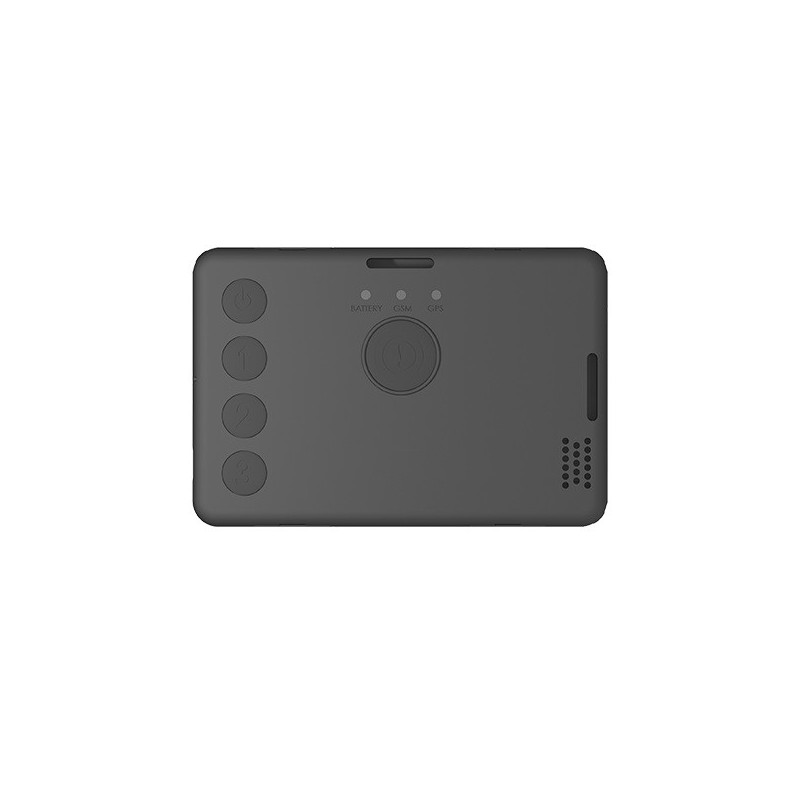

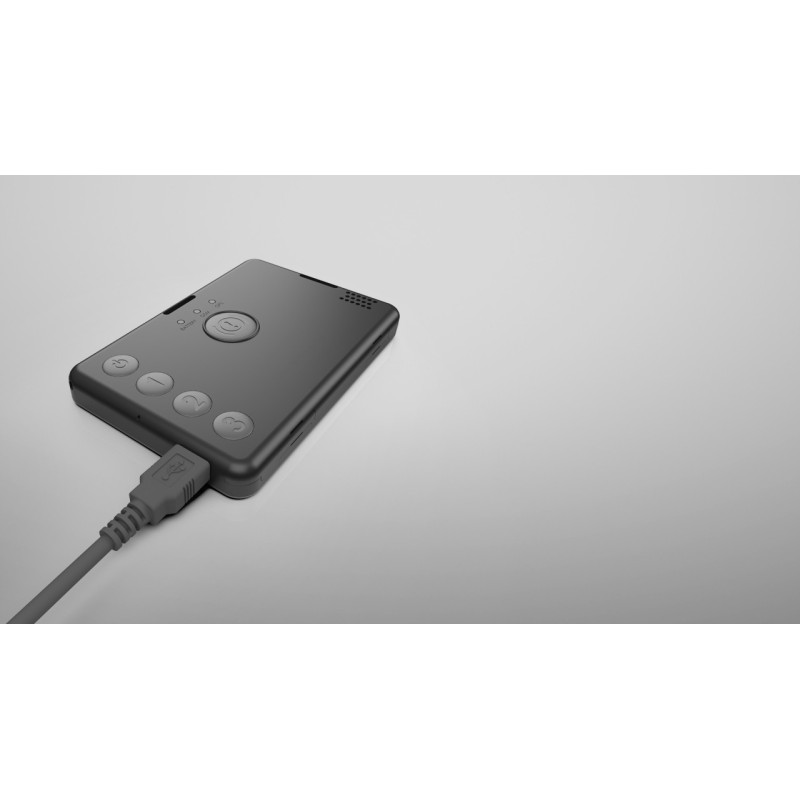

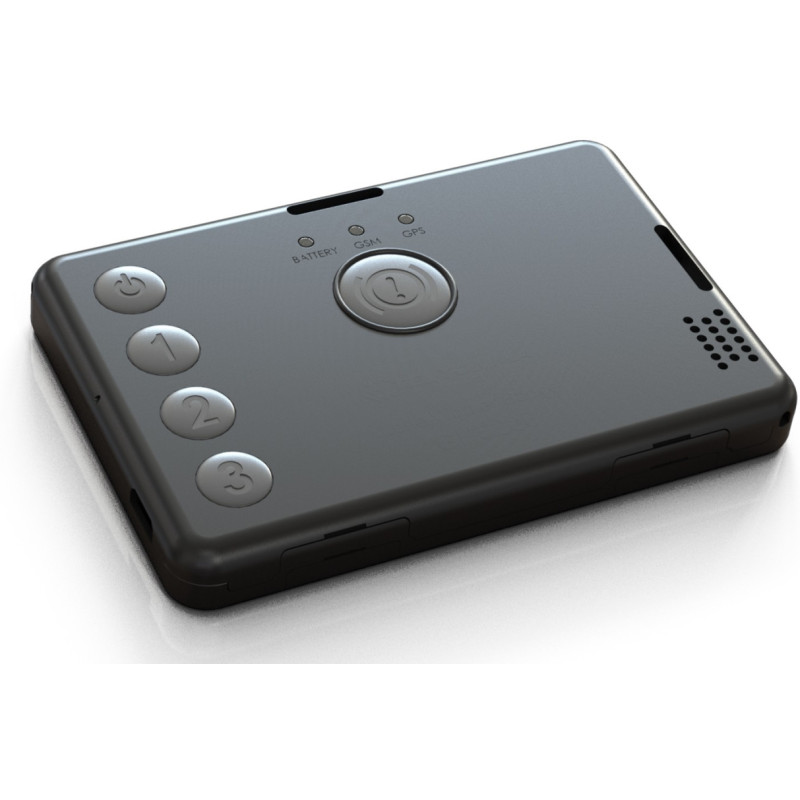

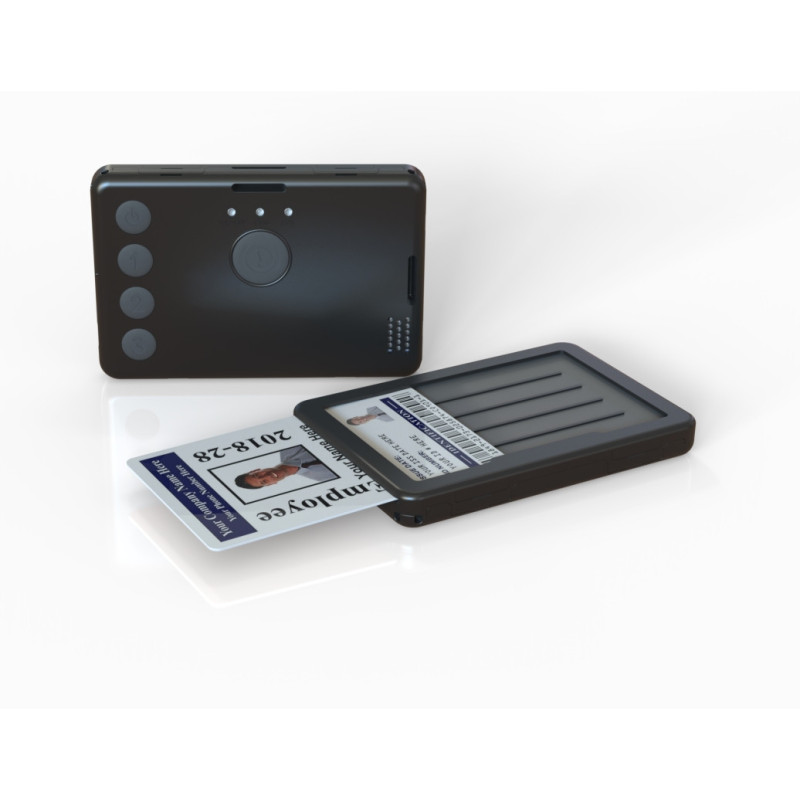

The GH5200 is a STAND-ALONE personal tracker with GNSS, GSM and Bluetooth connectivity. The device is designed for anyone who performs activities without close or direct supervision: for example, healthcare workers, care workers, lone workers or workers working outside normal working hours. The tracker offers high-quality voice communication, programmable LED indicators and a 1050 mAh battery to comply with the latest legislation on the safety and protection of lone workers
| Modular house | TM2500 |
| Technology | GSM, GPRS, GNSS, BLUETOOTH (4.0 + LE) |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS |
| GNSS receiver | 33 channels |
| Tracking sensitivity | -165 dBM |
| GNSS accuracy | < 3 years |
| GNSS start times | Hot < 1 s, Warm < 25 s, Cold < 35 s |
| Cellular technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Charging voltage | 5V DC with over-voltage protection |
| Battery | 1050 mAh Li-Ion battery |
| Interface | 5 Configurable buttons, GNSS antenna (Internal High Gain), Cellular antenna (Internal High Gain), 2.0 Micro-USB, 3 LED indicators, Micro-SIM, e-SIM possibility, 128 MB internal flash memory |
| Device operating temperature | -20°C to +60°C |
| Device storage temperature | -20 °C to +60 °C for 1 month; -5 °C to +30 °C for 6 months |
| Device operating humidity | under 80% non-condensing |
| Ingress Protection Rating | IP30 |
| Sensors | Accelerometer |
| Software | Alarm button, Man-Down Detection, Home Zone, Proximity Detection, Amber Alert, Inside Tracking, Movement/No Movement Events, 50 Manual Geofence zones, Over Speeding, Action On Call feature, Real Time tracking, Smart Algorithm of GPRS data sending for GPRS traffic saving, Asset Tracking, Power On/Off event, Event on a Pressed Button, On Demand tracking via button press, Beacon On Demand tracking, Xiaomi Mi Band 2 heart rate measurement and heart rate range exit alerts, Race Mode |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep, Low Power Mode |
| Configuration and firmware update | FOTA Web, FOTA, FMB Configurator (USB, Bluetooth) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 95 x 64 x 11 mm (L x W x H) |
| Weight | 80 g |
Standard package contains
- GH5200 Autonomous personal tracker
- Micro USB cable
NO PSU INCLUDED!
