Teltonika ATRM50 5G Router for Transportation, Ultra-High Cellular Speeds, M12 CONNECTORS, DUAL SIM eSIM, EN 45545-2 and

Teltonika ATRM50 5G Router for Transportation, Ultra-High Cellular Speeds, M12 CONNECTORS, DUAL SIM eSIM, EN 45545-2 and EN 50155, PSU not included. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 4G standard: LTE, 5G standard: Sub6 NSA, Sub6 SA. Security algorithms: AES-CCMP, EAP-TLS, OWE, PEAP, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE

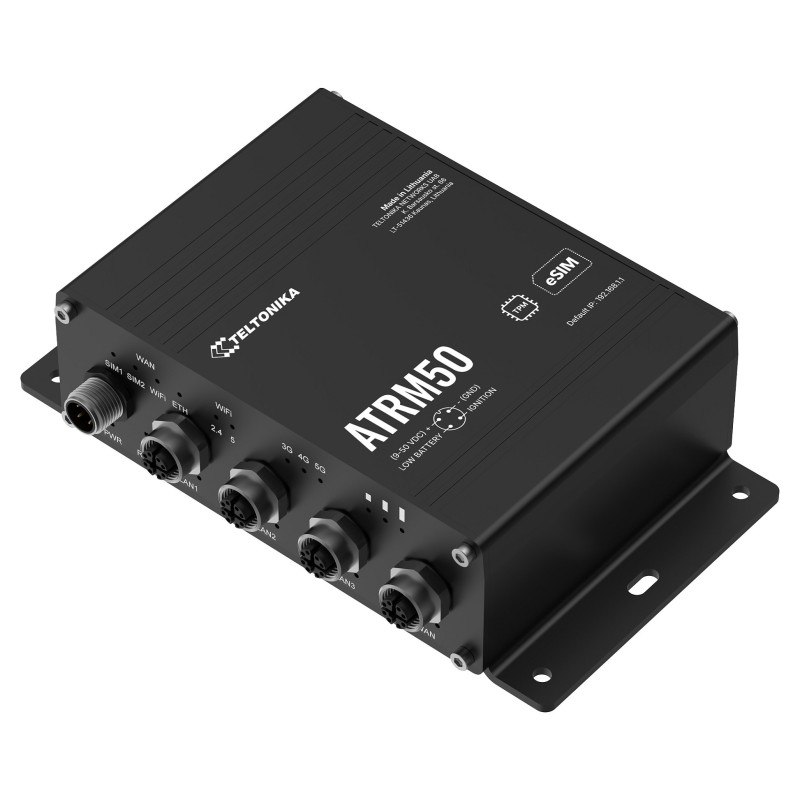

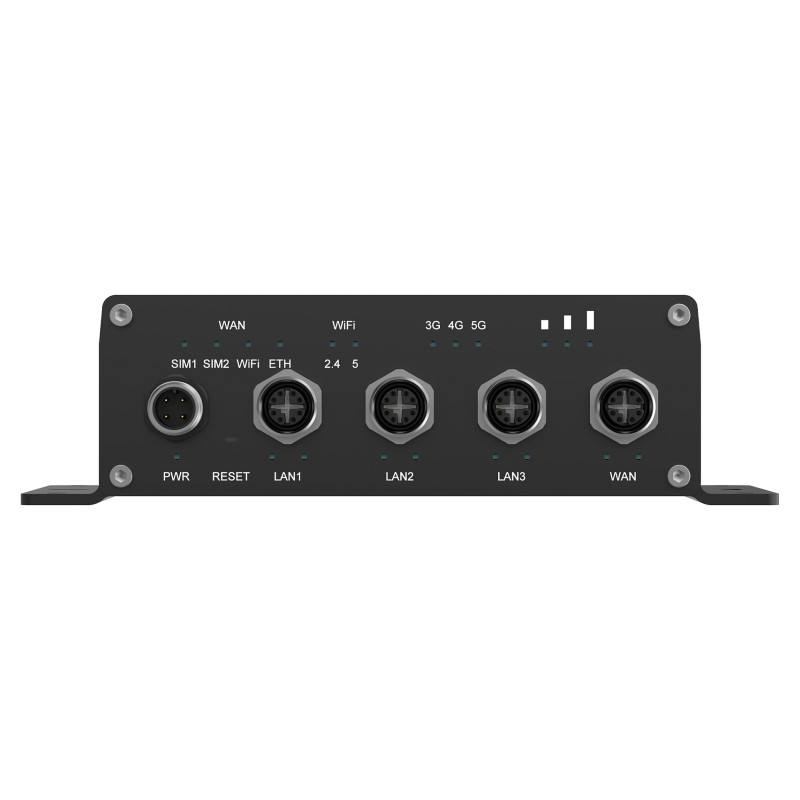

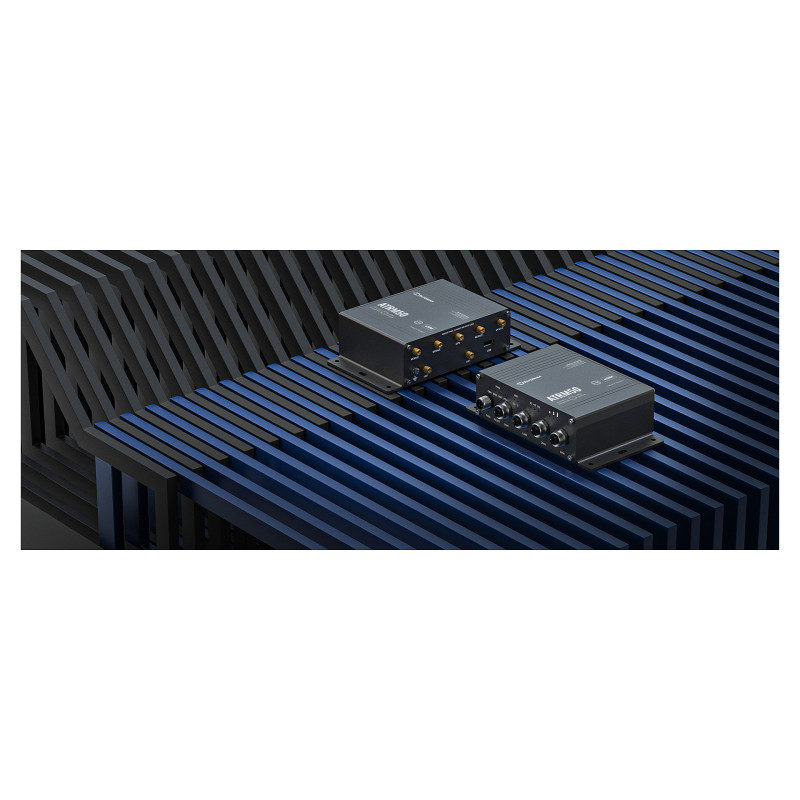

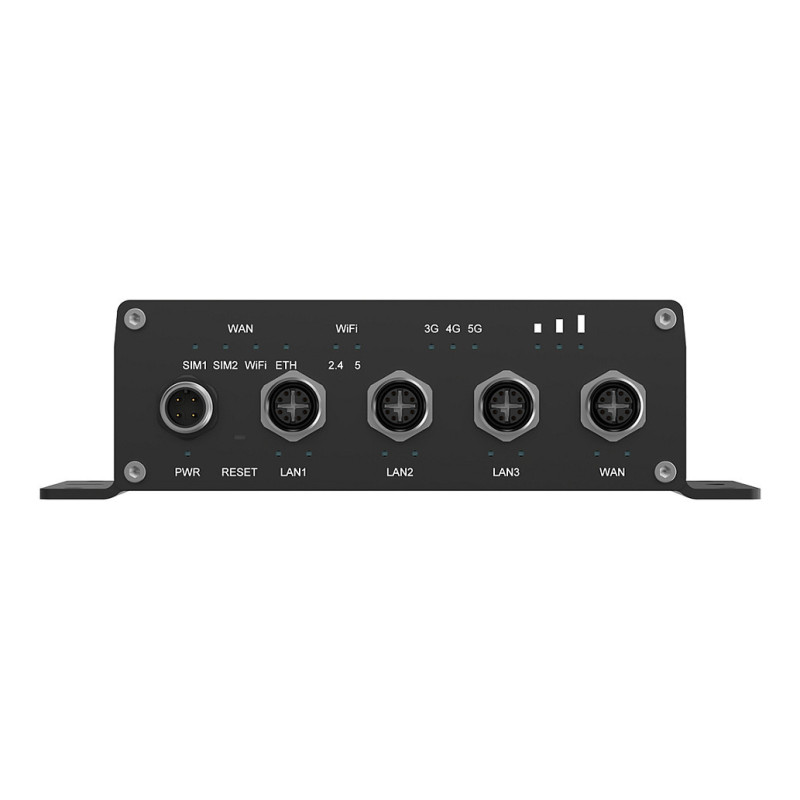

The ATRM50 is a rugged 5G router built for transportation, featuring 4 x M12 Gigabit Ethernet ports and M12 power input for durable, secure connections. It delivers ultra-high cellular speeds up to 3.4 Gbps and supports dual SIM with eSIM™ for seamless failover. Certified to EN 45545-2 and EN 50155 standards, the ATRM50 is engineered to meet the rigorous safety and reliability requirements of railway systems—while also being a strong fit for other demanding transportation environments. The router comes with GNSS, an integrated mounting bracket, and is compatible with RMS for efficient on-site and remote management.

WAN connection

Ethernet WAN: Yes
DSL WAN: No
SIM card slot: Yes
3G/4G USB modem compatibility: Yes
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.11w, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Full duplex: Yes
Auto-sensing: Yes
Port forwarding: Yes
Load balancing system: Yes
VPN support: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale

Mobile network

Mobile network generation: 5G
Dual SIM support: Yes
4G standard: LTE
4G LTE category: 19
5G standard: Sub6 NSA, Sub6 SA

Ports interfaces

USB port: Yes
USB 2.0 ports quantity: 1

Management features

Web-based management: Yes
Web-based setup wizard: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
MU-MIMO technology: Yes
Cloud-managed: Yes
Command-line interface (CLI): Yes

Security

Security algorithms: AES-CCMP, EAP-TLS, OWE, PEAP, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE
Firewall: Yes
Access Control List (ACL): Yes

Protocols

DHCP client: Yes
DHCP server: Yes

Design

Product colour: Black
Housing material: Aluminium
Wall mountable: Yes
International Protection (IP) code: IP30
Indication light: Yes
LED indicators: LTE, Link, Power, Status, WAN
On/off switch: No
Built-in display: No
Product type: Industrial router

Packaging content

Antenna included: Yes
Mounting kit: Yes
Quick installation guide: Yes
Quick start guide: Yes

Antenna

Antenna design: External
Antennas quantity: 7

Features

Built-in processor: Yes
Processor manufacturer: MediaTek
Processor model: MIPS1004KC
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 16 MB

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 167 mm
Depth: 113 mm
Height: 47 mm
Weight: 550 g
