TELTONIKA Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth connectivity

Product reference: 18-FMB001

TELTONIKA Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth connectivity

Product reference: 18-FMB001

TELTONIKA Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth connectivity

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

53,21 €

Last product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

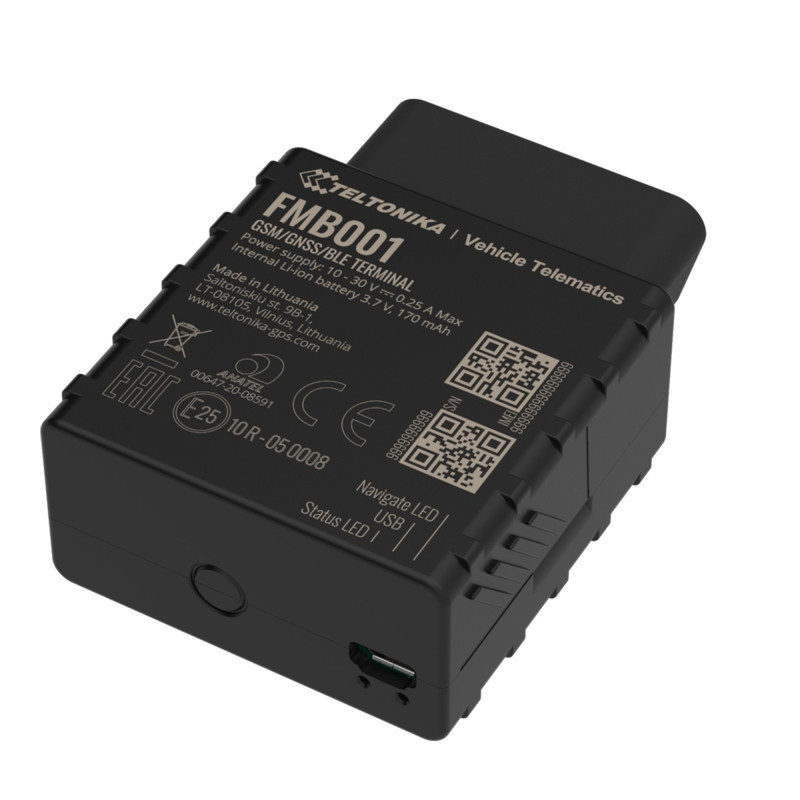

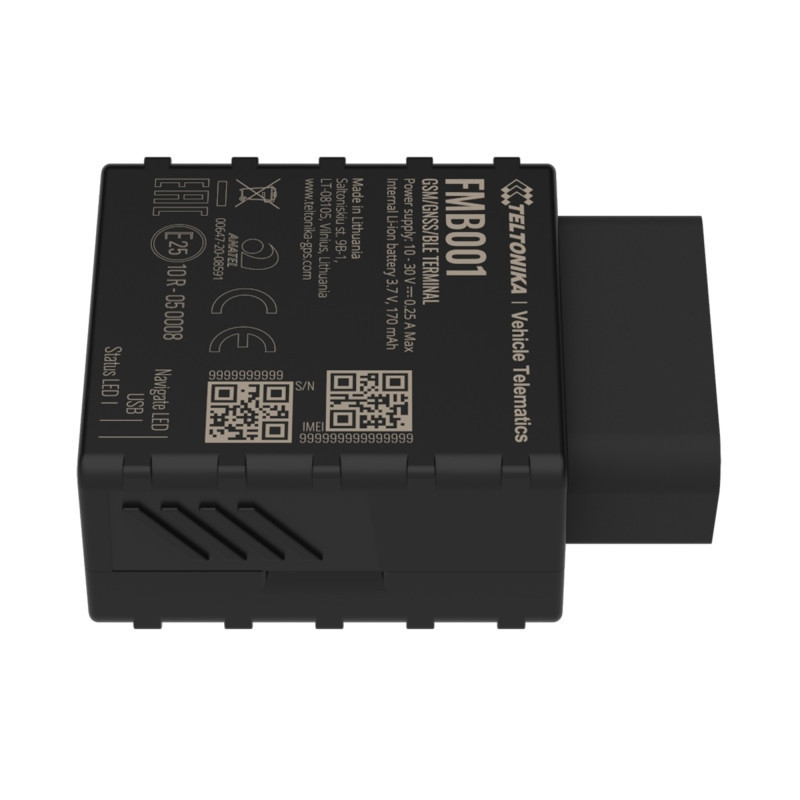

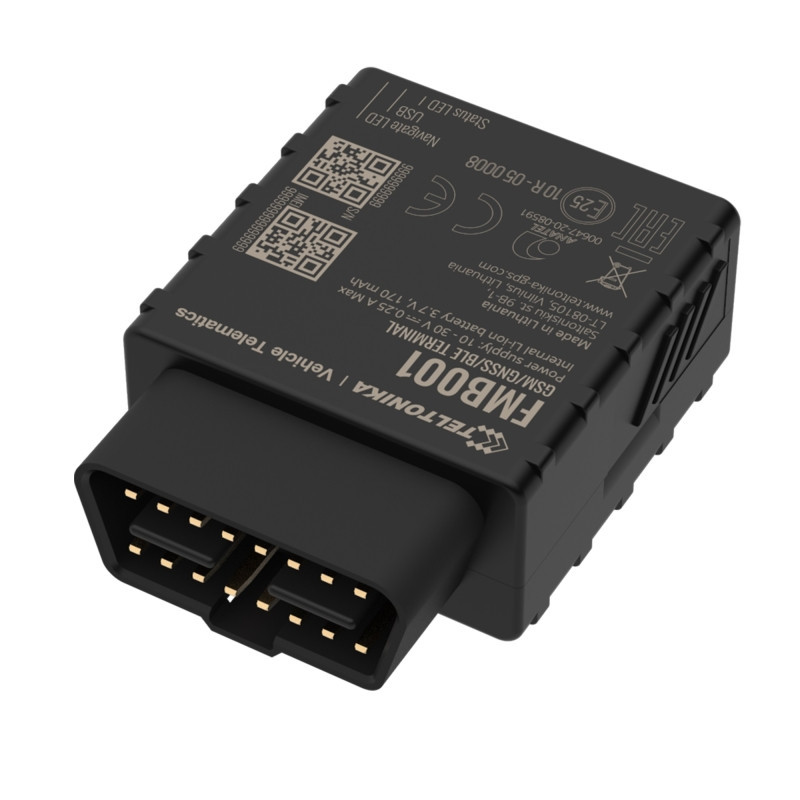

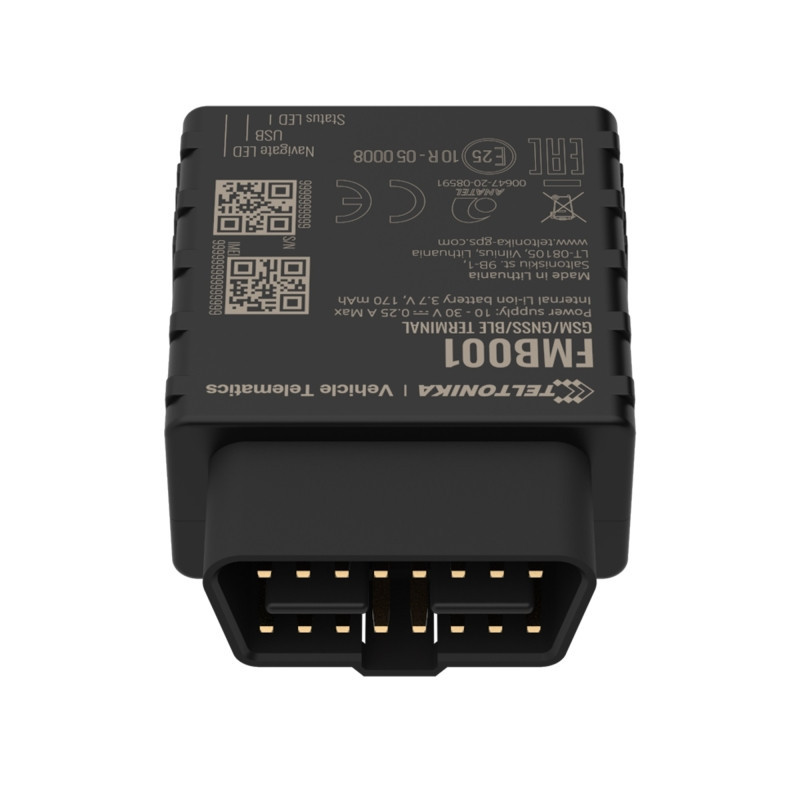

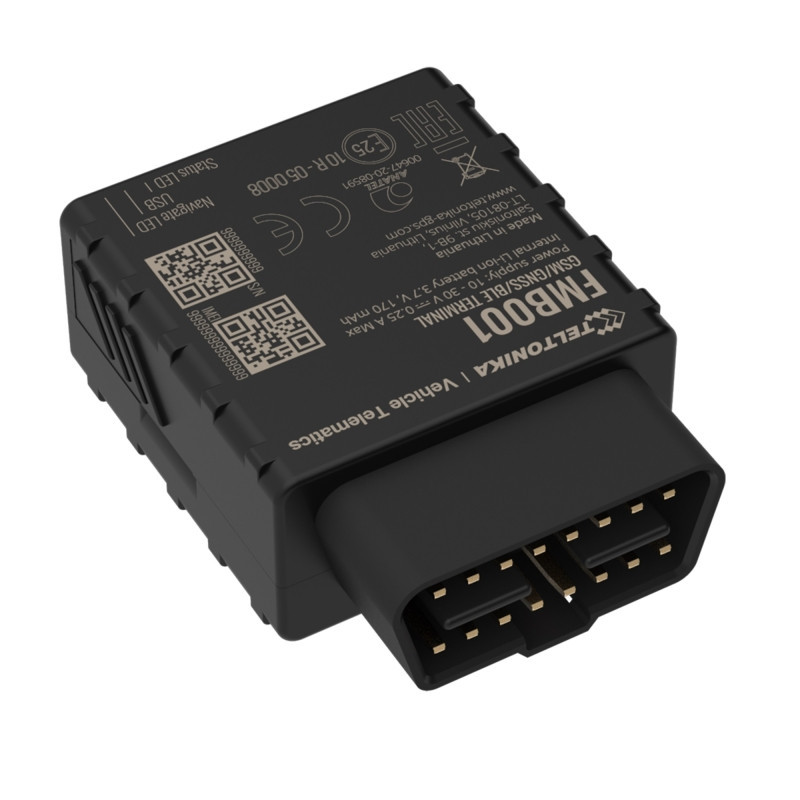

FMB001 is an advanced OBDII Plug and Play tracker with GNSS, GSM and Bluetooth connectivity. It is ideal for light vehicle tracking, applications such as courier delivery services, car rental and leasing, insurance telematics and many others where simple integration is required. It also has the additional function of reading OBDII data from the vehicle's computer. The FMB001 device supports temperature/humidity sensors, hands-free equipment, software and configuration updates via Bluetooth.

MODULE
In the house	Teltonika TM2500
Technology	GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS	GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver	33 channels
Tracking sensitivity	-165 dBM
Accuracy	< 3 years
Hot start	< 1 sec.
Warm start	< 25 seconds
Cold start	< 35 seconds
CELLULAR
Technology	GSM
2G bands	Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer	GPRS Multi-Slot Class 12 (up to 240 kbps)
Data support	SMS (text/data)
POWER
Input voltage range	10 - 30 V DC with overvoltage protection
Backup battery	170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Power consumption	At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal)
BLUETOOTH
Specifications	4.0 + LE
Supported peripherals	Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support
OBD INTERFACE
Data reading	Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud)
INTERFACE
Digital Inputs	1
Connection	OBDII Socket
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 Micro USB
LED indication	2 status LED lights
SIM	Micro SIM
Memory	128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions	50.7 x 49.6 x 25 mm (L x W x H)
Weight	63 grams
OPERATING ENVIRONMENT
Operating temperature (without battery)	-40°C to +85°C
Storage temperature (without battery)	-40°C to +85°C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP41
Battery charging temperature	0 °C to +45 °C
Battery discharge temperature	-20°C to +60°C
Battery storage temperature	-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months
FEATURES
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update	FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS	Configuration, Events, Debug
GPRS commands	Configuration, Debug
Time Synchronization	GPS, NITZ, NTP
Fuel monitoring	OBD-II
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Engine RPM
CERTIFICATION APPROVALS
Regulatory	CE/RED, E-Mark, EAC, RoHS, REACH
