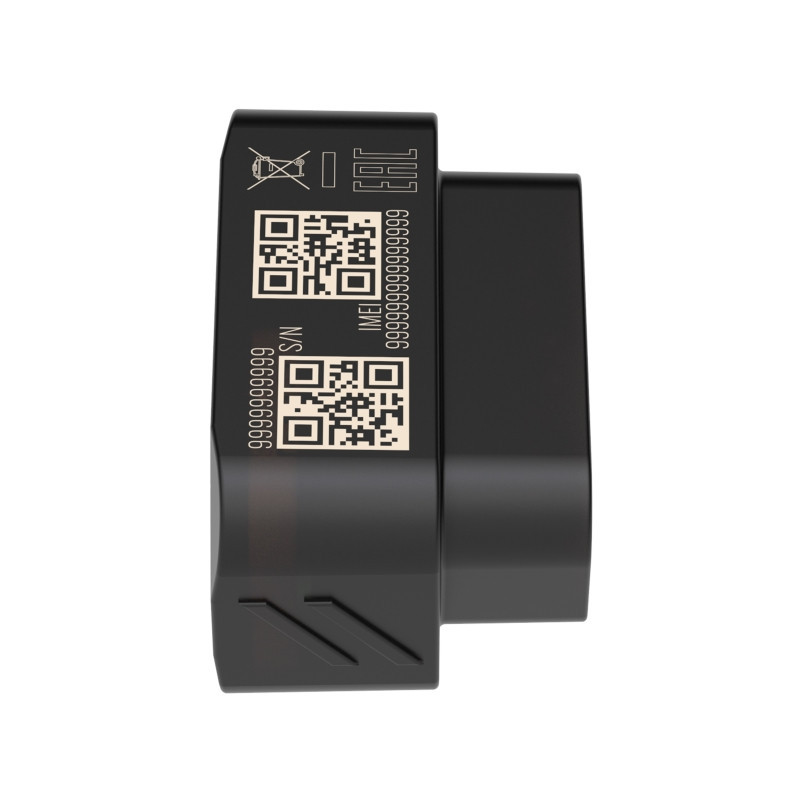

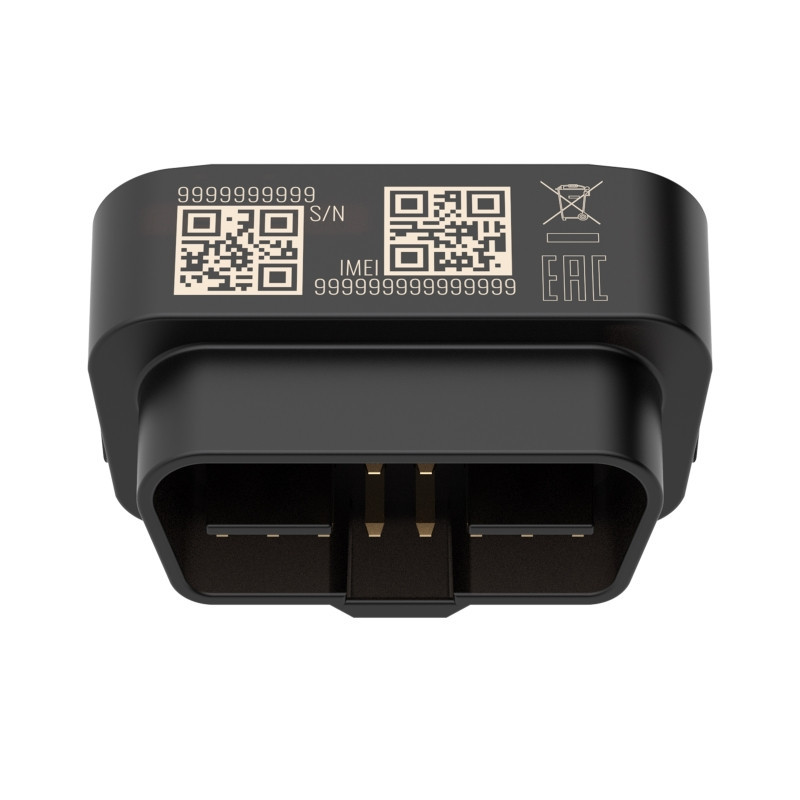

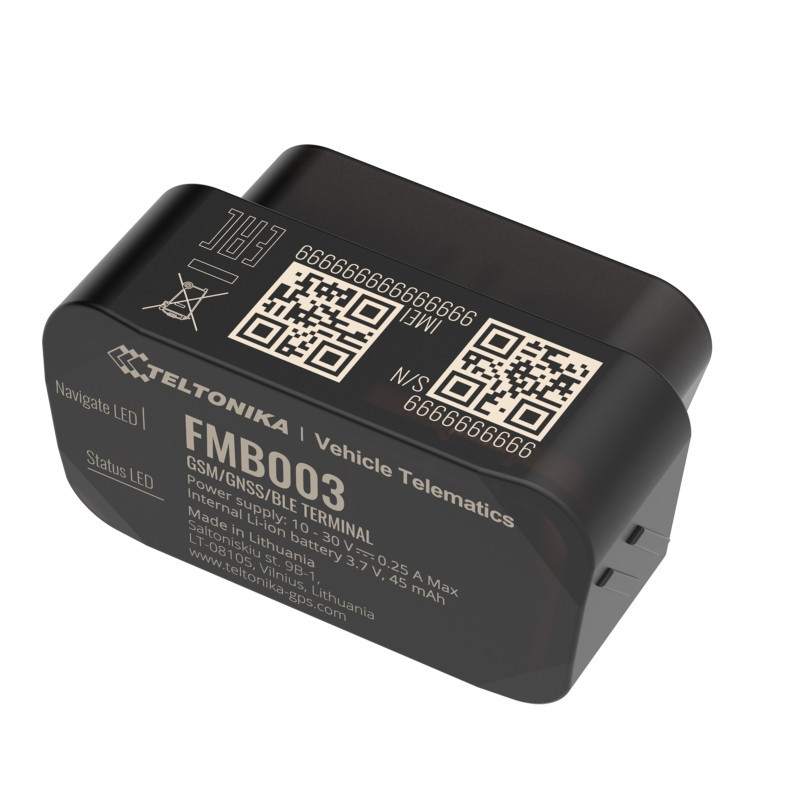

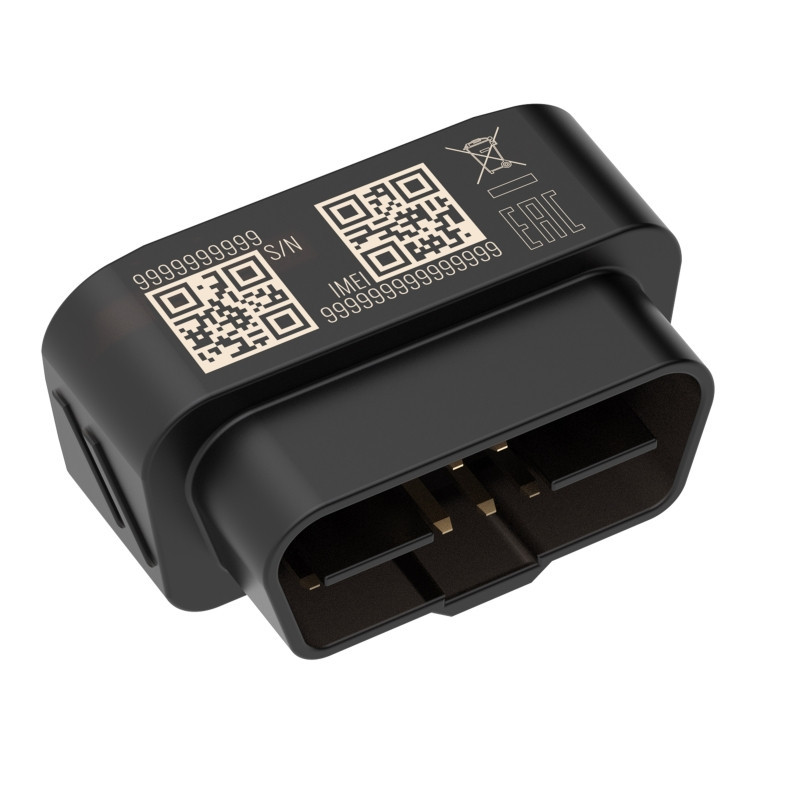

FMB003 is an ultra-small plug and play device for next generation OBD applications. The main function of FMB003 is the ability to read OEM parameters (PID) via OBD connector. With this device you will be able to read the actual odometer and actual fuel level. In addition, the device comes with a list of supported vehicles and data, so there is no need to guess anymore - now you know exactly what data you can read from a specific vehicle.
It is a great tracker for a variety of applications - from light commercial vehicle fleet management, driver trip log, insurance telematics (UBI), car rental and leasing, to many other areas.
The device supports various BLE 4.0 sensors, tags, hands-free devices, software and configuration updates via Bluetooth, further expanding the already rich functionality.
FMB003 - the new standard in OBD tracking!
| MODULE | |
| In the house | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 sec. |
| Warm start | < 25 seconds |
| Cold start | < 35 seconds |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps) |
| Data support | SMS (text/data) |
| POWER | |
| Supply voltage range | 10 - 30 V DC with overvoltage protection |
| Backup battery | 3.7V 45mAh |
| Power consumption | At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal) |
| BLUETOOTH | |
| Specifications | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support |
| OBD INTERFACE | |
| Date | K-Line, CAN bus date |
| Data reading | Up to 32 vehicle onboard parameters, supported OBD protocols: SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| INTERFACE | |
| Connection | OBDII Socket |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro USB |
| LED indication | 2 status LED lights |
| SIM | Nano SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 52.6 x 29.1 x 26 mm (L x W x H) |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40°C to +85°C |
| Storage temperature (without battery) | -40°C to +85°C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charging temperature | +10 °C to +45 °C |
| Battery discharge temperature | -20°C to +60°C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD-II |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
Package contains
- FMB003 tracker
