TELTONIKA Advanced LTE terminal with flexible inputs configuration

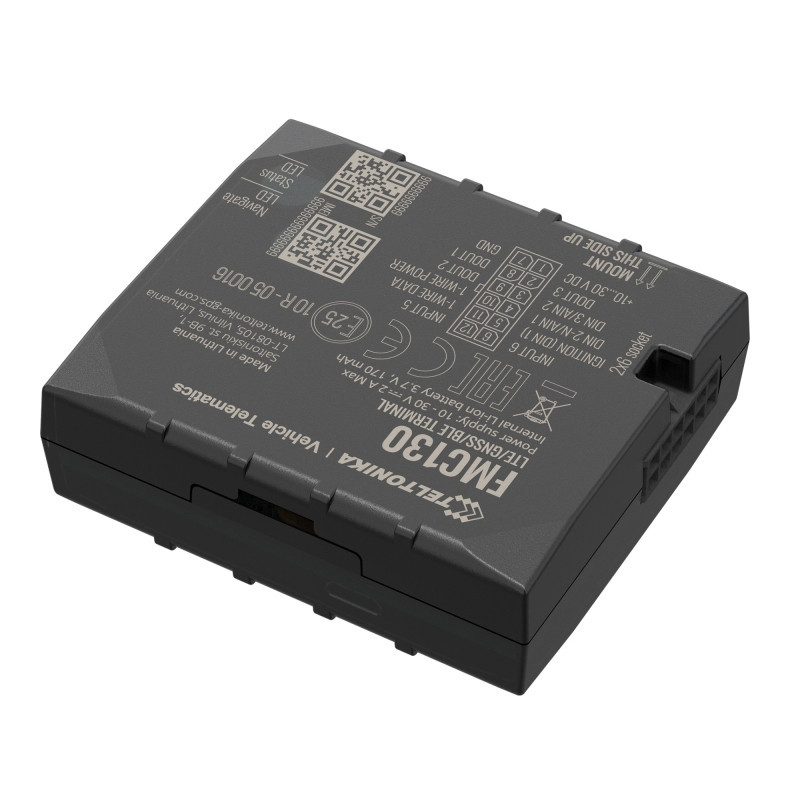

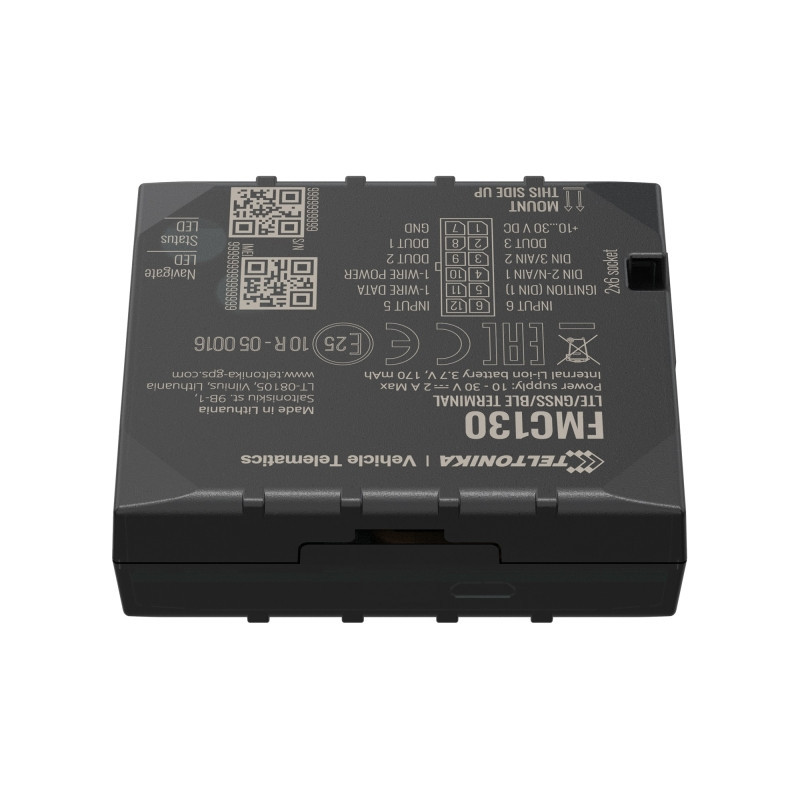

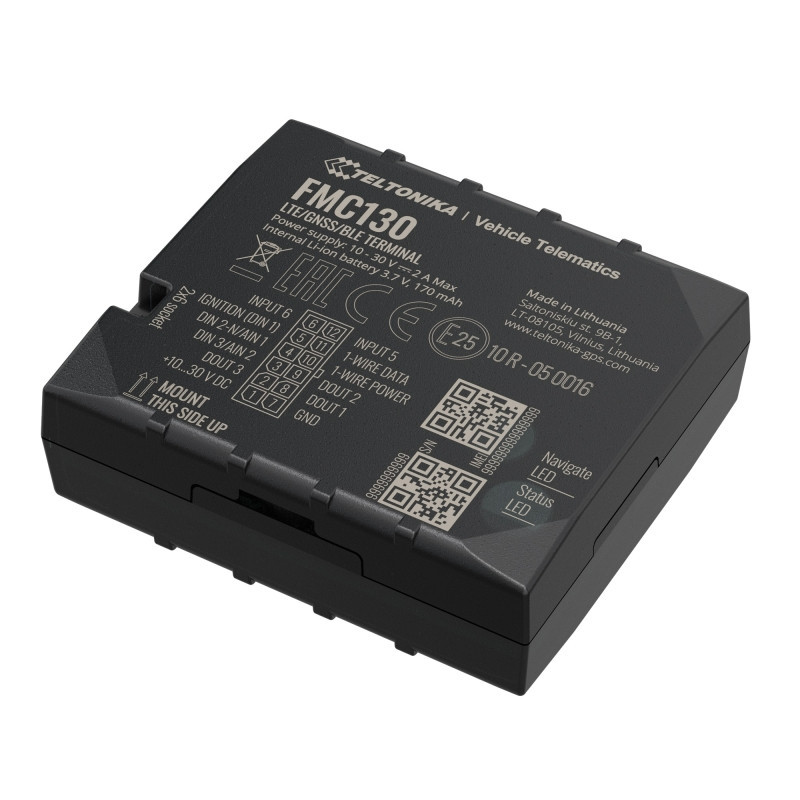

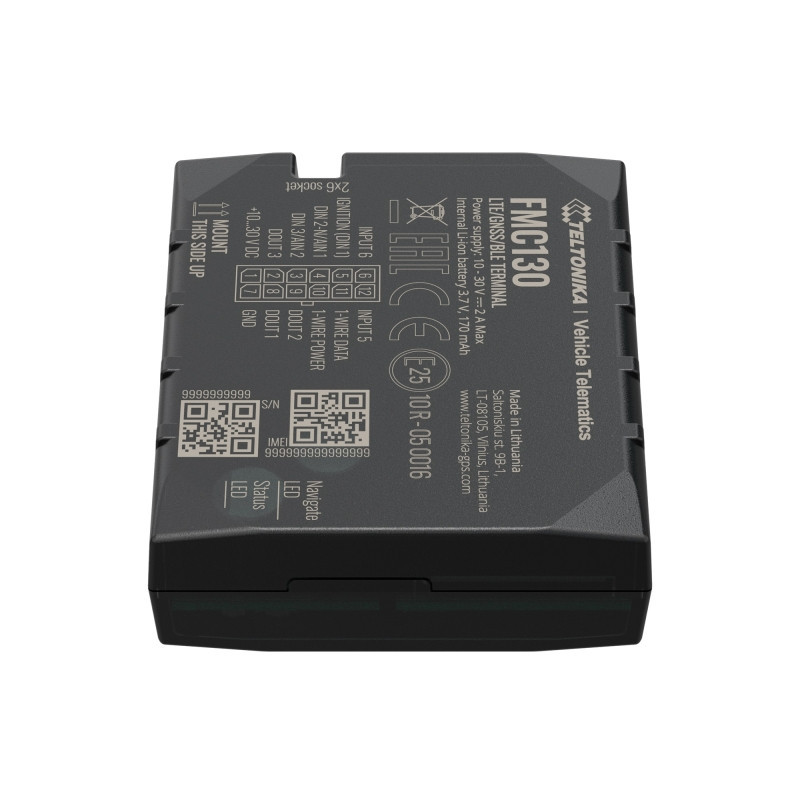

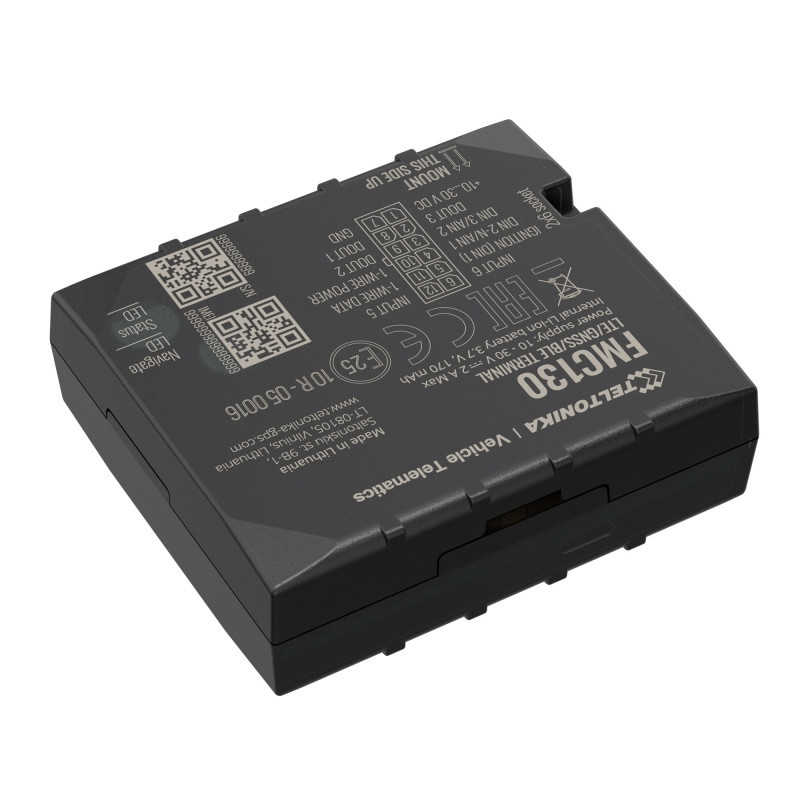

The newly introduced FMC130 is a small, advanced device with 4G (LTE Cat 1) network coverage, including 3G (UMTS) and 2G (GSM) compatibility in fallback mode. The device features internal GNSS and LTE antennas, configurable digital/analog/negative and pulse inputs, three DOUT outputs, Bluetooth connectivity and a backup battery.

The FMC130 is built on the existing Teltonika FMB platform, so it retains all the features of the FMB130 and adds to them, offering industry-leading connectivity coverage.

First, the FMC130 has a negative input, which saves valuable integration time when connecting accessories such as vehicle door sensors, alarm buttons, seat belt detection, and other similar sensors or accessories.

Additionally, the device has an integrated ability to use pulse input for accurate reading of fuel flow meter data. Pulse-based fuel consumption monitoring is much more accurate than other types of fuel measurement sensors, making the FMC130 an excellent solution for high fuel consumption applications such as cranes, construction vehicles, mining machinery, and agricultural machinery.

Programmable inputs, 3 different configurable DOUT scenarios (immobilizer, horn, alarm lights, door lock and other scenarios) together with 4G (LTE Cat 1) compatibility including 3G (UMTS) and 2G (GSM) backup connectivity make this device one of our most versatile products.

Package contains

• FMC130 tracker


• Input/output power supply cable (0.9 m)
