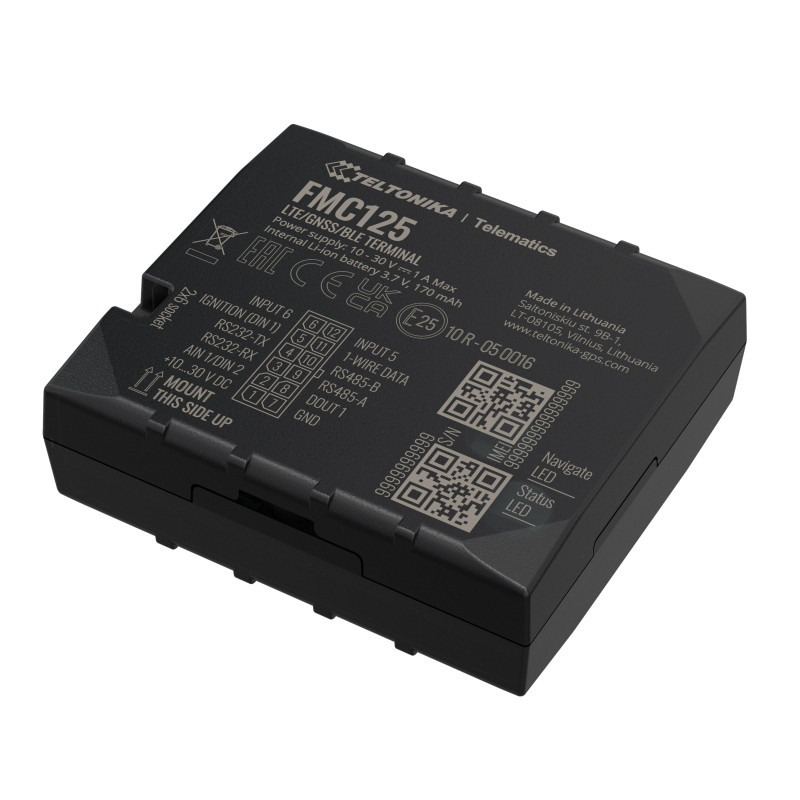

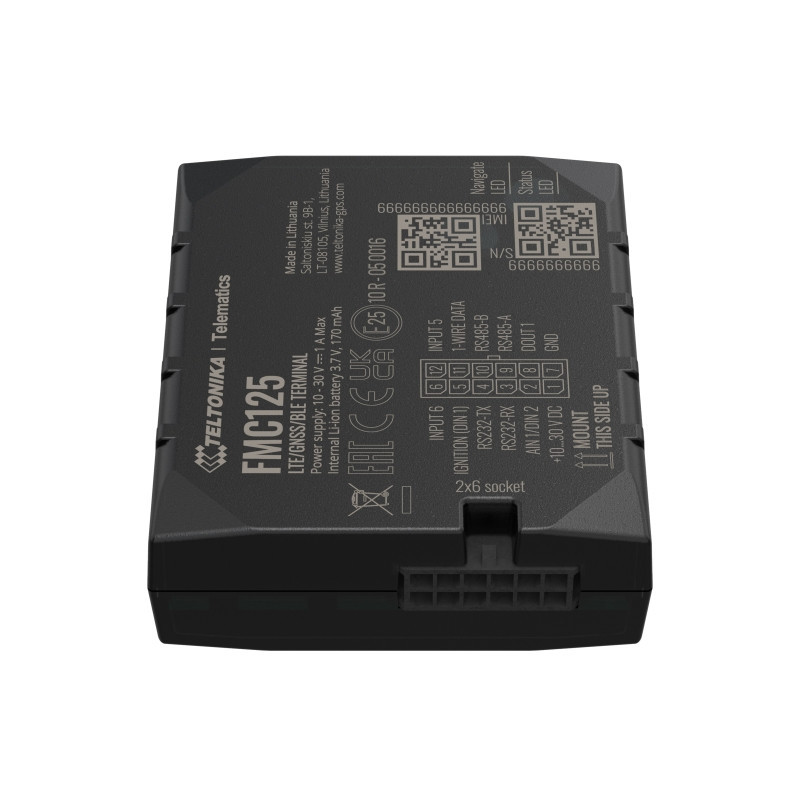

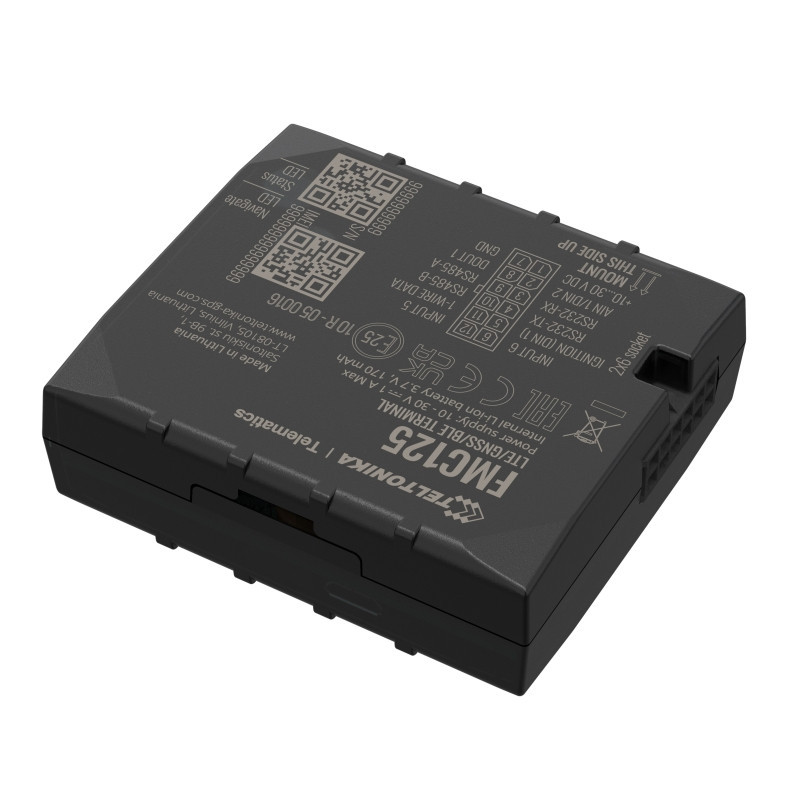

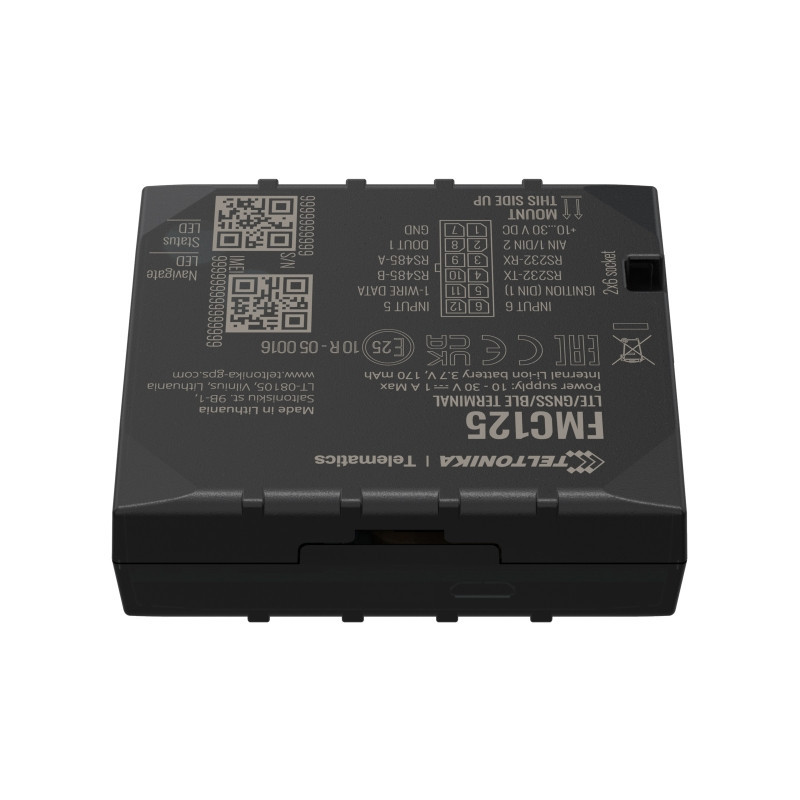

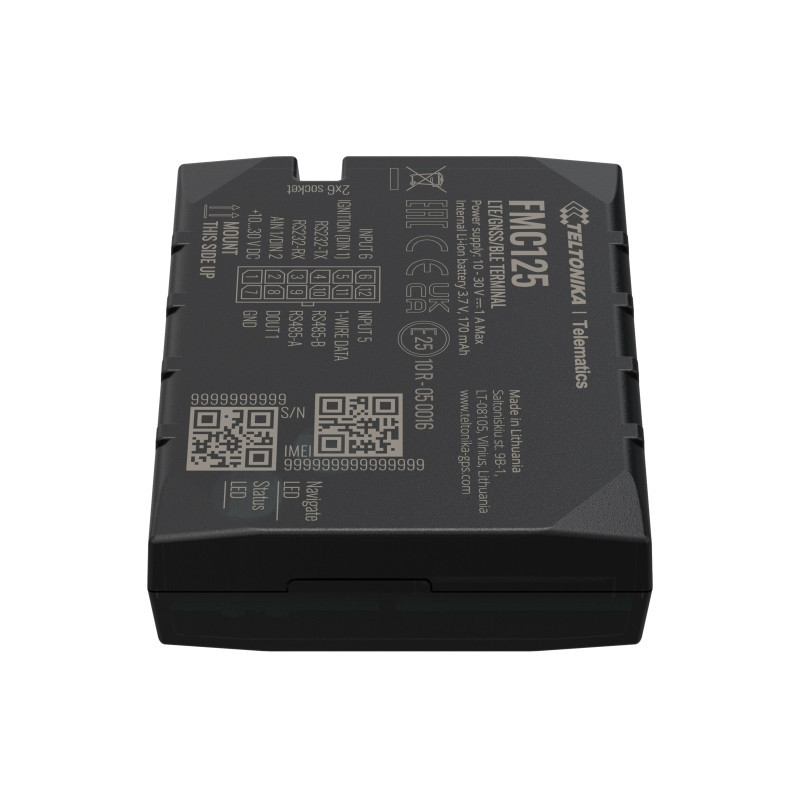

TELTONIKA Advanced LTE terminal FMC125
Product reference:
18-FMC125
TELTONIKA Advanced LTE terminal FMC125
TELTONIKA Advanced LTE terminal FMC125
Product reference:
18-FMC125
TELTONIKA Advanced LTE terminal FMC125
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
The newly introduced FMC125 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage, including 3G (UMTS) and 2G (GSM) compatibility in fallback mode. The device is equipped with GNSS/Bluetooth and LTE modules, internal GNSS and LTE antennas.
The FMC125 is built on the existing Teltonika FMB platform, thus retaining all the features of the FMB125 and adding industry-leading connectivity.
The device is designed to communicate with various third-party RS232 or RS485 devices, such as digital fuel sensors (LLS), Garmin navigation devices, RFID readers and many others. It is also a great solution for refrigerated transport, as it has an extended I/O list and a 1-wire interface for temperature monitoring.
The Dual-SIM function provides a backup communication channel when the coverage of one operator is insufficient. In addition, the Dual-SIM function will significantly reduce the cost of international communications.
This is only a small part of the existing functionality, but it allows us to make FMC125 even better.
| MODULE | |
| In the house | Quectel EC21-AU, Quectel EC21-EC, Teltonika TM2500 |
| Technology | LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 sec. |
| Warm start | < 25 seconds |
| Cold start | < 35 seconds |
| CELLULAR | |
| Technology | LTE Cat 1, UMTS, GSM |
| 2G bands | EC21-AU: GSM: B2/B3/B5/B8 EC21-EC: GSM: B3/B8 |
| 3G bands | EC21-AU: WCDMA: B1/B2/B5/B8 EC21-EC: WCDMA: B1/B8 |
| 4G bands | EC21-AU: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 EC21-EC: LTE FDD: B1/B3/B7/B8/B20/B28A |
| Data transfer | LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL) UMTS:WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) GSM:GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Backup battery | 170 mAh Li-Ion, 3.7 V battery (0.63 Wh) |
| BLUETOOTH | |
| Specifications | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| PHYSICAL SPECIFICATION | |
| Dimensions | 65 x 56.6 x 20.6 mm (L x W x H) |
| Weight | 55 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40°C to +85°C |
| Storage temperature (without battery) | -40°C to +85°C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charging temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20°C to +60°C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| INTERFACE | |
| Digital Inputs | 2 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| CAN Adapter inputs | 1 |
| 1-Wire | 1 |
| RS232 | 1 |
| RS485 | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro USB |
| LED indication | 2 status LED lights |
| SIM | 2x SIM Card (Dual-SIM) |
| Memory | 128MB internal flash memory |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
| RS232 Modes | Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary |
| RS485 Modes | Log Mode, NMEA, LLS, TCP ASCII/Binary |
