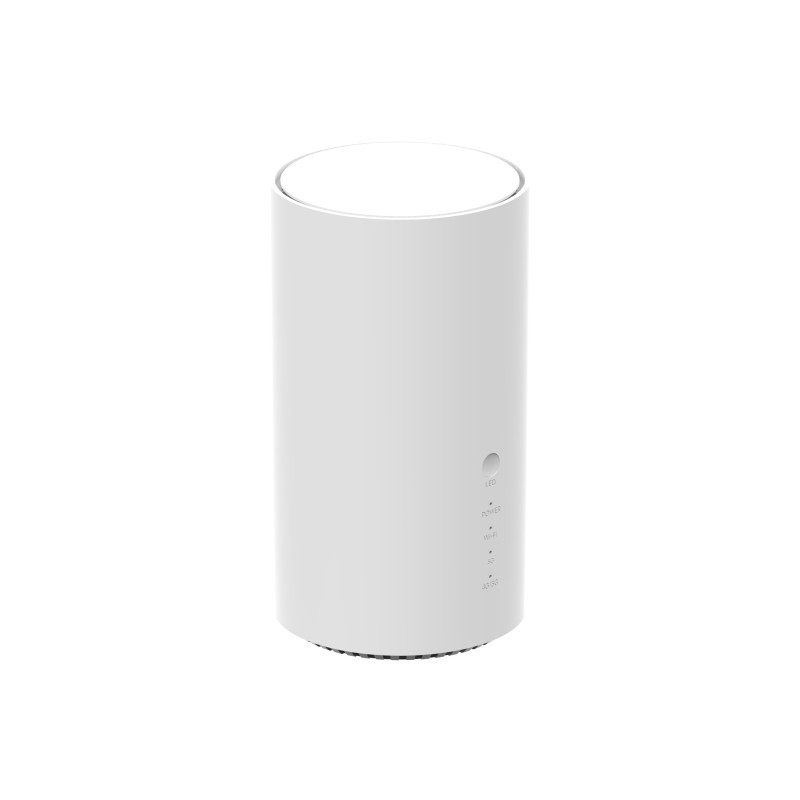

TELTONIKA 5G Wi-Fi 7 Router ALTOS

Teltonika Altos is a 5G Wi-Fi 7 router designed to provide ultra-fast and future-proof mobile internet for modern homes, small offices and other fixed wireless access (FWA) solutions. It provides reliable high-speed 5G connectivity where traditional fiber-optic internet is unavailable or too expensive. Powered by the feature-rich Teltonika RutOS operating system and fully managed via the Remote Management System (RMS), Altos combines next-generation speed and enterprise-grade security in an easy-to-use solution.

Ultra-fast 5G connection Enjoy lightning-fast internet with 5G SA/NSA technology

Next-generation Wi-Fi 7 Multi-gigabit wireless connectivity for seamless content streaming and entertainment

Safety from the basics User roles, advanced firewalls, VPN and WPA3 for network security

Remote control Zero-touch deployment, fleet management, and remote access to devices

Mobile Mobile module: 5G NR up to 4.0 Gbps DL / 900 Mbps UL; 4G LTE (CAT 19) up to 1.6 Gbps DL / 200 Mbps UL; 3G - 42 Mbps DL, 5.76Mbps UL 3GPP Release: Release 17 Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD: Supports sending and reading Unstructured Supplementary Service Data messages Block/Allow list: Operator block/allow list (by country or separate operators) Band management: Band lock, Used band status display SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN APN: Auto APN Bridge: Direct connection (bridge) between mobile ISP and device on LAN Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless Wireless mode: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Dual Band, 2x2 MIMO, Access Point (AP) Wi-Fi security: WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, WPA2-EAP, WPA3-EAP, OWE; CCMP, TKIP ciphers Wi-Fi users: Up to 128 simultaneous connections Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

Ethernet LAN: 1 x LAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover WAN/LAN: 1 x WAN/LAN port, 10/100/1000/2500 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forward, traffic rules, custom rules, TTL target customization Firewall status page: View all your Firewall statistics, rules, and rule counters Network topology: Visual representation of your network, showing which devices are connected to which other devices DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards DDNS: Supported > 77 service providers, others can be configured manually Network backup: Mobile, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing: Balance Internet traffic over multiple WAN connections Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes SSHFS: Possibility to mount remote file system via SSH protocol Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Security Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS users authentication, IP login attempts block, time-based login blocking, built-in random password generator Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Custom data limits for SIM card WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet Certificate Manager: Let's Encrypt and SCEP certificate generation methods

VPN OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE: GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support SSTP: SSTP client instance support ZeroTier: ZeroTier VPN client support WireGuard: WireGuard VPN client and server support Tinc: Tinc offers encryption, authentication and compression in it's tunnels Client and server support. Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

BacNET Supported modes: Router Supported connection types: USB, TCP Configuration options: Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA Supported modes: Client, Server Supported connection types: TCP

MODBUS Supported modes: Server, Client Supported connection types: Client Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server Protocol: HTTP(S), MQTT, Azure MQTT Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Modbus MQTT GATEWAY Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3 Supported modes: Station, Outstation Supported connection types: TCP, USB

DLMS/COSEM DLMS Support: DLMS - standard protocol for utility meter data exchange Supported modes: Client Supported connection types: TCP

API Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring Management WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off Email: Receive email message status alerts of various services TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection JSON-RPC: Management API over HTTP/HTTPS RMS: Teltonika Remote Management System (RMS)

IoT Platforms ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions. Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics CPU: Qualcomm RAM: 1GB LPDDR4 FLASH storage: 8GB eMMC

Firmware/Configuration WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customization Operating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided GPL customization: You can create your own custom, branded firmware and web page application by changing colors, logos, and other elements in our firmware to fit your or your clients' needs Package Manager: The Package Manager is a service used to install additional software on the device

Power Connector: Barrel jack Input voltage: 12 VDC Power consumption: Idle: < 8 W, Max: < 24 W

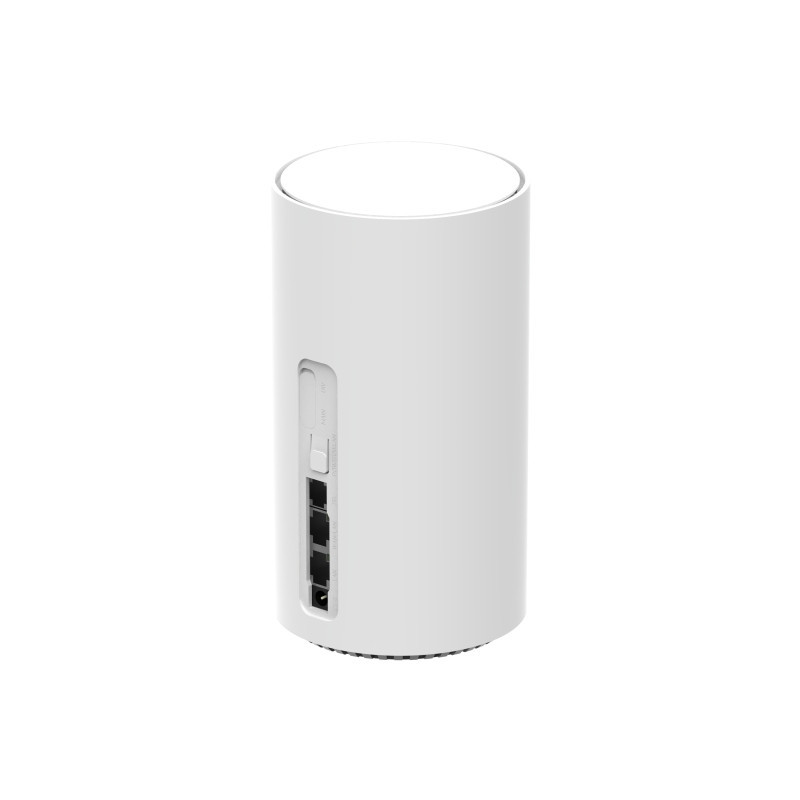

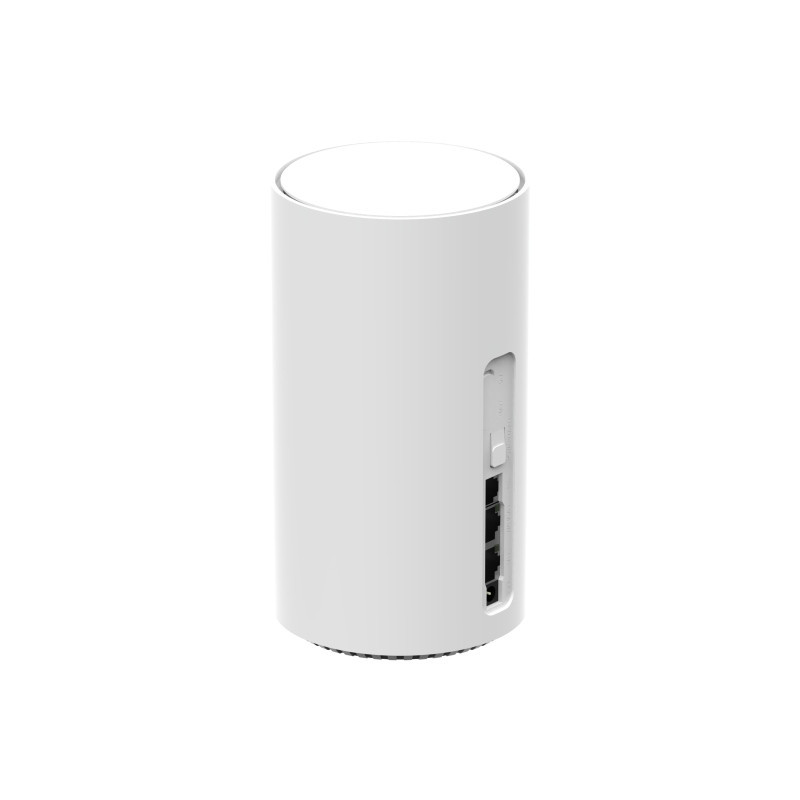

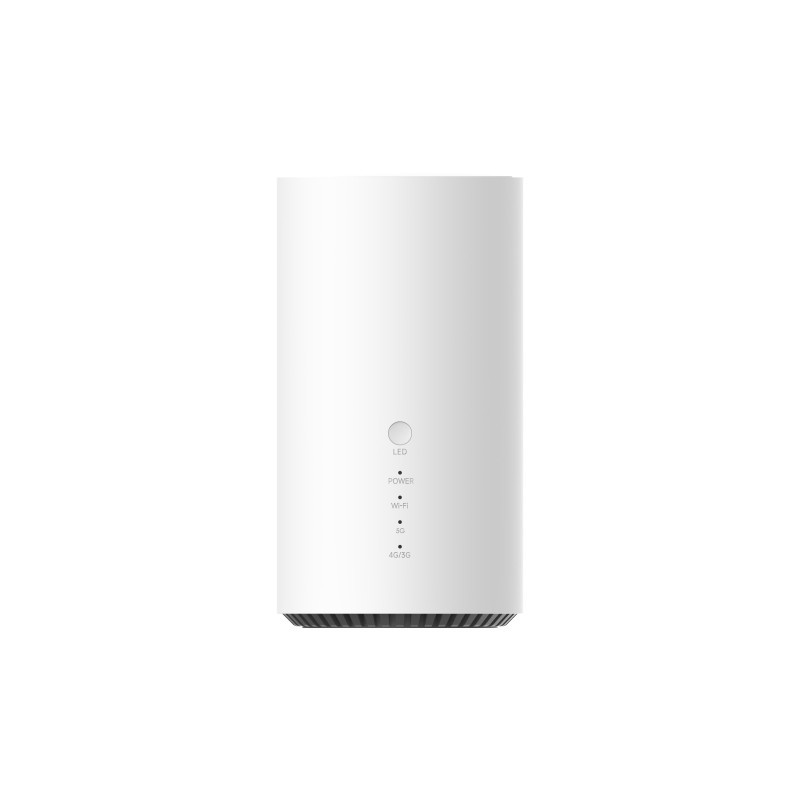

Physical Interfaces Ethernet: 1 x RJ45 port, 10/100/1000 Mbps, 1 x RJ45 port, 10/100/1000/2500 Mbps Telephone: 1 x RJ11 port Status LEDs: 1 x Power, 1 x Wi-Fi, 2 x Mobile connection type, 2 x LAN status SIM: 1 x SIM slots (Nano SIM - 4FF) Power: 1 x Barrel socket Antennas: 6 x Mobile internal antennas, 2 x Wi-Fi internal antennas USB: 1 x Virtual network interface via micro USB Power: Power/WLAN Button Reset: Reboot/User default reset/Factory reset button

Physical Specification Casing material: Plastic panels Dimensions (W x H x D): Ø 100 mm x 185 mm Weight: 720 g Mounting options: Flat surface placement

Operating Environment Operating temperature: 0 °C to 45 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP30

Regulatory Type Approvals Regulatory: CE, UKCA, EAC, UCRF, RCM, CB, WEEE

EMC Emissions Immunity Standards: EN 55032:2015+ A11:2020 + A1:2020 EN 55035:2017+A11:2020 EN 301 489-1 V2.2.3 EN 301 489-3 V2.3.2 EN 301 489-17 V3.2.4 EN 301 489-52 V1.2.1

RF Standards: EN 300 328 V2.2.2 EN 301 893 V2.1.1 EN 301 908-1 V15.2.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.3.1 EN 301 908-25 V15.1.1

Safety Standards: CE: EN IEC 62311:2020 RCM: AS/NZS 62368.1:2022 CB: EN IEC 62368-1:2020+A11:2020
