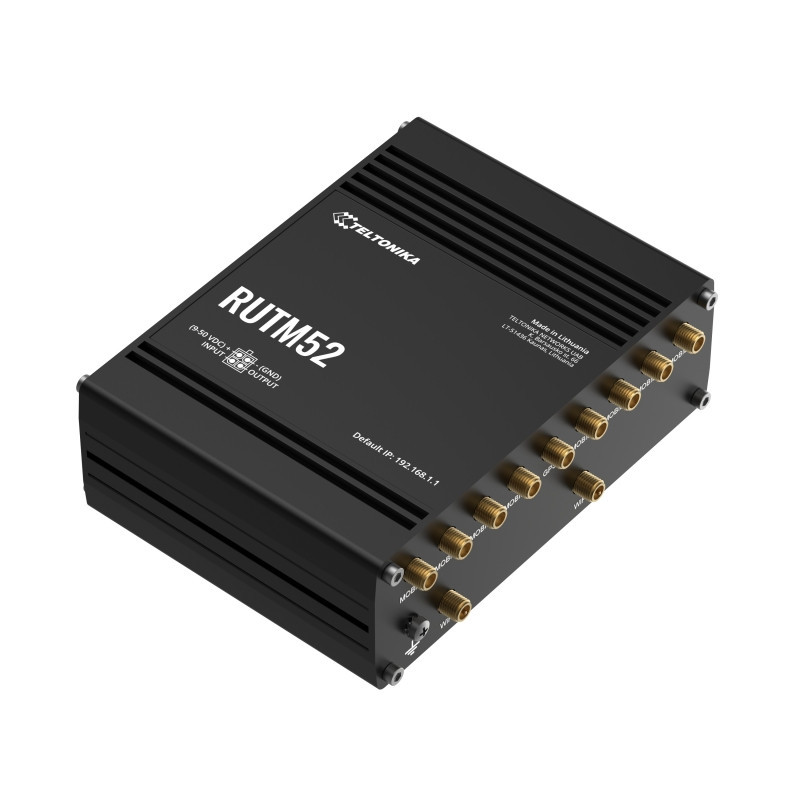

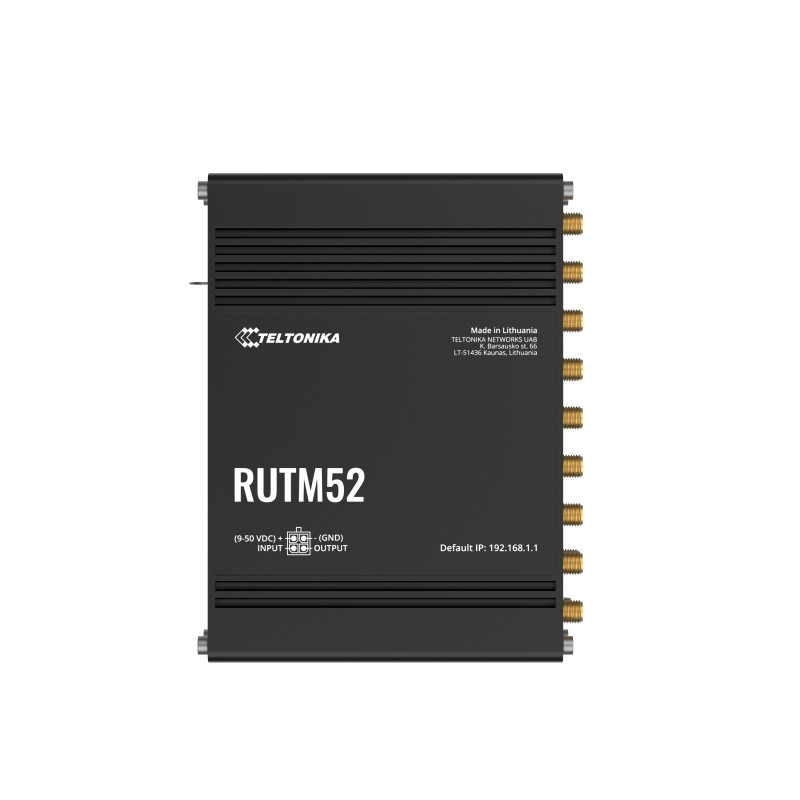

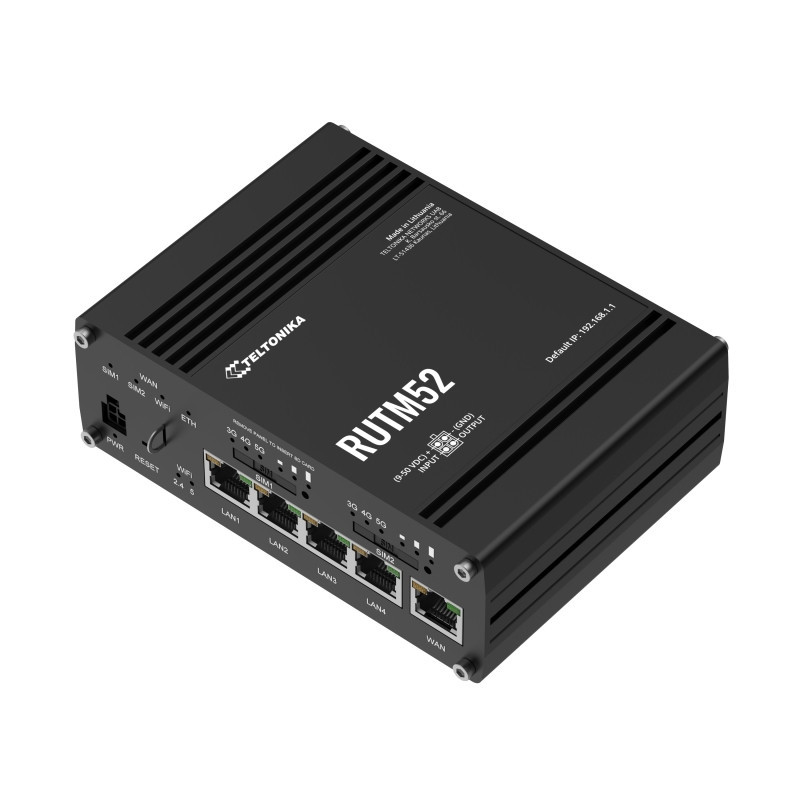

TELTONIKA 5G 4G (LTE) Cat.20 Industrial Cellular Router with eSIM support

The RUTM52 is a highly reliable, future-proof 5G router with dual 5G modems, multi-WAN support, and 4G LTE Cat 20 failover. Dual SIM slots, eSIM support, and compatibility with SA and NSA 5G architectures ensure fast and uninterrupted connectivity for today’s and future-proof solutions. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports are included to improve performance. The RutOS operating system with industrial protocols and various VPN options allows the router to be used in complex professional solutions. Compatible with RMS, the RUTM52 is an ideal choice for secure and efficient remote management.

TWO 5G MODEMS

Always available mobile connection with up to twice the speed

DUAL SIM SLOTS AND eSIM™ SUPPORT

With automatic failover, WAN backup, and other failover scenarios

SA and NSA

Supports both architectures to maximize the potential of 5G infrastructure

LONG-TERM SOLUTION

Backward compatible with 4G (LTE Cat 20) network technologies

MobileMobile module: 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO) 900/600Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 20 2.0Gbps (4x4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL 3GPP Release: Release 16 eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD: Supports sending and reading Unstructured Supplementary Service Data messages Black/White list: Operator black/white list (by country or separate operators) Multiple PDN: Possibility to use different PDNs for multiple network access and services Band management: Band lock, Used try status display SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN APN: Auto APN Bridge: Direct connection (bridge) between mobile ISP and device on LAN Passthrough: Router assigns its mobile WAN IP address to another device on LAN Framed routing: Framed routing: support an IP network behind 5G UE

WirelessWireless mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) SSID/ESSID: ESSID stealth mode Wi-Fi users: Up to 150 simultaneous connections Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) Wireless MAC filter: Allowlist, blocklist Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

EthernetWAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NetworkRouting: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forward, traffic rules, custom rules, TTL target customization Firewall status page: View all your Firewall statistics, rules, and rule counters Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on Network topology: Visual representation of your network, showing which devices are connected to it which other devices Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS: Supported > 25 service providers, others can be configured manually DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing: Balance Internet traffic over multiple WAN connections SSHFS: Possibility to mount remote file system via SSH protocol VRF support: Initial virtual routing and forwarding (VRF) support Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Security802.1x: Port-based network access control client Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS users authentication, IP login attempts block, time-based login blocking, built-in random password generator Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet SSL certificate generation: Let's encrypt support

VPNOpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE: GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support SSTP: SSTP client instance support ZeroTier: ZeroTier VPN client support WireGuard: WireGuard VPN client and server support Tinc: Tinc offers encryption, authentication and compression in it's tunnels Client and server support. Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UASupported modes: Client, Server Supported connection types: TCP

MODBUSSupported modes: Server, Client Supported connection types: TCP Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVERProtocol: HTTP(S), MQTT, Azure MQTT Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT GatewayModbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3Supported modes: DNP3 Station, DNP3 Outstation Supported connection: TCP

DLMSDLMS Support: DLMS - standard protocol for utility meter data exchange Supported modes: Client Supported connection types: TCP

APITeltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring ManagementWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off Email: Receive email message status alerts of various services TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection JSON-RPC: Management API over HTTP/HTTPS RMS: Teltonika Remote Management System (RMS)

IoT PlatformsThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System CharacteristicsCPU: MediaTek, Dual-Core, 880 MHz, MIPS1004Kc RAM: 256 MB, DDR3 FLASH storage: 16MB serial NOR flash, 256MB serial NAND flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware CustomizationOperating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided GPL customization: You can create your own custom, branded firmware and web page application by changing colors, logos, and other elements in our firmware to fit your or your clients' needs Package Manager: The Package Manager is a service used to install additional software on the device

Location TrackingGNSS: GPS, GLONASS, BeiDou, Galileo and QZSS Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS NMEA: NMEA 0183 NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol) Server software: Supported server software TAVL, RMS Geofencing: Configurable multiple geofence zones

Input / OutputInput: 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high Output: 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA Events: Email, RMS, SMS I/O juggler: Allows to set certain I/O conditions to initiate event

PowerConnector: 4-pin industrial DC power socket Input voltage range: 9 - 50 VDC, reverse polarity protection, surge protection > 51 VDC 10us max PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC Power consumption: Idle: < 5 W, Max: < 13 W

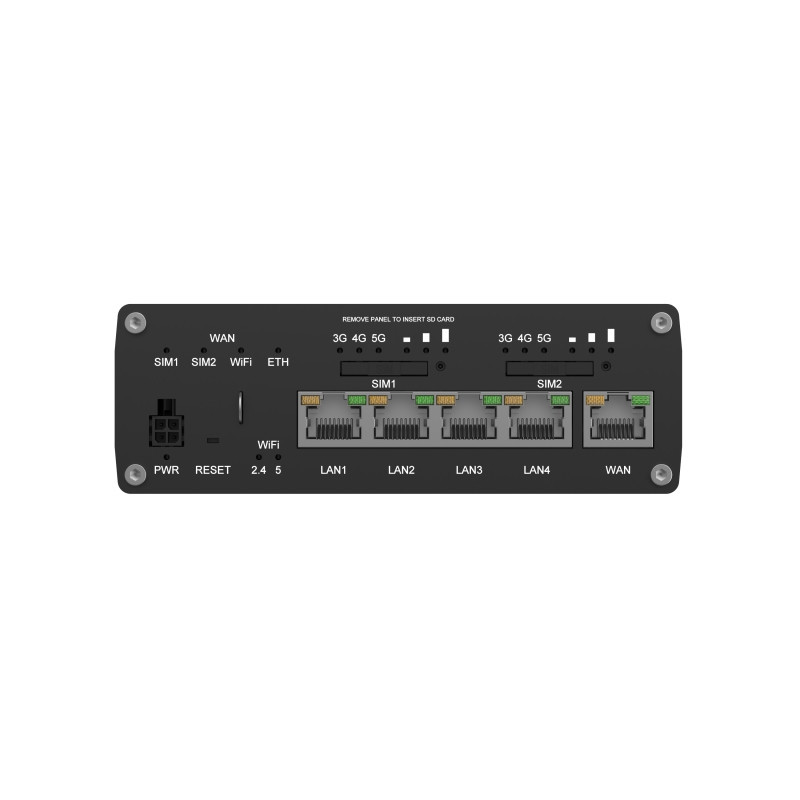

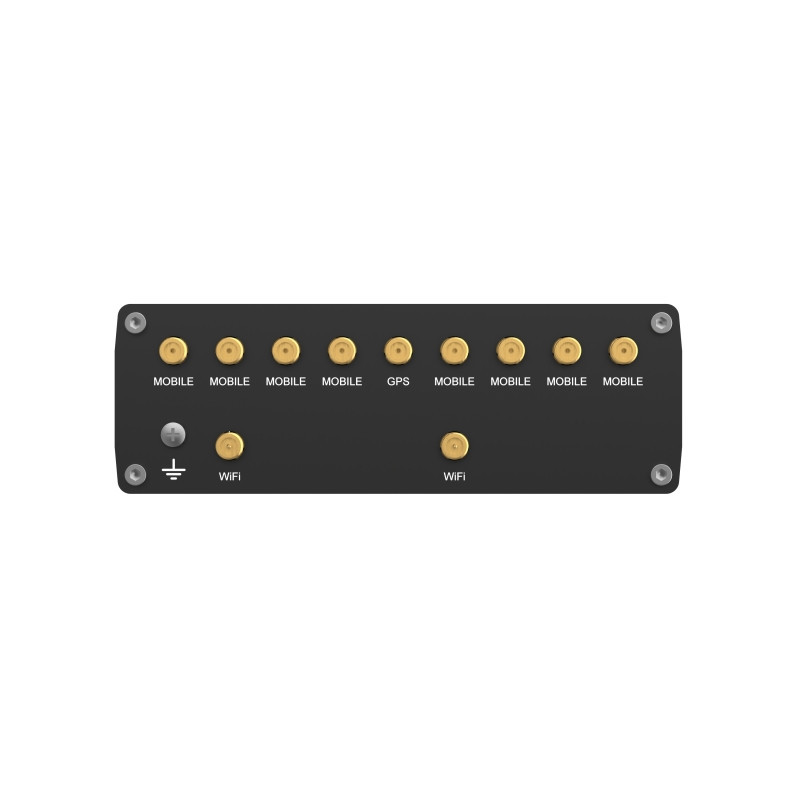

Physical InterfacesEthernet: 5 x RJ45 ports, 10/100/1000 Mbps I/O's: 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs: 6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V Power: 1 x 4-pin power connector Antennas: 8 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS Reset: Reboot/User default reset/Factory reset button Other: 1 x Grounding screw

Physical SpecificationCasing material: Anodized aluminum housing and panels Dimensions (W x H x D): 132 x 44.2 x 95.1 mm Weight: 560 g Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, FCC, IC, EAC, UCRF, WEE
