TELTONIKA 5 Gigabit LAN ports Automotive PoE+ Unmanaged Switch

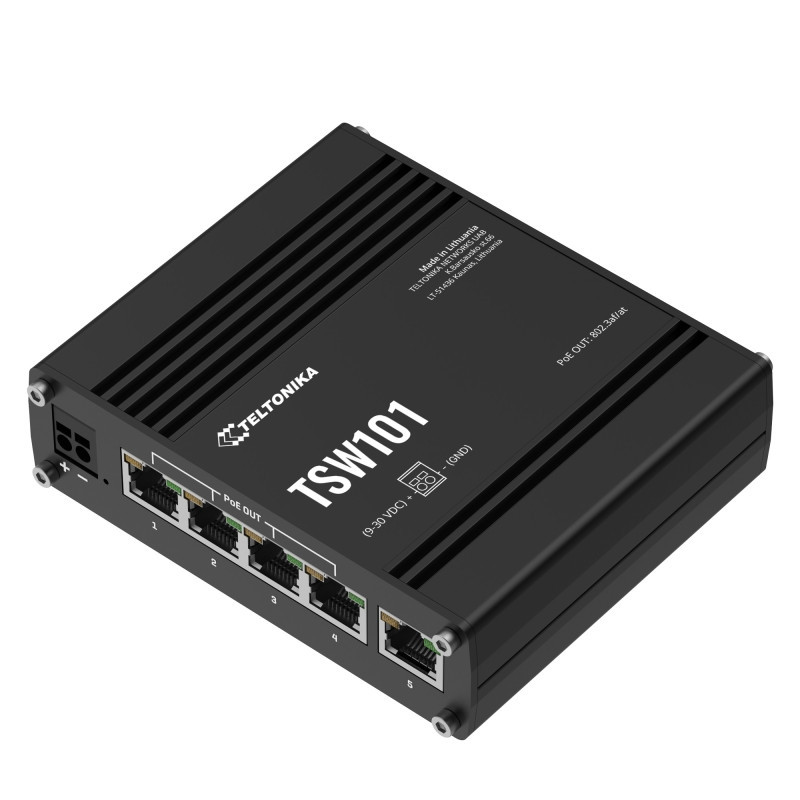

The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by a 12 V or 24 V car battery, requiring no additional PSU.

EthernetETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUTPoE ports: Port 1- 4 PoE standards: 802.3af and 802.3at Alternative B PoE Max Power per Port (at PSE): 30 W Total PoE Power Budget (at PSE): 60 W Maximum Ethernet cable length: 100 m

Performance SpecificationsBandwidth (Non-blocking): 10 Gbps Packer buffer: 128 KB MAC address table size: 2K entries Jumbo frame support: 9216 bytes

PowerConnector: 2-pin industrial DC power socket Input voltage range: 9 - 30 VDC PoE-out input voltage range: 9 - 30 VDC Power consumption: Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W PSU: 12 V or 24 V car battery-powered. No additional PSU is required.

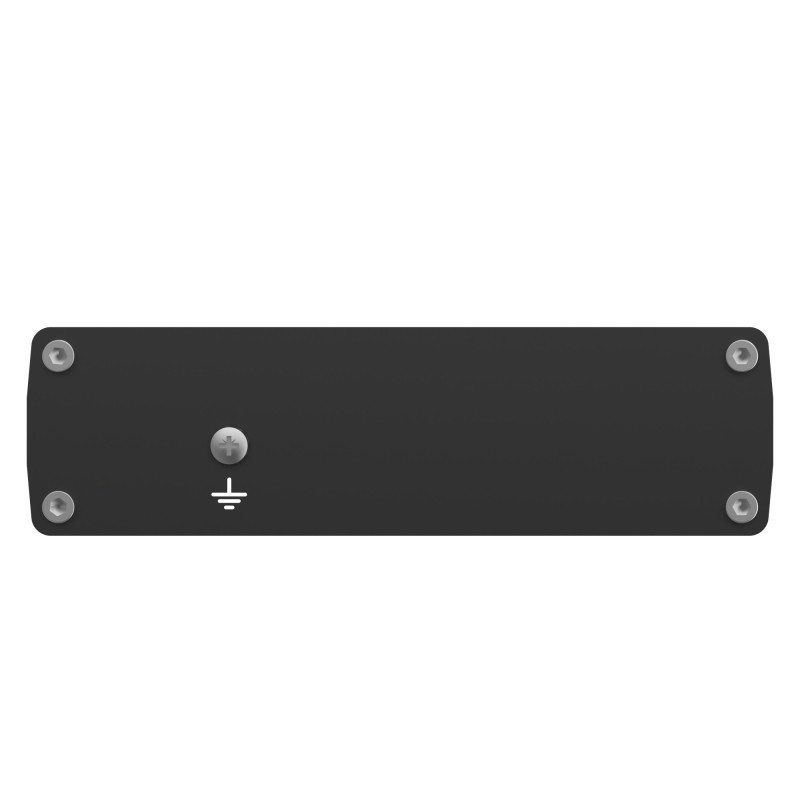

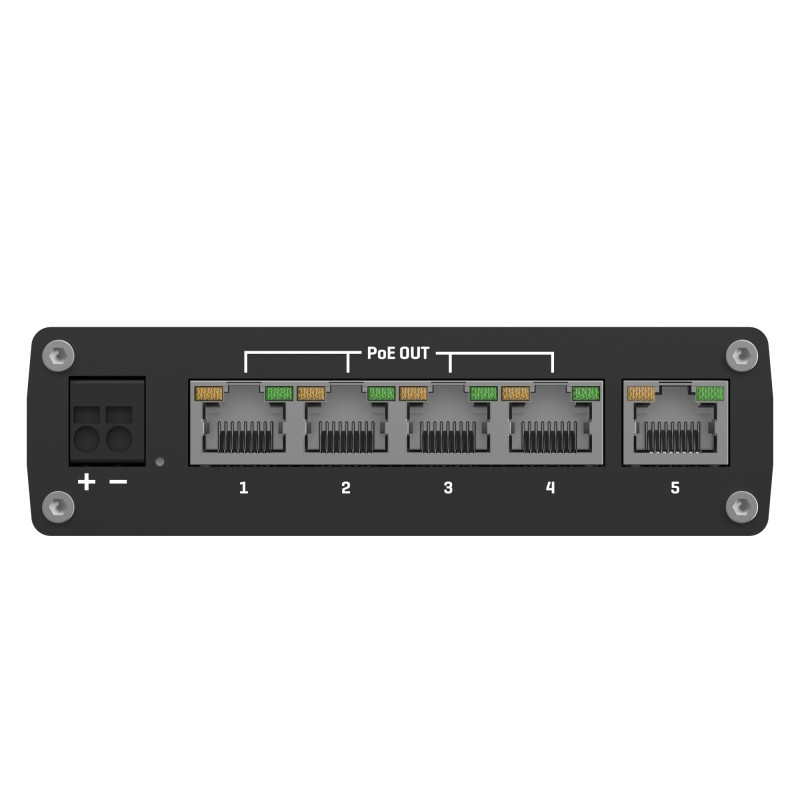

Physical InterfacesEthernet: 5 x RJ45 ports, 10/100/1000 Mbps Status LEDs: 1 x Power LED, 10 x ETH status LEDs Power: 1 x 2-pin industrial DC power socket Other: 1 x Grounding screw

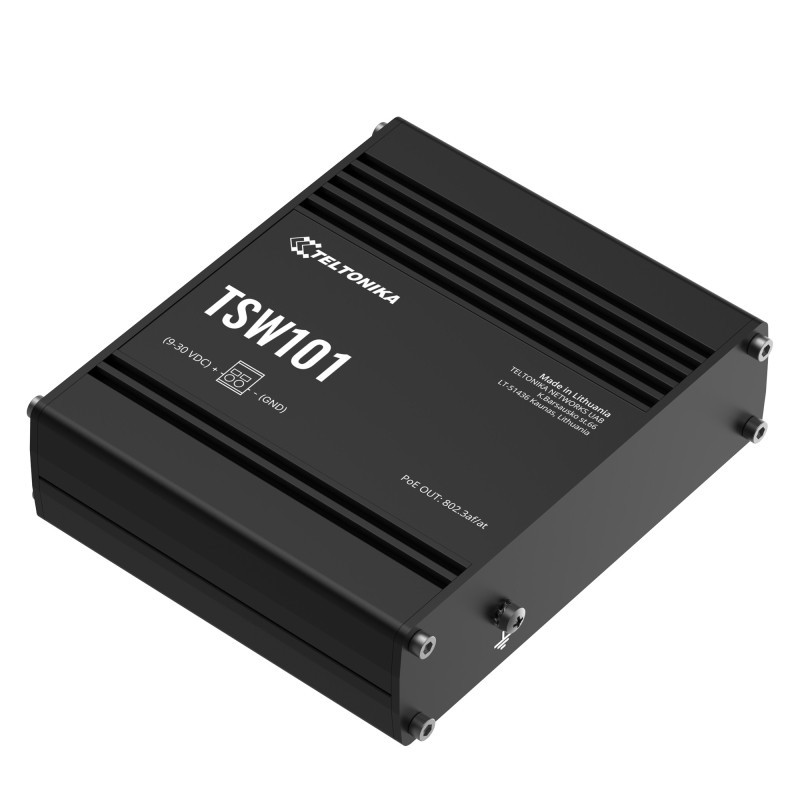

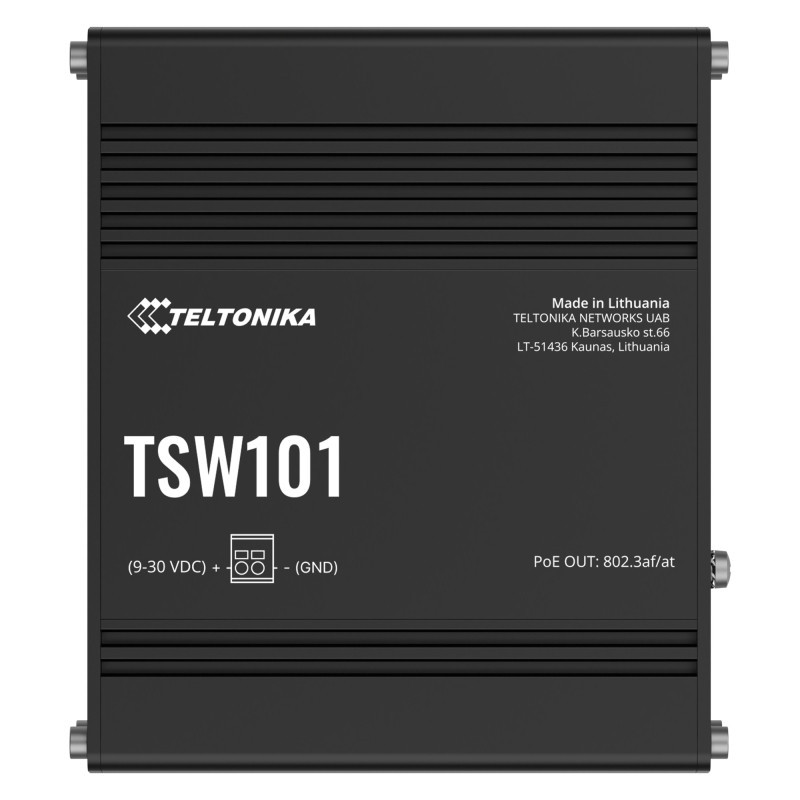

Physical SpecificationCasing material: Aluminum housing Dimensions (W x H x D): 115 x 32 x 95 mm Weight: 384 g Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement

Operating EnvironmentOperating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, RCM, E-Mark

EMC Emissions ImmunityStandards: EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 ESD: EN 61000-4-2:2009 Radiated Immunity: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge immunity (AC Power Line): EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014

SafetyStandards: CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018
