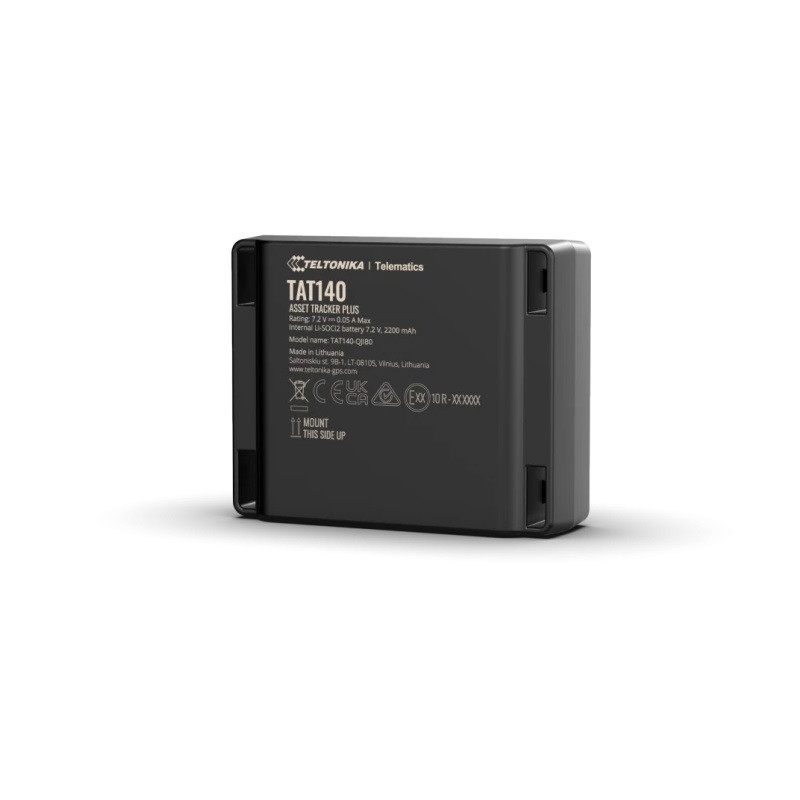

TELTONIKA 4G LTE asset tracker for worldwide coverage

Recovery Mode In the event of theft, recovery mode is activated, which allows you to send recordings more frequently according to a predefined tracking scenario to quickly locate the asset.

Up to 3 years of battery life. Daily recording via 4G LTE Cat 1 connection, offline modes and battery saving scenarios for various asset tracking scenarios.

Scheduled Reports Set up your data delivery scenarios based on the type of asset you are tracking or a specific use case.

ModuleHouse TAT140-QJIBO: Quectel EG915U-EU with Teltonika TM2500; TAT140-QKIB0: Quectel EG915U-LA with Teltonika TM2500

Technology: LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH

GNSSGNSS: GPS, GLONASS, GALILEO, BEIDOU Receiver: 33 channel Tracking sensitivity: -165 dBM Accuracy: < 2.5 m CEP

CellularTechnology: LTE Cat 1, GSM 2G bands: TAT140-QJIBO: EG915U-EU GSM: B2/B3/B5/B8; TAT140-QKIB0: EG915U-LA GSM: B2/B3/B5/B8 4G LTE Cat 1 bands: TAT140-QJIBO: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28; TAT140-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 Data transfer LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) Data support: SMS (text/data)

PowerInternal battery: Extremely low self-discharge Li-SOCl2 swappable battery, 7.2V 2200mAh

BluetoothSpecification:4.2 + LE Supported peripherals: ELA sensors, EYE sensors, Beacons, Universal BLE sensor support

Physical specificationDimensions: 78 x 63 x 28 mm (L x W x H) Weight: 115g (when 2 cell batteries are used)

InterfaceGNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 Micro-USB LED indication: 1 status LED light SIM: Micro-SIM Memory: 128MB internal flash memory

Operating environmentOperating temperature (without battery): -20 °C to +60 °C Battery discharge temperature: -60 °C to +85 °C Battery storage temperature: Recommended max 30 °C Ingress Protection Rating: IP68

FeaturesScenarios: Accelerometer wake up, GNSS, Bluetooth sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor Sensors: Accelerometer Sleep modes: Single custom sleep mode Configuration and firmware update: FOTA Web, Teltonika Configurator (USB) SMS: Configuration, Events, Debug GPRS commands: Configuration, Debug Time Synchronization: GNSS, NITZ, NTP

Certifications approvalsRegulatory: CE/RED, E-Mark, RCM, UKCA - pending
