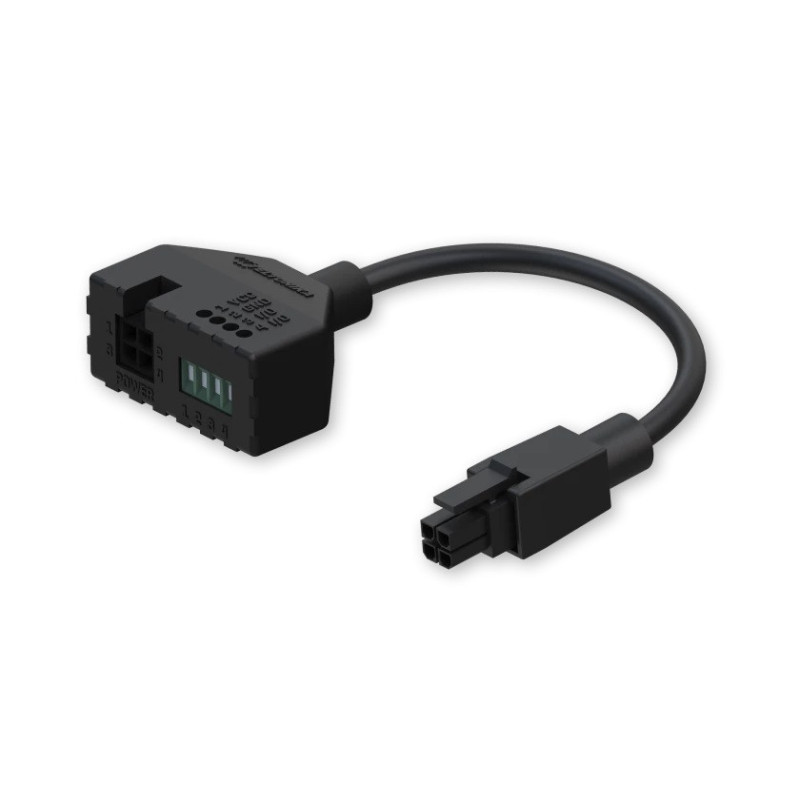

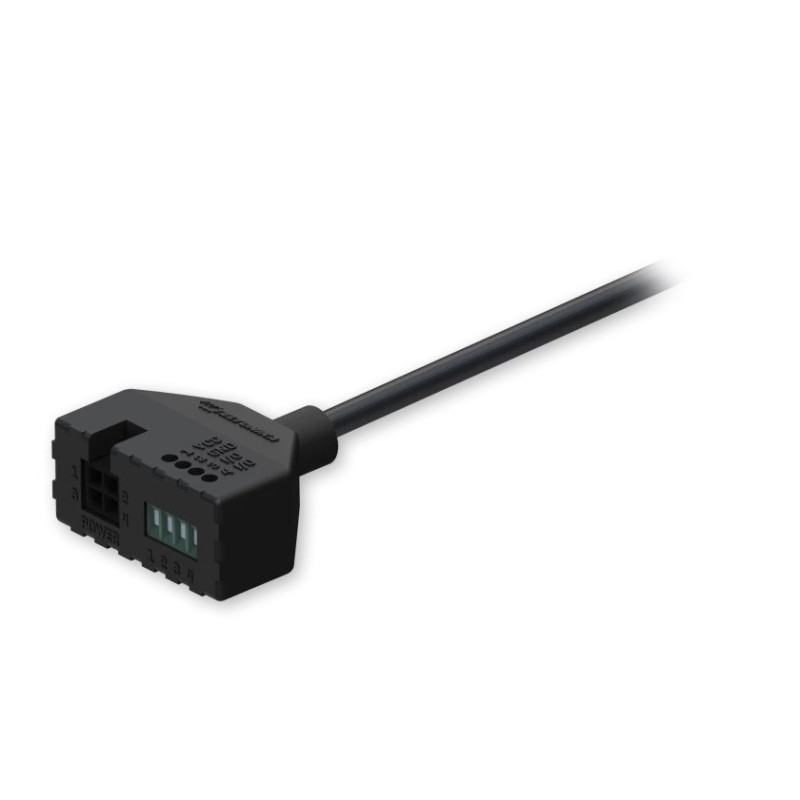

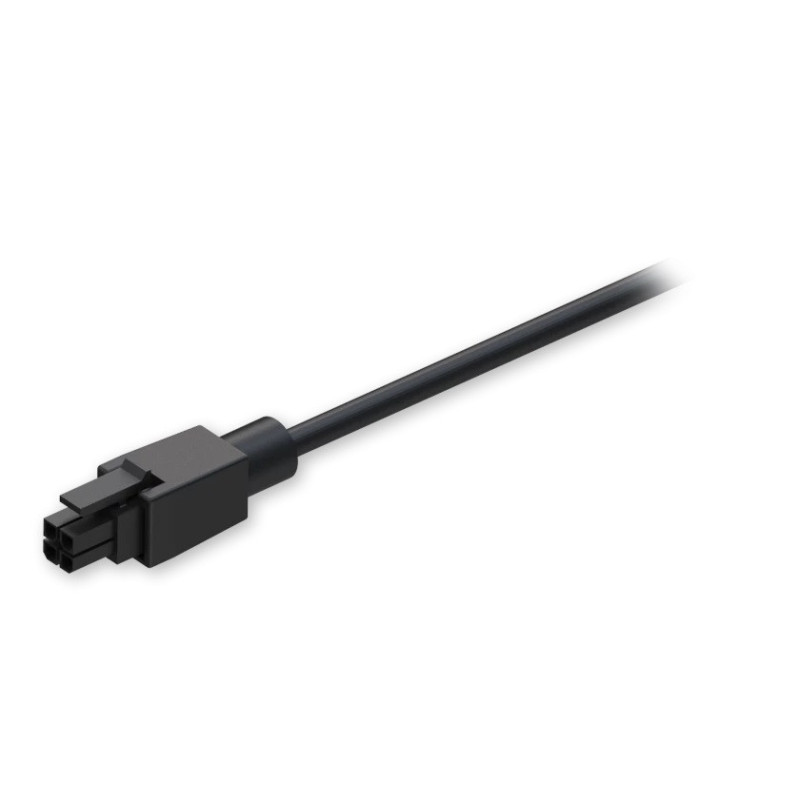

TELTONIKA 4-Pin Power Adapter with I/O Access (PR5MEC21)
Product reference:
18-PR5MEC21
TELTONIKA 4-Pin Power Adapter with I/O Access (PR5MEC21)
TELTONIKA 4-Pin Power Adapter with I/O Access (PR5MEC21)
Product reference:
18-PR5MEC21
TELTONIKA 4-Pin Power Adapter with I/O Access (PR5MEC21)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Not available
It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.
| TECHNICAL DATA | |
|---|---|
| GENERAL | |
| Input connector | 4-pin, 3 mm pitch and 4-way screw terminal block |
| Output connector | 4-pin, 3 mm pitch |
| Cable | 4 x 0.20 mm² (24 AWG), 100 mm |
| Screwdriver type | Micro slotted |
| Weight | 15 years. |
| *CONNECTION DATA | |
| Conductor cross section solid / flexible | 0.14 - 0.50 mm² (26 - 20 AWG) |
| Conductor cross section flexible, with ferrule, with plastic sleeve | 0.25 - 0.30 mm² (23 - 22 AWG) |
| Pinout | 1 Pin: Power + 2 Pin: Ground - 3 Pin: Input/Output 4 Pin: Input/Output |
*Connection data for 4-way screw terminal block
