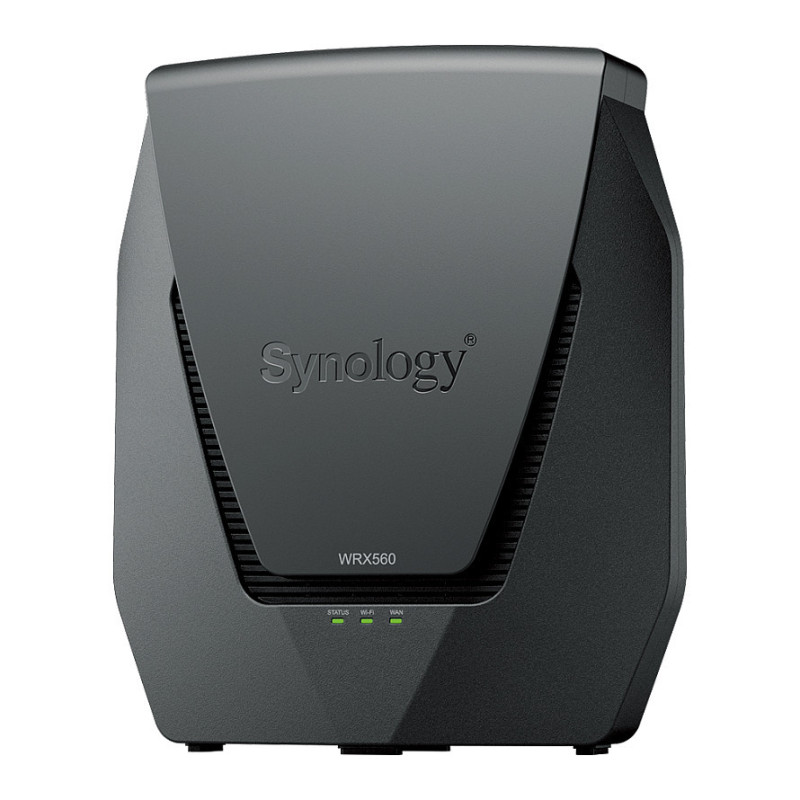

Synology WRX560 wireless router

Synology WRX560. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000,2500 Mbit/s, Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA, WPA2, WPA2-Enterprise, WPA3-Enterprise. Product colour: Black, LED indicators: Power, WPS

WAN connection

Ethernet WAN: Yes
DSL WAN: No
SIM card slot: No
3G/4G USB modem compatibility: No
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 2400 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 600 Mbit/s

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000,2500 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Policy-based routing: Yes
Static route: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 4
USB port: Yes

Security

Security algorithms: WPA, WPA2, WPA2-Enterprise, WPA3-Enterprise
DMZ support: Yes

Protocols

DHCP client: Yes
DHCP server: Yes

Design

Product colour: Black
LED indicators: Power, WPS

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA

Packaging content

AC adapter included: Yes
Quick installation guide: Yes

Antenna

Antenna design: Internal

Features

Built-in processor: Yes
Processor frequency: 1.4 MHz
Internal memory: 512 MB
Internal memory type: DDR4
Number of simultaneously connected devices (max): 150

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 10.8 W

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 233 mm
Depth: 194 mm
Height: 66 mm
Weight: 1.35 kg
