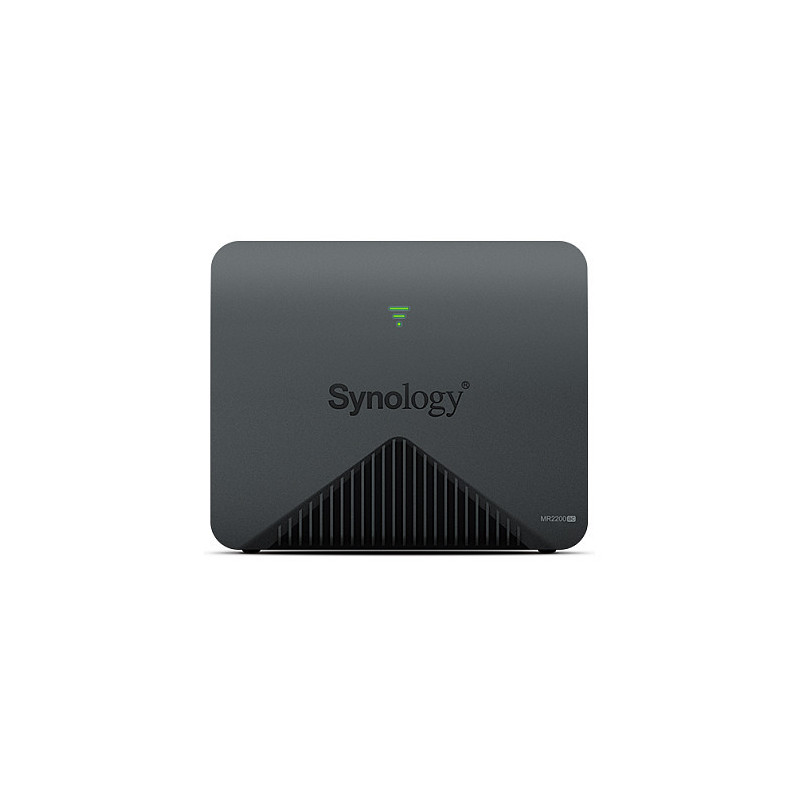

Synology MR2200AC wireless router

Synology MR2200AC. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r,.... Security algorithms: IPSec, MAC address table: 64 entries. Product type: Tabletop router, Product colour: Black

Synology Mesh Router MR2200ac
Coming with intelligent mesh Wi-Fi capability and best-in-class parental controls, MR2200ac is designed to keep all devices connected and everyone safe. Experience the award-winning Synology Router Manager (SRM) with an MR2200ac, and add more when you are ready to expand your coverage even further.

Smart Wi-Fi all around
Multiple MR2200ac can work together as a system to bring Wi-Fi to every corner of your home. Wherever you go, stay on a single Wi-Fi network and enjoy seamless connectivity from one place to another.

The intelligence behind your mesh network
The algorithms built into SRM make deployment incredibly easy. The system intelligently self-configures, self-optimizes, and even self-heals, always giving you the fastest possible path to the Internet.

Whole-home Wi-Fi, easily managed
State-of-the-art technology doesn't have to be complicated. See how Wi-Fi Connect makes your mesh Wi-Fi straightforward - and powerful.

Create a kid-friendly online world
We want kids to be safe online, even when we're not there. Safe Access helps you lay down rules for each kid without having to look for parental control solutions for every devices. Now you can get a full picture of how they're exploring the world every day, and protect them until they're ready.

Security at the perimeter
It's not just people that you need to protect. It's all the connected things: IP cameras, smart doorbells, alarm systems things that can make a smart home vulnerable. MR2200ac installs multiple layers of protection to shield your network against cyberattacks happening every day.

Advanced functionality made accessible
For small offices who don't want the hassle of wiring access points everywhere, a mesh Wi-Fi solution fits in perfectly. Unlike others, MR2200ac doesn't leave out the network management features businesses care about.

Be mobile
Deploy a mesh network from your phone. Stay on top of the traffic usage, user activities, and security events wherever you are, and act on them with just one tap on the screen. With DS router, you're never too far away from home.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band): 867 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s
WLAN data transfer rate (third band): 400 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)
VPN tunnels quantity: 4

Mobile network

Feature: Short Message Service (SMS)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: IPSec
Feature: Firewall
Feature: Guest access
Feature: DoS attack prevention
Feature: Filtering
Feature: MAC address filtering
MAC address table: 64 entries
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: Black
Feature: On/off switch
Product type: Tabletop router

Certificates

Feature: Digital Living Network Alliance (DLNA) certified
Certification: FCCCEBSMIVCCI Class BRCMKCiDATELECJATEIC

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: Internal

Features

Feature: Built-in processor
Processor frequency: 717 MHz
Processor cores: 4

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 12.95 W

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 199 mm
Depth: 65 mm
Height: 154 mm
Weight: 450 g

Packaging data

Number of products included: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85176990
