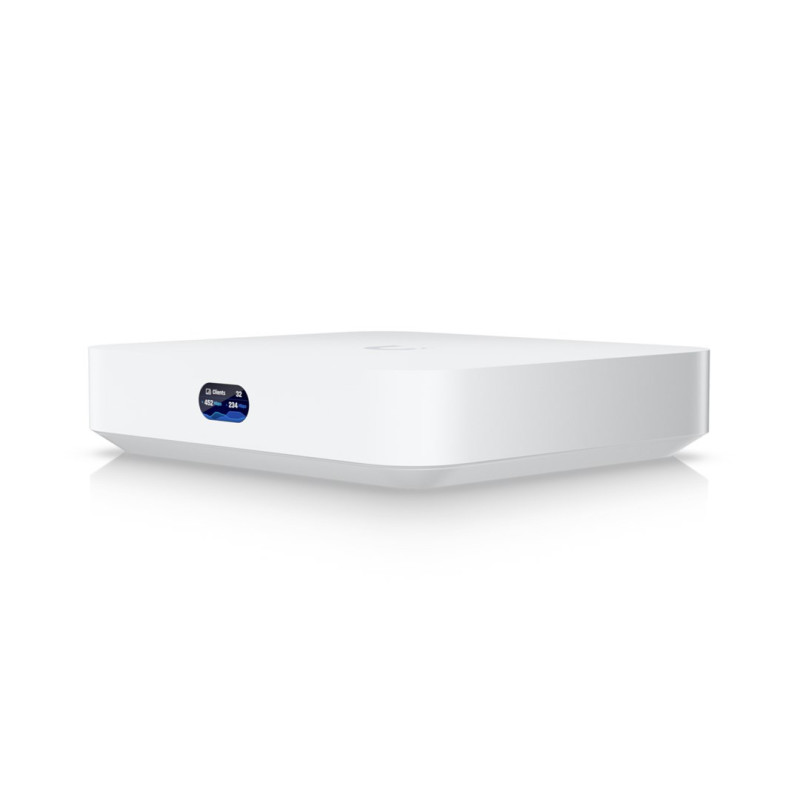

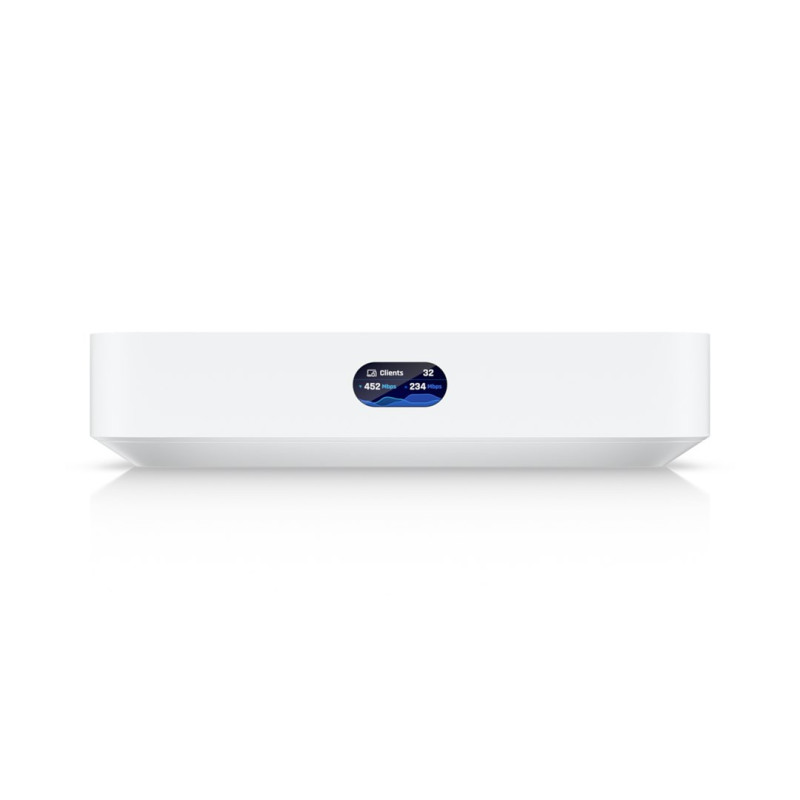

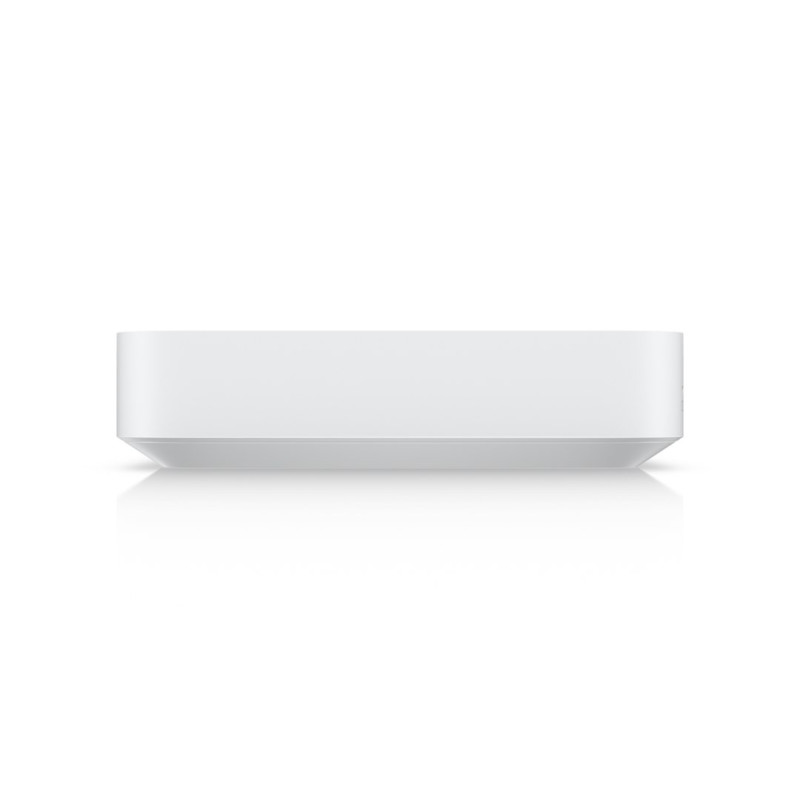

Router - Ubiquiti Cloud Gateway Max 10, 100, 1000 Mbit/s
Product reference:
14-810084697122
The Ubiquiti Cloud Gateway Max gateway provides fast Ethernet LAN data transfer up to 1000 Mbit/s, has a powerful Cortex-A53 processor, and offers advanced features such as firewall, VLAN support, and QoS.
Router - Ubiquiti Cloud Gateway Max 10, 100, 1000 Mbit/s
Product reference:
14-810084697122
The Ubiquiti Cloud Gateway Max gateway provides fast Ethernet LAN data transfer up to 1000 Mbit/s, has a powerful Cortex-A53 processor, and offers advanced features such as firewall, VLAN support, and QoS.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Router - Ubiquiti Cloud Gateway Max
Ubiquiti Cloud Gateway Max is a high-performance network controller designed for efficient traffic management. It has a powerful Cortex-A53 processor operating at 1500 MHz, 3072 MB RAM and 512 GB SSD capacity.
Main features
- Ethernet LAN data transfer speed: 1000 Mbit/s, 100 Mbit/s and 10 Mbit/s
- Integrated Cortex-A53 processor operating at 1500 MHz
- 3072 MB internal memory and 512 GB SSD
- Firewall security and VLAN support
- Quality of Service (QoS) support
Ubiquiti Cloud Gateway Max ensures reliable operation with a temperature range of -10 to 40°C and a relative humidity of 5% to 95%. Input voltage: 100-240 V, output voltage: 5 V, power consumption (max.): 16.1 W.
Technical data | |
|---|---|
| Certificates of conformity | FCC, CE, IC |
Design | |
| Housing | Polycarbonate |
| LED indicators | Activity, LAN |
| Product color | White |
Power | |
| Output current | 5 A |
| Input voltage | 100 - 240V |
| Output voltage | 5V |
| Power consumption (max) | 16.1W |
Security | |
| Firewall security | Yes |
| VLAN support | Yes |
Operating conditions | |
| Operating relative humidity | 5 - 95% |
| Operating temperature | -10 - 40 °C |
Control functions | |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
Weight and dimensions | |
| Weight | 519 g |
| Width | 141.8 mm |
| Depth | 127.6 mm |
| Height | 30 mm |
Network | |
| Ethernet LAN data transfer rates | 1000 Mbit/s, 100 Mbit/s, 10 Mbit/s |
| Bluetooth | Yes |
| Cable technology | 10/100/1000Base-T(X) |
Operation | |
| Processor family | ARM Cortex |
| Processor frequency | 1500MHz |
| Internal memory type | DDR4 |
| Processor model | Cortex-A53 |
| Processor manufacturer | ARM |
| Display type | LCM |
| SSD capacity | 512GB |
| Integrated processor | Yes |
| Internal memory | 3072 MB |
| Control display device | Yes |
| Number of installed processors | 1 |

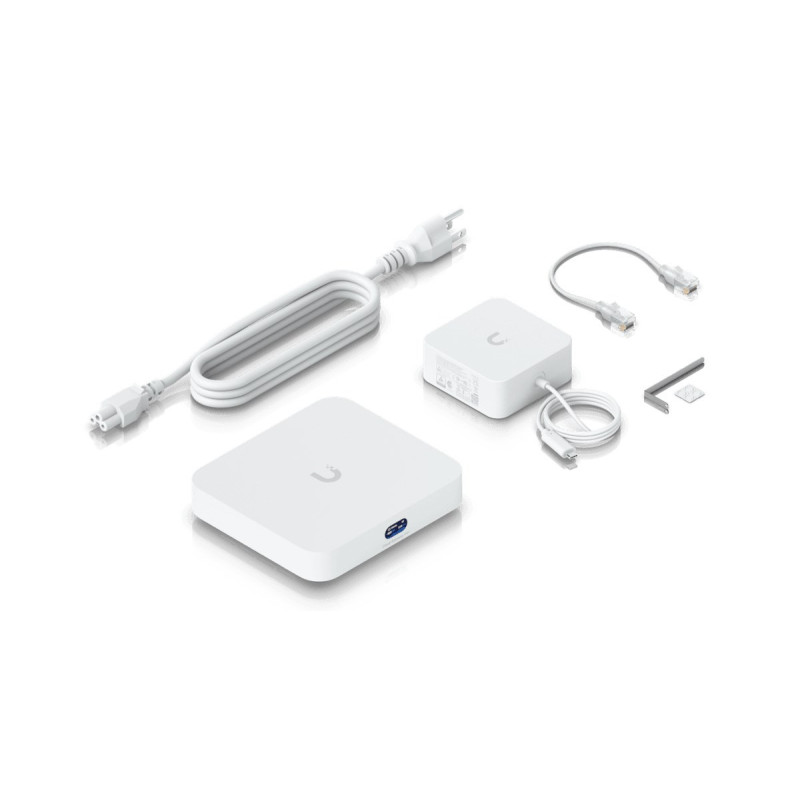

Package contents | |
| Cables included | LAN (RJ-45) |
| User manual | Yes |
| AC adapter included | Yes |
Protocols | |
| DHCP server | Yes |
Ports and interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| Height | 84 mm |
| Length | 409 mm |
| Weight | 1110 grams |
| Width | 223 mm |
