Outdoor CPE - wireless bridge, 5.8Ghz, 300Mbps, 3km

Wireless Bridge CPE for outdoor conditions, video transmission, 5.8GHz, 300Mbps, up to 3km operating range (without obstacles).
Features:

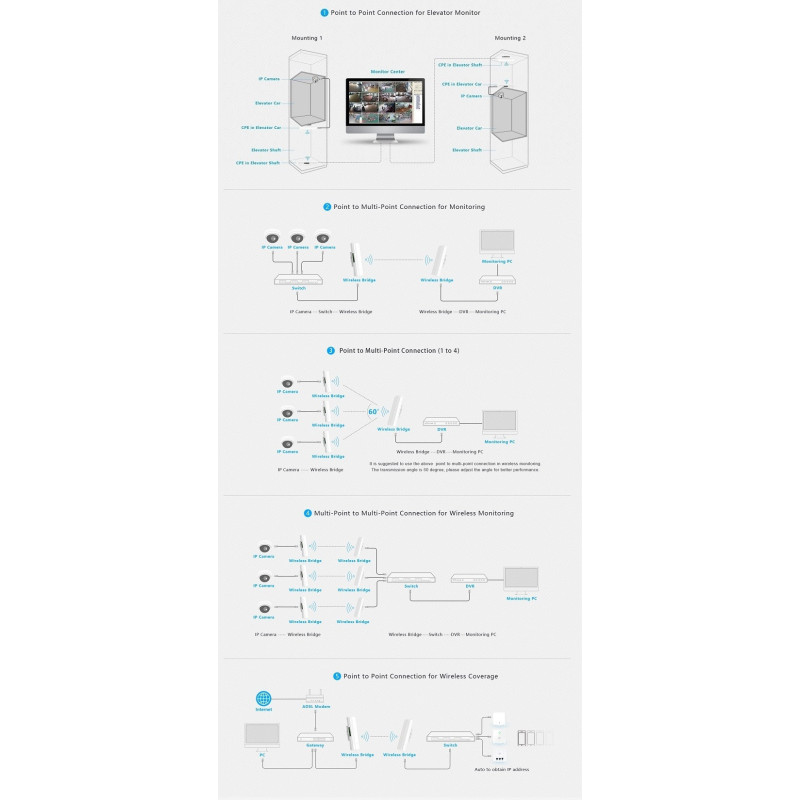

• Wireless Bridge is designed to create a long-range wireless network, ensuring a seamless, reliable network connection without wires, such as for IP cameras located far from the recording device.


• Recommended distance to 3km.


• Lightning protection 15KV ESD.


• Automatic selection of the distance between the antennas. The distance between the client and the base station is displayed in real time.


• 5G mode supports 5745~5825MHz (extended range: 4920~6100MHz).


• Supports flow control, effectively controlling the input and output flow of the base station and client.


• 802.1x authentication, effective user access control, ensuring access security.


• Supports client priority setting, better distributes each client, kai mode is "point-to-multipoint".


• Multiple channel (5MHz/ 10MHz/ 20MHz/ 40MHz) option, effectively improved anti-interference protection.


• Adapted to outdoor conditions, -30°C~+70°C, industrial design.

Technical data:

• Data transfer speed: 300Mb/s; 5.8GHz.


• Wireless standards: IEEE802.11A, IEEE802.11N.


• Operating frequency: 5745~5825MHz (extended range: 4920~6100MHz).


• Reception sensitivity: -74dBm@65Mbps, -96dBm@1Mbps.


• LAN ports: 1x LAN RJ45 + 1x LAN RJ45 PoE.


• Wireless direction angle: horizontal 40°, vertical 15°.


• Power supply: 48V PoE (0.5A).


• Energy consumption: lt;8W.


• Antenna: built-in 15dBi.


• Transmission power: 27dBm (max.).


• Network protocols: TCP/ UDP/ ARP/ ICMP/ DHCP/ HTTP/ NTP.


• Encryption: WEP/ WPA-PSK/ WPA2/ CCMP(AES)/ TKIP.


• Long-distance traffic bandwidth: up to 40Mbps@3km.


• Supported wireless communication channels: 5MHz/ 10MHz/ 20MHz/ 40MHz.


• Operating modes: access point / client / WDS AP / WDS client / WDS repeater.


• Work environment: -30°C~+70°C, 5-95%HR.


• Diameter of fastening clamps (in the set): 40mm~60mm.


• Size: 280x30x80mm.


• Weight: 0.45kg.


• Color: white.
