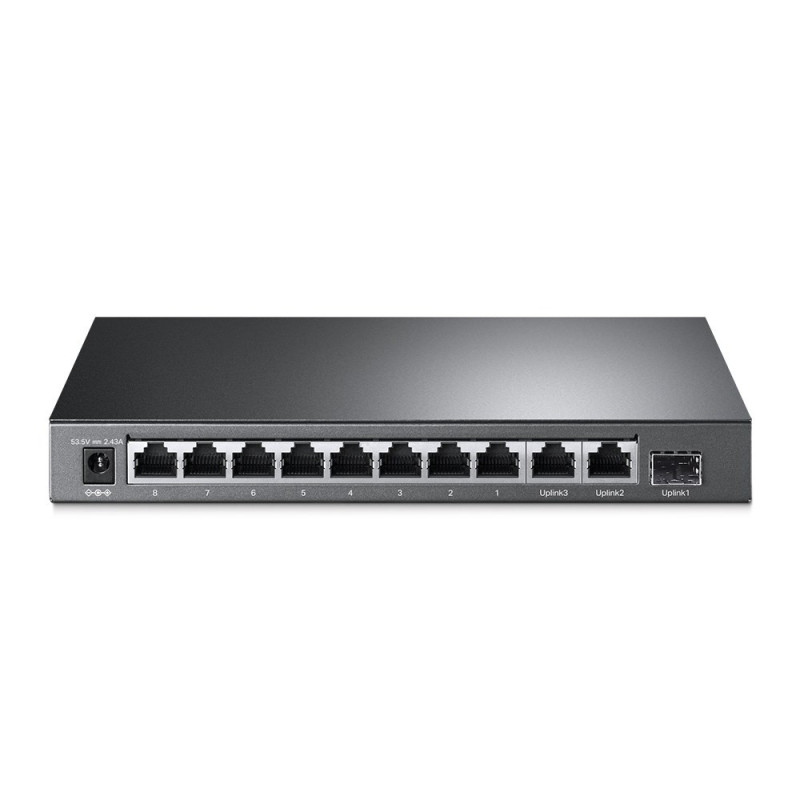

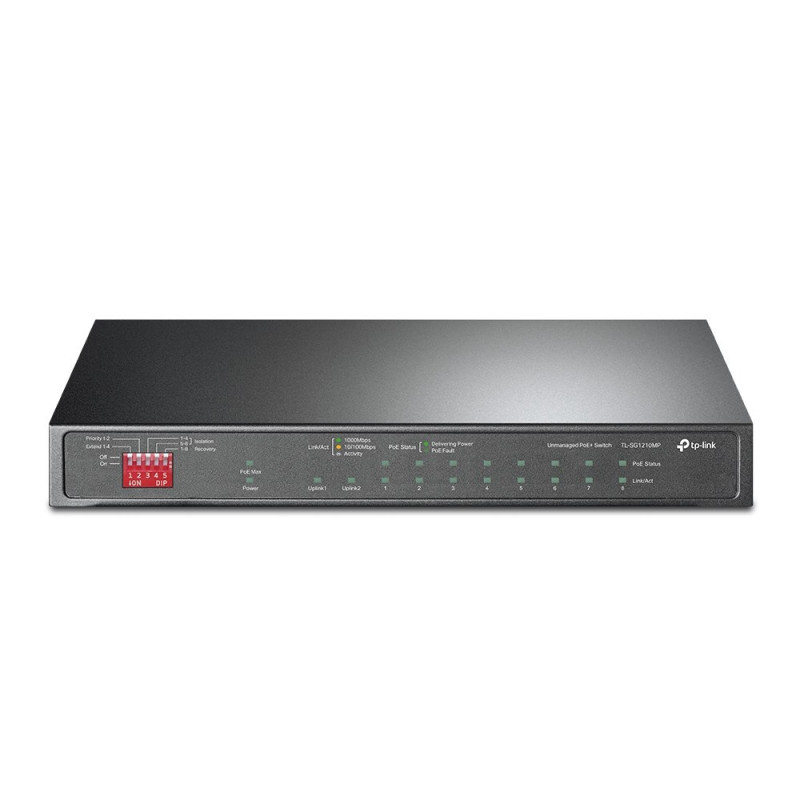

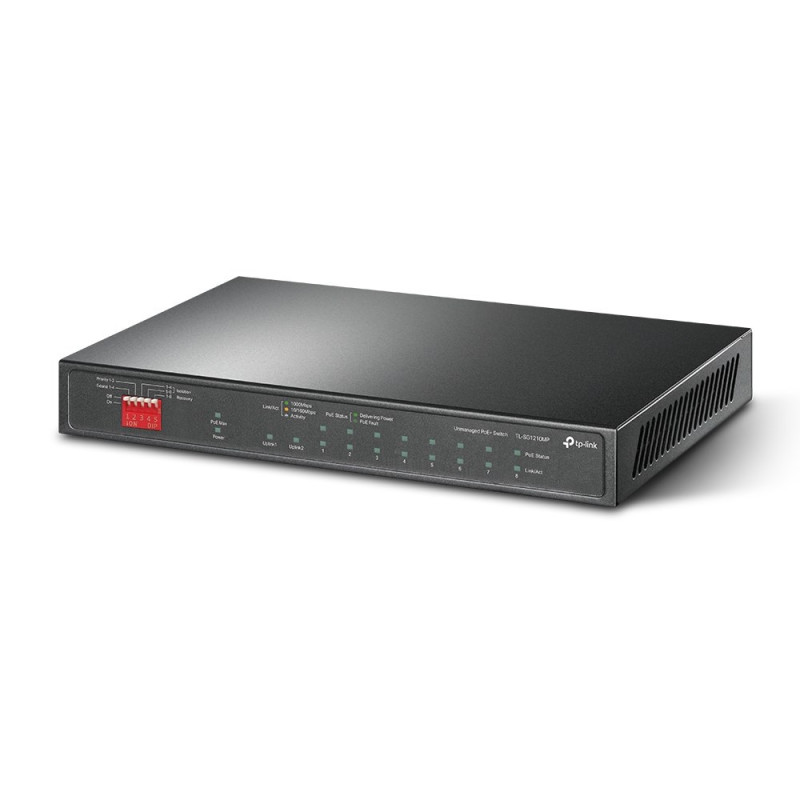

Network Switch - TP-Link TL-SG1210MP Unmanaged Gigabit 9 PoE Ports 123W Black
Product reference:
14-6935364052683
Unmanaged Gigabit Ethernet switch with 9 RJ-45 ports and 1 combo SFP port. Supports Power over Ethernet (PoE) with a total power of 123 W and 30 W per port.
Network Switch - TP-Link TL-SG1210MP Unmanaged Gigabit 9 PoE Ports 123W Black
Product reference:
14-6935364052683
Unmanaged Gigabit Ethernet switch with 9 RJ-45 ports and 1 combo SFP port. Supports Power over Ethernet (PoE) with a total power of 123 W and 30 W per port.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
TP-Link TL-SG1210MP Unmanaged Gigabit Ethernet Switch Power over Ethernet PoE Black
Unmanaged Gigabit Ethernet switch with 9 RJ-45 ports and 1 combo SFP port. Supports Power over Ethernet (PoE) with a total budget of 123 W and 30 W per port.
- Unmanaged Gigabit Ethernet switch with 9 RJ-45 ports for fast connectivity.
- Power over Ethernet (PoE) support with a total budget of 123 W, allowing you to easily power devices.
- Compact fanless design ensures quiet operation in a variety of environments.
- Durable construction with LED indicators that allow you to easily monitor network status.
Design | |
|---|---|
| Rack mounting | No |
| Product color | Black |
| LED indicators | Yes |
Power | |
| Maximum power consumption | 141.4 W |
| Voltage | 53.5V |
| Power source | DC |
| Voltage | 2.43 A |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
| Operating relative humidity (HH) | 10 - 90% |
| Storage temperature (TT) | -40 - 70 °C |
| Heat dissipation | 482.17 BTU/h |
| Storage relative humidity (HH) | 5 - 90% |
Control functions | |
| Switch type | Uncontrollable |
Weight and dimensions | |
| Height | 26 mm |
| Width | 209 mm |
| Depth | 126 mm |
Network | |
| MAC address automatic learning | Yes |
| Supported cable types | Cat5, Cat5e, Cat3, Cat4 |
| MAC automatic aging of addresses | Yes |
| Auto MDI/MDI-X | Yes |
| Copper Ethernet cable technology | 100BASE-TX, 10BASE-T |
| Auto-tuning | Yes |
| Data flow control support | Yes |
| Network standards | IEEE 802.3af, IEEE 802.3z, IEEE 802.3i, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
Operation | |
| Without fan | Yes |
Packaging details | |
| Package weight | 1.41 kg |
| Package width | 240mm |
| Package height | 70 mm |
| Package depth | 315 mm |
Ports and interfaces | |
| Number of combined SFP ports | 1 |
| Main types of RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Number of main RJ-45 Ethernet ports | 9 |
Data transfer | |
| MAC address table | 4000 entries |
| Packet buffer memory | 14.88 MB |
| Connection capacity | 20 Gbps |
| Store-and-forward | Yes |
Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 123W |
| Power over Ethernet (PoE) power for each port | 30W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) port count | 8 |
Safety | |
| Warnings | The product is not suitable for disposal in the normal waste container. Take used electronic equipment to a recycling center in accordance with local regulations. Do not open the casing or attempt to repair it yourself. Ensure that the device is properly ventilated during operation. |
Certificates | |
| Height | 100mm |
| Length | 280 mm |
| Weight | 1800g |
| Width | 350mm |
